Low Headroom Bridge Crane Single Grider Design
1 Ton, 3 Ton, 5 Ton 10 Ton& 16 Ton Low Headroom Crane lower Your Cost

How to select a single girder eot crane for low workshops?  A cost-effective low headroom bridge crane with lifting hoist trolley at aside of main bridge girder will be an optimal material handling solution for you.

With low headroom crane design, the single girder bridge cranes are equipped with low profile hoists and hoist trolley which is installed and placed on one side of the main bridge girder to increasethehook height,lower the requirement of building height, and reduce production cost.Naturally, the low headroomcrane are ideal overhead crane solutions for low clearance applications and are the best choice for users or clientswho need max lifting height in height limited workshops, warehouses, and other applications, etc.

Min parameters of low headroom bridge crane

The LDP low headroom cranes is a type of single girder eot crane which has the lifting hoists mounted on one side of main bridge girder to increase hook height in workshops with limited overhead clearance which is a very cost-effective bridge crane solution. The maincrane specificationsof low profile craneis shown in the followingfor your reference.

Main specification of low headroom crane

• Product type: LDP low headroom bridge crane with single girder crane design
• Lifting capacityof low headroom bridge crane: 1ton - 16 ton
• Span lengthof low headroom bridge crane: 7.5~22.5m
• Working classof low headroom bridge crane:A3, A4
• Ambient Temperatureof low headroom overhead crane:-25~40℃
• Control methods: Pendant control or remote control cabin control,

Low headroom bridge cranes with process crane designs are available. Free low headroom crane design and bridge crane drawing are available for honest clients and customer.

Low headroom bridge crane with electric wire rope hoists

Low headroom bridge crane with fem wire rope hoists

Low headroom bridge crane with European wire rope hoists

Low headroom bridge crane with Chinese wire rope hoists

Structure & components of bridge low headroom crane

The low headroom bridge crane is developedon the structure of general use single girder eot crane.With low headroom crane design, the single girder bridge cranes are equipped with low profile hoists and hoist trolley which is installed and placed on one side of the main bridge girder to increasethehook height.

Low headroom bridge crane with wire rope hoists

Low headroom bridge crane with wire rope hoist drawing

The LDP types low headroom bridge crane is main consisted of the parts and components including the main girder, end carriages, lifting crane hoists and hoist trolley, electrical system, safety devices, crane control and other devices, etc.

End carriage of low headroom bridge crane

Crane control of low headroom bridge crane

Main girder of low headroom bridge crane

Wire rope hoist of single girder eot crane

Features of LDP low headroom single girder bridge crane

With special low headroom design, the single girder bridge cranes have the following features:

• The crane girder is of welded girder constructionwithlower dead weight, small wheel load, but offering high rigidity verticallyand horizontally,

• Hoisting system of low headroom crane : CD/MD single speed /double speed wire rope hoists, Customization hoisting systems are available.
• Using single speed soft start cage motor for traveling movement.
• Non-standard low clearance crane design or customized overhead crane design is available.
• Crane span length and lifting height can be customized based on your request.

Advantages of low headroom overhead crane

Generally, the single girder low headroom cranes are widely used due to its advantages oftrolley tread, smooth running, tight structure, strong rigidity, convenientoperation, low noise, high safety and reliability and beautiful exterior,and wide application.

The main advantages of the low headroom crane are as the following :

• Low clearance , low profile, larger operative space for crane hook
• Small dimension, & Light deadweight, economical crane system solution , cost-effective overhead crane price.
• With wide tread design and strong rigidity, the headroom cranetrolley can travelsmoothlywith high safety.
• Flexiblecraneoperation, high efficiency with high reliability and safety.

Applications of low headroom overhead cranes

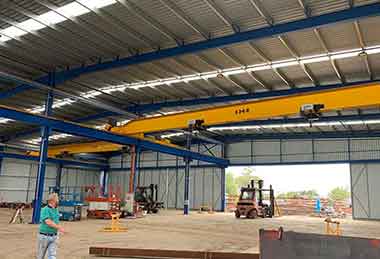

• The single girder low headroom crane is widely used in low headroom workshops or workshops has limited working space but required with larger lifting hook height.
• The low headroom overhead crane can be used for the planning of new workshops to lower the construction cost of the facility.
• The low headroom crane can be used for general loads handling in workshops and factories of production, assembling, transferring& storing in general manufacturing, mines, agriculture, electric power, construction, transportation, dock and warehouse,and others.

Types of low headroom overhead cranes for sale

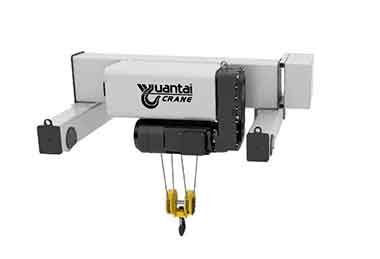

FEM / DIN Top running Single Girder Overhead Crane -European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service. More on European style single beam low headroom hoist crane .

Economical low headroom hoist crane: with low headroom hoist and low profile crane design, the low headroom overhead crane are widely used for factory or workshops with limited application space. Check Seris of low headroom hoists for overhead cranes. More on economical chinese classical type of low headroom electric hoist single beam overhead crane.

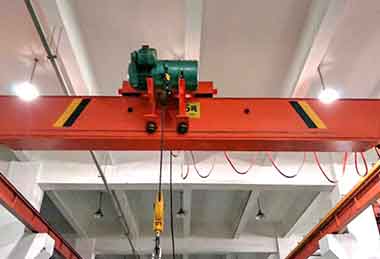

LDP Low headroom workshop single girder overhead travelling cranes-2 ton, 3 ton 5ton, 10 ton 16 ton single girder overhead travelling cranes with low headroom crane design, low profile hoist for low clearance workshop lifting. Contact us to get the special designed low headroom overhead crane with hoist trolley placed on the aside of the main girder, economical and higher lifting height.

European style Single & Double Girder Low Headroom Electric Wire Rope Hoist- European style electric wire rope host for sale. FEM single girder hoist 1-32 ton & double girder hoist 1-80 ton. Check electric hoist specifications.

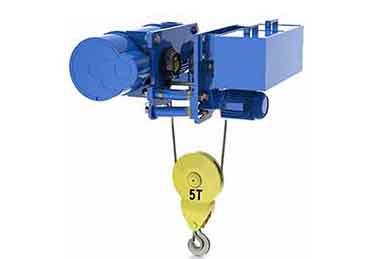

Econimical single girder low headroom wire rope hoist, cost-effective crane hoist design- Electric wire rope hoist- low profile, low clearance, low headroom hoist design- for single girder crane, H beam & I beam, saving electric hoist crane costs.

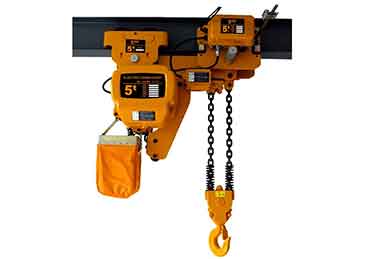

Low headroom single girder electric chain hoist for low ceiling heights & limited space-Electric chain hoists - hook mounted & hook suspension hoist type - for 0.5 ton -50 ton vertical lifting , Single & 3 phase chain block & chain hoist designs for selection.

Get your custom design low headroom crane

For get the customized low profile hoist and crane, the following is needed for specific design and quotation:

• The dimensions of your workshop. If possible, please send us the drawing or pictures of your workshop if possible.
• The capacity of the crane or the weight of the loads?
• Your special requirements of the lifting overhead crane?
• Power supply?
• What is the voltage your prefered?
