Your Trusted Overhead Workstation Crane Manufacturer & Supplier

Workstation Jib Crane System - Wall Jib Crane & Floor jib Crane

A jib crane is a crane that is designed to be mounted on the facility's wall or floor. On one end, a cantilevered bridge is supported by a vertical beam. The bridge can spin up to 180 degrees or 360 degrees while the beam is stationary, depending on the crane design. A horizontal boom supports the hoisting device. These components work together to move the payload up, down, and throughout the facility.

Freestanding workstation jib cranes

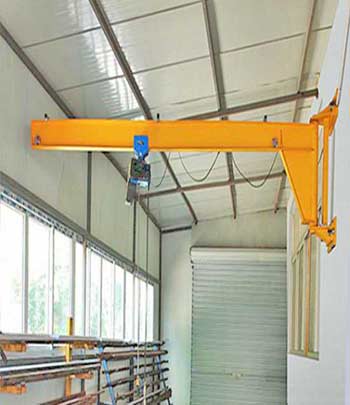

Wall cantilever freestanding workstation cranes

Wall mounted workstation jib cranes

Wall travelling workstation jib cranes

Portable workstation jib crane

Jib cranes for workstations can be erected in a variety of ways. Some are, for example, attached to a column, which could be a freestanding mast or a structural component within the facility. Others are linked to a facility wall or a runway that allows for lateral mobility.

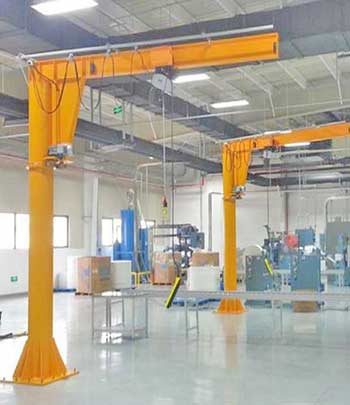

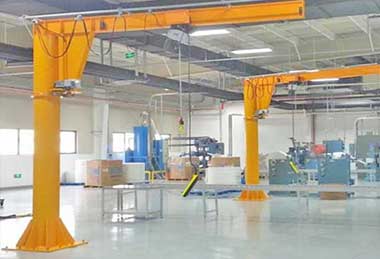

Freestanding workstation jib cranes

The freestanding workstation jib cranes are designed to support tool balancers, air balancers, vacuum lifters, and hoists in circular regions. This sort of freestanding freestanding workstation crane can rotate 360 degrees when mounted on the floor.

Swing crane type: floor mounted jib crane or free standing jib crane

Lifting capacity of slewing jib：0.5-16 ton
Cantilever design: full cantilever, drop cantilever, i beam, box girder, enclosed track beam cantilever
Rotation type of swing jib cantilever: Manual or motor driven
Degree of rotating jib crane : 180 degree, 270 degree & 360 degree
Lifting height of slewing jib：3-8m
Maximum rotating radius of slewing jib crane : 8 m
Optional jib hoists: electric , manual, chain hoist or wire rope hoist
Working class of slewing jib：A3 A4
Ambient temperature of slewing jib: -20-40℃
Customized free standing jib crane with specific crane parameters and specifications are available.

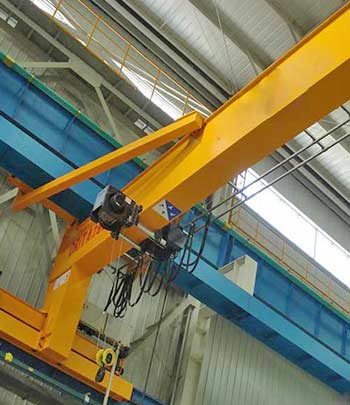

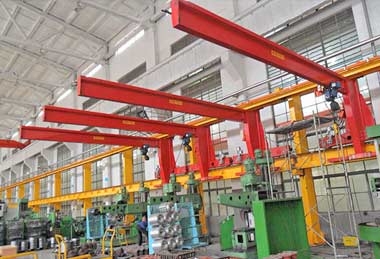

Wall travelling workstation cranes

Wall cantilever jib cranes are intended to service circular areas and are compatible with tool balancers, air balancers, vacuum lifters, and electric hoists. When mounted on a column or a wall, wall cantilever jig cranes can rotate up to 200 degrees. This type of freestanding workstation crane has capacities ranging from 100 lbs. to 1000 lbs. and spans up to 16'.

Main parameters of wall travelling jib cranes:

Crane type: BB types wall travelling jib crane
Lifting capacity of wall travelling jib crane: 0.5~10t
Lifting height of wall travelling jib crane: 3m~10m
Working class of wall travelling jib crane: A3
Ambient temperature of wall travelling jib crane: -25~40℃
Application requirements: The supporting structure or the building's walls can provide an anchor point and counterbalance weight.
Advantage: A wall travelling workstation crane can travel closer to the ceiling than other types of wall travelling jib cranes.
A customized wall travelling workstation jib crane is available.

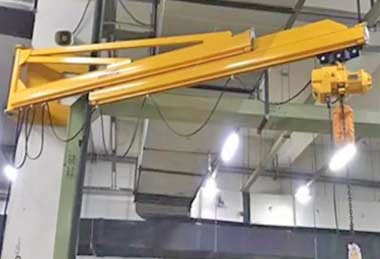

Wall mounted workstation cranes

Lightweight, high strength extruded aluminum enclosed track is one of the features of the tie rod freestanding workstation crane. This ground-breaking track reduces the rotational dead weight of the boom by 56% to 68 %, making the jib up to 40% easier to rotate than comparable I-Beam Jib Cranes. The tie rod design reduces deflection and allows for more precise load positioning than other jib cranes.

General parameters of wall bracket jib crane:

Jib crane type :BX wall mounted jib crane with i beam or tie rod cantilever
Lifting capacity of wall mounted jib crane:0.25 ton ~7 ton
Span length of wall mounted jib crane:3~6m
Lifting height of wall mounted jib crane:0. 5m-20m
Rotation of wall mounted jib crane:180, 220 degree
Working class of wall mounted jib crane:A3
Ambient temperature of wall mounted jib crane:-25~40℃
Crane control of wall jib crane : Ground operating control or remote crane control

Fully customized wall bracket jib cranes solutions are available ahead standard configurations.Contact us to free crane drawing of the wall jib crane by leaving a message below.

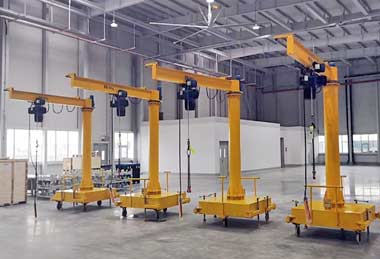

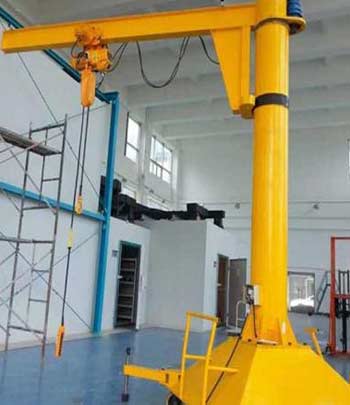

Portable jib workstation crane

portable workstation jib cranes are a new series of jib cranes with self-supportive jib designs that are mounted on wheels and rollers for wide material handling maneuverability and adaptability. The portable workstation jib crane on wheels or rolling rollers is a small and light duty movable jib crane with small and medium-speed lifting equipment, unique jib structure design, safe and reliable operation, time and energy saving, high efficiency and flexibility, and cost-effective.

Main parameters of portable workstation jib crane

Jib crane types: portable workstation jib cranes on wheels, equipped with manual hoist or electric hoists
Rated load of portable workstation jib crane : 0.08t, 0.125, 0.25t, 0.5t, 1 ton
Lifting height of portable workstation jib crane : 1.5m, 2m, 3m
Turning radius of portable workstation jib crane : 2m, 3m
Rotation angle of portable workstation jib crane : 360°
Rotary way of portable workstation jib crane : electric or manual
Lifting speed of portable workstation jib crane : 8m/min or 8/0.8m/min

Workstation cranes can be used to lift, position, and move large, heavy loads and objects throughout a facility in industries such as automotive, chemicals, commercial printing, manufacturing, newspaper, paper, steel, warehousing and distribution, and so on. Contact us to get your customized workstation jib crane design!
