Double Leg Coil lifter for Horizontal Coils Handling
Narrow Aisle Coil Lifer for Steel Coil Handling Overhead Cranes & Gantry Cranes

Double Leg Coil Lifter is one of the most economical coil lifter with the two-sided legs , which can be used for limited space horizontal steel coil handling, therefore, it also can be called the narrow aisle coil lifter.  The double leg narrow aisle coil lifter is designed to handle and position steel coils close together. The steel coils lifting devices can be designed with adjustable beam, allow them to handle a variety of coil widths.

Integral lifting bail saves headroom and minimizes inspection normally associated with welded lifting bails. Upper beam and down legs are made of high strength special alloy steel reducing the physical size of the lifter.

Overview of double leg coil lifer for horizontal coil handling

• Main purpose: horizontal lifting of steel coils
• Load range: 5-40 tons
• Safety factor: 3 times
• Made of low carbon alloy steel
• Customized horizontal coil lifer is available designed based on your coil dimensions and your lifting requirements

Main structures of double leg steel coil lifter

The main structure of double leg coil lifter for horizontal coil handling.

Main load-bearing hook beam - The main load-bearing beam is the main load-bearing combination part. It has a safety factor of 4 and has a suspension ring on the upper part, which can be directly connected to the crane hook. Marked notches and built-in parking stand on upper beam allows for easy adjustment of down legs for specific coil widths. The edges of the down legs have a radius for easy maneuvering of legs into the inside of the coil. Lifting bail has a radius on the upper portion to prevent damage to the crane hook.

The rigging - used to connect the load-bearing beam and the short arm hooks, which are placed on the both end of the bearing beams.

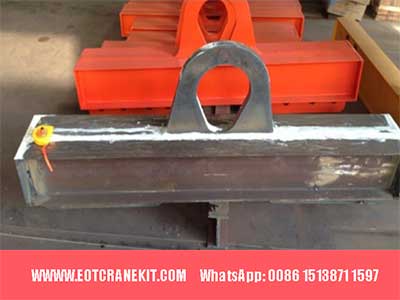

Lifting beam of the double leg coil lifter

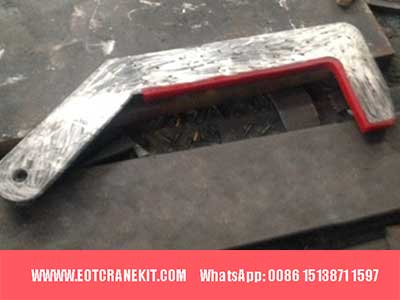

7 shaped hook lifters for two-sided coil lifter

Classification of double leg coil lifters

Based on the structures of the hanging beams, the double leg coil lifters can be grouped into

There are two types of hanging beams,

• one is fixed beam with hooks, called fixed hanging beam coil lifter.
• the other is adjustable beam with hooks, called adjustable hanging beams coil lifter.

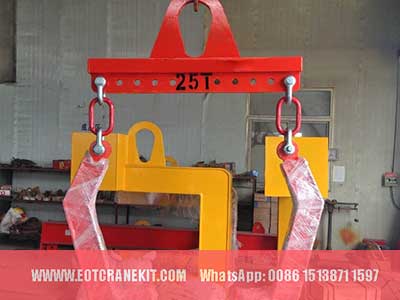

Adjusting beam double leg coil lifter 25 ton  for horizontal eye coil handling

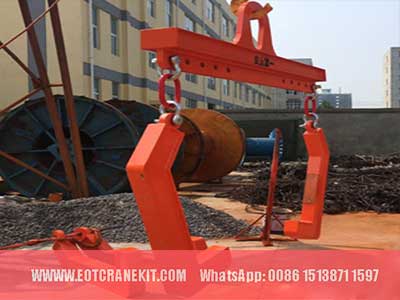

Two-sided coil lifters for horizonal eye steel coil handling

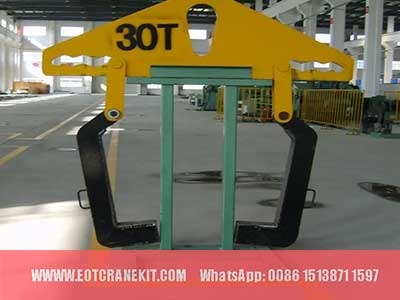

30 ton coil lifter with adjusting beam design for coil handling crane

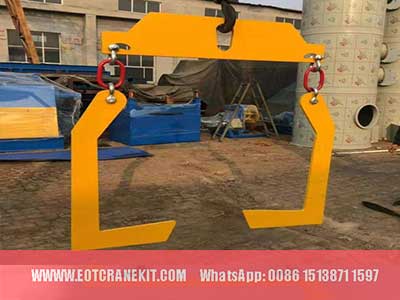

Steel coil handling cranes for steel coil handling

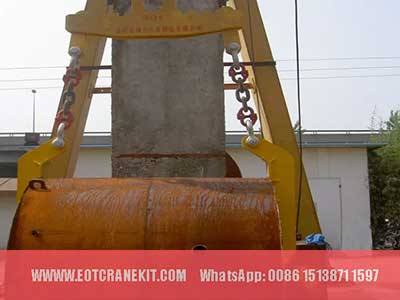

Horizontal eye steel coil lifters

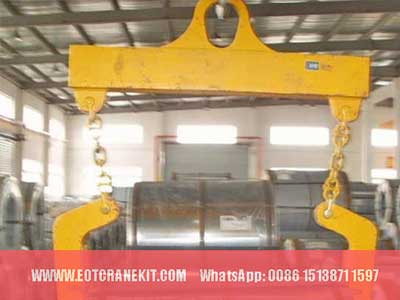

Economical two sided coil handling crane

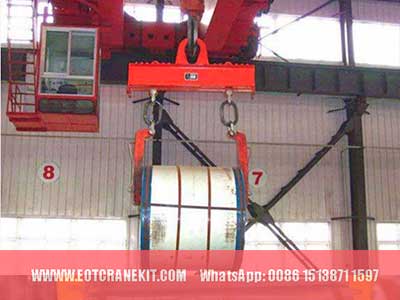

Double girder overhead crane with double hook coil lifer

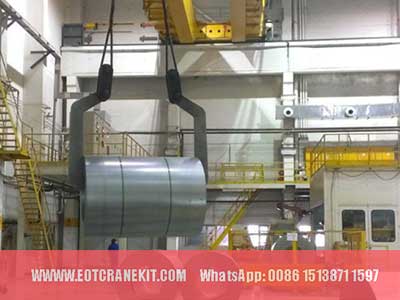

Flexible coil lifter with double hooks for horizontal lifters

Advantages of double leg coil lifters

• Most economical of the two-sided coil lifters.
• Two-sided coil lifter requires less aisle space.
• Lifting hook width adjustment pin is easy to use.
• Hooks manufactured from high tensile alloy steel.
• Coil width adjustment indicators for easy hook placement.

Uses and applications of double leg coil lifers

It is used for handling steel coils in horizontal coil position or horizontal eye steel coils. Being connected to the coiling handling overhead cranes and gantry cranes, the coil lifter can be used to handle the steel coils.

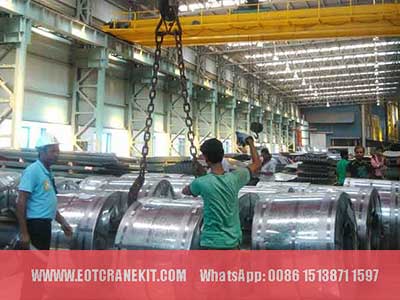

Overhead crane with double leg coil handling

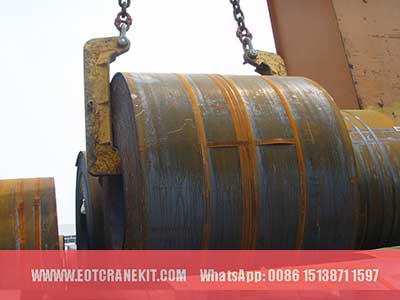

Gantry cranes with two-sided coil lifter for outdoor horizontal eye stel coil handling

Features of double leg coil lifter

• The position of the two narrow arm hook can be adjusted freely according to the width of the steel coil, and the working space is small.
• The production cost of double leg coil lifter is low, which can are widely used for applications where steel coil lifting at low frequently. And also, during steel coil handling, the coil lifter   requires the cooperation of ground personnel.
• This style of two-sided coil lifter is designed to economically handle coils with the eye horizontal.
• The manual adjusting legs easily adjust to the I.D.( Inner Diameters ) of the coil and require less aisle space for operation.
• Supplied with standard plate style legs with rounded corners to minimize coil damage. (Round bar legs can be supplied as an option).
• Engineered and manufactured based on your working conditions and lifting requirements.
• Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
• Options: Higher capacities, Additional lengths, Round bar legs, Protective padding, Parking stands.

Usage and precautions and double leg coil lifters

• Hanging the coil lifter on the hook of the overhead cranes and gantry cranes
• Operate the crane to lift the coil lifter up to certain height, and then to check and make sure the beam of lifter is balanced  and   make sure the lifting chain is not knotted.
• Move the overhead crane over the loads or coils that needs to be handled
• Load the coil by double leg lifter and then move the loads to the designated area
• Lower the steel coils and unload.

Note: During testing, the bearing beam of the lifters should be kept in balance, which defection angle less than 1°. When the coil lifers is balanced, the operation can be conducted.

Maintenance of double leg coil lifter

• When the steel coil lifer spreader finished operation, it  must be placed on a special shelf, stored in a ventilated, dry and clean factory building, and kept by a special person.
• The surface of the  double leg coil lifting spreader should always be protected against rust, and it is not allowed to store in acid, alkali, salt, chemical gas and humid environment.
• It is forbidden to store the steel coil spreader in the high temperature area.
• As fir the rotating parts of lifting spreader, it should be cleaned and lubricated regularly to prevent dry friction and jamming.

10 Ton Overhead Crane with Double Leg Coil Lifter

The double girder overhead crane and gantry crane are both types of cranes that are commonly used for coil handling.

The double girder overhead crane has two girders that span the width of the working area and are supported by two end trucks. It is designed to handle heavy loads and is commonly used in the steel and metalworking industries. The crane is typically operated from a control cabin or pendant, which allows the operator to move the crane and lift the coil safely and efficiently.

The gantry crane is similar to an overhead crane, but it is supported by legs that run along the ground rather than being suspended from a ceiling. It is commonly used in outdoor applications, such as shipping yards and construction sites. The gantry crane can be equipped with a variety of lifting devices, including spreader bars and C-hooks, to handle different types of coils.

Both the double girder overhead crane and gantry crane for coil handling are designed to increase productivity and safety by reducing the risk of damage to the coil and injury to workers. They are essential tools for anyone working with steel coils and are an excellent investment for businesses looking to improve their efficiency and safety.
