Lifting Tongs and Crane Tongs for Overhead Steel Mill Cranes

Lifting tongs for overhead travelling cranes are designed to improve your material handling efficiency and ensure your safety. Various types of crane tongs are available for diverse industrial application requirements, such as slab tong, billet tong, ingot tong , plate tong , block tong,skidding tongs, timber tongs, log tongs, log lifting tongs, rail tongs, etc.

For special loads handling, well customized industrial cranes with processed below-the-hook devices will provide the the optimal overhead travelling crane solutions for your specific applications. Our industrial hoist and cranes not only provide you the lifting equipment but also delivery complete crane services with values.

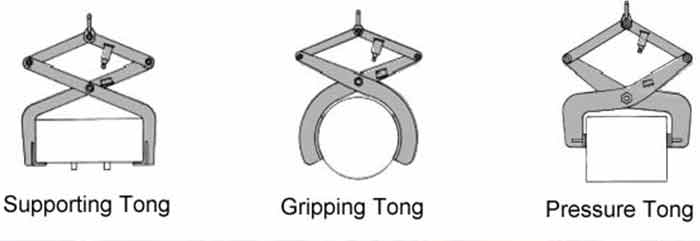

Basic configurations of lifting tongs and crane tongs

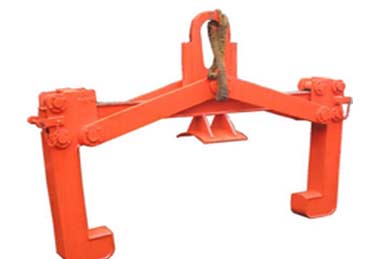

• Supporting lifting tongs- Supporting lifting tongs are used for handling single object at a time with adequate clearance underneath and lifting tong feet to hold and support loads such as as boxes, crates, bins, etc., to lift and transport the object horizontally.

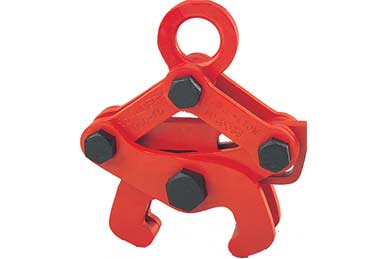

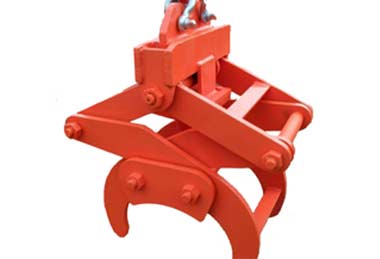

• Gripping tongs for your crane systems - Gripping tongs are a type of lifting tongs for loads such as bars, rolls, tubes, pipes and other round or cylindrical objects. The overhead crane tong embraces the object with two arms extending beyond and below the center of the object for lifting and transportation. The diameter of the loaded object may vary by approximately 25%, but there is no much limitations in terms of object length. Details, please contact us.
• Pressure lifting tongs -Pressure lifting tongs are adopted to grip the vertical sides of objects such as, slabs, bales, boxes, and billets, etc Tong pads on the pressure lifting tongs are designed to maintain a safe hold during operation by enhancing surface friction or penetration. The tong pads are optional with rubber, belting, pins, hardened points, and serrated bits, etc.

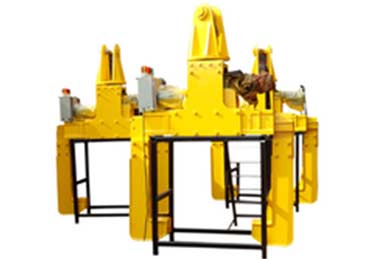

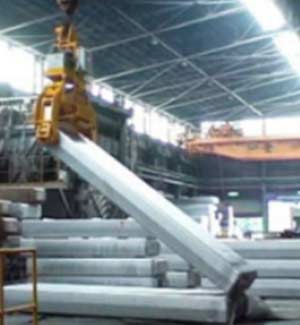

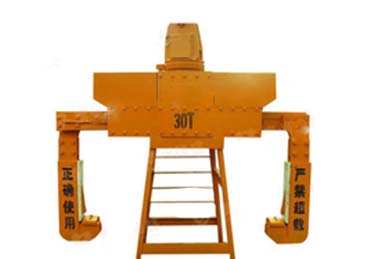

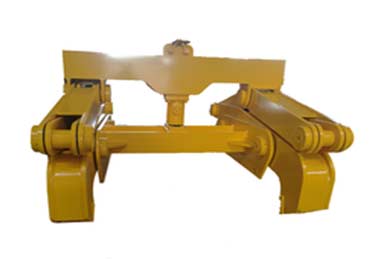

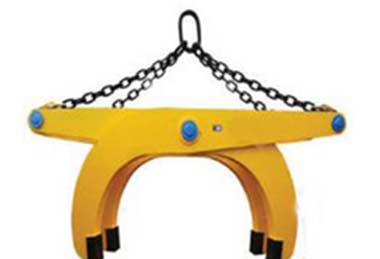

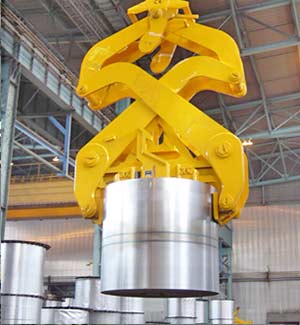

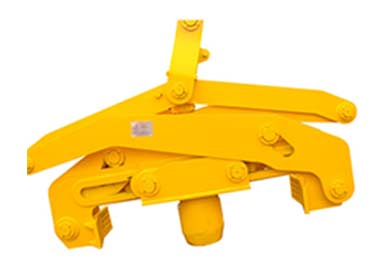

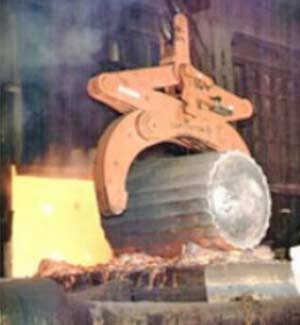

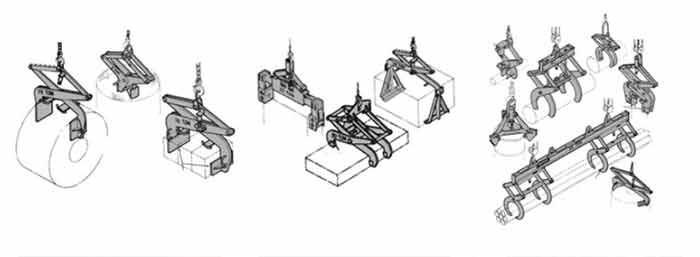

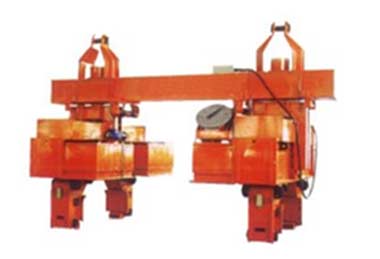

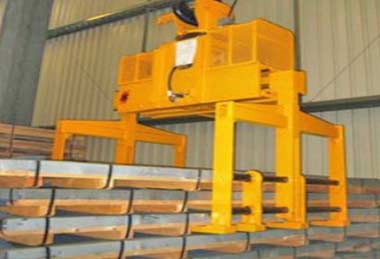

Lifting tongs and crane tongs for overhead travelling cranes

Various types of lifting Tongs for different types of loads handling

Lifting tongs for steel coil handling- horizontal coil tongs, vertical coil Tongs & tilt coil tongs

Crane lifting tongs for handling steel coils can be grouped in horizontal coil tong, vertical coil tong and tilt coil tong.
The horizontal coil lifting tongs is designed for handling horizontal steel coils of different specifications in the hot rolling mill and cold rolling mills with capacity from 8 tons to 50 tons. With rotary design, the jaws of lifting tongs can be turned over 90°mechanically and electrically, with an electrical detection device or a polyurethane protection device.

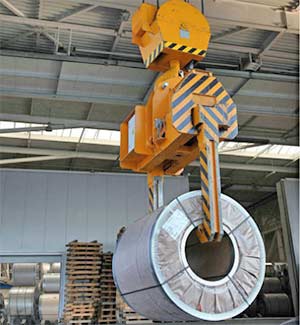

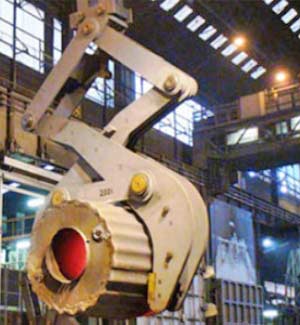

Horizontal coil lifting tong

Vertical coil lifting tongs

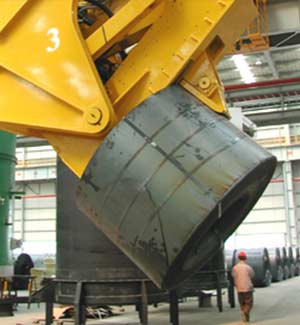

Tilt coil lifting tongs

Coil tong, under-hook-devices for overhead travelling cranes

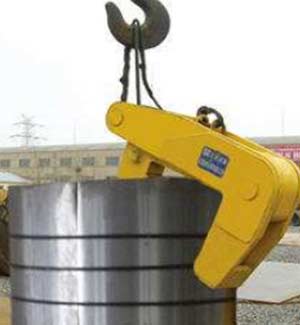

Vertical coil tongs is adopted for vertical steel coils loading and unloading in the cover furnace area and any other applications where vertical coil handling required with capacity from 8 tons to 50 tons with the features of reasonable structure, high safety and reliability.

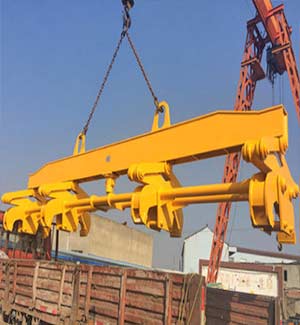

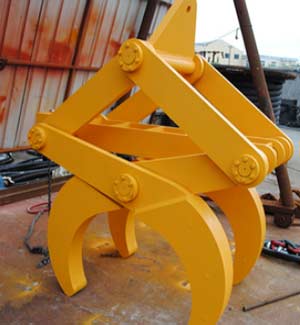

Gripping tongs for handling round steels, bars, rolls, tubes & pipes

Gripping tongs are a type of lifting tongs for loads such as bars, rolls, tubes, pipes and other round or cylindrical . Customized gripping tong overhead cranes are available for various cylindrical or round objects handling with diameter variation around 25%. Contact us for more information.

Gripping tongs for steel mill cranes

Gripping tongs for steel mill cranes

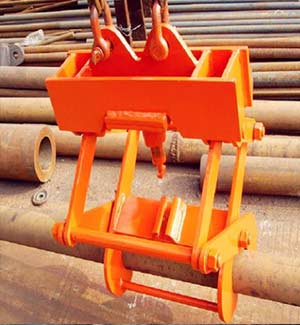

Gripping tong for pipe handling

Gripping tongs

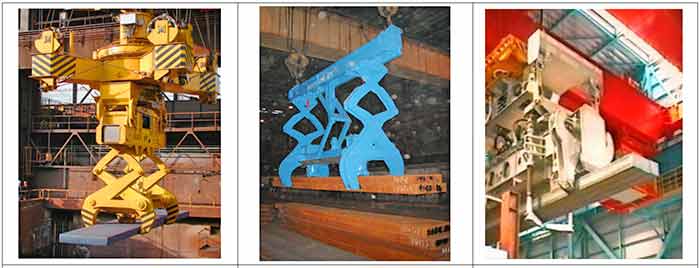

Lifting tong for slab handling, slab tongs

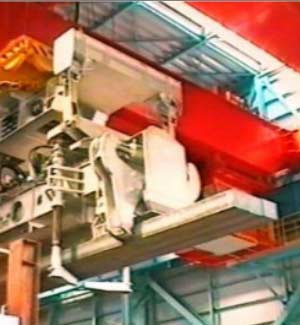

For slab handling, there are types of crane tongs, such as automatic slab lifting tongs, hoist slab lifting tongs, drag-line slab lifting tongs, motorized slab lifting tong and hydraulic slab lifting tongs. For the harsh steel mill application, the slab tongs are with processed and robust designs to meet the requirement of the heavy duty steel mill cranes.

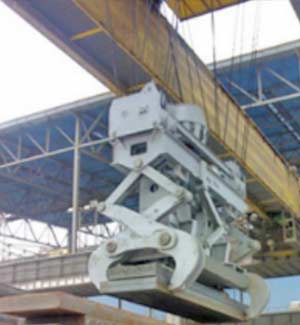

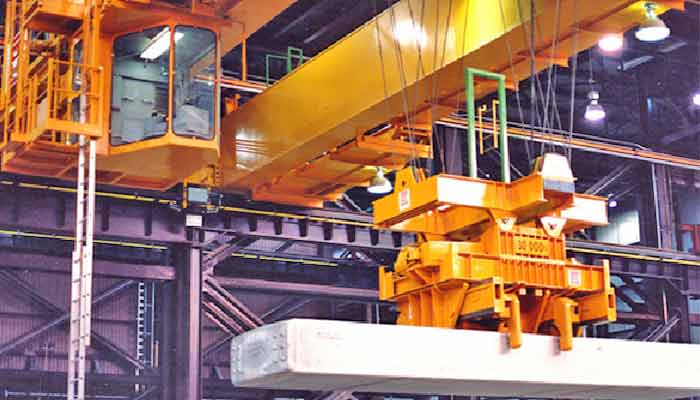

Automatic slab tongs for bridge cranes

Crane tongs for slab handling crane

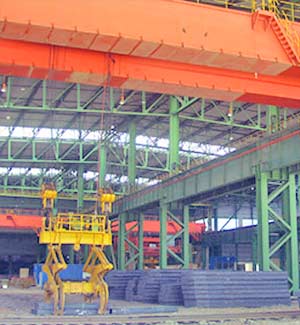

Slab tongs for overhead gantry cranes

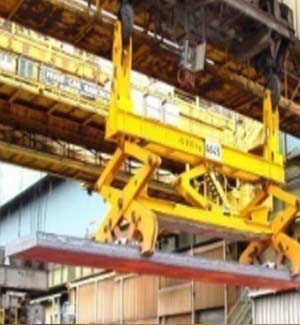

Slab tongs for overhead travelling bridge cranes

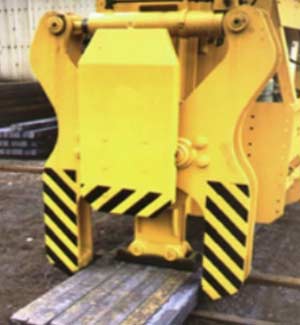

Lifting tongs for steel billet handling, billet tongs

For steel billet handling, the Hydraulic billets tongs and automatic billets tongs are widely used for single billet or several billets handling with high safety and efficiency.

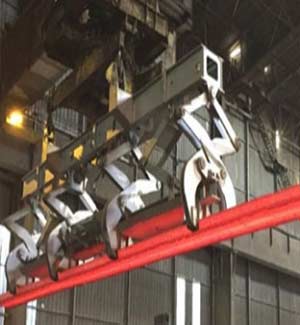

Hydraulic Billet Tongs

Hydraulic Billet Tongs

Automatic billet tongs

Automatic billet tongs

Lifting tongs for steel & block & ingot handling , block tongs and ingot tong

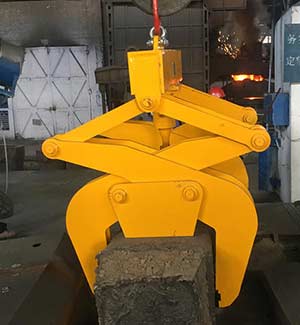

For block handling, the Block Tong are widely adopted for the removal of aluminum ingots or steel blocks from their casting molds and then stacking them as required.

Aluminium block tong

Aluminium block tong

Block lifting tongs

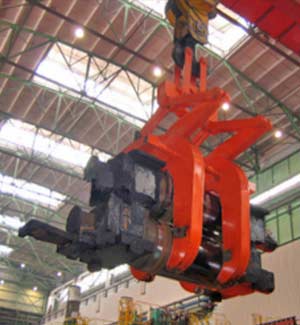

Crane tongs for lifting cylinder roll, roll tong

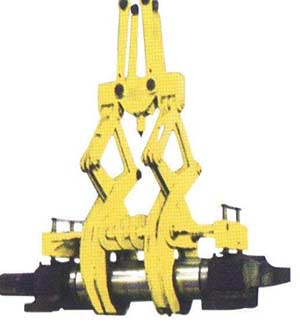

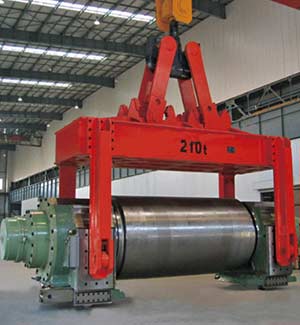

For cylinder roll handling, the overhead travelling cranes can adopt the automatic cylinder roll tong and motorized cylinder roll tongs for lifting single or double rolls.. The automatic lifting tongs can grip the rolls with two automatic lifting arms and the motorized cylinder roll tong are able to grip the rolls by independently powered two pairs of lifting arms grip either chock or at the shaft end.

Mechanical cylinder roll tong

Cylinder Roll Tong

Roll lifting tongs

Sheet lifter multipurpose lifting tongs

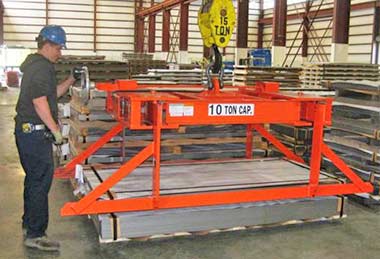

Various types of sheet lifting tongs are available for handling single or multiple sheet bundles. The multipurpose sheet lifting tong also can be used for various dimensions sheets, plates and other loads handling and stacking horizontally. Tailored sheet lifting tong are designed and manufactured based on your specific requirements to improve your lifting efficiency and safety.

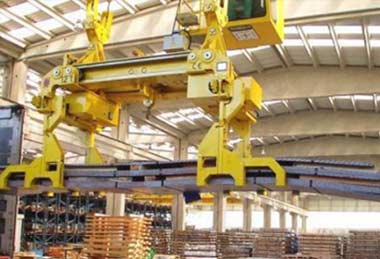

Multiple purpose lifting tong

Multiple purpose lifting tong

Crane tong for steel steel lifting

Steel lifter for bundle of sheets handling

Lifting tongs for various industries

• The beam lifting tongs are mainly adopted in industries for handling heavy loads,such as, steel beams, etc.
• Board lifting tong are suitable for moving and lifting non-metal objects such as plasterboard, stone, medium density fibreboard or wood.
• Drum Lifting tongs are specially designed for handling drums such as chemical drums, oil drums and other drums- or drum like objects.
• Pipe Lifting tongs are for loading and unloading pipe metal, pipe plastic and pipe concrete and other industrial pipes.
• Rail Handling tongs are adopted for rail track lifting and transporting from one place to another.
• Round Bar lifting tongs are helpful for handling round or circular loads or objects.
• Kerbstone lifting tongs: are for kerbstones lifting and moving by one or two people with high safety and efficiency.
• Pile Pitching tongs are specially designed lifting tongs for pitching sheet steel with ropes and shackles with features of easy operation.
  Manhole tongs are specially designed for the lift, transport and laying of manhole covers.

Slab tongs

Round loads handling tong

Section steel lifting tong

Steel rail or track lifting tong

Horizontal coil tong

Automatic vertical coil lifting tong

Coil lifting tongs for vertical coil roll handling

Mechanical horizontal coil tong

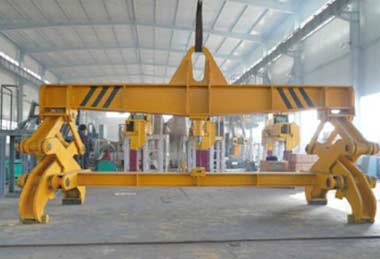

Horizontal slab tong

Rotatory crane tongs for handling paper roll

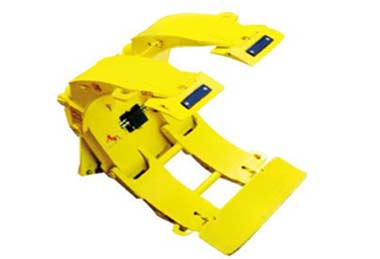

Paper roll lifting tong

Log & timber lifting tongs

As a professional industrial crane manufacturer and supplier, we have provided various types of overhead travelling cranes with diverse crane tongs and lifting tongs for material handling in different industries. Processed industrial crane solution and one-stop industrial crane services are available. Contact us to check what we can do for you and the chance to save your money.

Tailored below-the hook lifting device, suitable & cost-effective crane attachment

As a crane manufacturer and crane supplier, we are able to provide types of industrial cranes and related crane parts and accessories including types of below the hook devices. With process design, we can process and provide quality below-the-hook lifting device for your material handling equipment to handle your valued products with the features of durability, efficiency, and high safety. If you have any need of lifting tongs or tong cranes, please feel free to contact us to get customized lifting tong and tong crane design.
