Double Girder Gantry Crane Kit 15 Ton for Australia
European Double Girder Gantry Crane
The European Double Girder Gantry Crane was designed adopting FEM/DIN standards. When compared to a single girder gantry crane, it has a higher working class, greater lifting capacity, and more demanding working conditions.
The FEM (Europe), DIN (Germany), and ISO (International) international standards were used in the design of the European Double Girder Gantry Crane, which has several advantages including strong rigidity, light dead weight, low power consumption, and exceptional structural design. Schneider electrical, ABM/Nord/SEW triple gear motors (three in one: motor, gear box, brake), galvanized high strength wire ropes, self-adjusting disk brakes, hard teeth reducers, programmable lifting limit switches, and other such configurations are examples of very advanced systems.
Main specifications of double girder gantry crane
- Capacity:10 ton -75 ton
- Span:18-35m
- Lifting height: customized as your requirement
- Working Duty :M5
- Crane traveling:3-30 m/min
- More information about European style double girder gantry crane.
Features of double girder gantry cranes
- High dependability, safety, and low maintenance costs
- FEM2M, M5 work duty
- IP55 protection class
- F insulation class
- Continuation rate: 60% ( for the high class motor)
- Cooling rate: 30% faster than a standard crane
- Small dimensions, low dead weight, and little headroom
- Noise level is low.
- Because of the crane's modest dead weight and low wheel pressure, the workshop's civil work cost was reduced.
- Power-saved. The total motor power is significantly lower than in a standard configuration.
Main specifications of gantry cranes
capacity | 10t | 20/5t | 32/5t | 50/10t | 75t- | |
Span | 18--35m | Customized | ||||
Lifting height | 10m | |||||
Working Duty | M5 | |||||
Main hoist lifting | 0.78-7.8m/min | 0.6-6 m/min | 0.5-5.2m/min | 0.4-3.9 m/min | ||
Aux hoist lifting | 0.78-7.8m/min | 0.78-7.8m/min | 0.78-7.8m/min | |||
Hoist Traveling | 3.3-33 m/min | 3.5-35m/min | 3.1-31m/min | 3.6-36 m/min | ||
Crane traveling | 3--30 m/min | |||||
Rail | P43 | |||||
15 Ton Double Girder Gantry Crane European Type for Sale Australia Project
Item | European-spec Double Girder Gantry Crane | ||
Lifting capacity | t | 15 | |
Lifting height | m | 7 | |
Span | 20 | ||
Speed | Cross traveling speed | m/min | 2.0~20 (inverter control) |
Crane traveling speed | 2.0~20 (inverter control) | ||
Lifting speed | 0.7~4.0 (inverter control) | ||
Working class | / | FEM2M (ISO M5) | |
Power supply | V/Hz/P | 415V/50HZ/3P | |
Crane traveling power | KW | 2.2*2 | |
Trolley traveling power | 1.1*2 | ||
Lifting power | 13 | ||
Total power | 19.6 | ||
Max. wheel load | KN | 141.2 | |
Total weight | t | 20.9 | |
Ambient temperature | / | -20℃ ~ +40℃ | |
Recommended Rail Specification
Type | Top Width(mm) | Bottom Width(mm) | Height(mm) | Weight(kg/m) | Drawing |
P38 | 68 | 114 | 134 | 38.73 |
|
Crane system and main parts and components
Main girders -gantry crane kit | Q235B carbon structural steel Main beams with maintenance platform at one side, ground beams and legs Strong and elegant. Three-layer painting. |
Ground beams -gantry crane kit | |
Support legs | |
Electric hoist with trolley frame | Inverter traveling speed and lifting speed Reducer, drum, motors Insulation grade F class Protection class IP54 |
Motor | Hoist lifting and travelling motor SZW brand, Squirrel Cage and Frequency Conversion Hoist Motor. Protection class IP54 |
motor | Special designed Squirrel-cage motor for the electric hoist. Maintenance free. Insulation class F. Protection class IP54. Electromagnetic disc type brake system |
Reducer | Precision planetary reducer drive in drum Light and compact. Well sealed, no oil leakage |
Brake | electromagnetic disc brake, high performance, No asbestos design life: more than 100 million times |
Bearing | Luoyang Brand, China's best brand |
Hook | Plain 'C' type, Swiveling on Thrust Bearing |
Wheel | Installed on the crane end carriages as drive wheels, high carbon steel material, vacuum casting by our group, Intermedium quenching by top technique machinery antirust painting |
Rope guide | High strength nylon material, Installed on the winding drum to guide the wire rope, Prevent constant winding of steel wire and prolong the life of the drum |
Wire rope | Rope structure 6×26SW, steel core. |
Electrics | CHINT brand, Chinese best brand, Main contactors are Schneider |
Aviation plug | Easy to connect when installing |
Lifting limiter | Screw Lift Limiter has higher accuracy and wide adjusting range. It can effectively realize fast and slow switching and stopping functions when rising and falling, and there is no problem of topping. |
Overload limit | Under overload condition, cut off the power of the crane. |
Travelling limiter | For long travel, protect the crane before it crashes the object. |
Buffer | Ployurethane material. Used for anti-collision |
Festoon cable& C-Track | Supply power for trolley |
Pedant control | Button: Up and down; left and right; front and back; start and stop; emergency; Safe and reliable |
Remote control | Joystick wireless radio frequency control Suitable for heavy load crane |
Featured crane pictures of double girder gantry crane for your reference

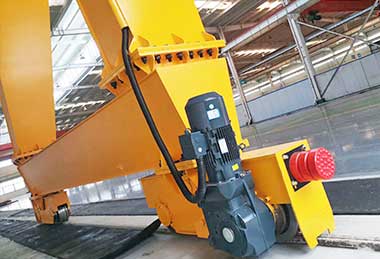

Gantry crane driving unit

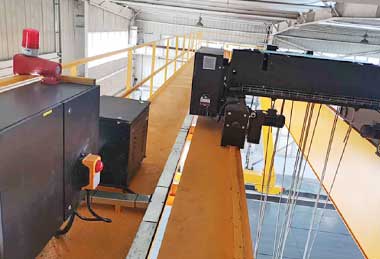

Electric wire rope hoist travelling system

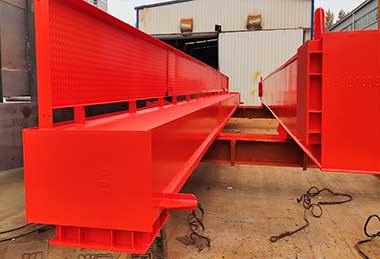

Gantry crane main girder

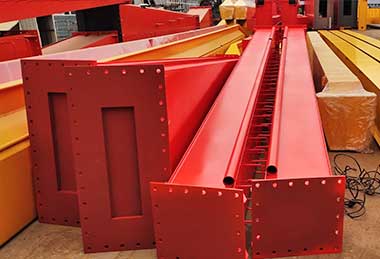

Gantry crane supporting leg

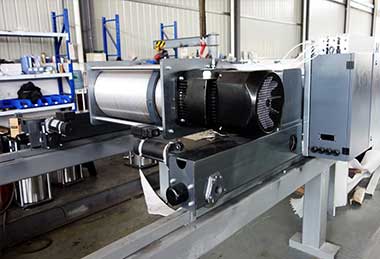

Electric wire rope hoist for gantry crane

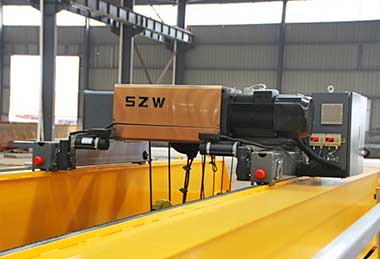

Gantry crane lifting mechanism
Contact us to get your customized double girder gantry crane and gantry crane kit.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
