What is “True Vertical Lifting” of Electric Hoist? Precise Hoisting

What does it mean to have "true vertical lifting"?

" True vertical lifting" is precise lifting in the field of overhead material handling. A hoist with "real vertical lift" capabilities is necessary when a high degree of accuracy is required to make a pick or put a load. This level of precision is frequently required in the pharmaceutical industry for production or speciality applications, as well as injection molding.

A hoist with "true vertical lift" may be the ideal choice if your hoist lifting application requires precision load positioning. True vertical lift refers to the ability of a hoist to lift a load straight up without causing any lateral movement. Chain hoists are always genuine vertical lifts by design; however, wire rope hoists are constructed with single reeved or double reeved reeving orientation.

True vertical lifting of electric chain hoist

An electric chain hoist is a small hoisting device that works by rotating a chain that is powered by a motor. It's less permanent and more portable than a wire rope hoist. This makes them more adaptable when it comes to changing lifting positions from one room to the next.

The following are some of the advantages of using a chain hoist:

• Smaller and lighter than a wire rope hoist
• Sturdy and low-maintenance
• It is less expensive than using an electric wire rope hoist.
• offer genuine vertical lift at no additional cost

Other benefits of chain hoists include ease of use and uses for jib cranes, gantry cranes, and manual cranes. Manual movement load hooks are common in these cranes, and wire rope can easily slip out of them, whereas chain provides greater dependability.

Hook mounted chain fall electric hoist
Hook mounted, lug mounted, eye mounted chain fall electric hoists with no trolley up to 32 ton
The horizontal handling of the chain fall electric hoists are in conjunction with the hoist trolleys. The chain fall electric hoists with hooks or lugs can be used as fixed hoists mounted on supporting structures, and the chain fall electric hoists with trolleys can be used as travelling hoists running on suitable overhead girder beams or rails.

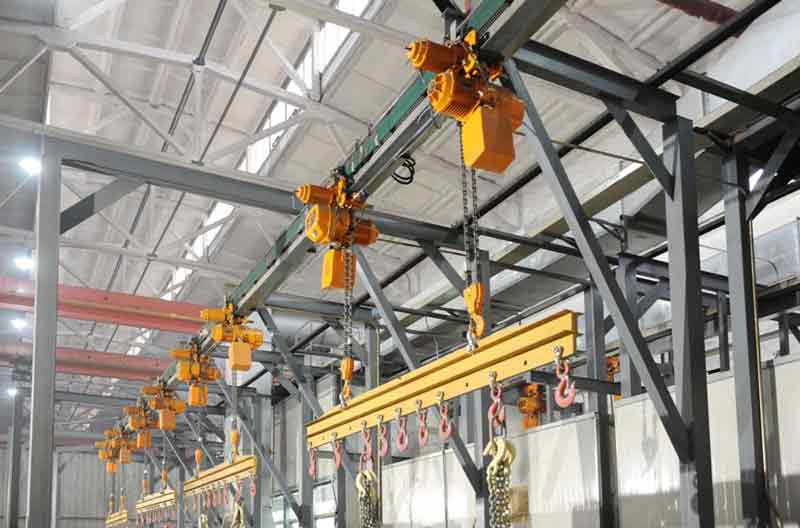

Electric trolley chain hoist
Motorized trolley & electric trolley electric chain hoists up to 35 ton
Powered trolleys or motorized hoist trolley may add a little cost but offering a high efficient chain fall electric hoist solution which will be a cost-effective solution for a high volume material handling. Electric chain blocks with motorized trolley may give you a exceptional return.

Maual trolley electric chain hoist
Manual trolley electric chain hoists up to 30 ton
The manual trolley chain fall electric hoist is an economical but effective trolley hoists with the combination of manual trolley and electric chain hoists which will be a cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.

Low headroom chain electric hoist up to 35 ton
Low headroom chain fall electric hoists are specially designed for workshop with limited working space. With customized designs, the lifting height of low headroom chain fall electric hoists can up to 130 meters, which will be a cost-effective chain fall electric hoist solution for your applications.

True vertical lift of electric wire rope hoist

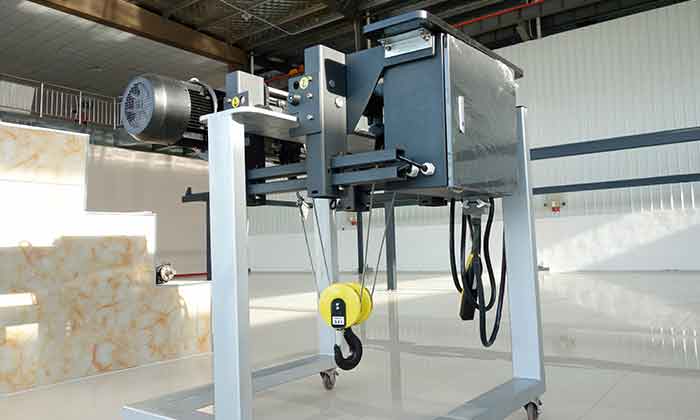

Electrical wire rope hosit for true vetical lifting

Movement in a true vertical path

True vertical lift, in essence, is the ability of a hoist to lift the hook straight up and down, picking up or lowering a load in a precise position with no hook drift. It occurs when a hoist (lower block) moves in a true vertical route between the lower limit of travel, which occurs when the rope(s) anchored at each end of the drum wind from the drum's center outward (inward when lowering the hook), allowing the hook and load to be centered below the drum's middle. In the highest and lowest hook settings, this design prevents the hook from wandering from one end of the drum to the other.

Importance of true vertical lifting

When picking or placing a weight with a high degree of accuracy, accurate lifting is essential, which can only be accomplished with genuine vertical lift. In the pharmaceutical sector, precision and accuracy are frequently required in production operations, injection molding, and specialty applications.

Single reeving

Because of the long, thin drum design, the hook has more horizontal movement allowed by the drums design and reeving during winding, it's difficult to obtain real vertical lift with a single reeved wire rope hoist (raising and lowering). Hook drift is to be expected in a single reeved wire rope hoist, which is standard and acceptable for the bulk of lifting and handling tasks. A double reeved wire rope hoist, such as the Euro Electric Wire Rope Hoist , would be necessary if precision and accuracy are essential.

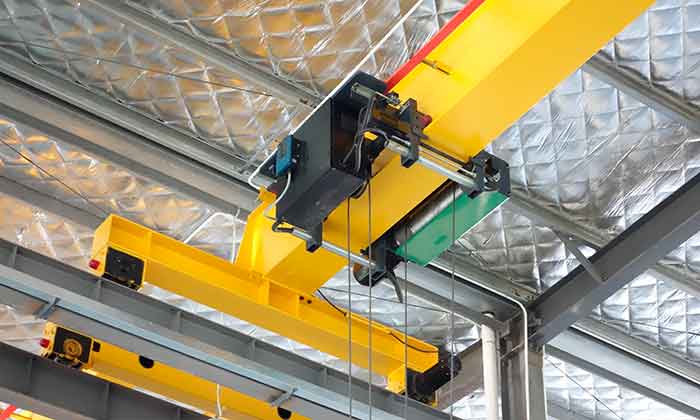

Wire rope hoist for single girder overhead crane

Double reeving

The conventional reeving configuration for a wire rope hoist providing real vertical lift is 'two-part double' reeving, which uses four different wire rope parts, and 'four-part double' reeving, which uses eight separate wire rope parts, is also common. Wire rope is fed through a sequence of sheaves in the hook block and hook frame, as well as wound on the left-handed and right-handed grooves of the drum, in a double reeved wire rope hoist.

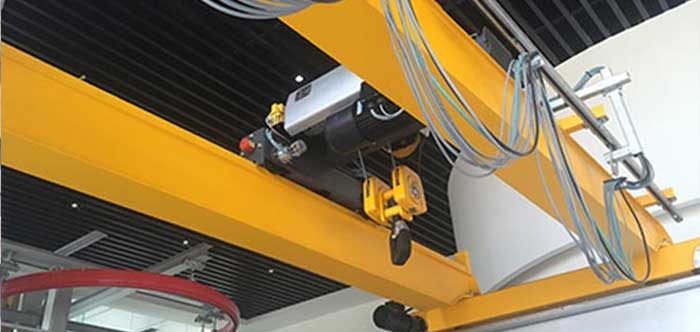

Electric wire rope hoist for double girder overhead crane

Achieving accuracy and precision

When lifting and handling bigger weights at slower rates, using more wire rope components in the reeving configuration provides for more precision. A double reeved wire rope hoist, such as the Eurobloc VT Electric Wire Rope Hoist, would be necessary if precision and accuracy are essential.
