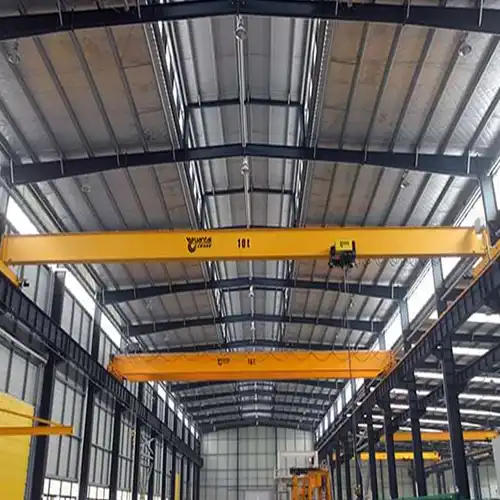

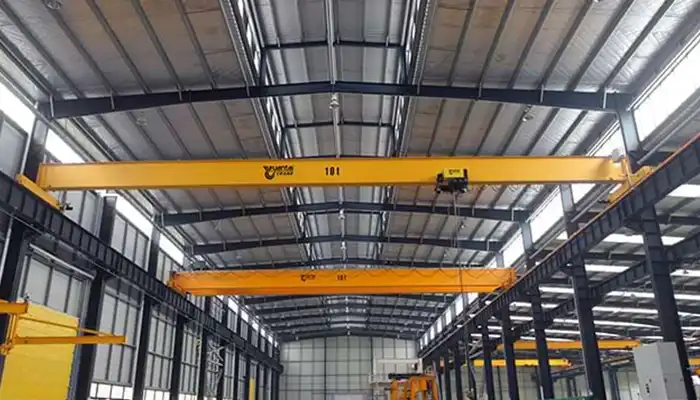

Top Running Single Girder Overhead Crane Single Girder Hoist Trolley Overhead Crane European Style
European type hoist cranes with single girder overhead crane configuration, adopted with various types of electric fem hoists, design with advanced crane concept and technology, manufactured with international standards, i.e. DIN, FEM and ISO. European hoist single girder overhead crane as a specially designed overhead travelling bridge cranes have the advantages of compact design, tight volume, light weighted, high rigidity, and durable quality, etc. The single girder European hoist crane system can offer large space for your production and save your crane cost and investment.
HD series European standard electric hoist single girder overhead cranes is designed with the feature of maximum rigidity for a minimum crane deadweight, which makes the load on the travelling crane runway to a minimum. In this way, it makes the single girder European hoist crane a cost-effective design for the plant and an optimal solution for light duty material handling for your workshop.
Parameters of European single girder overhead crane
HD series European single girder overhead travelling hoist crane is our newly updated hoist crane design for workshops with low or limited headroom or clearance but with larger lifting height requirements. The European single girder overhead crane adopts the advanced crane technology in according to the international standards: DIN (Germany), FEM (Europe), and CE,ISO (International),working class A5.
The main parameters of the European type single girder hoist crane are as follow:
Type of Overhead Travelling Crane: HD European hoist crane with single girder overhand crane configuration
Lifting Capacity of Single Girder Hoist Crane : 3.2 ton to20 ton including 5 t, 8 t, 10 t, 12.5 t, 16 t and 20 t,etc.
Span of European hoist crane : 7.5 m to 28.5 m
Lifting Height of overhead hoist crane : 6m to 18m
Working Class of European overhead crane : A5
Ambient Temperature of European crane : -20℃ to 40℃
Applications of European single girder overhead hoist crane
European type single girder overhead hoist crane is widely applied in different workstations and workshops of general manufacturing, machinery, metallurgy, , petroleum, petrochemical, ports, railways, civil aviation, electricity, food processing , paper , building materials, electronics, etc.
The fem single girder overhead crane with special designed or selected electric hoists also can be used for handling and assembly of large scale parts with high precision, etc.

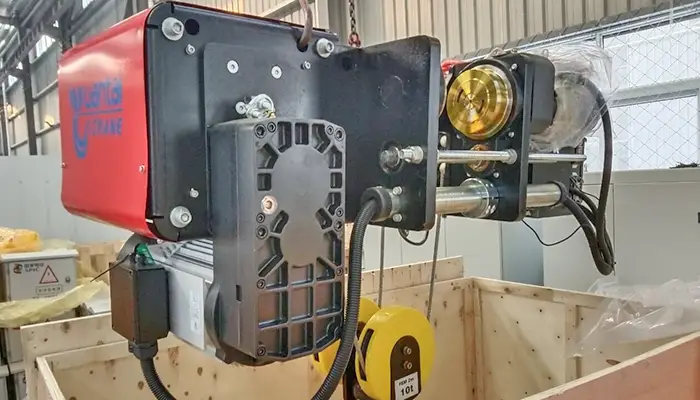

Supplied with European wire rope electric hoist
Design and production is based on FEM hoist standards.
With optimizing low headroom crane design, the lifting height of the overhead travelling bridge crane can be higher due to the minimized crane height under the same plant height.
With optimizing crane design and low wheel pressure , the European hoist single girder travelling crane can achieve greater lifting capacity under the same strength of the workshop.
Crane girders of the European hoist crane made of computer - optimized box sections.
Torsionally rigid end carriages for the single girder overhead crane, with, welded box-section girder design.
Adjustable wheel group is adopted on the single girder hoist crane, to prevent the crane rail from gnawing.
Three-In-One mechanism is adopted with frequency conversion makes the European standard electric hoist single girder overhead crane reduce the noise to the best.
Safety measures of different levels are equipped based on the working duty and conditions including limiters on overloading, , height Stroke photoelectric and other security measures. And the recording black box can be adopted based on requirements of customer's.
Personalized configuration
Optimum integration into existing and new buildings.
Control pendant suspended for separate travel on the crane girder with display for installation monitoring.
Radio control with display and proportional push buttons possible (optional).
Optional radio control with power and signal transmission via energy chain system.

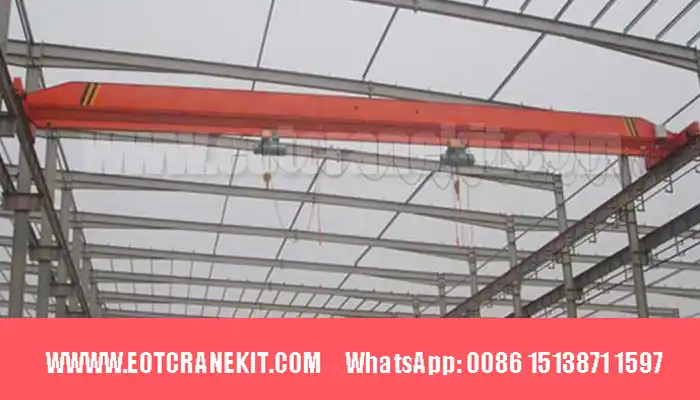

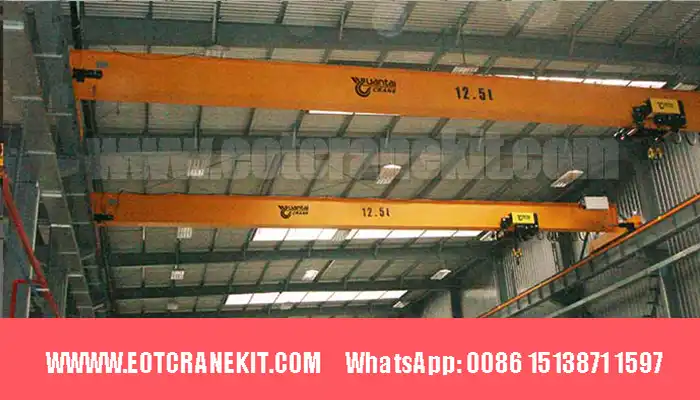

Single girder overhead crane video
Advantages of European electric hoist overhead crane
Electric hoist overhead crane has the following advantages:
Optimized European hoist crane design makes the single girder overhead crane small and compact in volume with, light dead weight,
Small wheel load pressure makes the European single girder hoist crane compacted in size, saving your workshop space and offering higher lifting,
The driving capacity of European single girder hoist crane can high up to 20 ton and double lifting speed is available for the single girder design.
Frequency control of the hoist trolley and crane is available which is more functional and convenient.
The travelling of the European single girder hoist crane is rather smooth and stable, offering precise assembling of the large mechanical parts, and etc.
Advantages of top running end trucks
End carriage of modular design, convenient & flexible assembly
Light-weighted end trucks with high rigidity
Crane carriages of wide range of diameter,designed and fabricated to fit your specific application.
Variable frequency drive, smooth crane travelling
Full seat end carriage
Semi-seat end carriage
Semi-seat & trailer
Side-handing end carriages
End carriages with drive shaft wheel assembly,
End carriage with axial wheel assembly
Comparison between LD and HD single girder overhead crane
The comparison of the China hoist crane & European crane is presented for your reference to know the features of each type to get the best value electric hoist single girder overhead crane solutions for your workshops.
European style single girder overhead crane- top running crane design for your particular needs
HD European single girder overhead hoist crane:Modular design originated from Europe (motor, reducer, electrics separated, easy to maintain)
LD Single Girder Electric Hoist Overhead Crane: Integrated design (Hard to maintain)
Main parameters of single girder hoist crane
HD European single girder overhead hoist crane:Lifting capacity; 1ton - 16 ton, Lifting Height: 6m to 18m, Span Length:7.5 m to 28.5 m, Working Class: A5,, Ambient Temperature:-20℃ to 40℃
LD Single Girder Electric Hoist Overhead Crane:Lifting Capacity:1t-20t, Lifting Height: 6m-30m, Span Length: 7.5m-28.5m,,Working Class:A3, A4, Ambient Temperature: -20℃-40℃
Note: The specifications of standard single girder overhead cranes of each type is represented for your reference and custom need, please feel free to contact us.
On crane hoists
LD single girder hoist crane is the China traditional electric hoist overhead crane with single girder overhead crane configuration equipped with CD1 or MD1 wire rope hoist as the lifting system.
HD single girder hoist crane is the single girder overhead crane designed base on European standards, equiped with European standard FEM wire rope hoists. European type hoist is more advanced and has a higher lifting heigh
Maintenance
HD single girder hoist crane: Maintenance free, no need to add oil 3~5 years
LD single girder hoist crane: Gear box, wire rope needs to add oil every year. Will need to a period of downtime for maintenance.
Noise
HD single girder hoist crane: Little noise, environmental-friendly during operation
LD single girder hoist crane: Louder noise in warehouse
On Crane price
HD & LD hoist single girder overhead cranes with same specifications may differ with each other in terms of crane price. The hd European standard electric hoist single girder overhead crane price is higher than that of the China type single girder overhead hoist crane but it maybe more economical for the whole project and in long term scheme.
Why to select European standard single girder overhead crane?
Trough the above comparing, the European style electric hoist single girder overhead crane the following advantages:
Firstly, European hoist single girder overhead crane could offering more effective working space than China single girder hoist crane with same crane specifications does.
Also, European single girder hoist overhead crane requires smaller workplace and offering larger lifting height
Thirdly, the wheel pressure of European hoist crane is much smaller than that of the China traditional hoist crane because of light dead weight.
Lastly and most importantly, European hoist crane is an cost-effective material handling solutions because it may save a substantial amount of money on initial workshop construction investment, heating fee, air conditioning fee and other maintenance fee in a long term run.
All in all, Due to the advanced crane designing concepts, European style electric hoist single girder overhead crane has the features of compact and small dimension, light dead weight, minimum limiting distance from hook to wall, lower headroom and higher lifting height, etc. For light duty material handling with capacity within 20 tons, European standard single girder overhead crane with fem hoist will be a good and economical solution for your workshop in a long run.
