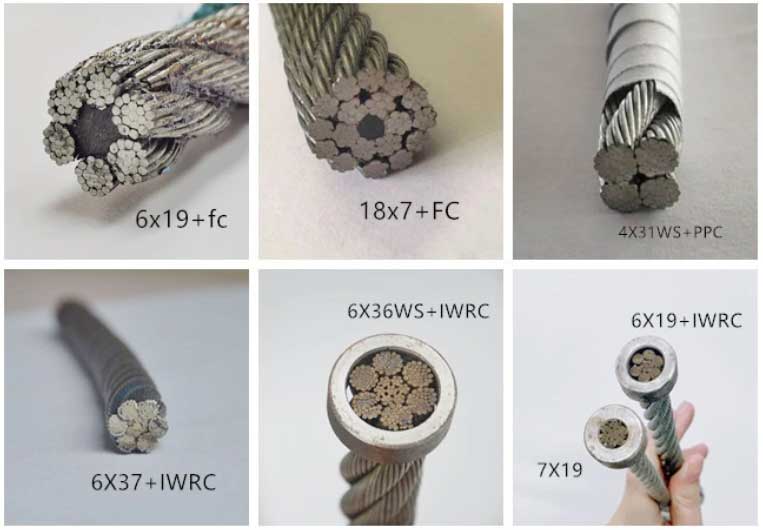

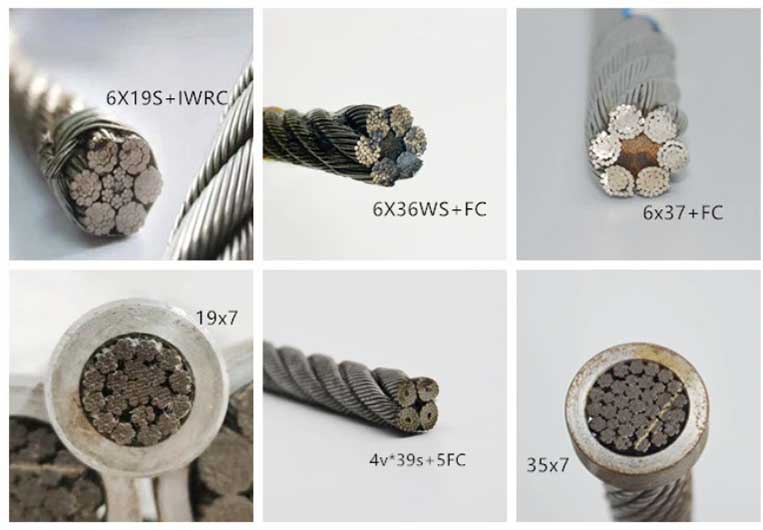

Types of Wire Ropes:A large Inventory of Wire Ropes

In addition to wire rope assemblies, we make bridge cables, crane cables, steel mill cables, and thousands of OEM components. There are also assemblies available with standard or custom end fittings. Special testing and tolerance criteria are also available.

• In sizes ranging from 1/4′′ to 3′′ in diameter and 9 mm to 52 mm in length.
• Domestic and non-domestic
• In stock and ready to ship the same or next day from one of our many service centers.

A large inventory of general purpose wire ropes is available for immediate delivery.Both domestic and non-domestic products are in stock and available to ship from one of our many service centers the same or following day.

Rotation Resistant

We have a large selection of rotation resistant wire ropes in store from a range of suppliers. When under pressure, some forms of wire rope, particularly lang lay wire rope, are more prone to spin. Rotation resistant wire rope can be used in a single line or a multi-part system and is designed to resist twisting, spinning, or rotating. When handling, unreeling, and installing rotation resistant wire rope, extreme caution is required. Improper handling or spooling can cause the rope to twist, resulting in uncontrolled rotation.

Specialized wire ropes

We have a large selection of specialist wire ropes in store for a number of purposes. In applications such as offshore pedestal, crawler, and lattice boom fitted truck crane boom hoists, specialized wire rope is advised for use when the rope is subjected to heavy use or where the conditions are particularly abusive. These ropes are also recommended for winch lines, overhead cranes, multi-part hoist lines that do not require rotation-resistant ropes, and other applications that demand flexibility, high strength, and crushing resistance.

Aircraft Cable

Aircraft cables are stranded wires used in a number of applications on and around planes. They can be used for a variety of things, including electrical wiring harnesses, tie-downs, stabilizers, and safety fasteners, among other things.

Both domestic and non-domestic products are in stock and available to ship from one of our many service centers the same or following day.

Coated Wire Rope

Wire rope in diameters ranging from 1/4" to 3" diameter and 9 mm to 52 mm diameter in all types and constructions is available in our various locations. All wire rope stock is kept on hand and ready to ship.

Wire rope from all of the major wire rope producers throughout the world is in stock, both domestic and non-domestic.

Coated wire rope is often utilized when abrasion resistance and flexibility are required.

Phosphating coating steel wire rope (China patent), by phosphating manganese or zinc manganese, wear and corrosion resistance of steel wire surface to enhance the grease into the pores of the phosphating film to abnormal excellent antifriction effect, effectively inhibiting the occurrence of fretting wear, is a substitute for plain steel wire rope upgrade in atmospheric environment life is far beyond the surface structure of wire rope, including imported wire rope (the fatigue life).

The phosphating film weighs between 3 and 60 grams per square meter 2. The steel wire will not be drawn or treated after it has been phosphated. The wire rope should be twisted directly. Note that the drawing should not be confused with the zinc phosphating system or the steel wire manganese phosphating system. This technique may be used to make elevator wire rope, essential purpose wire rope, mine wire rope, resistance rotary wire rope, oil extraction and wire rope, piling machine wire rope, and other types of wire rope.

Galvanized Wire Rope

Wire rope in diameters ranging from 1/4" to 3" diameter and 9 mm to 52 mm diameter in all types and constructions is available in our various locations. All wire rope stock is kept on hand and ready to ship. Wire rope from all of the major wire rope producers throughout the world is in stock, both domestic and non-domestic. A galvanized cable wire is a steel wire that has a thin layer of zinc applied to it to prevent corrosion.

Galvanized steel wire rope with two types of galvanizing: hot dip and galvanizing. Hot-dip galvanized steel wire has a thicker zinc layer. The corrosion resistance increases with the thickness of the zinc layer. The galvanizing becomes thinner as the service duration increases. For use in water, hot galvanized steel wire rope should be chosen. Manganese phosphating coating wire rope can replace some types of thin galvanized steel wire rope, such as atmospheric environment, but the air humidity high-temperature environment, because phosphating coating has certain corrosion resistance.

Bright Wire Rope

Wire rope in diameters ranging from 1/4" to 3" diameter and 9 mm to 52 mm diameter in all types and constructions is available in our various locations. All wire rope stock is kept on hand and ready to ship. Wire rope from all of the major wire rope producers throughout the world is in stock, both domestic and non-domestic. Bright wire rope is made from uncoated wires or unfinished steel (thus the name "bright").

Stainless Wire Rope

Wire rope in diameters ranging from 1/4" to 3" diameter and 9 mm to 52 mm diameter in all types and constructions is available in our various locations. All wire rope stock is kept on hand and ready to ship. Wire rope from all of the major wire rope producers throughout the world is in stock, both domestic and non-domestic. Stainless steel wire rope is a good corrosion-resistant choice that also performs well in high moisture and acidic situations, such as those seen in maritime rigging.

Stainless steel wire rope, such as 304 or 316 stainless steel, has a higher corrosion resistance than hot galvanized carbon steel wire rope, but the price is higher. The stainless steel wire for manganese phosphating coating (stainless steel wire requires special phosphating), can also greatly extend the service life.

Wire rope or rope coated with polyethylene and polypropylene in carbon coated steel wire rope or galvanized steel wire rope.

In 1834, England began producing smooth steel wire rope. Tianjin's first wire rope business, which went bankrupt in 2005, began production in 1939. The phosphating coating wire rope will be phased out as phosphating coated steel wire rope enters the market in considerable quantities.

Guy Wire

Wire rope in diameters ranging from 1/4" to 3" diameter and 9 mm to 52 mm diameter in all types and constructions is available in our various locations. All wire rope stock is kept on hand and ready to ship. Wire rope from all of the major wire rope producers throughout the world is in stock, both domestic and non-domestic. A guy wire is a tensioned cable used to help a free-standing building stay stable. Ship masts, radio masts, wind turbines, utility poles, fire department extension ladders used in church raises, and tents are all examples.

High-temperature environment

According to the use condition of wire rope in the high-temperature environment, such as hoisting ladle crane, wire rope at ambient temperature may reach 100 degrees Celsius, and the fiber core grease under high temperature will cause direct combustion, wire rope failure, using 70-100 degrees Celsius temperature, recommend the use of steel rope, no grease, temperature high directly lead to changes in the microstructure of steel wire rope, wire rope mechanical properties drastically reduced, prone to accidents, GB8918-2006 important use of national standard of wire rope, for reference only.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
