Exploring Modular Crane Systems: Flexibility in Design and Use

Modular crane systems offer customizable designs, allowing easy adaptation for various lifting needs and efficient use of space.

Modular Crane Systems

Modular crane systems are versatile lifting solutions designed with interchangeable components. These systems can be easily assembled and reconfigured to meet specific operational needs, making them suitable for various applications. The modular design allows users to adapt the crane's size, capacity, and configuration based on the changing requirements of their workspace.

Flexibility is crucial in today's dynamic industrial environment. As businesses evolve, so do their lifting needs. Modular crane systems offer the advantage of quick adjustments without the need for extensive modifications or downtime. This adaptability not only enhances productivity but also allows companies to efficiently utilize their space and resources. By accommodating different loads and layouts, modular systems can significantly reduce the overall cost of equipment ownership and improve operational efficiency.

Understanding Modular Crane Systems

Components of Modular Crane Systems

Modular crane systems consist of several key components that work together to create a flexible lifting solution. These components include:

• Main Structure: This forms the backbone of the crane, typically made from high-strength steel or aluminum, ensuring durability and stability.
• Support Rails: Installed on the main structure, these rails allow the crane to move smoothly along designated paths, whether overhead or on the ground.
• Lifting Mechanism: This includes hoists, trolleys, and other devices that facilitate the lifting and lowering of loads. The mechanisms can vary in capacity and speed, depending on the specific needs of the operation.
• Modular Attachments: These include hooks, slings, and specialized attachments designed for handling various types of loads, from simple materials to complex machinery.
• Control Systems: Modern modular cranes often feature electronic control systems that enhance precision in operation, allowing operators to easily manage lifting and movement.

heavy duty modular crane systems

Types of Modular Crane Systems

Modular crane systems come in various forms, each tailored to specific applications and environments:

• Overhead Modular Cranes: These cranes are mounted on tracks above the workspace, allowing for unobstructed floor space and efficient material handling. They are ideal for factories and warehouses, where they can cover large areas and facilitate the movement of heavy loads.
• Gantry Modular Cranes: Gantry cranes are built on a freestanding framework, allowing them to operate in open spaces. Their design enables them to lift and transport materials across a wide area, making them suitable for construction sites, shipping yards, and outdoor operations.
• Jib Modular Cranes: Jib cranes feature a horizontal arm (or jib) that extends from a vertical post. This design allows for precise lifting and movement of materials within a limited areJib cranes are commonly used in workshops and assembly lines, where they provide excellent maneuverability.
• Light KBK Modular Cranes: The KBK modular crane system is particularly noted for its lightweight design and flexibility. These cranes consist of lightweight components that can be configured in various ways to fit different spaces and lifting requirements. Ideal for assembly areas and small-scale manufacturing, light KBK cranes offer easy installation and relocation, making them a practical choice for businesses that require adaptability.

Understanding these components and types is crucial for selecting the right modular crane system to meet specific operational needs, enhancing productivity and efficiency in various industrial applications.

Key Features of Modular Crane Systems

Customization Options

One of the standout features of modular crane systems is their high degree of customization, which allows businesses to tailor solutions to their specific operational needs.

• Load Capacities: Modular cranes can be designed to handle a wide range of load capacities, from light materials in small workshops to heavy machinery in industrial settings. This flexibility ensures that the crane can safely and efficiently lift and transport the necessary loads, with options typically ranging from a few hundred kilograms to several tons. By selecting the appropriate load capacity, companies can optimize their operations without compromising safety or performance.
• Span and Height Adjustments: The ability to adjust the span (the distance between support points) and height (the vertical lift) of modular crane systems enhances their versatility. Businesses can configure the crane to suit different workspace dimensions, accommodating various building layouts and ceiling heights. This adaptability allows for optimal use of available space, making it easier to maneuver large items without hindrance.

Modular Assembly and Disassembly

Another key feature of modular crane systems is their ease of assembly and disassembly. These cranes are designed with user-friendly components that can be quickly and efficiently assembled on-site. This means that when operational needs change, the crane can be easily reconfigured or relocated. This capability minimizes downtime, allowing businesses to adapt to new workflows or expand their operations without extensive interruptions. Moreover, the straightforward assembly process reduces the need for specialized tools or expertise, making it accessible for in-house teams.

Transportability and Storage Solutions

Modular crane systems are inherently designed for transportability, making them an excellent choice for companies that operate in multiple locations or need to relocate equipment frequently. The modular components can be easily packed and transported, allowing businesses to set up and dismantle the crane quickly as required.

In addition, their design facilitates efficient storage when not in use. Modular parts can be stacked or stored in a compact manner, reducing the footprint in warehouses or workshops. This not only saves space but also contributes to a more organized work environment, allowing for easy access to components when needed.

Together, these key features of modular crane systems—customization options, ease of assembly and disassembly, and transportability—provide businesses with flexible, efficient, and practical solutions for their lifting needs.

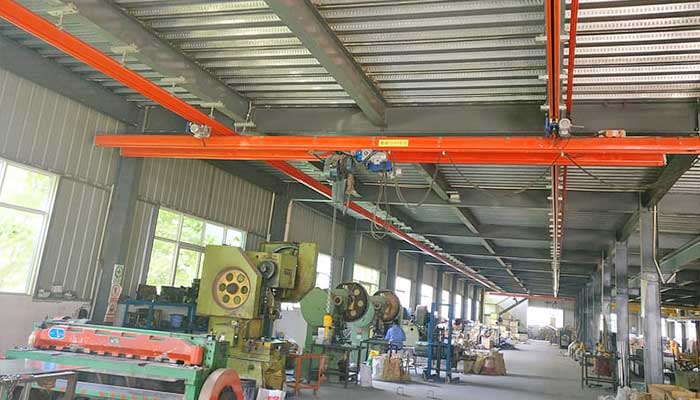

light duty KBK modular crane system

Applications of Modular Crane Systems

Industrial Uses

Modular crane systems are widely utilized across various industries due to their versatility and adaptability.

• Manufacturing Facilities: In manufacturing settings, modular cranes play a critical role in the efficient movement of materials and components. They facilitate tasks such as loading and unloading raw materials, transporting finished products, and handling machinery during assembly processes. Their customizable load capacities and adjustable spans make them suitable for diverse manufacturing environments, from automotive assembly lines to electronics production.
• Construction Sites: Modular cranes are invaluable on construction sites, where they support the lifting and placement of heavy materials like steel beams, concrete blocks, and equipment. Their ability to be quickly assembled and relocated allows construction teams to adapt to changing site layouts and requirements. This flexibility enhances productivity, as cranes can be repositioned to service different areas of the site as work progresses.

Specialized Applications

Beyond general industrial use, modular crane systems are also employed in specialized applications that require specific capabilities.

• Aerospace: In the aerospace industry, modular cranes are essential for handling delicate and heavy components during the manufacturing and assembly of aircraft. The precision and control offered by these cranes help ensure the safe lifting of sensitive parts, reducing the risk of damage. Their modular nature allows for configurations that accommodate the unique requirements of aerospace facilities, including overhead clearance and specialized lifting mechanisms.
• Marine and Port Operations: Modular cranes are extensively used in marine and port operations for loading and unloading cargo from ships. Their robust design and high load capacities enable them to handle heavy shipping containers and bulky equipment efficiently. Additionally, their transportability allows for quick setup and adaptation to various docking configurations, enhancing the efficiency of port operations.

Case Studies of Successful Implementations

Several companies have successfully implemented modular crane systems to improve their operations:

Case Study: Automotive Manufacturing

A leading automotive manufacturer integrated modular overhead cranes into its assembly line. The ability to customize load capacities allowed them to handle different vehicle components with ease. The modular design facilitated quick reconfiguration, enabling the plant to adapt to changing production schedules without significant downtime.

Case Study: Construction Firm

A construction firm utilized gantry modular cranes for a major building project. The cranes were easily assembled and disassembled, allowing the team to move them across the site as needed. This flexibility resulted in improved workflow and reduced labor costs, as the cranes could be positioned precisely where they were needed most.

Case Study: Aerospace Facility

An aerospace manufacturing facility adopted light KBK modular cranes to enhance its assembly process. The lightweight and customizable design allowed for easy integration into existing workflows, improving the handling of intricate components while maintaining high safety standards. This implementation resulted in increased efficiency and a significant reduction in handling times.

These case studies illustrate the diverse applications and tangible benefits of modular crane systems, showcasing their role in enhancing productivity, safety, and operational flexibility across various industries.

Design Considerations for Modular Crane Systems

Structural Integrity and Safety Standards

Ensuring structural integrity and compliance with safety standards is fundamental when designing modular crane systems. These cranes must be robust enough to handle various lifting operations without compromising safety.

• Material Selection: Use high-strength steel or aluminum alloys that can endure the dynamic loads and stresses associated with lifting heavy items. Materials should also meet relevant industry standards for durability.
• Engineering Calculations: Conduct thorough engineering assessments to evaluate load limits, stress points, and potential failure modes. Finite element analysis (FEA) can be useful in predicting how the structure will behave under different conditions.
• Safety Standards Compliance: Follow regulations set by organizations such as OSHA and ANSI. Familiarize yourself with the specific standards applicable to your region and industry.
• Regular Inspections: Establish a routine maintenance schedule that includes regular inspections of all structural components, lifting mechanisms, and safety devices to ensure they are functioning correctly.
• Safety Features: Incorporate features such as overload protection devices, emergency stop buttons, and safety interlocks. Clearly marked safety signage should be displayed around the crane's operation area.

Environmental Factors

Environmental conditions significantly influence the design and functionality of modular crane systems. Adapting to these factors can extend the lifespan of the equipment and enhance safety.

• Temperature and Humidity: Consider how extreme temperatures and humidity levels can affect materials. Use weather-resistant coatings and insulation where necessary, particularly for cranes operating outdoors.
• Corrosion Resistance: In coastal or chemical environments, select materials and finishes that resist corrosion. Stainless steel components or specialized coatings can provide additional protection against harsh conditions.
• Operational Environment: Assess whether the crane will be used in a controlled indoor environment or an exposed outdoor setting. Each scenario may require different design specifications to ensure optimal performance.
• Impact of Weather: Design cranes that can withstand high winds, rain, or snow loads if they are intended for outdoor use. Incorporate structural features that enhance stability and prevent tipping or swaying.

Integration with Existing Systems

Effective integration with current operations and systems is crucial for maximizing the utility of modular crane systems. This ensures that they enhance workflow rather than disrupt it.

• Workspace Assessment: Conduct a comprehensive analysis of the facility layout, including headroom, load paths, and access points. This will help determine the most effective crane configuration.
• Compatibility with Equipment: Ensure that the crane is compatible with existing machinery and workflows. Evaluate load handling equipment, conveyor systems, and storage solutions to create a cohesive operation.
• Advanced Control Systems: Consider integrating modern control systems that allow for automation and enhanced precision. This could include features like remote operation, load monitoring, and data analytics for performance tracking.
• Collaboration During Design: Involve engineers and operators in the design process to identify potential integration challenges early. Their insights can help develop solutions that ensure seamless operation within the existing framework.

By addressing structural integrity, environmental factors, and system integration, businesses can design modular crane systems that are safe, reliable, and tailored to their specific operational needs.

Maintenance and Support for Modular Crane Systems

Routine Maintenance Practices

Regular maintenance is essential for ensuring the longevity and reliability of modular crane systems. Establishing a comprehensive maintenance program can help prevent unexpected downtime and maintain safety standards.

• Daily Inspections: Conduct visual inspections before each use. Check for any visible wear or damage on components such as hoists, cables, and structural elements. Ensure that all safety features, such as emergency stops and limit switches, are functioning properly.
• Lubrication: Regularly lubricate moving parts, such as gears and bearings, to minimize friction and wear. Use the recommended lubricants specified by the manufacturer to ensure optimal performance.
• Cleaning: Keep the crane clean and free from debris, which can impede operation and lead to wear. Regularly clean the rails, hoists, and other critical components.
• Scheduled Maintenance: Implement a scheduled maintenance plan that includes periodic checks and servicing of all systems. This should cover key components, such as electrical systems, lifting mechanisms, and control systems.
• Documentation: Maintain a log of all inspections, maintenance activities, and repairs. This documentation can help identify trends over time and inform future maintenance decisions.

Troubleshooting Common Issues

Even with regular maintenance, issues can arise with modular crane systems. Being prepared to troubleshoot common problems can minimize downtime and ensure safety.

• Unresponsive Controls: If the crane controls are unresponsive, check the power supply and connections. Inspect the control panel for any blown fuses or damaged wiring.
• Strange Noises: Unusual noises during operation may indicate mechanical issues. Investigate the source of the noise, which could be due to misalignment, lack of lubrication, or worn components.
• Load Handling Problems: If the crane struggles to lift or maneuver loads, examine the hoisting mechanism and ensure it is properly calibrated. Check for any obstructions along the travel path or in the hoisting system.
• Overheating: Overheating in motors or electrical components can signal overload or inadequate ventilation. Ensure that the crane is not exceeding its rated load capacity and check for proper airflow around electrical components.
• Sensor Malfunctions: If safety sensors or limit switches are not functioning, inspect them for dirt, damage, or misalignment. Clean or replace sensors as necessary.

Support Services and Training

Effective support services and training programs are vital for maximizing the benefits of modular crane systems.

• Manufacturer Support: Engage with the crane manufacturer for technical support and assistance. Many manufacturers offer service contracts that include regular inspections, parts replacement, and emergency repairs.
• Training Programs: Provide comprehensive training for operators on the proper use and maintenance of the crane. Training should cover safe operation procedures, routine inspections, and troubleshooting techniques.
• Safety Drills: Conduct regular safety drills to ensure that operators are prepared for emergencies. This includes familiarizing them with emergency shutdown procedures and proper response to equipment failures.
• Documentation Access: Ensure that operators have easy access to manuals, safety guidelines, and maintenance logs. This information is essential for understanding equipment functionality and addressing issues promptly.

By implementing effective maintenance practices, troubleshooting strategies, and support services, businesses can ensure that their modular crane systems operate efficiently, safely, and reliably over the long term.

Conclusion

Modular crane systems offer a range of significant benefits that enhance operational efficiency and flexibility. Their customizable design allows businesses to tailor solutions to their specific lifting needs, accommodating various load capacities, spans, and heights. The ease of assembly and disassembly makes them adaptable for changing environments, whether in manufacturing, construction, or specialized applications. Additionally, their transportability and compact storage solutions make them an economical choice for companies looking to maximize their space and resources.

Given the numerous advantages of modular crane systems, businesses should seriously consider incorporating them into their operations. The ability to quickly adjust to different tasks, locations, and load requirements positions modular cranes as an ideal solution for diverse industrial challenges. Their efficiency in improving workflow, reducing labor costs, and ensuring safety makes them a wise investment for companies aiming to enhance productivity and adaptability.

For organizations looking to improve their lifting capabilities, exploring modular crane systems is a crucial next step. We encourage you to consult with industry experts, evaluate your specific operational needs, and consider how modular solutions can fit into your business model. Reach out to manufacturers or suppliers for demonstrations and detailed information about available options. Taking this initiative can lead to significant advancements in your operational efficiency and overall success.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
