2 ton free standing overhead crane for sale Cyprus, customized outdoor bridge crane case study for your reference. 2 Ton Freestanding Overhead Crane v.s. 2 Ton Pillar Jib Crane, which is better for your outdoor use? Read on.

Background of Cyprus client required for roofed outdoor crane

The company of client is based in Cyprus, it started the wholesale trade 30 years ago and since then started trade with China. The company started commercial service operations in China in 2002, and officially registered and established a company in Guangzhou, a city in southern China, on September 1, 2005. The legal person of the company is a Cypriot citizen and has lived in Guangzhou for a long time. The company is headquartered in Guangzhou City, Guangdong Province, with support offices in Yiwu City, Zhejiang Province and Limassol, Cyprus, mainly providing commercial services to customers in Europe and the Middle East. Customer business services mainly include three areas:Building materials (ceramics, furniture, lamps, etc.),Professional products (such as solar, tires, etc.) and Clothing, etc.

Cooperation process of 2 ton freestanding bridge cranes

• This is the first cooperation for both sides.
• Initial inquiry time: June 22, 2020;
• Confirm PI time: July 20, 2020;
• Advance payment time: July 22, 2020, the production handover order will be placed on the same day;
• Production completion time: August 23, 2020;
• Final payment due: August 26, 2020;

Inquiry on 2 ton Free standing jib crane & Bridge Cranes

We are looking to find a solution for our warehouse space in Cyprus. We will need a crane to be able to lift 2 tonnes to about 7m height and have a 6m traveling distance.
Attached a photo our warehouse door and where we plan to install the crane.
We are thinking of 2 solutions and would like your quotation for 2 crane systems as below, of course any other ideas are welcome:

• 1. Outdoor 2 tonne Jib crane height about 8m and traveling distance 6m
• 2. Outdoor 2 tonne Free standing bridge crane which we can fix on ground and can have height of about 8m, length 6m and width 2.5m.crane to have traveling distance about 6m one axis and 2m on the other axis.

For 2 solutions above please offer both remote control operation and operation by wire.
Also since this will be used outside please inform us whether we can make a metal cover like roof on top of the crane so we can be able to use the crane even if it rains. Please take into consideration that sometimes there is wind of 50km/h with gusts of 100km/h so the whole structure and roof cover must be wind resistant!
Electricity is 380v and we will need all ce certificates to import to Cyprus.
Crane is to be shipped to Limassol Cyprus so please also provide price for freight.

outdoor use crane- freestanding bridge crane

Outdoor crane solutions : Outdoor jib cranes vs. Outdoor bridge comparisons

The customer's material handling crane will be installed outdoors. Considering the working conditions and cost, the customer was intended to choose from the freestanding jib crane scheme and freestanding bridge cranes . Besides,the 2 ton portable gantry crane was suggested due to low crane cost. The outdoor bridge crane was required to add steel structure, which is more expensive. However, the Cyprus customer still wanted the price and drawings of the outdoor freestanding bridge overhead cranes.

Solution 1: Freestanding jib crane 2 ton for outdoor use

The weight of the goods lifted is 1.3-1.5T
The main problems concerning the 2 ton freestanding jib cranes are as following：

• Modify the cantilever parameters, change the lifting height from 7M to 8M, confirm the lifting weight of 2T or 2.5T, and the cantilever foundation map.
  Reply: Ok, modify the plan according to customer requirements.
• Confirm the cantilever wind resistance and customer wind speed requirements;
  Reply: it cannot be done according to the specified wind speed greater than or equal to level 6.
• The wind speed requirement mentioned by the customer is the crane should be workable in the wind with speed of 50km/h and with gusts of 100km/h.
  Reply： The outdoor jib crane can be workable in the wind with wind speed of 38km/h. At that time, the wind speed could not meet the customer's requirements, so the customer was asked to consider the truss-type gantry crane. After the communication, the customer replied that he insisted on the jib crane plan.
• The design of the outdoor jib crane rain cover;
  The customer hopes to lift things normally outdoors in rainy days without getting the goods wet. The size of the rain cover should be large. Considering the wind resistance, the outdoor jib cranes cannot fully meet the customer's needs.

Solutions 2: Outdoor overhead crane 2 ton for Cyprus

Dear Mia,
our engineer say the best solution is finally bridge crane as attached. sorry for sending so many questions for jib crane but finally changing our mind.

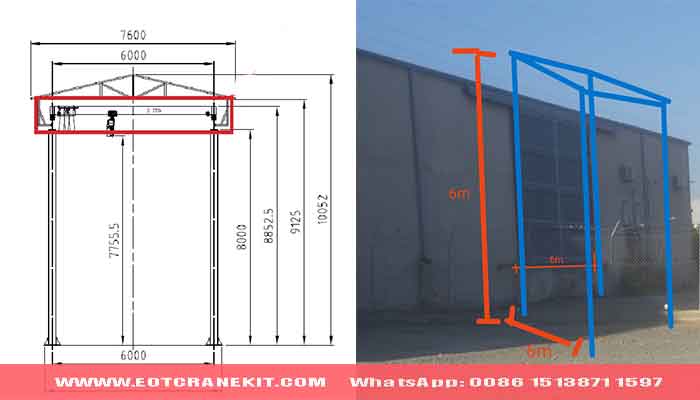

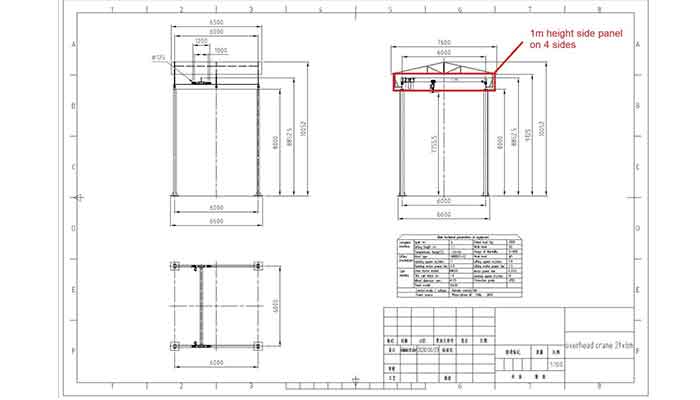

We need bridge crane complete with beams roof and side panels as attached
if size is not same but similar no problem for us
please send us prices for such a solution
best regards
Giannis

Questions and Answers on 2 ton bridge crane solutions

• There are side panels on your option? How wide is the side panel?
  Reply: Yes, our price includes the side panels, please find this item on my quotation 2.2. The width of side panel is 1M.
• So the main difference is extra strengthening on the 2 sides?
  Reply: a, Our columns and rail bearing beams are made of H-shaped steel structure, and inclined supports are added on both sides.b, Our overhead crane is equipped with electric wire rope hoist. The lifting speed is faster. This scheme is much better than chain hoist.
• What is the max wind speed we can use it?
  Reply: Less than level 6, the maximum wind speed is 38 km/h.
• Should we make the 4 big columns longer to put in the ground? How do you propose to fix in ground?
  Reply: The height of the column is determined according to the lifting height. The height of each column I give you is 8m, it doesn't need to be lengthened.
  You need to make the foundation of the column and put the anchor bolts in it to fix the column. I send you three pictures of columns foundation for your reference.
• Please specify the metal structure sizes and specifications( what type of metal etc)
  Reply: The column is HN346*174*6*9, 53kg/m, the runway beam is HN346*174*6*9,46kg/m.The material of steel structure is Q235B.

Final solution - Outdoor freestanding overhead crane for sale Cyprus

After long communications, the client feedback preferred the freestanding bridge crane. After all the details of the overhead crane specifications was confirmed as shown in the below. And after the prepayment is received. The production of 2 ton overhead crane was arranged.

Main specifications of 2 ton bridge cranes with roof & steel structures

• Single girder overhead crane;Lifting Capacity=2T,Lifting height=7.9m,Span=6m, 380V 50Hz 3P,Remote control,lsets
• Rails and fixing plates for traveling: Rail:P15,Pressing plate: 40 PCS,Clamps plate: 4 PCS, length: 6M*2
• Busbar and current collector: Seamless type bus bar, length: 6M
• Steel structure: Columns(4*8m):HN346*174*6*9,53kg/m,Runway beams(2*6m):HN346*174*6*9, 46kg/m, Oblique Bracing
• Anticorrosion cost of primer: (columns,runway beams and overhead crane ) l layer
• Anchor bolts: l set

Steel column foundation construction beforehand

foundation construction of overhead crane steel structure columns

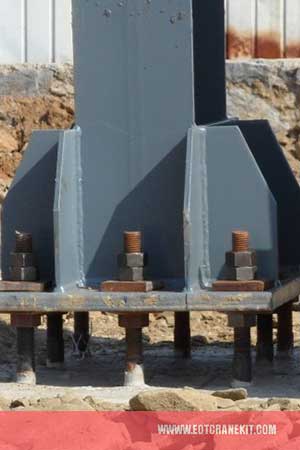

Steel columns of freestanding overhead crane 2 tons

Note: Besides bridge crane price, what else will affect your overhead crane purchasing price?
Special application needs and requirements additional features:

1. If the anti-corrosion paint is sprayed with one layer, the primer is sprayed, not the top coat; if the customer requests three-layer anti-corrosion paint, the price of spray paint will be very expensive, and it is necessary to confirm with the purchaser in advance whether it is one-layer anti-corrosion or three-layer anti-corrosion;
2. When including steel structure, remember to confirm the price of diagonal bracing, connecting bolts and anchor bolts with the purchaser.
Contact us to get your custom overhead crane design and specific crane price.

2 ton bridge crane productions and steel structures

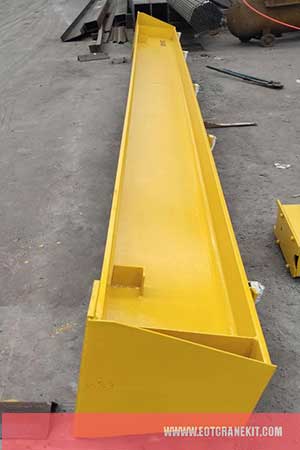

Main girder of 2 ton outdoor bridge crane

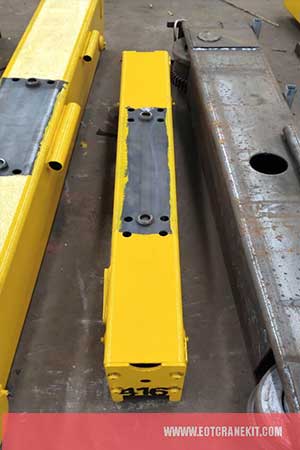

End carriages of 2 ton overhead travelling crane

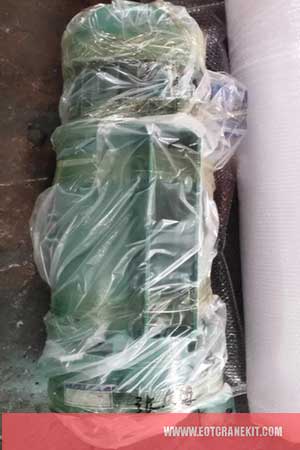

2 ton overhead crane hoist

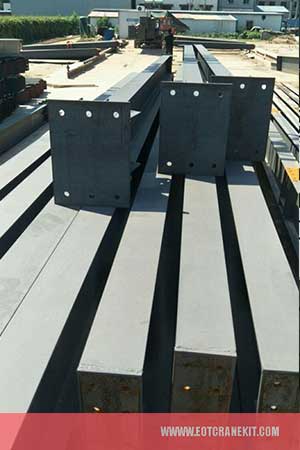

Columns of freetanding bridge crane 2 ton

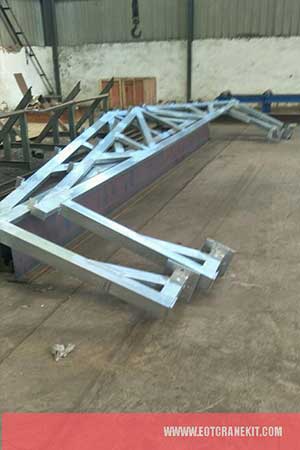

Steel frame of outdoor crane roof

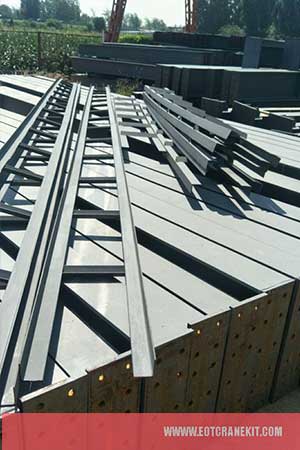

Steel frame of freestanding bridge crane roof

Feedback of 2 ton outdoor overhead cranes

After operation of 2 ton freestanding overhead cranes, the client was very satisfied. The customer feedback on the purchasing of 2 ton outdoor gantry cranes was good and he promised future cooperation when other overhead crane and hoist equipment would needed.Click to check feedback pictures of 2 ton crane for Cyprus.  If we are aimed to develop long-term cooperation in the future,and we dedicated ourselves to provide beneficial solution for our clients in Cyprus , Greece ,Netherlands, Poland, the UK, Serbia, Bosnia and Herzegovina and other countries in European market, etc.
