Electric Chain Hoist Portable Gantry Crane 3 Ton for Sale Mexico

3 ton portable gantry crane for sale Mexico. Portable gantry crane, with 3 ton electric chain hoist, pendant control, economical 3 ton gantry crane.

Crane type Electric chain hoist portable gantry crane
Crane specifications 3T-4.5M H3.2M
Power suppl 220V60HZ3P
Project location Mexico

Category: Electric Chain Hoist Crane

Your Trusted Electric Chain Hoist Crane Manufacturer & Supplier

Electric Chain Hoist Portable Gantry Crane 3 Ton for Sale Mexico

3 ton portable gantry crane for sale Mexico. Portable gantry crane, with 3 ton electric chain hoist, pendant control, economical 3 ton gantry crane.

Economical 3 Ton Portable Gantry Crane in Mexico

Client Background and Lifting Requirements

In the bustling industrial landscape of Mexico, efficiency and reliability are paramount to success. A key player in this pursuit is the 3 ton portable gantry crane with an electric chain hoist, serving as a prime example of innovation in material handling. This case study delves into the utilization and impact of this crane in a real-world scenario.

A prominent manufacturing facility located in Mexico found itself grappling with the challenge of streamlining its material handling processes. The need to lift and move heavy loads efficiently while maintaining workplace safety prompted the search for an optimal solution.

Electric Chain Hoist Gantry Crane 3 ton Solution Offered:

Enter the 3 ton portable gantry crane, an engineering marvel tailored to fit the client's requirements. With its fixed height design, the crane was capable of lifting loads up to 3 tons, spanning a distance of 4.5 meters, and achieving a lifting height of 2 meters. The crane's ability to operate on a 220V, 60Hz, 3-phase power supply made it a versatile choice for various industrial settings.

Features and Specifications:

The portable gantry crane boasted several essential features, including a pendant control system that provided operators with precise control over the crane's movements. This feature enhanced operational safety by allowing operators to maintain a safe distance from the load during lifting and movement.

3 ton portable gantry cranes with electric chain hoist for sale

Overview of 3 ton portable gantry cranes

  • Crane type: fixed height portable gantry cranes
  • Crane capacity: 3 ton
  • Crane span: 4.5 m
  • Crane lifting height : 2 m
  • Crane power supply:220V60HZ3P
  • Project location: Mexico

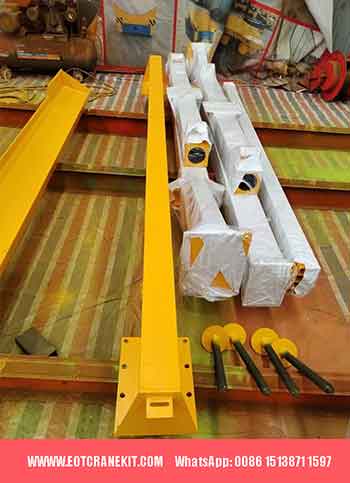

Main girder and steel structure of 3 ton electric chain hoist gantry crane with wheels for sale Mexico

Main girder and steel structure of 3 ton electric chain hoist gantry crane with wheels for sale Mexico

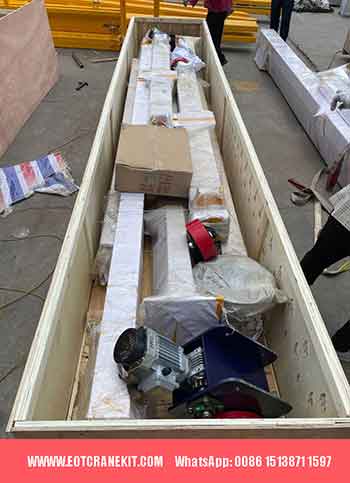

Main parts and components of steel gantry crane with electric chain fall hoist for sale

Main parts and components of steel gantry crane with electric chain fall hoist for sale

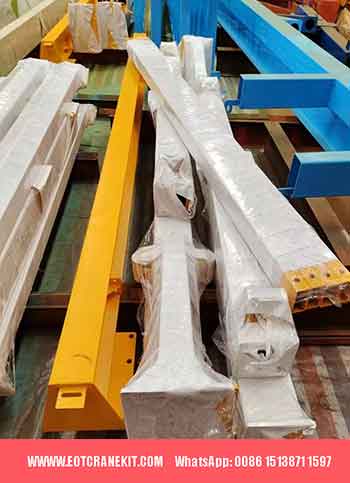

Main parts and crane kit of 3 ton electric chain hoist crane for sale Mexico

Main parts and crane kit of 3 ton electric chain hoist crane for sale Mexico

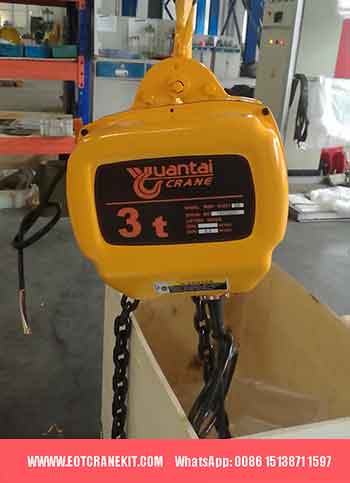

3 ton electric hoist for gantry crane

3 ton electric hoist for gantry crane

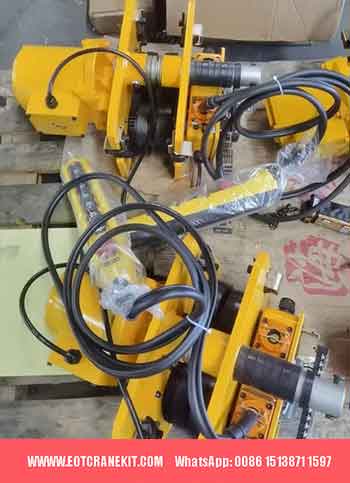

Electric hoist trolley for sale Mexico

Electric hoist trolley for sale Mexico

3 ton gantry crane hoist parts and components for sale Mexico

3 ton gantry crane hoist parts and components for sale Mexico

Benefits of 3 ton gantry crane for sale Mexico

Upon integration, the 3 ton gantry crane demonstrated its prowess by seamlessly fitting into the facility's workflow. Its mobility and compact design allowed it to be positioned strategically, optimizing the use of available space.

  • Enhanced Efficiency: The crane significantly expedited material handling tasks, reducing downtime and increasing overall productivity. Quick and precise lifting operations ensured a streamlined production process.
  • Safety Advancements: The pendant control system allowed operators to maneuver loads with accuracy, reducing the risk of accidents and material damage. Additionally, the crane's fixed height design ensured stability during lifting operations.
  • Cost-Effectiveness: The choice of an economical 3 ton gantry crane aligned with the client's budgetary considerations while providing robust lifting capabilities. The investment was quickly justified by the improved operational efficiency it brought about.
  • Versatility: The crane's adaptability to different power supply specifications made it an ideal choice for the diverse range of projects the facility undertook.

The introduction of the 3 ton portable gantry crane with an electric chain hoist into the manufacturing facility's operations marked a turning point in their material handling journey. With its precision, safety enhancements, and cost-effectiveness, the crane not only met but exceeded expectations. The collaboration between technology and industry needs exemplified the positive impact that innovation can have on optimizing industrial operations. This case study stands as a testament to the role of advanced equipment in propelling Mexico's industries toward efficiency and success.

Types of electric chain hoists and electric chain hoist cranes for your selections

Electric chain hoists and electric chain hoist cranes come in various types, each designed to meet specific lifting and material handling needs. Here are some common types:

  • Standard Electric Chain Hoist: These are basic electric chain hoists designed for general lifting applications. They offer a straightforward lifting solution with various weight capacities. They are often used in workshops, warehouses, and construction sites.
  • Low Headroom Electric Chain Hoist: Low headroom hoists are designed to fit in tight spaces where vertical space is limited. They have a compact design that allows for more efficient use of space, making them ideal for facilities with low ceilings.
  • Explosion-Proof Electric Chain Hoist: Explosion-proof hoists are designed to operate in hazardous environments where there is a risk of flammable gases or materials. They are built to prevent sparks and explosions, making them suitable for industries such as oil and gas, chemical, and mining.
  • Variable Speed Electric Chain Hoist: Variable speed hoists allow operators to control the lifting and lowering speeds, providing more precise control over the load. They are often used in applications that require delicate positioning or where different speeds are needed.
  • Dual Speed Electric Chain Hoist: Dual speed hoists offer two different lifting speeds: a higher speed for lighter loads and a slower speed for heavier loads. This feature enhances versatility and efficiency in handling different types of loads.
  • Stainless Steel Electric Chain Hoist: Stainless steel hoists are corrosion-resistant and suitable for environments where exposure to moisture, chemicals, or corrosive substances is a concern. They are commonly used in food processing, pharmaceuticals, and marine industries.

Types of electric chain hoist cranes

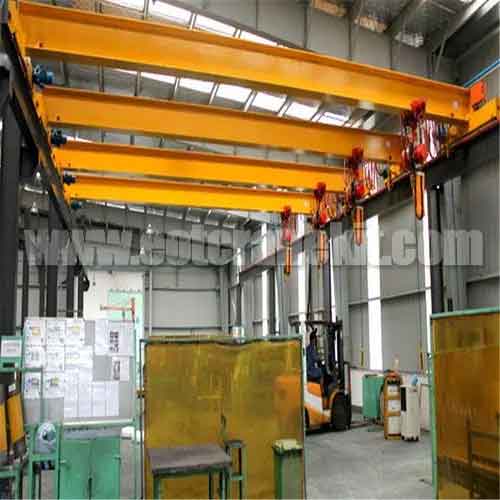

Top Running Electric Chain Hoist Crane:

Top Running Electric Chain Hoist Crane:

The top running electric chain hoist overhead crane is a versatile lifting solution that operates on a single overhead track, with the hoist trolley moving along the top flange of the beam. This configuration is commonly used in various industries for linear material handling tasks. It provides ease of movement and precise control over loads.

Applications:

  • Assembly Lines: Efficiently transports components or products along an assembly line.
  • Manufacturing Facilities: Moves materials between workstations or machinery for streamlined production.
  • Warehousing: Organizes and optimizes material handling within storage areas.

Advantages:

  • Precise Movement: Provides accurate and controlled load positioning along a straight path.
  • Minimal Footprint: Requires minimal floor space and can fit into tight areas.
  • Ease of Installation: Can be installed quickly, minimizing downtime during setup.

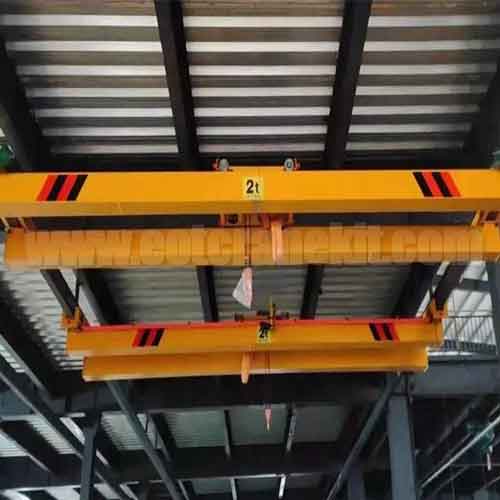

Under Hung Overhead Crane:

The under hung electric chain hoist overhead crane is similar to the top running configuration, but the hoist trolley moves along the bottom flange of the overhead track. This configuration allows for even more efficient use of vertical space.

Applications:

  • Low Headroom Environments: Well-suited for spaces with limited overhead clearance.
  • Intricate Workspaces: Used in areas where multiple cranes or equipment need to operate simultaneously.
  • Smaller Workshops: Ideal for smaller manufacturing or repair facilities with compact layouts.

Advantages:

  • Space Optimization: Provides maximum hook height for lifting while utilizing minimal vertical space.
  • Low Headroom: Suitable for environments with low ceiling heights.
  • Improved Accessibility: Offers better access to confined or restricted areas.

When choosing between top running and under hung overhead electric chain hoist cranes, consider factors such as available space, vertical clearance, load capacities, and the specific tasks you need to perform. Both configurations offer unique advantages, and the choice should be based on the requirements of your operation. Consulting with crane specialists can help you make an informed decision that aligns with your material handling needs.

Under Hung Electric Chain Hoist Overhead Crane:

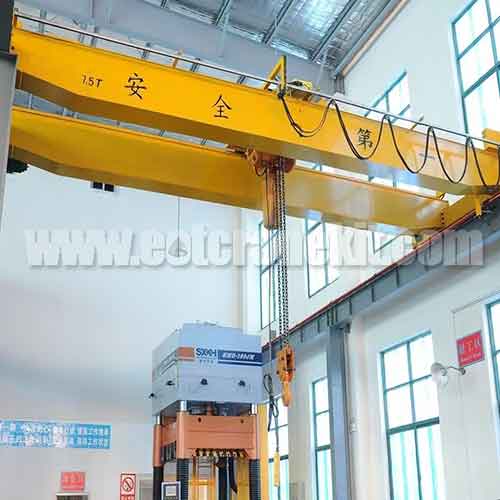

Single Girder & Double Girder Electric Chain Hoist Overhead Crane:

Single Girder & Double Girder Electric Chain Hoist Overhead Crane:

The single girder & double girder electric chain hoist overhead crane is a robust lifting solution that operates on parallel overhead girders. These girders are typically supported by the building's structure, allowing the crane to traverse the length of the building's span. This configuration offers exceptional lifting capacity and stability, making it ideal for heavy-duty applications.

Applications:

  • Heavy Manufacturing: Suitable for lifting and moving heavy machinery components and materials in manufacturing plants.
  • Steel Industry: Used for handling large steel coils, beams, and other structural materials.
  • Power Plants: Effective for maintenance tasks involving large generators, turbines, and equipment.

Advantages:

  • High Lifting Capacity: Single girder and Double girder overhead cranes can handle extremely heavy loads, making them indispensable in heavy industries.
  • Wide Span: Their design allows for wider spans, enabling coverage of larger work areas.
  • Improved Hook Height: The double girder configuration provides better hook height, allowing for efficient use of vertical space.

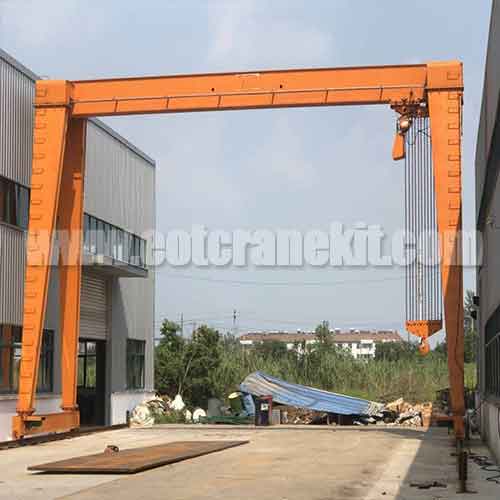

Electric Chain Hoist Gantry Crane:

The  electric chain hoist gantry crane is designed for outdoor and indoor applications where overhead support is not available. It features two parallel girders that are supported by upright legs. This type of crane offers the advantages of a gantry crane design with the flexibility of a gantry system.

Applications:

  • Construction Sites: Ideal for lifting and moving construction materials and equipment on job sites.
  • Shipbuilding Yards: Used for assembling large ship components and transporting heavy loads.
  • Loading Docks: Efficiently loads and unloads cargo from trucks, ships, and containers.

Advantages:

  • Mobility: Gantry cranes are mobile and can be moved to different locations, enhancing their versatility.
  • Outdoor Use: Designed for outdoor applications, they can withstand weather conditions and environmental challenges.
  • No Building Modification: Unlike overhead cranes, gantry cranes don't require modifications to the building structure.

These configurations of the double girder electric chain hoist crane offer a wide range of capabilities, each tailored to specific industries and lifting requirements. When selecting between these two options, factors such as the available workspace, load capacity, and mobility needs should be considered. Consulting with crane experts can help ensure that you make an informed decision that aligns with your operational needs.

Electric Chain Hoist Gantry Crane:
Adjustable Height Gantry Crane with Electric Chain Hoist :

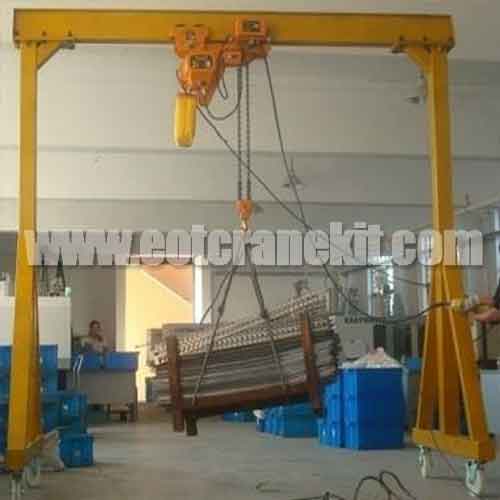

Portable Gantry Crane with Electric Chain Hoist:

Adjustable Height Gantry Crane with Electric Chain Hoist :

This type of portable gantry crane allows for the adjustment of the crane's height. It features adjustable legs that can be extended or retracted to accommodate different lifting heights based on the load and workspace requirements.

Applications:

  • Versatile lifting in workshops with varying load sizes.
  • Handling materials of different heights in maintenance tasks.
  • Adapting to uneven surfaces and changing job site conditions.

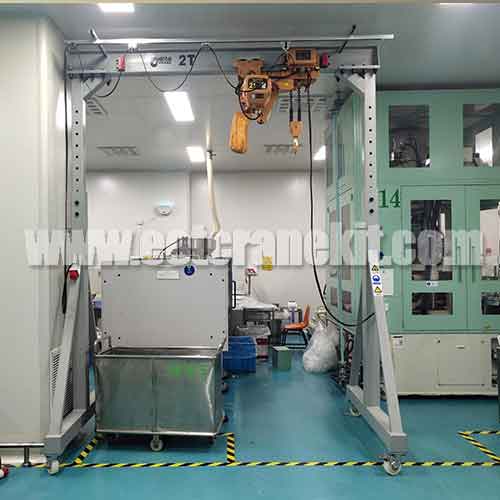

Aluminum Portable Gantry Crane with Electric Chain Hoist:

Aluminum gantry cranes are lightweight and corrosion-resistant. They are highly portable and suitable for environments where weight restrictions or outdoor use are considerations.

Applications:

  • Outdoor construction sites where mobility and corrosion resistance are vital.
  • Indoor workshops and production areas requiring frequent crane movement.
  • Laboratories or cleanroom environments where non-corrosive materials are needed.
Aluminum Portable Gantry Crane with Electric Chain Hoist:

These typical configurations highlight the versatility of electric chain hoist cranes and their adaptability to various industries and applications. When considering which type of crane to choose, factors such as load capacity, lifting height, available space, and specific lifting requirements should be carefully evaluated. Consulting with crane manufacturers or suppliers can help ensure that you select the most appropriate solution for your lifting needs.

When looking for electric chain hoists and hoist cranes for sale, consider factors such as lifting capacity, lifting height, speed options, control systems, and safety features. Depending on your specific needs and the industry you're in, you can choose the type of hoist that best suits your requirements. It's important to work with reputable suppliers or manufacturers who can provide you with the right equipment and ensure its proper installation and maintenance.
