3.2Ton -100 Ton Truss Beam Double Girder Gantry Crane Outdoor Use

Truss type double girder gantry crane is a goliath crane adopting double truss beams, welded from angle - steel or steel bars, for outdoor material handling. With the feature of high wind resistance ability , the double girder gantry crane with truss gantry design is particularly suitable for material handling in the open areas and places with heavy wind or large sandstorm, such as construction and installation sites, lumber yards and other places, etc.

Main parameters of double girder gantry crane with truss gantry design

The main parameters of truss beams double girder gantry cranes are presented for your reference. If custom designed truss beams double girder gantry cranes are needed, please feel free to contact.

• Lifting capacity of truss beams double girder gantry crane: 3.2 ton- 100 tons
• Span of truss beams double girder gantry crane : 12 m- 40 m
• Gantry girder design: Single girder, double girder, with 2 cantilever, 1 cantilever or no cantilever
• Lifting height of truss beams double girder gantry crane : 6-9m or customized
• Working class of truss beams double girder gantry crane : A3-A5
• Lifting mechanism of truss beams double girder gantry crane :CD1,MD1,HC hoist, hoist trolley or open winch
• Crane control of truss beams double girder gantry crane :Ground controlling and drivers' room controlling.

The double girder double girder gantry crane with truss gantry design is engineered for high speed and heavy-duty material handling, with double truss gantry girder design, equipped standard hoist trolley or winch trolley as the hoisting system, with capacity from 10 ton to 100 ton. With double girder crane design,the double girder double girder gantry crane with truss gantry design makes its hoist trolley or winch trolley running along the track on the top of the main beam girder. Double girder double girder gantry crane with truss gantry design is featured as strong and stable, large lifting capacity, long crane span, and high wind proof ability.

MH Truss Type Double Girder Gantry Crane

Lifting capacity of double girder gantry crane with truss gantry design: 3.2-32tons
Span of double girder gantry crane with truss gantry design : 12-30m
Lifting height of double girder gantry crane with truss gantry design : 6-9m or customized
Working class of double girder gantry crane with truss gantry design: A3-A5
Lifting mechanism of double girder gantry crane with truss gantry design: CD1,MD1,HC

MG Truss Type Double Girder Gantry Crane

Lifting capacity of double girder gantry crane with truss gantry design: 10-100tons
Span of double girder gantry crane with truss gantry design: 22-40m
Working class of double girder gantry crane with truss gantry design: A3-A5
Lifting height of double girder gantry crane with truss gantry design: 6-9m or customized
Lifting mechanism of double girder gantry crane with truss gantry design: Hoist or trolley or winch

Semi Gantry Crane with double truss beams

Main parameters of semi-gantry cranes
Crane type: BMH semi-gantry crane with single leg gantry design
Lifting capacity of semi gantry cranes:1t to 16t, 5 ton -32 ton
Span of semi gantry cranes:5m to 20m, 18m to 35m
Light Height of semi gantry cranes:6m to 12m,
Working class of semi gantry cranes:A3, A4
Ambient temperature of semi gantry cranes:-20℃ to 40℃

Structure & Composition

The full gantry double girder gantry crane with truss gantry design is consisted of the steel structure, the crane traveling system, crane trolley or electric hoist , electric parts and crane control system, and other crane parts and components, etc.The metal structure of truss beams double girder gantry crane mainly consists of the main beam with single girder or double girder design, end beam, supporting legs or out-triggers and end carriages. Truss girder gantry crane has lighter weight than box girder crane. The overall size of double girder gantry crane with truss gantry design steel structure is determined by the factors,including crane capacity, span length, lifting height, cantilever length, wheelbase of trolley and crane travelling mechanism,etc. .

• Steel structure:The steel frame structure of double girder gantry crane with truss gantry design is welded with Angle steel or Steel bar to make the gantry crane more suitable for windy application with advantages of light dead weight, high rigidity and high wind proof ability. . Connected with unique steel nails, the structure of double girder gantry crane with truss gantry design is not only strong, but also easy to install, assemble and disassemble when moving to a new site.
• Truss girder:Truss gantry girder has two types of designs, the single girder crane design and double girder crane design, which can meet your need for light-duty and heavy-duty material handling. Besides,, the metal structure of the gantry crane girder can be designed with or without cantilevers.
• Supporting legs: the double girder gantry crane with truss gantry design is usually supported on two rigid legs. However, when the length of double girder gantry crane with truss gantry design span is larger than 35m, the truss beams double girder gantry crane will be engineered to stand up on one rigid leg and one flexible leg.
• Crane frame traveling system: the frame structure of double girder gantry crane with truss gantry design is travelling on and along the installed track or rail on the ground for the transportation of loads
• Lifting system: lifting mechanism of truss beams double girder gantry crane is an electric winch trolley or electric hoist, equipped with hook and other lifting devices for loads hoisting.
• Crane control system: Ground crane control and driver cabinet control, etc.

Steel structure of double girder gantry crane

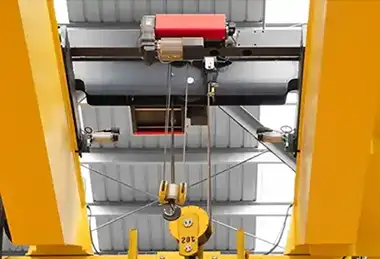

open winhc of double girder gantry crane

Electrics of  double girder gantry crane

Crane wheel of double girder gantry crane

Single cantilever & Double cantilever double girder gantry crane with truss gantry design

In terms of cantilever design of gantry frame, double girder gantry crane with truss gantry design can be grouped into

• Double Cantilever truss beams double girder gantry crane - most frequently used structure, which can take full use of the endurance capacity of crane structure and application space reasonably.
• Single cantilever truss beams double girder gantry crane - Used when the application space is limited.
• truss beams double girder gantry crane with no cantilever - the main girder has no cantilever with the hoisting trolley or winch trolley running within the crane span

Double cantilever double girder gantry crane

No cantilever double girder gantry crane with truss crane design

Single cantilever double girder gantry crane with truss crane design

Double cantilever with single girder gantry crane

Safety feature

• Loss of pressure fault phase protection -Electricity will be disconnected if the voltage is too low. The electricity will be disconnected when the phase is changed.
• Over voltage or over current protection -The electricity will be disconnected if the voltage is too high. The electricity will be disconnected if the current is too large.
• Overload limit switch-When the lift capacity exceeds the maximum rated lift capacity, the electricity is turned off, and the crane stops working.
• Weight limit-Observe the hook's reduction. There is a height restriction. If you reach this point, the hook will be unable to fall any farther.
• Fire limit -Keep an eye on Hook's up and down limit positions. Protect the hoist by avoiding over-incrementing and over-decrementing.
• Crane travel limit switch -Supervise crane travel and stop it if it exceeds the rated travel distance.

Benefits of employing truss beams double girder gantry crane

• With small windward area, the double girder gantry crane with truss gantry design is inborn with excellent wind resistance, an ideal lifting solution in heavy wind areas
• With truss structure and cantilever design, truss beams double girder gantry crane offers light dead weight and large hook coverage.
• double girder gantry crane with truss gantry design is easy to be operated, installed and maintained with safety and convenience.
• With low noise and power consumption, truss type gantry crane is environment friendly.

Features of truss beams double girder gantry crane

The double girder gantry crane with truss gantry designs in general have the features of light weighted main steel structure, small wheel load pressure and reliable performance, developed on the base of Russian gantry crane. Main specification of the gantry crane with truss steel structure includes lifting capacity, lifting height, crane span, operating speed, working duty class, total crane weight and wheel load pressure, and others, etc.The features of truss beams double girder gantry cranes are detailed as follow:

• The crane truss steel structure is made of strengthened triangular truss, with light weight, and high wind resistance. Wind resistance of double girder gantry crane with truss gantry design is class 6 with loading and class 11 without loading.
• Stable structure, easy installation and removal.Thermal expansion seamless steel legs or truss legs are connected with the main beam girder and ground girder with the bolts or pin connections. Both main and auxiliary legs of the double girder gantry crane with truss gantry design can be dismantled easily, making transportation convenient and saving shipping cost.
• Based on the national rules and standards, the design and manufacturing of the truss beams double girder gantry cranes meet all the requirements of meteorological conditions.
• With environmental friendly designing concept, the double girder gantry crane with truss gantry designs complies with the relevant environmental laws and regulations.
• Ground control or driver's cab control are available for truss beams double girder gantry crane.

Application of double girder gantry crane with truss gantry design

Truss beams double girder gantry crane has a wide application and are used in various industrial occasions. Typically, truss beams double girder gantry cranes are widely used for material handling in Concrete beam yard and Bridge Construction site.

• First, truss beams double girder gantry crane are widely used in Concrete Beam Yard for handling concrete bridge beams, concrete plates and other concrete products, etc. And an electric hoist is equipped on the main crane girder for light and small tools or loads handling.
• Engineered truss beams double girder gantry crane will be used on bridge construction site for hoisting the concrete beam from ground transporter to bridge transporter, helping launcher crane to build the whole bridge.
• Third, engineer truss beams double girder gantry crane also can be used for disassembling and re-erection of launcher cranes.

With various designs and configurations, double girder gantry crane with truss gantry designs can be used in many different other working occasions such as, Port, Shipyard, Railway line, Material yards, etc. And also, truss beams double girder gantry crane can be widely used for material handling in various industrial factories and plants such as,Steel, Forest Products, Inter-modal, Biomass/Pellet and many other industries,etc.

All in all, the double girder gantry crane with truss gantry design with single gantry girder design or double gantry girder design are widely used in various application because of the features and advantages of light-weighted, strong and stable performance and high wind resistance, etc. If you need a cut-to-tail truss beams double girder gantry crane solution, please feel free to contact us. Get free consultation on double girder gantry crane with truss gantry designs and truss beams double girder gantry crane now.
