Crane Specifications of Double Girder Gantry Crane with Hook
Double Girder Gantry Crane & Golith Crane For Sale

Gantry cranes also called Goliath cranes are a type of heavy lifting equipment that is commonly used in factories, warehouses, workshops, material yards, rail yards, cargo yards, ports, and other applications, etc. The use of a gantry crane can significantly reduce labor intensity, improve operational efficiency, and achieve operational mechanization and automation.

The mg type of double girder gantry cranes are available with the lifting capacity of 5 ton ~500 ton, , span of 18m~35m, and lifting height of 1m~40m. Besides the MG series of double girder gantry cranes, there are many different types of gantry cranes, with different crane specifications and configurations to meet varied lifting needs of customers to get the right gantry crane system tailored for your business, please feel free to contact us.

32 ton/5 ton double girder gantry crane for outdoor applications

Main applications of hook double girder goliath crane

• The goliath gantry crane are widely used at open storage or railway for material handling for the operation of loading & unloading, storaging, etc.
• Equipped with special lifting devices for special use and loads handling operations.
• The goliath crane are usually used in the working environment: -25℃～+40℃, humidity ≤85%, elevation: ≤1000m, power supply: 3-phase, 380V, 50Hz (made according to the order).
• The general use double girder gantry crane is not supposed to be used in application with high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.

MG types of Double Girder Gantry crane for sale Philippines, Crane Specifications： crane capacity 50 ton, crane span: 13.7 m, lifting height 9m, with 4.3 m cantilevers. Click to download 40 ton gantry crane drawing for reference.

MG types of Gantry Crane for Sale, Crane Specifications: Crane capacity:200 ton, crane span :25m, crane lifting height : 13m.Click to download 200 ton gantry crane drawing for reference.

Main structure and features of double girder gantry cranes

The main structure of the goliath cranes are mainly composed of gantry mounting, double girder trolley & gantry crane traveling mechanisms and electric parts.

Gantry Mounting

• "A" frame structure with tack bolts and connecting bolts to assemble main parts together;
• Maximum space between legs was provided to ensure that loads or objects could be lifted between legs at the cantilever end;
• All partial rail box beam structure main girder, the camber meet national standard (0.9~1.4)/1000S, flange and bolts connect main girders and legs;
• Box structure legs, both sides connect separately with main girders and lower separators.
• Materials such as Q235B or Q345B (similar as Fe37 or Fe52).

Trolley& trolley frame

• The gantry crane is consisted of trolley frame, lifting mechanism and trolley traveling mechanism, etc.
• The goliath crane trolley frame is welded of steel plates with high intensity and strong rigidity.
• The gantry crane trolley frame is equipped with lifting mechanism and trolley traveling mechanism.

Lifting Mechanism

• One set of independent driving device for single hook and two separate driving device for double hook (main and auxiliary).
• The lifting mechanism operates on the basis of a high-speed rotating YZR type crane special motor and a gear coupling drive gear reducer. The wire rope drum is then turned by the reducer's low speed shaft. The lifting function of the hook can be achieved as long as the control of motors and their positive and negative rotation is maintained.

Crane Traveling Mechanism

• Drive separately.
• Vertical trinity drive, compact and safe.
• The interference fit key connects the wheels and axles, and the angle bearing box for the wheel group.
• Two sets of outage terminal limiters and a backstop device with a buffer for accurate crane positioning;
• When used outdoors, the goliath gantry cranes are equipped with rail clamp and anchorage for wind and storm resistance.

Electrics

• Module speed control, allowing for slow and double speeds.
• Control cabin with a logical layout that is simple to maintain.
• lAll external cable with mark.
• High conductive, low pressure HxPnR.

Power distribution & security protection

The distribution system is made up of a master breaker, a master power contactor, and main circuits of mechanisms, which allow the subcircuit to remain isolated when it is not in use. In the distribution control circuit, there are starting and emergency switches, a power indicator, safe and limit switches for master power, and short circuit, overcurrent, overload, and voltage protections that turn off when power is interrupted. Zero protection for mechanisms. If the handles are not back in zero position when fault recovery, they cannot auto start.

Overload & short circuit protection

Master air switch in master circuit, small air switch or fuse protection as overload and short circuit protection in control circuit. Over current & overload protect functions are set in all control cabinets.

Zero position protection

Every controller should be back to zero position, then restart master contactor when the crane start or restart to work.

Limit protection

• limit switch in lifting mechanism break the control circuit when hook get the limitation for ensure security.
• limit switches in both trolley and crane travel mechanisms break control circuit when traveling to the limit position. It can only travel to the other side.
• limit switches are also set in the door of cabin and balustrades. The master power can be started when these doors are totally closed.
• emergency protection- Emergency switch could quickly break the power in emergency.

Overload protection

Overload limiter is set in lifting mechanism, it could break power, alarm with sound and light and show the number when overloaded.

Control Mode

• Cabin control, fully enclosed, steel plate bending production with enough strength and stiffness, broad vision;
• Linkage control design could ensure driver to operate safely and comfortably. Safe and convenient passageway, comfortable seat. The cabin is equipped with fire extinguisher, display screen of overload limiter.
• Remote control & pendent control are optional based on your lifting requirements and application conditions.

Crane Specifications of Double Girder Gantry Crane MG Type

MG Type Box Girder Double Beam Gantry Crane with Hook

• Main specifications of standard open winch double girder overhead crane with hook
• Lifting Capacity: 1-500 tons
• Lifting Height: According your demands
• Span: 12-35 m
• Voltage: 220-440V 50/60Hz 3Phase
• Protection Class: IP44-IP55
• Working Temperature: -20-+40 ℃
• Lifting Mechanism: Built up hoist trolley/ Open winch trolley
• Color: Blue, Yellow, Customized
• Check more on the MG type of double girder gantry crane
• Check more on types of double girder gantry cranes

Technical Parameter of MG Double Girder Gantry Crane 5 Ton -32 Ton

Technical Parameter of MG Double Girder Gantry Crane 5 Ton -32 Ton
Capacity	t	5	10	16	20	32
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	11.5	8.5	7.9	7.2	6
Trolley speed	m/min	37.2	37.4	40.1	40	37
Crane speed	m/min	37.7	37.7	40.1	40.1	38
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		P43	P43	P43 QU70	P43 QU70	P50 QU80

Technical Parameter of MG Double Girder Gantry Crane 50 Ton -200 Ton

Technical Parameter of MG Double Girder Gantry Crane 50 Ton -200 Ton
Capacity	t	50	75	100	160	200
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	5.9	4.7	3.9	3.5	3.5
Trolley speed	m/min	31.3	38.2	33.9	22.5	29
Crane speed	m/min	44	38.3	32.3	28	28
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		QU80	QU80	QU100	QU100	QU100

Technical Parameter of MG Double Girder Gantry Crane 250 Ton -500 Ton

Technical Parameter of MG Double Girder Gantry Crane 250 Ton -500 Ton
Capacity	t	250	320	400	450	500
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	2.2	2.3	1.5	1.5	1.5
Trolley speed	m/min	28	16.6	10	10	11.5
Crane speed	m/min	50	28	18	18	16
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		QU120	QU120	QU120	QU120	QU120

Detailed Technical Specifications of MG Double Girder Gantry Crane 5 Ton

Detailed Technical Specifications of MG Double Girder Gantry Crane 5 Ton

MG Double Girder Gantry Crane with Hook Crane Specifications of 5 ton gantry cranes
Span(S)	m	18	22	26	30	35
Lifting Height	m	10	10	12	12	12
Lifting Speed	m/min	12.5
Trolley Speed	m/min	37.2
Crane Speed	m/min	37.7			40.1
Total Power Supply	KW	31.8	31.8	31.8	40.8	40.8
Max. Wheel Load	KN	217	230	243	266	289
Recommend rail		P43
Main Dimension	mm	18	22	26	30	35
Total Height	H4	13374	14474	13524	15606	15698
Crane Wheel Tread	W	7000	7000	8500	8500	8500
Total Width	B	8554	8554	13050	13050	13050
Left Cantilever	L1	6500	6500	6500	9000	9000
Right Cantilever	L2	6500	6500	6500	9000	9000
Hook Left Limitation	S1	5000	5000	5000	7500	7500
Hook Right Limitation	S2	5000	5000	5000	7500	7500
Trolley track gauge	K	1400

Detailed Technical Specifications of MG Double Girder Gantry Crane 10 Ton

Detailed Technical Specifications of MG Double Girder Gantry Crane 10 Ton
Span(S)	m	18	22	26	30	35
Lifting Height	m	10	10	10	12	12
Lifting Speed	m/min	8.5
Trolley Speed	m/min	43.8
Crane Speed	m/min	37.7		40.1
Total Power Supply	KW	36.5	36.5	45.5	45.5	45.5
Max. Wheel Load	KN	225	228	245	290	310
Recommend rail		P43
Main Dimension	mm	18	22	26	30	35
Total Height	H4	14580	14580	14580	16590	16590
Crane Wheel Tread	W	8000	8000	8500	9500	9500
Total Width	B	9554	9554	10350	11350	11350
Left Cantilever	L1	6500	6500	7500	9000	9000
Right Cantilever	L2	6500	6500	7500	9000	9000
Hook Left Limitation	S1	5000	5000	6000	7500	7500
Hook Right Limitation	S2	5000	5000	6000	7500	7500
Trolley track gauge	K	2000

Crane System and Configurations

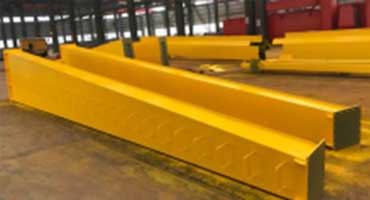

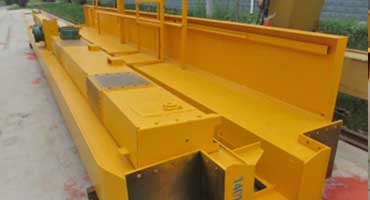

Main girder

Main structure consists of main girders, ground beams and support legs, made of Q235B carbon structural steel. Strong and elegant

Ground beams

Ground beams are equipped with quality wheels, powerful motors, reducers and brakes, easy to install and maintain. Three-layer painting

Support legs for box girder gantry crane

Box girder supporting leg, stable and reliable

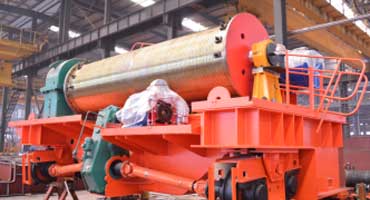

Electric gantry crane open winch

Working class M5, Reducer, drum and motors, Overload limiter switch, cross travelling limiter included, Protection class IP54

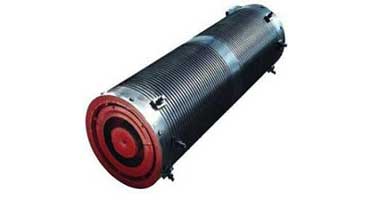

Gantry crane open winch rope drum

Seamless drum produced by our group High strength and long life

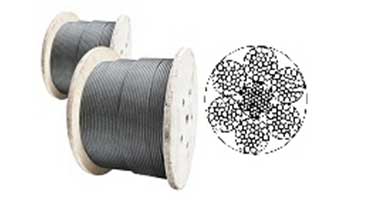

Wire rope - gantry crane parts

Rope structure 16-NAT6×19W+FC

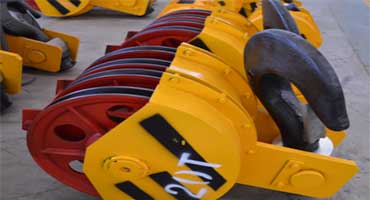

Hook- gantry crane hook parts

Plain 'C' type, swiveling on Thrust Bearing, belt buckle and wire ropes sheath

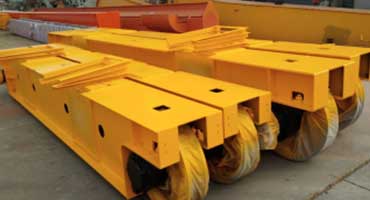

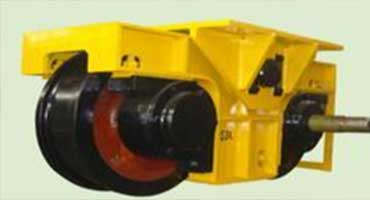

Wheel- gantry crane travelling wheel

Vacuum casting by our group, Intermedium quenching by top technique machinery Antirust painting,

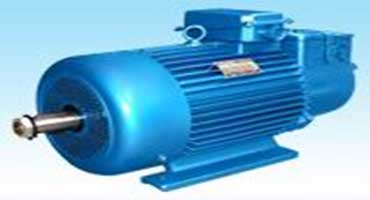

Motor - gantry crane motor

Three-phase squirrel cage motor, Soft start for smooth running, Long design service life, Protection class IP54,1

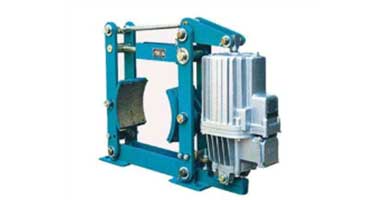

Brake - gantry crane parts

Electro-hydraulic brake, High breaking torque, Safe and durable,

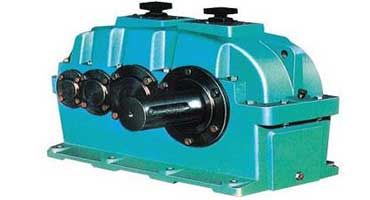

Reducer - gantry crane parts

Dongtai brand. Pressure casting shell, Splash lubrication. Stable and low noisy,Easy to maintain

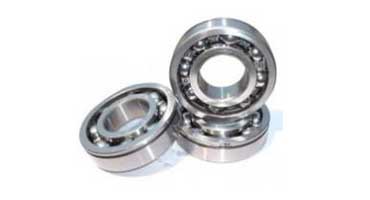

Bearing

Luoyang Brand, Chinese best brand

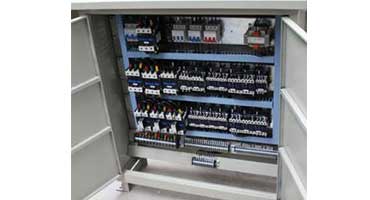

Electric cabinet

Main contactors are CHINT brand

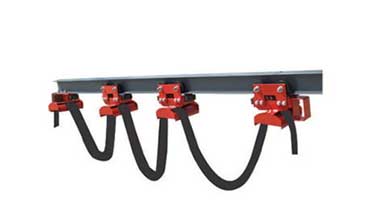

Festoon cable - gantry crane power supply

Festoon cable to connect power to winch trolley

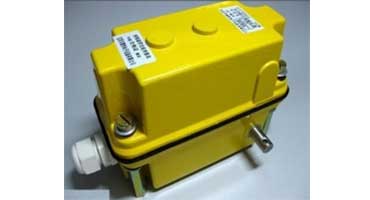

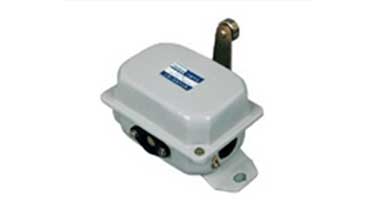

Lifting limiter

For lifting protection, prevent the hook from knocking the trolley

Travelling limiter

For cross travel & long travel to protect the crane before it crashes the object

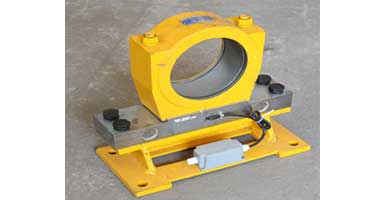

Overload limiter

For lifting protection, monitor the crane situation

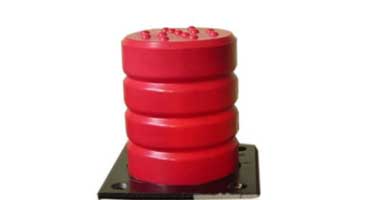

Buffer - gantry crane anti-collision parts

Used for anti-collision

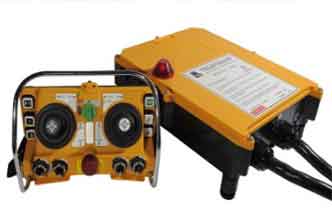

Joystick Remote control - gantry crane control

Easy to operate, no need for professional driver

Hot Sale Double Girder Gantry Cranes & General Specifications

Gantry cranes are a type of overhead crane with legs that support the crane structure. Unlike bridge cranes, gantry cranes can be used outdoors, making them suitable for various applications in open yards, construction sites, and port facilities.

Gantry cranes are commonly used in settings where outdoor lifting is required. They excel in tasks like loading and unloading shipping containers, handling construction materials, and moving heavy equipment.

double girder gantry crane 3 ton to 550 ton, hot sale

double girder single leg semi gantry crane, good price for sale

double girder gantry crane with European style electric hoist

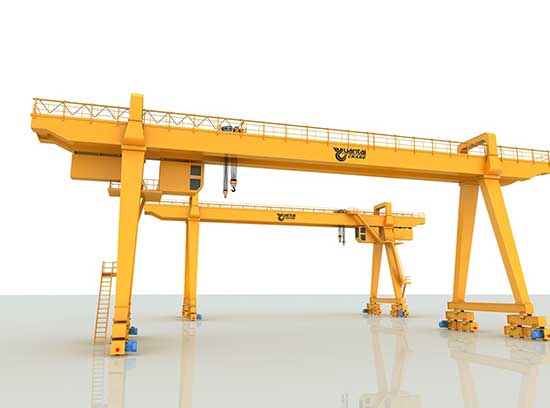

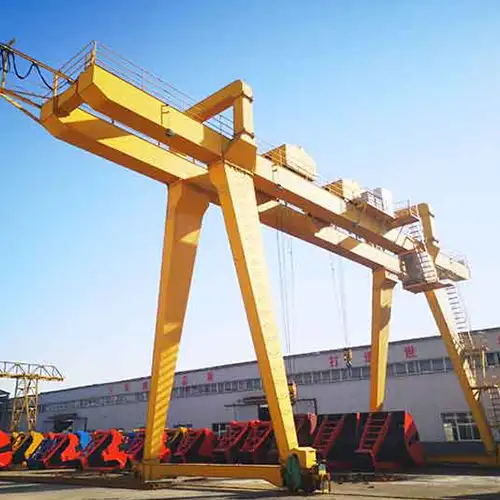

MG Double Girder Gantry Crane with Full Gantry Design

MG double girder gantry crane is a typical A frame crane designed for general lifting purposes. It can be employed for outdoor heavy duty lifting applications, such as freight yard, construction site, railroad terminals, shipyard and port. The crane can also be used inside your facilities when it is not suitable to incorporate an overhead crane system.

The MG type gantry crane is the most commonly used gantry lifting equipment for its high utilization, wide application, great adaptability and strong versatility. The rated lifting capacity ranges from 5 tons to 500 tons.

MG double girder gantry crane parameters:

• Load capacity: 5-500t
• Span: 18-35m
• Lifting height: 6-18m
• Lifting speed: 1.5-11.5m/min
• Trolley running speed: 10-40.1m/min
• Crane running speed: 16-50m/min
• Work duty: A3-A7

Ask for open winch double grider gantry crane price for sale

Technical Parameter of  MG Double Girder Gantry Crane
Capacity	t	5	10	16	20	32
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	11.5	8.5	7.9	7.2	6
Trolley speed	m/min	37.2	37.4	40.1	40	37
Crane speed	m/min	37.7	37.7	40.1	40.1	38
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		P43	P43	P43 QU70	P43 QU70	P50 QU80

Capacity	t	50	75	100	160	200
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	5.9	4.7	3.9	3.5	3.5
Trolley speed	m/min	31.3	38.2	33.9	22.5	29
Crane speed	m/min	44	38.3	32.3	28	28
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		QU80	QU80	QU100	QU100	QU100

Capacity	t	250	320	400	450	500
Span	S(m)	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	2.2	2.3	1.5	1.5	1.5
Trolley speed	m/min	28	16.6	10	10	11.5
Crane speed	m/min	50	28	18	18	16
Work duty		A3-A7	A3-A7	A3-A7	A3-A7	A3-A7
Track type		QU120	QU120	QU120	QU120	QU120

Semi Gantry Crane with Double Beam Design

Semi gantry crane is a piece of gantry lifting equipment used indoors and outdoors, such as machine shop, warehouse and freight yard. It is also regarded as a combination of half overhead crane and half gantry crane in that it is mounted to a carriage that travels on an overhead runway on one side and supported by a leg that travels along rails on the ground on the other side.

Designed for general purpose, this type of crane can be used for small to heavy duty lifting work in manufacturing and material handling industries. The cranes supplied by our company are also available in custom design to meet your special requirements.

BMG double girder semi gantry crane parameters:

• Load capacity: 5-32t
• Span: 12-30m
• Lifting height: 6-12m
• Lifting speed: 6-11.5m/min
• Trolley running speed: 37-40.1m/min
• Crane running speed: 37.7-40.1m/min
• Work duty: A3-A6

Ask for double grider semi gantry crane price for sale

Technical Parameter of BMG Double Girder Semi Gantry Crane
Capacity	t	5	10	16	20	32
Span	S(m)	12~30	12~30	12~30	12~30	12~30
Lifting height	m	6~12	6~12	6~12	6~12	6~12
Lifting speed	m/min	11.5	8.5	7.9	7.2	6
Trolley speed	m/min	37.2	37.4	40.1	40	37
Crane speed	m/min	37.7	37.7	40.1	40.1	38
Work duty		A3~A6	A3~A6	A3~A6	A3~A6	A3~A6
Track type		P43	P43	P43 QU70	P43 QU70	P50 QU80

U Type Double Girder Gantry Crane

U-type double girder gantry crane is a sort of heavy duty lifting equipment distinguished by the fact that it has larger space between legs than A-frame gantry crane, which enables it to lift and move large-sized goods like containers. The name, as you might have guessed, comes from the U-shape of side profile. The U-frame gantry crane is widely applied in open freight yards, railroad terminals, shipyards and ports, and the work duty is A5, A6.

U type gantry crane parameters:

• Load capacity: 10-50t
• Span: 18-35m
• Lifting height: 6-18m
• Lifting speed: 5.9-13.3m/min
• Trolley running speed: 31.3-40.1m/min
• Crane running speed: 40.1-44m/min
• Work duty: A5-A6

Ask for U frame gantry crane price for sale

Technical Parameter of MDU Double Girder Gantry Crane
Capacity	t	10	16	20	32	40	50
Span	S(m)	18~35	18~35	18~35	18~35	18~35	18~35
Lifting height	m	6~18	6~18	6~18	6~18	6~18	6~18
Lifting speed	m/min	13.3	7.9	7.2	6	5.9	5.9
Trolley speed	m/min	37.4	40.1	40	37	31.3	31.3
Crane speed	m/min	41	40.1	44	40.1	40.1	40.1
Work duty		A5-A6	A5-A6	A5-A6	A5-A6	A5-A6	A5-A6
Track type		P43	P43  QU70	QU70	QU80	QU80	QU100
