Overhead Cranes & Gantry Cranes: Strategic Planning & Design for Diverse Precast Concrete Plant Layouts

Explore how tailored overhead and gantry crane planning enhances efficiency, productivity, and safety across various precast concrete plant layouts.

Importance of Overhead Cranes and Gantry Cranes in Precast Concrete Plants

Overhead cranes and gantry cranes are essential pieces of equipment in precast concrete plants. They play a vital role in ensuring efficient movement of heavy and bulky precast concrete components throughout the production process. These crane systems are designed to transport large concrete items between various stages, including casting, curing, assembly, storage, and shipping. They allow for smooth and controlled movement of materials, eliminating the need for manual handling, which can lead to delays, damage, or safety risks.

In precast concrete production, materials like concrete slabs, beams, columns, walls, and other large precast items must be moved quickly and accurately. Overhead cranes and gantry cranes can handle these tasks with precision, helping manufacturers maintain consistency in production schedules and meet tight deadlines. Without these cranes, the production line would experience bottlenecks, increased labor costs, and reduced output.

These crane systems improve overall productivity by ensuring that heavy materials are moved swiftly between different stages of the production chain. They also minimize downtime and errors by reducing the need for human workers to move heavy concrete manually. Additionally, they contribute to improved workplace safety by reducing the risk of worker injuries related to lifting heavy materials.

The Role of Crane Systems in Material Handling Efficiency and Production Timelines

The efficient handling of heavy materials is the foundation of a successful precast concrete operation. Overhead cranes and gantry cranes streamline material transport across large distances within a production facility. They allow workers to focus on other tasks by automating the transfer of concrete components between casting beds, curing stations, storage yards, and delivery areas.

When properly planned and integrated, crane systems reduce waiting time between different stages of production, optimize assembly processes, and minimize interruptions. With overhead and gantry cranes, precast concrete plants can ensure that deadlines are met and client orders are delivered on time. By improving production timelines and material flow, these cranes enhance overall operational efficiency.

The ability of overhead and gantry cranes to transport large and heavy loads safely allows for high-volume production and just-in-time delivery. These capabilities are critical for maintaining a seamless workflow in the precast concrete industry.

Factors that Determine the Selection and Design of Crane Systems

The successful implementation of overhead cranes and gantry cranes depends on understanding the unique needs of each precast concrete plant. Several key factors influence crane system selection and design:

Eurpean style overhead crane and gantry crane with advanced smart features

overhead cranes and gantry crane with tradtional design and economical price

Production Capacity

The size and scale of the precast concrete operation dictate the lifting capacity, number of cranes, and operational speed required. A smaller precast plant may only need a few overhead cranes with capacities of 10-20 tons. On the other hand, larger plants with production capacities of hundreds of thousands of cubic meters will need cranes with much higher lifting capacities—up to 50 tons or more.

The crane systems must align with the number of production lines, assembly stages, and the daily volume of concrete components to meet production goals efficiently.

Land Area

The physical space available at the precast concrete plant is another major factor. Some crane designs are better suited to smaller, confined areas, while others may require larger layouts. Gantry cranes are often selected for their ability to navigate tight spaces while maintaining flexibility. On the other hand, large overhead bridge cranes may require expansive production areas to ensure proper movement and lifting capabilities.

Plant Layout Design

The layout of the precast plant influences crane system design. A well-planned layout considers production stages, storage areas, raw material handling zones, casting areas, and curing spaces. The crane systems must follow this layout to ensure smooth and uninterrupted material flow.

For instance:

• In multi-line production layouts, multiple overhead cranes or gantry cranes may be needed to ensure every production line operates without bottlenecks.
• In single-line layouts, fewer cranes are used, but they must be high-capacity and versatile.

Type of Precast Concrete Components Being Handled

The type of concrete products being manufactured will also influence crane design and selection. Some examples include:

• Precast slabs and planks often require overhead cranes with adjustable lifting attachments.
• Double-wall panels or beams may demand cranes with higher lifting capacities and special design adaptations.
• Specialized components like staircases or columns may need cranes that can accommodate unique shapes and sizes.

The crane systems should be tailored to accommodate these various shapes, weights, and handling requirements without risking damage during transport.

By taking these factors into account, crane system designs can be optimized to improve production capacity, minimize costs, and ensure operational safety and efficiency.

In conclusion, overhead cranes and gantry cranes are critical to the smooth operation of precast concrete plants. They streamline material handling, improve production timelines, and reduce labor costs while prioritizing safety. The design and selection of these crane systems depend on various factors like production capacity, land area, plant layout design, and the type of precast concrete components being produced. With the right design and planning, these crane systems ensure that precast concrete plants can operate efficiently, safely, and cost-effectively.

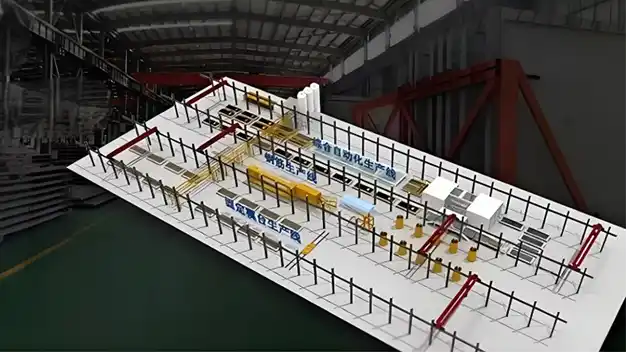

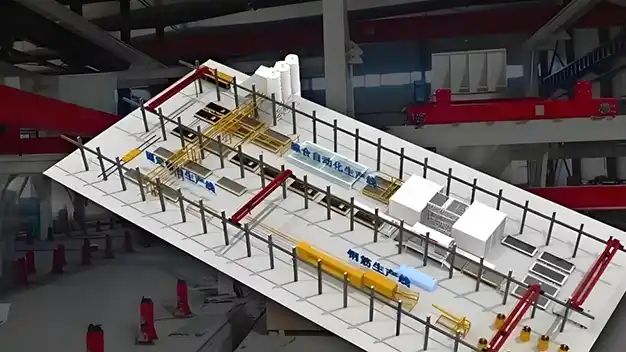

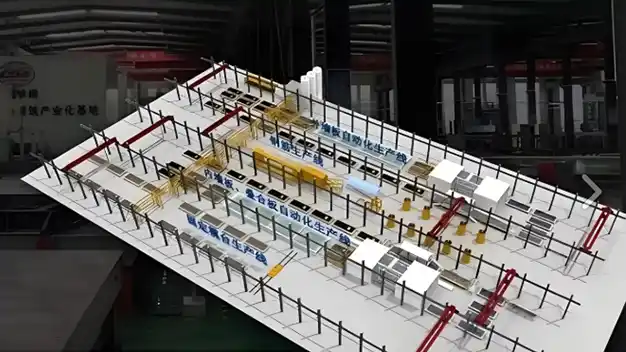

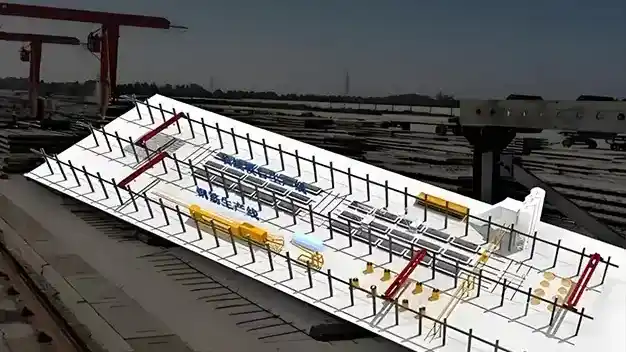

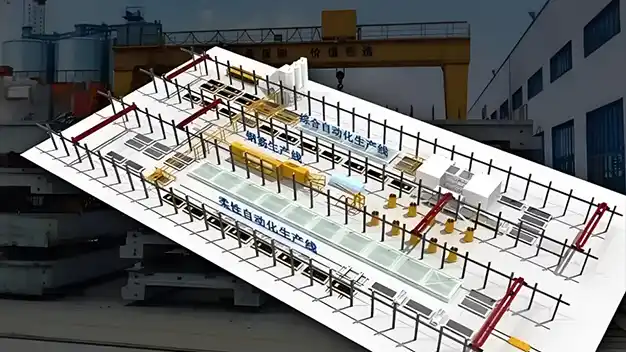

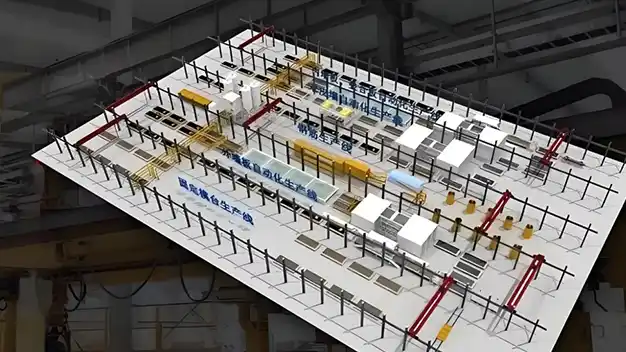

Analysis of Precast Concrete Plant Layouts

Precast concrete production plants are designed based on different operational goals, production capacities, and land availability. The layout type of a precast plant is essential to meeting production goals and optimizing material flow, crane use, and operational efficiency. Below is an in-depth analysis of the most common precast concrete plant layouts:

Traditional Circulation Precast Plank Systems (2+1)

This layout represents a small-scale precast concrete plant designed with a simpler production system. The 2+1 system relies on minimal crane systems and focuses on producing concrete planks and slabs for foundational construction and other applications.

• Annual Design Capacity: Approximately 100,000 m³
• Land Demand: Around 534,400 m²
• Crane Requirements: Minimal, focusing primarily on efficient material handling for slab and plank production.

These plants are characterized by their low operational costs and relatively simple infrastructure. They are suitable for smaller-scale operations where demand is moderate and production goals are met using fewer crane systems.

Traditional Circulation Systems (3+1)

The 3+1 system represents a medium-scale precast plant with specialized automated production lines. This layout is well-suited for efficiently handling medium-volume production needs with greater mechanization.

• Annual Design Capacity: Approximately 200,000 m³
• Land Demand: Around 80,000 m²
• Features: Includes specialized automated production systems and more advanced crane configurations.

The 3+1 traditional system allows for increased production efficiency by focusing on precision casting and automated handling. This system reduces operational downtime and optimizes labor by using automated machinery for most stages of production.

Double Wall Circulation Systems (4+1)

The 4+1 system represents advanced multi-line designs optimized for high-volume precast concrete production. These systems are often used by large-scale operations that require efficient production of double walls and large-scale precast components.

• Annual Design Capacity: Around 300,000 m³
• Land Demand: Approximately 100,000 m²
• System Features: Designed for the production of complex, large precast components such as walls, beams, and structural units.

The 4+1 double-wall system utilizes multiple production lines that work in tandem, supported by specialized overhead and gantry cranes. These cranes are necessary to meet high production goals while ensuring optimal material handling across the system.

Flexible Circulation Systems (2+1)

The 2+1 flexible circulation system offers adaptability for manufacturers that must produce a wide variety of precast components or adjust production to meet shifting demand patterns.

• Annual Design Capacity: Approximately 150,000 m³
• Land Demand: Around 66,700 m²
• Design Feature: Designed with operational flexibility to meet diverse production goals by adjusting equipment and workflows.

This system is particularly beneficial for companies with fluctuating demand or a need for custom production of varying concrete components. Overhead cranes and gantry cranes in flexible systems are adjustable to allow for changes in production processes without requiring major infrastructure upgrades.

Compaction Circulation Systems (2+1)

The compaction circulation system (2+1) is optimized for high-output production while utilizing limited land areas. This layout focuses on maximizing operational efficiency in tight spaces by employing specialized equipment and production techniques.

• Annual Design Capacity: Approximately 60,000 m³
• Land Demand: Around 334,000 m²
• System Features: Designed for areas with limited space and specialized production goals.

The system relies on efficient material compaction, high-speed production lines, and specialized crane handling. These features allow precast concrete production plants to achieve high production outputs while occupying less land compared to other system types.

Long Line Stationary Systems (1+1)

The long-line stationary system (1+1) is a minimalistic and highly specialized layout. It is suitable for niche operations that require fewer cranes and specialized production workflows with lower annual design capacities.

• Annual Design Capacity: Around 50,000 m³
• Land Demand: Approximately 67,000 m²
• Crane Requirements: Relies on fewer crane systems with more specialized designs.

The 1+1 long-line stationary system is tailored for manufacturers with lower production demands or specialized product lines. This system minimizes crane usage and focuses on linear production processes with dedicated casting and curing areas.

Summary of Layout Types

Key Insights

• Land Demand: Larger production goals typically require more space unless optimized by specialized designs.
• Crane Systems: Different systems use varying numbers of cranes based on production demands, from minimal use to highly specialized multi-line systems.
• Flexibility vs. Specialization: Some systems prioritize flexibility for diversified production, while others focus on speed and high production outputs through specialization.

Understanding these layouts allows precast concrete producers to select the most efficient design that aligns with their production capacity, land availability, and operational flexibility goals. Each system type offers a unique balance of crane requirements, production speed, and land efficiency, ensuring that manufacturers can meet a range of operational needs.

Selection Criteria for Overhead Crane & Gantry Cranes

Selecting the right overhead and gantry cranes is essential for ensuring smooth and efficient operations in precast concrete plants. The design, type, and operational capacity of these cranes depend on several critical factors. Below is a detailed breakdown of the key selection criteria that influence crane design and choice for precast concrete handling:

Production Volume & Capacity Requirements

One of the most important considerations when selecting cranes is the production volume and capacity of the precast concrete plant. The annual production capacity directly impacts the lifting demands, frequency of use, and operational loads of the crane systems. Cranes must be appropriately sized to accommodate the expected lifting weight and volume of materials handled throughout the production cycle.

• Lower Production Demand Example: A precast plant with 50,000 m³ annual capacity will have much lighter and fewer lifting requirements.
• Higher Production Demand Example: A precast plant with 300,000 m³ annual capacity will need cranes capable of handling heavier loads and operating at a higher frequency to meet production targets.

Selecting cranes with the correct load capacity ensures that operations run smoothly, minimizes downtime, and avoids overloading the systems, which can lead to safety risks and reduced lifespan.

Land Availability & Plant Layout

The available land space and the layout of a precast concrete production plant significantly affect crane selection. Limited space demands compact, specialized, or customized crane systems capable of maintaining operational efficiency without requiring excessive floor area.

• Compact Cranes: These are ideal for small-scale or space-constrained layouts.
• Specialized Systems: In cases where land is restricted but production goals are ambitious, cranes may need to be adapted (e.g., mobile cranes or customized bridge cranes).

Land layout can also dictate whether cranes need to operate in multi-directional paths, have dual functions, or use advanced track designs to ensure maximum flexibility within constrained spaces.

Key factors include:

• Proximity of cranes to the production areas.
• Space for material storage and curing processes.
• Flexibility of crane movement in narrow production corridors.

Efficient crane planning accounts for these spatial limitations while ensuring material flows uninterruptedly during all stages of the precast process.

Types of Precast Components

Different precast concrete components require specialized handling capabilities. The type of components that are part of the plant's production schedule has a direct effect on the type of crane system needed. Some common types of precast components include:

• Exterior Wall Panels: Often heavier and larger, requiring specialized gantry cranes or overhead systems with higher lifting capacities.
• Interior Wall Panels: These components tend to be lighter but require precision movement during assembly or handling.
• Composite Floor Slabs: Usually bulky and require multi-directional movement or sliding cranes.
• Stairs, Beams, Columns, and Precast Formwork (PCF) Panels: These elements vary in weight and size, requiring cranes with variable load capacities and specialized handling systems.

The type of precast component determines the crane's design, required lifting capacity, movement precision, and whether the crane needs attachments or tools for specialized lifting.

Crane Types for Specific Applications

Based on the operational needs, production layout, and component types, the selection of crane systems will focus on the most suitable types. Some common types of cranes used in precast concrete handling are:

• Overhead Bridge Cranes: These are widely used in large-scale precast concrete plants with significant space and production requirements.Capable of covering large spans and providing steady lifting for heavy loads.
• Gantry Cranes: Preferred in areas with limited overhead space.Designed to be more flexible and versatile, with the ability to traverse production areas easily.
• Jib Cranes: Effective for specialized or smaller-scale applications.Commonly used in tight areas for moving precast concrete items over shorter distances.
• Specialized Cranes for Precast Panel Types: These include cranes with custom-designed attachments or movement capabilities for handling specific shapes, like wall panels, composite slabs, or PCF panels.Often integrated with automated machinery to improve efficiency and safety.

Selecting the appropriate crane type involves matching operational capacity, production goals, and component handling with the specific type of crane to ensure operational success.

Summary of Key Selection Criteria

Final Considerations

When selecting overhead and gantry cranes, it is essential to integrate all these criteria into a holistic design strategy. Every choice should align with the production plant's capacity goals, spatial constraints, and production needs, while ensuring efficiency, safety, and adaptability across all crane operations. With careful planning and analysis, the right crane system will optimize material handling workflows, minimize downtime, and contribute to meeting production timelines effectively.

Planning Overhead & Gantry Crane Systems for Each Layout Type

Proper planning and integration of overhead and gantry crane systems are critical to achieving operational efficiency and ensuring timely production across various precast concrete plant layouts. This section focuses on the planning requirements, crane types, and design considerations specific to each layout type, starting with the Traditional Circulation Precast Plank Systems (2+1).

Traditional Circulation Precast Plank Systems (2+1)

Crane Requirements

The Traditional Circulation Precast Plank Systems (2+1) are characterized by simpler operational processes and smaller production goals compared to other layouts. Typically, these systems operate with a minimal number of crane systems to maintain productivity without inflating operational costs.

For a plant using this layout, the overhead and gantry crane systems should include:

• 2-3 Overhead Bridge Cranes: Designed with lifting capacities ranging between 10-20 tons, these cranes are sufficient for handling planks between the casting beds and the storage areas.
• 1 Gantry Crane for Component Storage: This crane handles the unloading and loading of plank components efficiently, ensuring that storage operations run without delays.

These requirements ensure streamlined production with a focus on simplicity and minimal investment while maintaining sufficient lifting capacity for daily operations.

Key Features of the Crane System

The crane system designed for the 2+1 Traditional Circulation Precast Plank System has the following key features:

• Simplicity: The system uses a small number of cranes to cover the necessary operational areas. This keeps the system straightforward and easy to maintain.
• Low Operational Costs: Minimal crane infrastructure and smaller lifting ranges reduce costs related to energy consumption, maintenance, and workforce training.
• Optimized Lifting Ranges: The design focuses on lower lifting capacities, which align with the production requirements of smaller-scale production lines and typical plank handling tasks.

These features support cost-efficient production while meeting the operational needs of the precast system.

Crane Types Used

The crane systems in this layout type rely on a mix of overhead bridge cranes and gantry cranes to handle the specific requirements of plank production:

Overhead Bridge Cranes:

• Application: Transferring planks between casting beds and storage areas.
• Design: These cranes have sufficient span and lifting capacity to move planks seamlessly between production and storage zones.
• Key Advantage: Ensure consistent and efficient material movement across a defined production area.

Gantry Cranes:

• Application: Unloading and loading plank components for storage or staging.
• Design: Designed to operate in component storage areas, handling planks in confined spaces with ease.
• Key Advantage: Provide additional flexibility for storage operations without requiring overhead clearance, making them ideal for tight plant spaces.

These crane types work together to optimize material movement, reduce operational delays, and ensure smooth production workflows.

Design Considerations

When planning overhead and gantry crane systems for Traditional Circulation Precast Plank Systems (2+1), the following design considerations should be addressed:

• Load Capacity Matching: Overhead bridge cranes should be designed with a range of 10-20 tons to ensure compatibility with the weights of planks and other production components.
• Operational Flexibility: Gantry cranes should be placed strategically near storage areas to ensure rapid movement of materials without operational bottlenecks.
• Cost Efficiency: The design should prioritize cost savings by minimizing the number of cranes while ensuring they meet production demands.
• Maintenance Access: Crane systems should be easy to inspect and maintain without requiring excessive downtime.
• Space Optimization: The limited space and simple layout should be factored into crane span design to maximize coverage without wasting resources.

Summary Table for Traditional Circulation Precast Plank Systems (2+1)

Conclusion for 2+1 Layout

The Traditional Circulation Precast Plank Systems (2+1) rely on a combination of overhead bridge cranes and gantry cranes with a focus on simplicity and cost-efficiency. Designed with lower lifting ranges and minimal crane systems, they optimize operations while supporting streamlined production processes for small-scale precast concrete production. This approach balances functionality with affordability while ensuring timely material movement and plant productivity.

Traditional Circulation Systems (3+1)

The Traditional Circulation Systems (3+1) represent a medium-scale precast concrete production layout with specialized production lines and higher annual production capacities. This system typically requires more sophisticated crane systems compared to smaller-scale layouts, focusing on operational flexibility, production efficiency, and material handling for various component types.

Crane Requirements

In a 3+1 Traditional Circulation System, the crane requirements include multiple overhead bridge cranes and gantry cranes to support efficient production and material movement. The typical crane systems required are:

 Overhead Bridge Cranes:

• Lifting Capacity: Up to 2tons to meet the higher lifting demands associated with increased production capacity and heavier precast components.
• These cranes are essential for transferring components and materials across multiple casting areas and production lines.

Gantry Cranes:

• These are strategically located near storage yards and component stockpiles to facilitate efficient material handling and component staging.
• They ensure the seamless transfer of materials to and from storage, supporting uninterrupted production cycles.

This combination ensures the plant operates smoothly, meeting the material handling requirements of medium-scale precast production.

Key Features of the Crane System

The crane system designed for Traditional Circulation Systems (3+1) has the following key features:

• Efficient and Robust Design:The system is optimized for medium-scale precast production demands with enough lifting capacity and operational range to meet high production volumes.
• Lifting Flexibility for Multiple Product Lines:The crane system can support multiple casting beds and production lines simultaneously, allowing flexibility to produce diverse precast concrete components.

These features make this crane system versatile and efficient for supporting higher-volume production processes.

Crane Types Used

The 3+1 Traditional Circulation System relies on a combination of overhead bridge cranes and gantry cranes to streamline production and material handling.

Overhead Bridge Cranes:

• Application: These are strategically placed over multiple spans to cover casting areas and production lines.
• Design Features: Designed for higher lifting capacities (up to 2tons) to handle heavier components and transport materials efficiently across multiple work zones.
• Key Advantage: They offer versatility and efficient handling across expansive production spaces.

Gantry Cranes:

• Application: Positioned near storage yards and component stockpiles.
• Design Features: Designed to facilitate rapid movement and transfer of raw materials and finished precast components.
• Key Advantage: They ensure flexibility for unloading, staging, and inventory management without interfering with main production lines.

These crane types work together to ensure high-efficiency operations while maintaining flexibility in meeting the demands of medium-scale production processes.

Design Considerations

When designing overhead and gantry crane systems for Traditional Circulation Systems (3+1), the following key design considerations should be evaluated:

• Higher Lifting Capacities: Overhead bridge cranes with lifting capacities up to 2tons should be designed to handle diverse precast component types and meet production volume demands.
• Optimal Span Coverage: The bridge cranes should have spans that allow seamless coverage across multiple casting areas and production lines, enhancing flexibility and reducing downtime.
• Gantry Crane Positioning: Gantry cranes must be positioned efficiently near storage yards and stockpiles to reduce material handling delays and support continuous production cycles.
• Operational Redundancy: Multiple crane systems (3-4 overhead bridge cranes and 2 gantry cranes) should ensure backup capabilities in case of maintenance or operational issues.
• Maintenance Accessibility: Crane systems should incorporate design features that allow for regular inspection, maintenance, and repairs without halting the production process for extended periods.

Summary Table for Traditional Circulation Systems (3+1)

Conclusion for 3+1 Layout

The Traditional Circulation Systems (3+1) rely on 3-4 overhead bridge cranes with lifting capacities up to 2tons and 2 gantry cranes strategically placed near storage yards and component stockpiles. This system balances efficiency, lifting flexibility, and production volume needs, making it ideal for medium-scale precast concrete production operations. With well-designed overhead and gantry crane systems, the plant achieves seamless material movement, reduces downtime, and enhances overall productivity.

Double Wall Circulation Systems (4+1)

The Double Wall Circulation Systems (4+1) represent an advanced precast concrete production layout optimized for high-volume double-wall panel production. This system supports the efficient production of concrete components with a high level of automation and multi-line production capabilities.

Crane Requirements

The Double Wall Circulation Systems (4+1) demand multiple heavy-duty crane systems due to their high production volumes and the complexity of handling large double-wall precast components. The required crane systems include:

Overhead Bridge Cranes:

• Lifting Capacity: Ranges from 30 to 50 tons, allowing the efficient movement of large and heavy double-wall concrete panels between production lines and storage zones.
• These cranes are essential for simultaneous and continuous movement of concrete panels throughout the casting and curing processes.

Multiple Gantry Cranes:

• Positioned strategically to support the storage, supply lines, and transportation of double-wall panels.
• They manage the movement of large quantities of precast panels within restricted spaces, enhancing operational flexibility.

These cranes collectively ensure smooth operations by handling heavy lifting and enabling efficient storage and supply of double-wall panels throughout the production process.

Key Features of the Crane System

The crane systems in the Double Wall Circulation Systems (4+1) have the following key features:

• Dual-Panel Production Capability:Designed to support the simultaneous lifting and handling of two concrete walls, optimizing production timelines and reducing downtime.
• Efficient Simultaneous Lifting:The integrated overhead bridge cranes allow for lifting multiple components at the same time, improving production throughput.
• Integrated Transfer Systems:A seamless transfer system has been implemented, ensuring that double-wall panels are transported across the entire production chain—from casting beds to curing zones and storage—without delays or interruptions.

These features provide enhanced versatility and ensure that the system is capable of handling the complexity of producing large-scale double-wall concrete panels.

Crane Types Used

The Double Wall Circulation Systems (4+1) rely on a combination of specialized overhead bridge cranes and gantry cranes. These include:

Heavy-Duty Overhead Cranes:

• Application: Designed specifically for the efficient movement of large and heavy double-wall concrete walls across the production facility.
• Design Features: Equipped with a lifting capacity of 30-50 tons, optimized for high-load movement while maintaining operational stability and precision.
• Key Advantage: Their ability to transfer double-wall panels efficiently reduces the time spent handling heavy components manually, enhancing productivity.

Specialized Gantry Cranes:

• Application: These cranes are utilized for both transportation and storage of double-wall panels, ensuring they are moved safely and efficiently to designated storage zones or staging areas.
• Design Features: Designed for heavy-duty, continuous operations, these gantry cranes focus on minimizing production delays while maximizing space utilization.

Design Considerations

When planning overhead and gantry crane systems for the Double Wall Circulation Systems (4+1), the following design factors must be considered:

• Lifting Capacity:Overhead bridge cranes with 30-50 tons lifting capacity must be designed to handle the weight of double-wall panels, ensuring safe and efficient transport during production.
• Optimized Span Lengths:Overhead bridge cranes should span multiple casting and curing areas to facilitate smooth movement between these key production zones.
• Flexibility in Storage and Transportation:Gantry cranes must be flexible enough to adjust to varying production demands while ensuring panels are transported without interfering with other operations.
• Integrated Production Systems:Seamless integration of the crane system with other production equipment (e.g., casting beds and curing chambers) to optimize material flow and reduce production downtime.
• Operational Safety:Given the heavy loads being moved, the design must include advanced safety systems and redundancy measures to ensure worker safety and operational reliability.

Summary Table for Double Wall Circulation Systems (4+1)

Conclusion for 4+1 Layout

The Double Wall Circulation Systems (4+1) rely on 4-heavy-duty overhead bridge cranes with capacities up to 30-50 tons and multiple specialized gantry cranes to meet the needs of high-volume double-wall panel production. These systems are strategically designed for efficient dual-wall production, heavy lifting, and effective storage management. Their advanced design, combined with simultaneous lifting and integrated material handling systems, ensures faster production timelines, improved throughput, and operational reliability.

Flexible Circulation Systems (2+1)

The Flexible Circulation Systems (2+1) represent a versatile and adaptive precast concrete production layout. This system is specifically designed to support varying production goals, diverse component production needs, and changes in operational workflows. This layout offers the necessary flexibility for precast plants aiming to optimize production efficiency and meet evolving market demands.

Crane Requirements

The Flexible Circulation Systems (2+1) rely on a combination of overhead bridge cranes and gantry cranes to ensure flexibility and adaptability within the production process. The crane systems required for this type of plant include:

Overhead Bridge Cranes:

• Lifting Capacity: Each crane should have a capacity ranging between 20 to 30 tons, enabling them to handle a variety of precast components, including medium-weight items such as exterior panels, floor slabs, and stair components.
• These bridge cranes are used for efficient movement across multiple casting lines and production zones.

Dedicated Gantry Cranes:

• These cranes are specially designed to respond to changes in production flows and adapt to different material movement patterns as demand shifts.
• They offer specialized movement capabilities with adjustable spans and flexibility in handling varying loads across the dynamic production lines.

Key Features of the Crane System

The Flexible Circulation Systems (2+1) are designed with the following operational strengths:

• Modular Production Design:The crane system is built with modularity in mind, allowing for seamless adjustments and shifts in production processes without major downtime.
• Dynamic Adaptability:Gantry cranes and bridge cranes are strategically designed to adapt to changes in production needs, component volume, and layout modifications, enabling optimized efficiency even with shifting demands.
• Optimized Multi-Component Handling:Multiple bridge cranes with 20-30 ton capacity can handle various precast components simultaneously, improving production rates while maintaining flexibility.

Crane Types Used

The crane systems in Flexible Circulation Systems (2+1) include the following specialized equipment:

• Bridge Cranes with Automated Motion Systems:These bridge cranes are equipped with automated motion systems that allow for precise, efficient, and repeatable movements across multiple spans and production areas.They optimize operational efficiency by reducing manual labor and ensuring continuous material handling without delays.
• Gantry Cranes with Adjustable Spans:Designed for flexibility, these gantry cranes feature adjustable spans to accommodate different component sizes, production needs, and material handling distances.They are essential for responding to production demand shifts, ensuring smooth handling of materials even as production volumes fluctuate.

Design Considerations

The planning of overhead and gantry crane systems for Flexible Circulation Systems (2+1) involves several design factors:

• Production Variability:The crane system should be optimized for variable production schedules and support multiple component types with differing weights and dimensions.
• Adaptability and Modularity:Modular design features allow bridge and gantry cranes to shift between multiple production processes with minimal downtime.
• Technology Integration:Automated motion systems are critical for bridge cranes to ensure efficient and accurate handling.
• Land Space Utilization:Given the modular design's flexibility, efficient use of available land must be prioritized to minimize operational costs.
• Maintenance and Serviceability:Crane systems must be designed to ensure ease of maintenance and minimal downtime to support continuous production.

Summary Table for Flexible Circulation Systems (2+1)

Conclusion for 2+1 Layout

The Flexible Circulation Systems (2+1) rely on 3 bridge cranes with 20-30 ton capacities and dedicated gantry cranes with adjustable spans. These cranes are specifically chosen for their adaptability, modularity, and efficiency in handling varying production demands. The combination of automated bridge cranes and versatile gantry cranes ensures smooth transitions across different precast components and production workflows, maintaining operational continuity and flexibility. This makes the 2+1 Flexible Circulation System an excellent choice for plants with diverse and ever-changing production needs.

Compaction Circulation Systems (2+1)

The Compaction Circulation Systems (2+1) are designed to optimize precast concrete production within smaller land footprints and specialized operational requirements. This system emphasizes efficient production while utilizing minimal space and focusing on specialized high-output production goals. The crane systems in this layout play a pivotal role in supporting the material handling needs of compaction processes.

Crane Requirements

The Compaction Circulation Systems (2+1) rely on a combination of overhead bridge cranes and supportive gantry cranes to maintain smooth production flows across different stages of the production process. The specific crane systems required are:

Bridge Cranes:

• Lifting Capacity: Approximately 20 tons each
• These bridge cranes are the central material handling system, responsible for transferring large precast components from the casting beds to staging and storage areas.
• They handle key elements of the production cycle, including the lifting of heavy concrete components and transferring them for further processing or transport.

Supportive Gantry Cranes:

• These are specialized cranes designed to facilitate movement across various production stages, including raw material handling, component preparation, and assembly.
• They support bridge cranes by managing pre-staging and temporary transport requirements, enhancing overall production flexibility.

Key Features of the Crane System

The crane systems within the Compaction Circulation Systems (2+1) offer specific advantages and design features to align with operational goals:

• Compact Design: Designed specifically for smaller production facilities or irregularly shaped areas where operational space is limited.This allows efficient space usage without sacrificing the ability to handle heavy precast components.
• Efficient High-Output Production: The cranes are optimized for high-output production requirements by supporting rapid and continuous material handling across production stages.
• Supportive Flexibility: Gantry cranes supplement bridge cranes by addressing material movement needs across intermediate production steps. They can handle auxiliary transport tasks, contributing to a smooth workflow.

Crane Types Used

The crane system in Compaction Circulation Systems (2+1) incorporates the following:

• Standard Bridge Cranes:These cranes are used for the primary lifting and transferring operations across the main production stages.Their 20-ton lifting capacity allows them to handle large precast components efficiently over short or medium distances.
• Supporting Gantry Cranes:These are versatile and mobile cranes optimized for pre-staging raw materials and assisting bridge cranes in managing auxiliary material movements.They ensure flexibility by enabling movement to areas that are not directly accessible by bridge cranes.

Design Considerations

The planning and design of crane systems in Compaction Circulation Systems (2+1) require attention to key factors, such as:

• Space Optimization:Because land is often limited in this system type, cranes must be compact and efficiently designed for optimal space utilization.
• Component Weight and Lifting Demand:The lifting capacity of 20 tons for bridge cranes must align with the typical precast concrete components' weights to minimize production downtime.
• Versatility and Flexibility:Gantry cranes' auxiliary support allows handling flexibility, especially when production steps require pre-staging raw materials or transitioning materials through intermediate transport areas.
• Operational Costs:The design aims to balance efficiency and cost-effectiveness, keeping operational costs low while meeting the production volume goals.

Summary Table for Compaction Circulation Systems (2+1)

Conclusion for 2+1 Compaction Circulation Systems

The Compaction Circulation Systems (2+1) utilize 2 bridge cranes (20-ton capacity each) and supportive gantry cranes to optimize production efficiency in smaller or constrained production areas. This design focuses on combining high-output performance with compact spatial design, making it suitable for smaller production spaces or irregular production areas.

With their specialized compact design, efficient material handling capabilities, and auxiliary support flexibility, these cranes ensure seamless production flows, meeting high demand requirements while minimizing operational costs. This crane system is ideal for facilities with land constraints, specialized high-output production goals, and optimized space utilization.

Long Line Stationary Systems (1+1)

The Long Line Stationary Systems (1+1) are designed to optimize the production of precast concrete in a highly efficient and organized manner, focusing on high-output capabilities and operational precision. This system is perfect for large-scale precast concrete plants with specific requirements for consistent, high-quality production. The crane systems within this layout play a crucial role in supporting material handling and ensuring a smooth workflow throughout the production process.

Crane Requirements

The Long Line Stationary Systems (1+1) require a combination of overhead bridge cranes and specialized gantry cranes to facilitate efficient material handling across multiple production stages. The specific crane systems required are:

Bridge Cranes:

• Lifting Capacity: Approximately 20 tons each
• These bridge cranes serve as the backbone of material handling, transferring large precast components from casting beds to staging or storage areas. They are integral to the production cycle, managing the movement of heavy concrete components and ensuring they are positioned for further processing or transport.

Supportive Gantry Cranes:

• These versatile cranes are designed to assist with material movement across various production stages, such as raw material handling, component preparation, and assembly.
• They support the main bridge cranes by managing pre-staging and temporary transport requirements, thus improving overall production flexibility and efficiency.

Key Features of the Crane System

The crane systems within the Long Line Stationary Systems (1+1) provide several key benefits and design features tailored to meet the production goals:

• Optimized for Large-Scale Production: The system is designed for high-output production, enabling smooth and efficient material handling at every stage of the process.
• Efficient Space Usage: The crane design maximizes the use of available space in the plant while ensuring the capacity to handle large precast components.
• Operational Flexibility: Supportive gantry cranes enhance flexibility by managing material movement across different areas, optimizing production flow, and supporting the efficient transition of materials.

Crane Types Used

The crane system in Long Line Stationary Systems (1+1) incorporates the following:

Standard Bridge Cranes:

• These cranes are responsible for the primary lifting and transporting operations, handling large precast components with ease. Their 20-ton lifting capacity allows them to manage heavy loads efficiently over medium distances.

Supporting Gantry Cranes:

• These cranes are designed to handle auxiliary tasks such as pre-staging raw materials, intermediate transport, and assisting bridge cranes in managing complex material handling demands. Their mobility adds flexibility to the system, ensuring a seamless workflow across the production facility.

Design Considerations

The planning and design of crane systems in Long Line Stationary Systems (1+1) require careful attention to several key factors:

• Space Optimization: The layout must be efficient, ensuring cranes are compact and designed for optimal space usage in a large-scale production plant.
• Component Weight and Lifting Demands: The 20-ton lifting capacity of the bridge cranes is crucial to handle typical precast component weights, minimizing downtime and maintaining consistent production cycles.
• Versatility and Flexibility: Gantry cranes provide essential flexibility, especially when production requires handling raw materials or transferring components across intermediate steps.
• Production Efficiency and Cost-Effectiveness: The crane system must balance operational efficiency with cost-effectiveness, ensuring that high output is achieved while keeping operational costs within acceptable limits.

Summary Table for Long Line Stationary Systems (1+1)

Conclusion for 1+1 Long Line Stationary Systems

The Long Line Stationary Systems (1+1) feature a combination of bridge cranes (20-ton capacity each) and supportive gantry cranes, optimizing production in a large-scale precast concrete facility. The system is designed to handle heavy precast components with efficiency and flexibility, supporting rapid and continuous material handling across the production line.

With a focus on high-output performance, space optimization, and operational flexibility, this crane system is ideal for plants with large production volumes, such as those with annual capacities of 50,000 cubic meters. The efficient layout and robust design ensure seamless production, meeting high-demand requirements while maintaining cost-effectiveness and space efficiency.

Special Considerations for Gantry Crane Design

Designing gantry cranes for precast concrete production involves careful planning to ensure efficiency, flexibility, and adaptability. Since precast concrete plants have varying layouts and production demands, gantry crane design must address specific operational needs, spatial limitations, and material handling goals. The following are key design considerations:

Space Optimization

Efficient use of available space is a critical design consideration for gantry cranes. Precast concrete plants often have limited or irregularly shaped land areas, making it essential to design cranes that operate effectively within those constraints.

• Compact Gantry Designs:Designing gantry cranes with smaller footprints while maintaining adequate lifting capacity allows operations to fit into tighter spaces.Systems must optimize vertical and horizontal movement to minimize unused space during production.
• Strategic Positioning:Gantry cranes should be located strategically to maximize their ability to cover multiple production stages, from component casting beds to storage and shipping zones.
• Multi-Zone Accessibility:Cranes should be designed to move across multiple operational zones without interfering with other equipment or production workflows.

Automated Gantry Systems

Automation is an integral part of modern gantry crane systems. Automated systems improve precision, reduce operational downtime, and enhance safety by minimizing human intervention.

• Remote Operation:Remote controls allow crane operators to manage movements from a distance, improving safety and efficiency, especially in hazardous areas.
• AI & Sensor Technology:Integrated sensors and AI-driven motion technology can detect obstacles, monitor lifting conditions, and optimize load paths.
• Efficiency Gains:Automated gantry cranes can operate continuously with minimal downtime, adapting to fluctuating production demands and reducing operational costs.

Dual vs. Single Rail Gantry Designs

Selecting between dual and single rail gantry designs depends on factors like production demands, layout constraints, and lifting capacities. Both have their unique advantages:

Single Rail Gantry Systems:

• Advantages: Simpler design, easier to install, and more cost-effective.
• Best suited for: Limited production areas and environments with constrained space.

Dual Rail Gantry Systems:

• Advantages: Higher stability and greater lifting capacity. Suitable for handling heavier and bulkier precast components.
• Best suited for: Large-scale operations with high-output demands and heavy-duty lifting.

Choosing the right system depends on balancing cost, operational efficiency, and load requirements.

Modular Gantry Crane Integration for Adaptability

Modern precast concrete production facilities benefit from adaptable and modular gantry crane systems. Modular designs can evolve as production needs change, allowing cranes to be repurposed or upgraded without extensive downtime or infrastructure changes.

• Scalable Systems:Modular gantry cranes can be expanded as production demand grows, providing scalability without rebuilding existing infrastructure.
• Interchangeability:Different modules can be swapped or reconfigured to optimize movement for various production lines or load types.
• Flexibility Across Facilities:Modular designs facilitate reuse in different production zones or even different precast production plants with varying spatial layouts.

Specialized Lifting Solutions for Unique Precast Elements

Precast concrete plants produce a variety of components, each with unique lifting requirements. Specialized gantry crane designs ensure safe and efficient handling of these elements.

• Custom Lifting Attachments:Lifting solutions like custom clamshell buckets, magnets, or gripping tools are integrated into gantry cranes to handle specialized precast components such as walls, beams, or slabs.
• High-Precision Lifting:Some components require precision lifting and placement to ensure they fit into production lines or storage areas accurately.
• Handling Diverse Loads:Specialized cranes must account for the variety of load weights and sizes in precast concrete production, including double walls, composite slabs, or other unique shapes.

These specialized lifting tools improve safety and ensure compatibility with a wide range of production elements.

Summary Table: Key Design Considerations for Gantry Cranes

The design of gantry cranes in precast concrete production plants should incorporate strategic spatial planning, automation, modularity, and specialized lifting solutions to ensure operational efficiency and flexibility. Modern gantry cranes must be capable of meeting the dynamic demands of different plant layouts and diverse precast concrete elements while maximizing safety, adaptability, and cost-effectiveness.

Maintenance, Safety & Operations

Ensuring the safety, longevity, and efficiency of overhead and gantry cranes in precast concrete plants relies heavily on proper maintenance, adherence to safety standards, and efficient operational practices. Regular inspections, proper operator training, and preventive strategies can mitigate risks, extend equipment life, and optimize productivity. The following key aspects should be considered:

Crane Safety Standards

Adhering to established safety standards is essential to protect workers, equipment, and infrastructure from operational risks. These standards outline the requirements for crane operation, inspections, and design to ensure safety at all stages of production.

• Compliance with International Safety Regulations:Cranes must adhere to recognized international safety standards such as ISO 9001, ANSI B30.2, or EU Machinery Directives.These standards govern load capacity, proper operation, emergency stop mechanisms, structural integrity, and protective features.
• Regular Safety Inspections:Routine inspections identify potential risks or malfunctions in cranes, such as fraying cables, misalignments, or worn-out gears.Scheduled checks ensure that cranes are functioning optimally and safely under load.
• Emergency Response Protocols:Operators and maintenance staff should be trained in emergency response procedures.These include procedures for mechanical failure, electrical outages, or unexpected environmental changes during operations.

Planned Maintenance Schedules for All Crane Systems

Preventive maintenance is critical to avoid unplanned downtime, costly repairs, and safety risks. Well-structured maintenance schedules should be developed to monitor and maintain all components of crane systems.

• Daily & Weekly Inspections:Daily checks include inspecting cables, fluid levels, brakes, and other visible components.Weekly checks focus on more in-depth system inspections, including lubrication points and load path alignment.
• Monthly & Quarterly Maintenance:Comprehensive evaluations to examine wear in gears, bearings, and load chains.Inspection of hydraulic systems for leaks and pressure anomalies.
• Annual Overhaul:A full system analysis every 12 months to ensure all parts comply with performance and safety standards.Includes testing of backup systems, motor capacities, and all electrical components.
• Condition-Based Maintenance:Utilize data analytics and sensor feedback from automated gantry systems to monitor wear patterns and predict failures before they occur.This predictive approach minimizes unnecessary downtime and extends crane lifespan.

Operator Training and Guidelines

Qualified and well-trained crane operators are essential to maintaining safe and efficient crane operations. Proper training ensures that workers understand how to handle equipment, adhere to operational limits, and recognize potential risks.

Initial Training Programs:

Operators must undergo comprehensive training programs focusing on machine handling, emergency procedures, and mechanical understanding.

Programs should emphasize the following:

• Load handling techniques
• Emergency braking and stopping protocols
• Understanding crane limits and avoiding overloading

Continuous Education:

• Scheduled refresher courses ensure that operators remain up-to-date with changes in safety standards and equipment updates.

Adherence to Operational Guidelines:

Written operational guidelines should be accessible to all operators. These should include the following:

• Limits of operation (load capacity, height restrictions)
• Required pre-operational checks
• Daily operational best practices

Certification and Compliance:

• Operators should hold valid certifications proving their competence to operate cranes.
• These certifications must comply with industry standards and regulations.

Mitigation of Wear & Tear in Automated Gantry Systems

Automated gantry cranes are efficient but subject to wear and tear over time. Addressing these issues through regular inspections and maintenance can reduce downtime and operational costs.

Monitoring Wear Patterns:

• Sensors should monitor the movement and load path of gantry systems to detect irregularities, such as uneven wear on tracks or motors.

Regular Lubrication:

Proper lubrication of moving parts minimizes friction and reduces the risk of mechanical breakdowns.

Areas to prioritize for lubrication include:

• Wheel assemblies
• Bearing systems
• Motor shafts

Replacing Worn Components:

• Scheduled replacement of wear-prone components (e.g., cables, gears, or hydraulic hoses) before they fail.

Upgrading Systems with Advanced Monitoring:

• Implement advanced wear detection systems that use IoT-enabled technologies to monitor real-time data on crane components.
• These systems can predict component failure with a high degree of accuracy and reduce costly breakdowns.

Summary Table: Key Aspects of Maintenance, Safety & Operations

Ensuring the operational safety, reliability, and lifespan of overhead and gantry cranes in precast concrete production relies on well-structured maintenance programs, strict adherence to safety standards, and comprehensive operator training. Proactive wear and tear mitigation, particularly in automated gantry systems, helps minimize risks and ensures that crane systems remain productive for years. Together, these strategies build a foundation for efficient, safe, and cost-effective crane operations in precast concrete manufacturing plants.

Conclusion

Effective planning and strategic implementation of overhead and gantry crane systems are vital for the success of precast concrete production plants. These systems directly impact efficiency, production capacity, safety, and operational costs, making them a critical element in the design and operation of precast manufacturing facilities.

Importance of Customized Overhead & Gantry Crane Planning

Customized crane systems tailored to the specific needs of a precast plant are essential. Factors such as production volume, plant layout, space availability, and component types must guide the selection and design of overhead and gantry cranes. A one-size-fits-all approach is often insufficient for meeting the diverse requirements of modern precast operations.

• Alignment with Precast Plant Goals: Proper crane planning should align with the plant's long-term goals and production objectives. Whether the goal is higher production yields, flexibility for variable component production, or specialized load handling, cranes must support these aims.
• Adaptability to Changing Production Needs: Modular crane systems allow for shifts in production schedules or changes in demand, improving operational flexibility without requiring costly infrastructure redesigns.

Strategic Selection Optimizes Operational Costs & Timelines

Selecting the right type and capacity of overhead and gantry cranes has a direct effect on operational costs and production timelines. Strategic selection includes evaluating crane types (e.g., bridge cranes, gantry cranes, jib cranes) based on:

• Production volume
• Land availability and layout constraints
• Required lifting capacity
• Component types and production processes

Optimizing these elements ensures minimal energy use, reduced wear and tear, and faster, smoother operation.

Efficient Handling = Faster Timelines & Higher Yields

Efficient crane operations streamline the transfer of heavy precast components across casting, curing, and storage areas. This leads to:

• Higher production yields due to optimized material handling and reduced downtime.
• Faster production timelines by ensuring smooth workflows from raw material staging to finished product delivery.
• Reduced operational bottlenecks and improved use of production resources.

With reliable, well-planned crane systems, precast facilities can maintain competitive advantages in production speed, cost-efficiency, and quality control.

In conclusion, the strategic design and implementation of customized overhead and gantry crane systems are more than just equipment choices—they are foundational elements that drive the overall productivity, efficiency, and success of precast concrete operations. Strategic planning, operational efficiency, and alignment with production goals are critical to achieving optimized operational costs, faster production timelines, and higher yields.

When overhead and gantry cranes are thoughtfully planned and executed, they become powerful assets that enable precast concrete manufacturers to meet market demands and maintain operational excellence.
