Outdoor gantry cranes are powerful machines designed to lift and move heavy loads in outdoor environments. These cranes are typically mounted on wheels or rails, which allows them to travel across large construction sites or manufacturing areas. Unlike traditional cranes, outdoor gantry cranes can operate in open spaces, where conditions like wind, rain, and temperature changes require special design features.

In construction and manufacturing, outdoor gantry cranes are essential tools. They help move large, heavy items that would be difficult or dangerous to handle manually. The cranes are especially useful when lifting and positioning oversized materials like concrete panels, molds, and other heavy components used in building projects, including 3D houses.

truss gantry crane with truss girder design for outdoor 3 D precasing house plant

double girder gantry crane for outdoor precasting conceret house mould handling

Benefits in Construction and Manufacturing

Outdoor gantry cranes are commonly used in construction sites and manufacturing plants for lifting, moving, and positioning heavy materials. Here's why they're so valuable:

• Mobility: One of the key advantages of outdoor gantry cranes is their ability to move across large areas. Unlike stationary cranes, these cranes can travel, which allows them to lift materials in different parts of the site without needing to relocate equipment.
• Safety: Moving heavy objects with a crane is much safer than doing it manually. The crane gives the operator precise control over the load, reducing the risk of accidents or injuries caused by manual lifting.
• Efficiency: By reducing the need for manual labor and speeding up the movement of materials, gantry cranes increase efficiency on the job site. This helps workers stay on schedule and reduces delays.

In construction, especially in large projects like 3D house building, outdoor gantry cranes are necessary to lift heavy and oversized components, making them an indispensable tool on the job.

Key Applications in 3D House Molding and Precasting Concrete

Outdoor gantry cranes are ideal for handling materials used in 3D house molding and precasting concrete—two crucial steps in the construction of 3D-printed houses. These tasks often involve large molds and heavy concrete components, which need to be lifted, moved, and positioned accurately.

Here are the key applications for outdoor gantry cranes in 3D house construction:

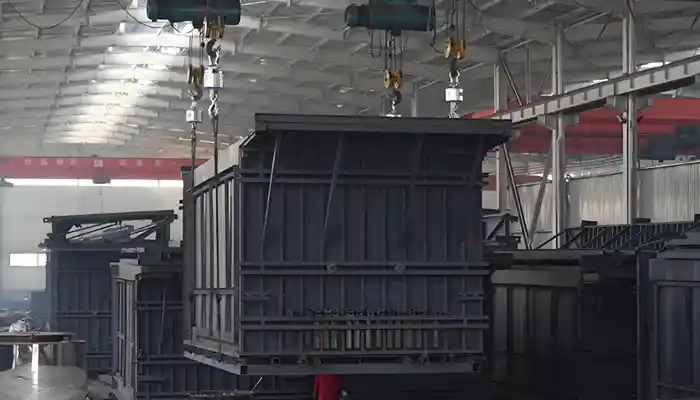

• Handling 3D House Molds: The molds used to shape walls, floors, and other parts of a 3D house are often large and heavy. Gantry cranes are perfect for lifting these molds and moving them into position without damaging them. This allows for fast and precise construction.
• Lifting Precast Concrete Components: Precast concrete elements, like panels and foundation blocks, are often produced off-site and transported to the building location. These components can be very heavy, and gantry cranes are used to lift them safely from trucks, move them into place, and position them correctly during assembly.

By providing the necessary lifting power and flexibility, gantry cranes play a key role in speeding up the construction process and improving the accuracy of the build.

Why Truss Girder Design is Important for Heavy Lifting

The truss girder design used in many outdoor gantry cranes is especially beneficial for heavy lifting tasks. A truss girder is a strong, lightweight structure made up of triangular supports, which allows the crane to lift heavy loads without adding unnecessary weight. Here's why this design is important:

• Strength and Stability: Trusses are excellent at spreading out weight evenly, which means the crane can safely lift heavy materials without becoming unbalanced. This is crucial when working with heavy precast concrete components or large molds, as they need to be moved safely and accurately.
• Lightweight but Strong: The truss design is lighter than solid girders, but still strong enough to handle heavy loads. This allows the crane to perform heavy lifting tasks while keeping the overall structure more efficient and cost-effective.
• Outdoor Durability: Since outdoor gantry cranes must work in all kinds of weather, the truss design also helps improve their durability. The lightweight, strong design can withstand the pressures of wind and weather without compromising safety.

In 3D house molding and precasting concrete, gantry cranes with truss girder designs can lift heavy, delicate components with more precision and less risk of damage. Whether it's moving large molds or heavy concrete slabs, these cranes provide the power and stability needed for smooth, efficient operations.

What is an Outdoor Gantry Crane?

An outdoor gantry crane is a type of crane that is designed to lift and move heavy loads across large outdoor spaces. Unlike traditional overhead cranes, which are fixed to a building or structure, gantry cranes are typically mounted on wheels or rails, allowing them to travel across a wide area. This mobility makes them ideal for use in environments where space is large and open, such as construction sites, shipyards, or manufacturing plants.

Outdoor gantry cranes are commonly used for lifting, transporting, and positioning heavy equipment, machinery, materials, and large components that need to be moved safely and efficiently. They are especially useful in situations where overhead space or building infrastructure is not available or practical.

Basic Components of an Outdoor Gantry Crane

• Crane Frame: The frame is the main structural component of the crane, providing support for all other parts. It typically consists of two vertical supports (legs) connected by horizontal beams. The frame ensures the crane is stable during lifting and moving operations.
• Wheels or Rails: Outdoor gantry cranes are mounted on wheels or tracks, allowing the crane to travel across a construction site or industrial area. The wheels are typically large and designed to handle heavy loads and rough outdoor terrain. In some designs, gantry cranes may run on rails, which provide more stability and precise movement.
• Girders: Girders are the horizontal beams that connect the vertical legs of the crane frame. These support the weight of the load being lifted and allow the crane to span across a large area. In a single girder crane, there is one main horizontal beam, while a double girder crane has two beams for added strength and capacity.
• Lifting Mechanism: The lifting mechanism consists of the hoist, trolley, and lifting motor. The hoist is the system used to lift and lower loads, while the trolley is the platform that moves along the girder(s). The lifting motor powers the hoist and moves the trolley along the girder. Together, these components allow the crane to lift, lower, and transport heavy loads with precision.

Types of Gantry Cranes

There are several types of gantry cranes, each suited to different lifting needs. The main differences between these types are the number of girders and the adjustability of height.

Single Girder vs. Double Girder Gantry Cranes

Single Girder Gantry Cranes:

• These cranes have a single horizontal girder (beam) that runs across the top of the crane frame.
• The hoist runs along this girder and can lift and move loads beneath it.
• Single girder cranes are typically used for lighter loads (up to 10 tons) and are more cost-effective than double girder cranes.
• They are easier to install, maintain, and operate in smaller, more confined spaces.

Double Girder Gantry Cranes:

• These cranes have two horizontal girders, which provide extra strength and stability.
• The hoist can travel along both girders, allowing for greater lifting capacity and more precise movement.
• Double girder cranes are designed for heavy-duty applications, often handling loads greater than 10 tons, and are more suitable for long spans and higher lifting heights.
• They are more complex and expensive but provide increased durability and capacity.

The Role of Outdoor Gantry Cranes in 3D House Molding

Outdoor gantry cranes are crucial for the construction of 3D houses, especially when it comes to handling large precast molds and concrete components. These cranes help with the safe and efficient movement of heavy materials, ensuring a smoother and faster construction process.

Importance of Gantry Cranes in 3D House Construction

In 3D house construction, precast molds are used to form key elements like walls, floors, and ceilings. These molds are often large, heavy, and require careful handling. Gantry cranes are ideal for lifting and moving these heavy components safely and accurately.

• High Lifting Capacity: Outdoor gantry cranes can lift heavy precast molds, making them essential for moving large concrete components without causing damage.
• Mobility and Flexibility: These cranes can move across large construction sites, easily transporting materials between different areas of the project.
• Precision in Placement: Gantry cranes provide precise control, ensuring that each component is placed accurately, which is critical in 3D house construction where alignment is key.

Outdoor gantry cranes play a vital role in ensuring the smooth transport of large, heavy materials, reducing construction delays and improving efficiency. They offer both the strength needed to handle heavy molds and the precision required for complex assembly tasks.

Challenges in Handling 3D House Molds

Handling precast molds presents challenges due to their size, weight, and delicate nature. Gantry cranes help overcome these issues, but the handling process still requires special attention to ensure safety and accuracy.

• Weight and Fragility of Molds: Precast molds are heavy, but they can also be fragile, especially when they have intricate designs. Mishandling can lead to cracks or damage.
• Careful Handling: The crane operator must move the molds slowly and carefully to avoid sudden movements that could harm the mold.
• Need for Precision: Placement of the molds must be exact. Gantry cranes allow operators to adjust the height and position of the molds with precision, minimizing the risk of mistakes.

These challenges highlight the importance of having the right lifting equipment and skilled crane operators who can handle heavy and delicate materials with care. Proper handling and precise placement ensure that each component fits perfectly, avoiding costly mistakes and delays.

Outdoor gantry cranes are essential in 3D house molding, offering the necessary lifting power, mobility, and precision required for handling large, heavy precast molds. They help overcome challenges such as the weight and fragility of molds, ensuring that the construction process is efficient, safe, and accurate. By enabling the precise movement of components, gantry cranes contribute to the success of modern, modular 3D house construction.

3 to 10 Ton Gantry Crane Capacity Requirements

When picking a gantry crane for 3D house precasting, it's important to make sure the crane can handle the weight of the materials you need to move. This section explains how to figure out the right crane capacity for lifting precast molds and concrete components, and how to ensure safety during operation.

Load Capacity in 3D House Precasting

3D house precasting involves lifting heavy molds and concrete parts, so it's important to know how much weight the crane needs to carry.

Typical Weights of 3D House Molds and Precast Concrete Components:

• Molds: These can weigh between 2 to 8 tons, depending on their size. Larger molds for walls or floors are on the heavier side.
• Concrete Components: Precast concrete panels, beams, and floors typically weigh between 3 to 10 tons, but some can be even heavier.

Determining the Required Lifting Capacity:

• For most 3D house construction jobs, a 3 to 10-ton capacity gantry crane works well. However, always make sure the crane's capacity is higher than the weight of what you're lifting.
• For example, if your typical load is 8 tons, it's a good idea to go with a crane rated for 10 tons. This gives you a buffer for extra weight, rigging, or any surprises.

Safety Factors and Load Considerations

Lifting heavy materials with an outdoor crane means considering several important safety factors. The crane needs to handle not just the load, but also the environment it's operating in.

Structural Integrity of Crane Components:

• The crane's frame, girders, and lifting system need to be strong enough to handle heavy loads over time. If any part of the crane isn't built to withstand the weight, the crane could break down or even fail during operation.
• The lifting mechanism—whether electric or hydraulic—needs to be powerful enough for the load you're lifting. This ensures it can lift without straining or wearing out quickly.

Considerations for Wind, Weather, and Outdoor Conditions:

• Wind: High winds can make the crane unstable. If it's too windy, it could cause the crane to sway or make the load harder to control. Be sure to check the crane's wind speed limits and avoid lifting in bad weather.
• Weather: Extreme temperatures, rain, or snow can affect the crane's performance. For example, freezing conditions can thicken lubricants and make the crane harder to operate. Make sure your crane is suitable for the climate in which you'll be working.
• Ground Conditions: If the crane is on uneven or soft ground, it could tip over. Always place the crane on stable, level ground to ensure safe lifting. In some cases, additional stabilizers may be needed to keep the crane steady.

To make sure the crane stays safe and reliable, it's a good idea to overestimate the crane's lifting capacity. For example, choose a crane rated for 10 tons if your load is around 8 tons. This extra capacity helps you account for unexpected conditions like wind or extra weight.

To sum it up, choosing the right gantry crane for 3D house precasting is about understanding the weight of the materials you need to lift and making sure the crane can handle that weight safely. A crane with a 3 to 10-ton capacity is usually perfect for most jobs, but it's always wise to select a crane with a little more lifting power than you expect to need. By considering safety margins and weather conditions, you'll ensure that your crane works safely and efficiently on site.

The Truss Girder Design: Benefits and Applications

A truss girder design is a popular choice for outdoor gantry cranes, especially when handling medium-weight loads, such as 3 to 10 tons. This section explains what truss girders are, how they differ from solid girders, and why they are beneficial in outdoor crane applications.

What is a Truss Girder Design?

A truss girder is a type of structural framework that uses a series of interconnected triangular units to support loads. This design relies on the strength of triangles, which are known for distributing weight evenly and efficiently.

Structure and Mechanics:

• Truss girders consist of a series of interconnected beams or bars forming triangular shapes. These triangles help distribute the weight across the structure, allowing it to bear heavy loads without needing to be overly thick or solid.
• The system works by transferring stress and strain across the entire structure, making it more efficient in handling loads than a solid beam design. Truss girders are lightweight, but their structure makes them incredibly strong and stable.

Design:

• The overall shape of the truss girder gives it the ability to handle more stress while maintaining a lower weight than a solid girder. This is achieved through the use of smaller sections that work together to bear heavy loads.
• The flexibility in design also allows for adjustments in the truss girder layout to suit specific needs or load distribution requirements.

How Truss Girders Differ from Solid Girders

While both truss girders and solid girders are used in gantry crane designs, there are key differences in their structure and performance.

• Solid Girders: These are solid beams, typically made from steel or reinforced concrete, and are used in applications where very high loads need to be carried. They are robust and can bear significant weight but are typically heavier and require more material.
• Truss Girders: Unlike solid girders, truss girders are made up of multiple smaller components arranged in a triangular design. This allows them to carry similar loads while being much lighter and more material-efficient. Trusses are often preferred in outdoor applications because their design provides better weight distribution and stability.

Key Differences:

• Weight: Truss girders are generally lighter than solid girders, which makes them ideal for outdoor crane applications where weight and mobility are important.
• Material Efficiency: Truss designs use less material while maintaining strength, making them more cost-effective compared to solid girders.
• Load Distribution: Truss girders excel at distributing the load evenly across the structure, which reduces the risk of strain or failure at specific points.

Advantages of Truss Girder Design in Outdoor Gantry Cranes

The truss girder design offers several key advantages when used in outdoor gantry cranes, especially in handling medium-weight loads such as 3 to 10 tons.

Enhanced Load Distribution and Stability:

• The triangular framework of a truss girder helps to evenly spread out the weight of the load. This improved load distribution reduces the stress on any single part of the crane, increasing its overall stability during lifting operations.
• This is particularly important when lifting large precast concrete molds or other heavy components that need precise handling in outdoor environments.

Lightweight Yet Strong Structure Ideal for Outdoor Applications:

• Truss girders are much lighter than solid girders, which is an advantage when the crane needs to be moved or set up quickly. Despite being lightweight, the design provides excellent strength, making it ideal for outdoor conditions where the crane may need to operate in various weather conditions.
• Their lighter weight also makes the crane more fuel-efficient and easier to transport to different job sites.

Cost-Effective Design for Handling Medium-Weight Loads (3 to 10 Tons):

• Because truss girders are made of smaller, more material-efficient components, they are more cost-effective compared to solid girders. This makes them a good choice for cranes used in medium-duty applications like 3D house precasting, where lifting capacities typically range from 3 to 10 tons.
• The cost savings don't come at the expense of strength or performance, as truss girders still offer excellent durability and load-bearing capabilities.

Truss girder designs offer a perfect balance of strength, stability, and cost-effectiveness for outdoor gantry cranes handling medium-weight loads, such as those used in 3D house precasting. The triangular structure of truss girders provides enhanced load distribution and makes the crane lighter, which is ideal for moving and operating in outdoor conditions. Their efficient use of materials also makes them a cost-effective solution for crane operations in the 3 to 10-ton range.

Applications in 3D House Precasting Concrete Components

Outdoor gantry cranes with truss girder designs play a vital role in the 3D house precasting process. These cranes are used to handle a variety of concrete components, including walls, floors, roof panels, and molds, all of which require careful lifting and precise placement. Let's dive into the specific applications and how these cranes handle different precast concrete components.

Precasting Concrete Panels for 3D Houses

In 3D house construction, concrete panels are essential building blocks. Outdoor gantry cranes are designed to lift and move these heavy panels with accuracy and safety.

Types of Concrete Components Handled by the Crane:

• Walls: Precast concrete walls can range in size, from small to large panels. Gantry cranes are responsible for moving these heavy wall sections into position, ensuring they fit together precisely during the assembly of the house.
• Floors: Precast floor panels, often large and heavy, are handled by cranes during installation. These components require careful lifting to avoid damage during transport.
• Roof Panels: Roof sections, often made of lightweight but strong concrete, are another key component. Cranes need to lift and position these panels on top of the building structure.

Weight Ranges for Common Precast Components of 3 D Houses

• Walls: Typically weigh between 3 to 10 tons, but larger, more complex wall panels can weigh more.
• Floor Panels: These can range from 4 to 12 tons, depending on the size and design.
• Roof Panels: Usually in the range of 3 to 7 tons, depending on the design and material used.

Handling 3D House Molds

Handling large and specialized molds is a critical part of the precasting process. Outdoor gantry cranes are essential in lifting and moving these molds safely, ensuring smooth production cycles.

Specialized Lifting Techniques for Large Molds:

• Precision Lifting: Molds need to be lifted with precision to avoid shifting or tilting. Gantry cranes equipped with proper rigging tools, such as spreader beams, ensure the load is balanced evenly.
• Adjustable Lifting Mechanism: The crane should allow for variable lifting speeds and precise positioning to avoid damage to both the mold and the crane's structure.
• Safety Features: Cranes must be equipped with anti-sway systems and load monitoring technology to ensure the molds are lifted safely and efficiently without swinging.

Managing Heavy and Oversized Molds with Precision:

• Large molds can be cumbersome, often reaching weights of 8 to 12 tons. Cranes need to be able to handle these large, awkward shapes, sometimes using multiple lifting points or hoists to evenly distribute the weight.
• Guided Movement: Precision movement of the crane is essential for accurate mold placement. Using a truss girder design allows for smoother, more controlled movements even when handling oversized molds.

Additional Handling Applications

Outdoor gantry cranes are not just for lifting precast components but also play a key role in loading, unloading, and moving other heavy materials on the construction site.

Lifting and Moving Precast Foundation Blocks:

• Heavy Foundation Blocks: Foundation blocks can be large and heavy, sometimes weighing up to 10 tons. Cranes are used to move these blocks into place on the construction site.
• Precision Lifting: Ensuring the foundation blocks are placed exactly where they need to be is critical for the overall stability of the structure.

Loading and Unloading Precast Components from Transport Vehicles:

• Efficient Transport Handling: Outdoor gantry cranes are used to load and unload precast components from trucks or trailers. The crane needs to be able to move components off the vehicle and into position for installation on the building site.
• Time-Saving Operations: These cranes help speed up the loading/unloading process, reducing downtime and ensuring the site stays on schedule.

Outdoor gantry cranes with truss girder designs are indispensable in the handling of various precast concrete components in 3D house construction. Whether lifting large concrete panels, moving molds, or handling foundation blocks, these cranes offer precise control and efficient handling for the heavy lifting tasks that 3D house precasting involves. Their lightweight yet strong structure makes them perfect for managing these large components while ensuring safety and precision on the construction site.

Design Considerations for Outdoor Gantry Cranes

When selecting an outdoor gantry crane for 3D house construction, there are several key design factors to consider. These include the crane's ability to adapt to outdoor environments, its mobility on construction sites, customization for specific lifting needs, and whether it should be electrically or manually powered. Each of these elements plays a role in ensuring the crane operates safely, efficiently, and effectively.

Outdoor Environment Adaptability

Since gantry cranes used in 3D house construction are primarily outdoor machines, they need to be designed to withstand various environmental challenges.

Structural Materials Resistant to Corrosion and Weather Effects:

• Outdoor cranes are exposed to elements like rain, snow, extreme temperatures, and humidity. Choosing corrosion-resistant materials, such as galvanized steel or marine-grade aluminum, ensures the crane remains durable and reliable, even in harsh weather conditions.
• Cranes must also have protective coatings to prevent rust and deterioration, especially in coastal or industrial areas where salt and chemical exposure can be a concern. Anti-corrosion treatments are essential for prolonging the crane's lifespan.

Weather-Proof Features:

• Sealed Bearings and Components: To avoid issues caused by rain or moisture, outdoor cranes often use sealed bearings, waterproof electrical components, and weather-resistant motors.
• Temperature Tolerance: Cranes should be designed to work effectively in both high heat and freezing conditions, ensuring the crane's systems, like the lifting mechanism and hydraulic parts, remain functional year-round.

Requirements for Crane Mobility on Outdoor Sites:

• Since construction sites can have uneven ground, cranes must be able to move easily across the terrain. Features like adjustable wheels, stabilizers, and tracked wheels provide better mobility in challenging environments.
• In some cases, cranes can be designed for manual or motorized travel along a fixed track, providing smooth movement even on rough ground.

Customization for 3D House Construction

Every construction project has unique requirements, and for 3D house building, the gantry crane might need to be customized to suit specific lifting tasks.

Adjustments for Specific Lifting Needs:

• Height and Reach: The crane's lifting height and horizontal reach may need to be adjusted based on the size of the precast components being lifted. Customization options allow the crane to lift larger panels or place them in hard-to-reach areas.
• Width Adjustments: For wider or more complex loads, the crane's girder width can be adjusted. This helps ensure that the crane can accommodate different panel sizes and securely lift them.

Special Lifting Mechanisms for Awkward or Large Components:

• Lifting Frames and Spreaders: To handle large, heavy, or oddly shaped components, cranes can be equipped with lifting frames or spreader beams. These tools help distribute the weight of the load evenly and prevent shifting during transport.
• Custom Hoists and Attachments: Cranes can be fitted with specialized hoists or attachments designed for specific lifting tasks, such as vertical lifts or tilting large panels into position.

Electrical vs. Manual Drive Options

Choosing the right drive system for the gantry crane is a crucial design decision. Whether to use an electric-powered or manual drive system depends on the specific needs of the job, the terrain, and the frequency of crane movement.

Electric-Powered Gantry Cranes:

Pros:

• Efficiency: Electric gantry cranes are generally more efficient, requiring less physical labor and allowing for faster, smoother operation.
• Powerful Lifting: Electric motors provide consistent power, making them ideal for heavy-duty lifting.
• Ease of Use: Electric cranes often feature automated controls and remote operation, reducing operator fatigue and increasing precision.

Cons:

• Power Supply Dependency: Electric-powered cranes require a constant power source, which could be limiting if the construction site doesn't have reliable electricity or requires mobility over large areas.
• Maintenance: Electric systems may require more maintenance and care for the electrical components and wiring.

Manual Gantry Cranes:

• Simplicity: Manual cranes are often simpler in design, which can make them easier to repair and maintain.
• Cost-Effective: For smaller projects, manual cranes may be a more affordable option, as they have fewer complex parts and no need for electricity.
• No Power Supply Needed: Since they don't rely on electricity, manual cranes can be used in remote areas where power might be limited.

Cons:

• Labor-Intensive: Manual cranes require more effort from operators, making them less efficient for large or frequent lifting tasks.
• Limited Lifting Capacity: Manual cranes may not be able to handle heavier loads as easily or quickly as electric cranes.

In designing outdoor gantry cranes for 3D house construction, adaptability to weather conditions, crane mobility, and customization options are crucial to ensure efficient and safe operation. Whether choosing an electric or manual drive system depends on the specific needs of the site, the weight and type of components being lifted, and the frequency of crane movements. By considering these design elements carefully, the crane can be optimized for the challenging conditions of outdoor construction sites and the complex tasks involved in precasting for 3D houses.

Cost Considerations and ROI

Investing in an outdoor gantry crane for 3D house precasting is a significant decision for any construction project. Understanding the cost breakdown, operational expenses, and the potential return on investment (ROI) is essential for making an informed decision. Here's a closer look at the costs involved and how investing in a gantry crane can lead to long-term savings.

Initial Investment in Gantry Cranes

The initial cost of purchasing and setting up a gantry crane includes several key components, each contributing to the overall price.

Breakdown of Crane Costs:

• Materials: The choice of materials for the crane frame, girder, lifting mechanisms, and components greatly influences the cost. Higher-quality materials like corrosion-resistant steel or marine-grade aluminum may cost more upfront but offer better durability and long-term value.
• Design and Engineering: The complexity of the crane design can impact the cost. Custom-designed cranes, which are tailored to specific needs such as handling large 3D house molds or precast concrete components, will have higher design and engineering costs.
• Construction and Assembly: The costs of fabricating the crane, assembling it on-site, and integrating the electrical or mechanical systems add to the initial investment. Cranes with advanced features, such as automated systems or specialized lifting mechanisms, typically cost more to assemble and install.

Additional Setup Costs:

• Site Preparation: Before the crane can be installed, the construction site must be properly prepared. This may include leveling the ground, laying a foundation, and ensuring access to necessary power sources. These steps also contribute to the overall initial investment.

Operational Costs

Once the gantry crane is up and running, ongoing operational costs must be considered to ensure it continues to perform at optimal levels.

Energy Consumption:

• Electric vs. Manual Operation: Electric-powered cranes generally consume more energy than manual cranes, but they are often more efficient and capable of handling heavier loads. The energy cost depends on how frequently the crane is used and the size of the components it handles.
• Energy-Efficient Design: Modern cranes may include energy-saving features, such as variable frequency drives (VFDs) that reduce energy consumption during operations like hoisting and traveling. These systems can help lower operational costs in the long run.

Maintenance and Repair Costs:

• Routine Maintenance: Regular maintenance is crucial to keep the crane in top condition. This includes lubricating moving parts, checking hydraulic systems, inspecting electrical components, and replacing worn-out parts. Routine maintenance helps prevent expensive repairs down the line.
• Repair Costs: Over time, crane parts may require repairs or replacements, especially if the crane is subjected to heavy loads or harsh environmental conditions. Common maintenance expenses include replacing wires, motors, or safety systems.
• Extended Warranty: Some manufacturers offer extended warranties or service packages, which can help reduce repair costs over the life of the crane.

Return on Investment (ROI) in 3D House Precasting

Investing in an outdoor gantry crane can lead to significant improvements in the efficiency and cost-effectiveness of 3D house precasting operations. The ROI can be measured in several ways, including efficiency improvements, labor savings, and reduced wear on other equipment.

Efficiency Improvements in Precast Concrete Handling:

• Faster Handling: Gantry cranes can dramatically speed up the handling of precast concrete components, such as walls, floors, and roof panels. Their ability to lift and move large, heavy components quickly allows construction teams to focus on other tasks, reducing the overall time required for each phase of the project.
• Precision and Accuracy: With specialized lifting mechanisms, gantry cranes ensure precise placement of components. This reduces the need for manual adjustments or rework, minimizing delays and improving the quality of the finished product.

Long-Term Savings in Labor and Equipment Wear:

• Reduced Labor Costs: The crane's ability to handle heavy loads and move components with minimal human intervention reduces the need for manual labor. Fewer workers are required for lifting, transporting, and placing the components, resulting in significant savings on labor costs.
• Less Wear on Other Equipment: By taking on the heavy lifting tasks, the gantry crane reduces the strain on other construction equipment, such as forklifts and cranes. This can extend the lifespan of these machines and reduce the frequency of repairs or replacements.
• Reduced Risk of Injury: Handling heavy components manually can lead to worker injuries. Using a gantry crane helps to minimize physical strain, lowering the risk of workplace accidents and associated medical costs.

Investing in an outdoor gantry crane for 3D house precasting involves both an initial investment and ongoing operational costs. However, the long-term benefits far outweigh the expenses. Efficient lifting and handling of concrete components, combined with reduced labor costs and less wear on equipment, lead to significant savings over time. By improving productivity and reducing the likelihood of accidents or mechanical issues, a gantry crane can provide a solid return on investment, ultimately making it a valuable asset for 3D house construction projects.

Case Studies of Outdoor Gantry Crane Applications in 3D House Precasting

Outdoor gantry cranes have proven to be invaluable in 3D house precasting, significantly improving the efficiency, safety, and quality of construction. Below are two detailed case studies that illustrate the practical applications of these cranes in real-world projects, highlighting the impact on timelines, safety, and handling large and heavy components.

Case Study 1: Handling Large Molds for 3D House Construction

Crane Specifications and Project Results
In this project, an outdoor gantry crane with a 5-ton lifting capacity was used to handle large molds for precasting 3D house components. The crane was equipped with a truss girder design for improved stability and load distribution, ensuring that heavy molds could be lifted and positioned accurately.

• Crane Features: The crane was designed with adjustable height to handle varying mold sizes and incorporated a precision lifting mechanism to prevent any damage during lifting and moving.
• Project Outcome: The crane helped to streamline the handling of large, heavy molds for wall panels, foundations, and roof structures. It reduced the time required for mold placement by 30%, significantly accelerating the production process and allowing the construction to progress without delay.

Lessons Learned from Real-World Applications

• Efficient Mold Handling: One of the most important lessons learned was the importance of precise lifting mechanisms to handle the delicate nature of the molds. Even slight misalignment could lead to costly rework or damage to the mold.
• Adaptability: The crane's adjustable height was crucial in providing flexibility to handle a wide range of mold sizes. This adaptability made it ideal for a project that involved multiple types of molds and various precasting needs.
• Importance of Regular Maintenance: The crane required consistent maintenance checks to ensure the lifting system operated smoothly. Regular inspections of the hoisting mechanism and safety features were critical to avoid delays caused by mechanical failures.

Case Study 2: Precasting Concrete Components for Multi-story 3D Houses

Impact of Gantry Crane Use on Project Timelines and Safety
For the precasting of multi-story 3D houses, the project team used a 7-ton outdoor gantry crane with an electric drive system to handle large concrete components. The crane was primarily responsible for moving precast concrete panels for walls, floors, and roof sections.

• Project Timeline: The use of the gantry crane helped reduce project timelines by approximately 40% by speeding up the transportation and placement of concrete components. The crane's ability to lift and transport multiple panels at once allowed construction teams to work more efficiently.
• Safety Benefits: The crane's ability to handle large and heavy loads significantly improved site safety by reducing the need for manual lifting. It minimized physical strain on workers and eliminated the risk of accidents associated with heavy lifting tasks.

Overview of Challenges and Solutions

Challenge 1: Handling Oversized and Heavy Concrete Components: Some of the concrete panels for the multi-story houses were exceptionally large and heavy, requiring precise handling. The weight and size of the components posed a challenge for the crane's lifting capacity.

Solution: The crane was equipped with a high-strength lifting rope system and load cells to ensure it could safely lift and distribute the weight of oversized panels. Additionally, the crane's adjustable height allowed for smooth lifting and placement without risk of damaging the components.

Challenge 2: Outdoor Environmental Conditions: The project was located in an area with frequent high winds and unpredictable weather, which created potential safety hazards.

Solution: To mitigate the risks associated with weather, the project team implemented wind speed monitoring and weather forecast tracking. The crane was equipped with wind sensors that would trigger an automatic shutdown if wind speeds exceeded safe operating levels. This feature ensured the crane remained operational only in safe conditions, avoiding accidents caused by environmental factors.

These case studies highlight the critical role outdoor gantry cranes play in 3D house precasting. From handling large molds to lifting heavy concrete components, these cranes improve project efficiency and safety while reducing labor costs. The real-world lessons from these applications emphasize the importance of crane specifications, regular maintenance, and environmental considerations to achieve successful project outcomes. Through effective crane use, 3D house construction can be completed faster, with greater accuracy, and with enhanced worker safety.

Other overhead crane selection

Overhead crane for indoor mould and formwork handling

overhead  bridge crane for material handling

Conclusion

Outdoor gantry cranes with truss girder designs play a crucial role in the efficient handling of precast concrete components for 3D house construction. These cranes provide the strength, flexibility, and stability needed to manage large molds and heavy concrete panels with precision. The ability to handle complex, oversized components while improving safety and reducing project timelines makes them indispensable in modern construction projects.

Summary of Key Points

• Importance of Gantry Cranes with Truss Girder Designs: The truss girder design offers enhanced stability and load distribution, making it ideal for handling heavy and oversized components in 3D house precasting. This design minimizes the risk of crane failure under load and helps maintain structural integrity even in challenging outdoor environments.
• Crane Selection and Efficiency: Proper crane selection directly impacts project efficiency. By choosing a crane with the right lifting capacity, mobility, and safety features, construction teams can significantly reduce downtime and ensure that components are moved with speed and accuracy. This ultimately leads to faster project completion and better overall results.
• Safety and Cost-Effectiveness: Outdoor gantry cranes enhance safety by reducing manual labor and minimizing the risk of injuries related to heavy lifting. Additionally, the automation and precision offered by these cranes lead to long-term cost savings by reducing labor costs and minimizing damage to materials.

Final Recommendations

Key Factors to Consider When Choosing an Outdoor Gantry Crane:

• Capacity Requirements: Ensure the crane can handle the specific weights and sizes of the components involved in 3D house construction (typically ranging from 3 to 10 tons).
• Customization Options: Look for cranes with adjustable height and specialized lifting mechanisms for handling complex components, such as large molds or delicate panels.
• Environmental Suitability: Consider the crane's ability to withstand outdoor conditions, including weather resistance and mobility on uneven ground.
• Safety Features: Prioritize cranes with built-in safety mechanisms like load sensors, emergency shutdown features, and wind speed monitors to ensure safe operations.

By selecting the right outdoor gantry crane and keeping an eye on emerging technologies, the 3D house construction industry can continue to improve in efficiency, safety, and sustainability.
