Overhead crane for sale Indonesia. Complete overhead cranes systems & economical bridge crane kit with capacity of 500kg - 100 ton for sale in Indonesia. Our crane company strives to provide the best crane equipment available in the industry. Whether you require overhead cranes, bridge cranes, gantry cranes, monorail systems, jib cranes, hoists, dedicated structural support, overhead crane kits, light ergonomic crane/rail, , our quality hoist and cranes products and experience provide the best possible solution to meet the needs of each unique application.
Our bridge crane fabrication, service/repair, and installation teams only work with the most skilled and knowledgeable fitters, welders, and technicians. We offer the best value in the industry thanks to our top-notch machinery and controls, qualified staff, and industry-leading warranty.
Underhung Bridge Crane, Single girder Ceiling Mounted Design, Underslung Bridge Crane Supplier
Single Girder Top Running Overhead Crane for Sale 1 Ton - 20 Ton, European style Low Headroom Crane
What Is an Overhead Crane, Exactly?
An overhead bridge crane typically consists of two parallel structural runways that are separated by a distance called "SPAN," a traveling double or single-girder bridge that "Spans" this distance and is connected to motorized end trucks with wheels rolling on ASCE crane rail or square bar, and a two-rail or monorail hoist-trolley that travels the bridge lifting (winching) a load up and down.
Overhead cranes are used for specific installations, inside industrial buildings, outside on free-standing structural supports, and applications in which plant production, minimal downtime, or efficiency are crucial factors. These are not your typical construction or mobile cranes.
Controls are typically provided by a sliding (tethered) pendant station that serves as "Back-Up" to a radio remote control system. Call the our crane experts to get a customize Overhead Cranes installed in Indonesia right away if you have any further inquiries or need a more detailed explanation of the options available.
Typical Overhead Crane Systems
The most of of overhead crane systems in Indonesia consist of the crane rails (crane rail, square bar, or structural beam), the overhead cranes (top-running double-girder, top-running single-girder, or under-running single-girder), and the crane electrification system (Enclosed Busbar or typical 4 Conductor Bar System with Collectors). If necessary, we can also offer complete structural support systems or crane runway supporting system for crane buildings not initially supposed for crane loading, outdoor systems with the necessary concrete footings, or structural support in "Crane-Ready" buildings (typically the crane runway beams and tie-backs).
Overhead Crane Sysrem

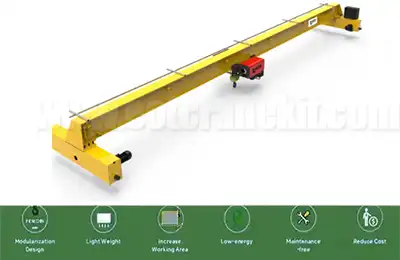

Top-Running Single-Girder Overhead Cranes
The top running single girder bridge crane is typically used for moderate-duty classifications, capacities from 1 ton to 15 ton and typically designed with shorter spans.
When compared to double-girder overehead cranes, single-box girder cranes can be used in special applications with spans up to 100+ feet and capacities of up to 25 tons, which reduces "Dead-Weight" and "Cost."
Overhead Crane Sysrem

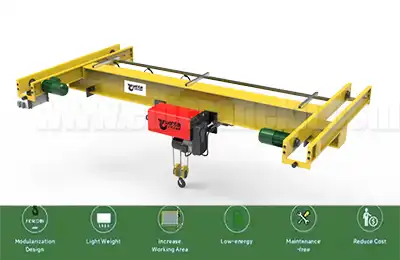

Under-Running Single-Girder Overhead Bridge Cranes
Single-girder under-running overhead bridge cranes are typically used for powered or manual applications, shorter spans of 6 feet or less, and 1 to 1 ton capacity.
When a bay-to-bay transfer is necessary, under-running bridge cranes can be used by utilizing bridge interlocks, transfer sections, and monorail or 2-Rail hoist-trolleys.
Overhead Crane Sysrem

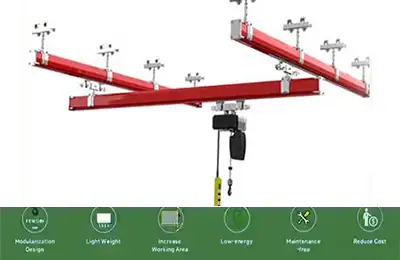

Work-cells, and light ergonomic workstation cranes
These light workstation cranes and light kbk crane system typically range in weight from 250 pounds to 2 tons, use powered or manual electric chain hoists, and require manual motions to move the bridge and trolley. If necessary, powered bridge or trolley travel motions are available.
These workstation overhead crane systems can be used to handle parts, pieces, and components that are much lighter than the rated capacities of the overhead cranes or to handle subcomponents and boost productivity when things are busy and operators are waiting for the larger overhead crane systems.
Overhead Crane Sysrem

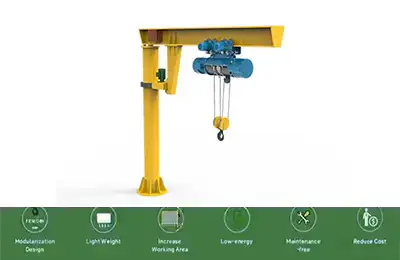

Jib cranes
Although traditional electric jib-cranes (shown below) are preferred by Indonesia Overhead Cranes, we can provide these systems in locations where light crane systems cannot be installed or as upgrades to existing systems.
Overhead Crane Sysrem

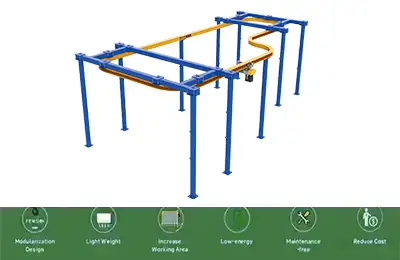

Monorails
These light monorail overhead crane systems are essential when accessing areas above ground, on top of structures or vehicles, on mezzanines and ladders, and so on. They are adaptable and can be installed in almost any location and in a variety of configurations.
Overhead Crane Services
Overhead Crane Installation Services
Indonesia Overhead Cranes believes that no two installations are alike. Each individual application is assessed based on the following factors: Project Plans, Site Visits, Verified Measurements/Specifications, Duty Cycle, Frequency of Operation, Products handled, Required Below Hook Devices (Grabs, Magnets, Rigging, etc.), Available Power Source, Customer Project Budget Considerations, and Delivery Schedule stipulated for timely completion.
Overhead Crane Services
How are Overhead Cranes Powered?
Overhead cranes in Indonesia are either electric or man-powered. Let's start with manual-powered overhead cranes that use a hand chain.
The hand chains are made up of a number of unwelded or interwoven-formed welded links that fit into pockets on the hoist hand chain sprocket or wheel on overhead cranes. The chain wheel turns when the hand chain is pulled, sending power up through the hoist. The hoist load hook moves in one direction when the hand chain is pulled in one direction, while the overhead cranes' hand chains are pulled in the opposite direction. Manually operated hand chain hoists are only available with a welded link load chain or a roller load chain as a lifting medium. When using electricity, it's different because the operator must activate a control mechanism for the overhead cranes in order for the electrically powered hoists to function. They typically have levers that activate electric motors or buttons that perform a similar function. These control actions include moving an overhead crane or trolley, turning on or off the power, stopping an emergency, moving east or west or left or right, etc.
Power Requirements of electric overhead crane systems For light ergonomic systems, jib cranes, and monorails with capacities between 250 kg and 2 tons, operating voltages for overhead cranes are typically 115V/230V/1ph/60Hz power.
Higher capacity overhead cranes, jib cranes, and monorails from 2 tons to 100 tons (as well as higher service classification systems below 2 tons) are typically 380V/3PH/50 HZ, and they can be customized according to your requirements with 3 phase supply power to fit in your application around world.
About Overhead Crane Services
How Much Do Overhead Cranes Cost?
The expected cost of your overhead crane systems will vary depending on a variety of factors. The type of bridge travelling crane you require, the horizontal distance center-to-center of the runway rails, the maximum rated load your crane will need to lift, the estimated height or required lift of your overhead crane, how quickly it must operate, how frequently you will use it, the environment your overhead crane will be in, the length of your runway, and structural requirements are a few of these factors.
How to Build an Overhead Bridge Crane - DIY Possibilities with Crane Kits
What fundamental knowledge is required in order to construct overhead cranes? We understand that your budget is a factor, and you might decide to build your own overhead crane. What comes first? To buy needed overhead crane kit for your crane system constuction .

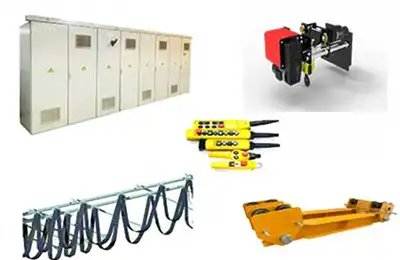

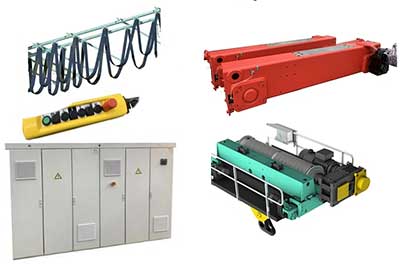

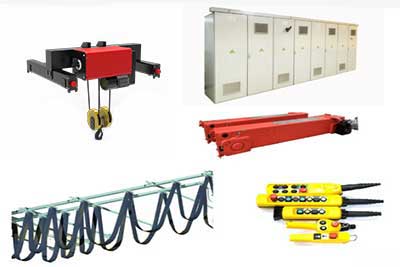

What are included into our overhead crane kit and bridge crane kit? Except the steel girder , all the necessary crane parts and components can be provided to construc your bridge crane, including End trucks, electrification, a hoist, and controls, etc. This is what your plug-and-play bridge crane kit will most likely contain. It is an economical overhead crane solution to assembly your overhead crane kit all by yourself and the construction cost of large steel girder and its transportation cost will be saved , for they can be produced locally based on the drawing provied by crane manufacturer.
Depending on the model, most crane controls come with either a remote control or an attached pendant control. Typically, overhead crane systems are "hard wired." As a result, they need three-phase electricity that an electrician must wire. You shouldn't attempt to complete this DIY step unless you are a licensed electrician because so many things could go wrong. Your equipment may be potentially (and seriously) damaged during functional testing if every single electrical connection isn't terminated at the proper place.
Manufacturers of overhead crane kits provide incredibly thorough assembly instructions and manuals. Preparing the beam, mounting the trolley hoist, leveling the end trucks, and final electrical receptacle/plug connection are the majority of steps. In Indonesia crane market, we make an effort to demonstrate the best tools and what you can do with them. Call us if you decide to DIY your overhead crane set! We can not only offer advice on teaching methods but also the most competitive bridge crane kit prices in the Indonesia. Regardless of whether we physically assist you, we still want to assist you in getting your overhead crane operational. You can find out more about your overhead crane kit and how to safely DIY modify it so that it works best for you by getting in touch with us.
