Steel Coil Roll Magnetic Overhead Crane for Steel Warehouse 50 Ton
Horizontal & Vertical Steel Coil Roll handling

Overhead crane for efficient steel coil & steel roll hoisting in steel coil warehouse 5 ton to 50 ton. Custom magnetic overhead crane & magnetic lifter.

Overhead cranes with coil roll magnets are used to transport hot or cold rolled coils from one location to another. Steel coil is a finished steel product that has been wound or coiled after rolling, such as sheet or strip. The lifting device is limited to several types due to its wound roll shape and characteristics. In this section, we will discuss coil handling magnetic overhead crane and magnetic coil lifters for your reference.

Magnetic overhead cranes are essential for increasing productivity, safety, and streamlining workflow. It is designed to work with cast iron ingots, steel balls, scrap metals, and other metal products and materials. The weight of the magnetic chuck is included in the crane's lifting capacity. Our overhead cranes are available in a variety of designs and configurations to meet a wide range of lifting needs. You can talk with one of our steel mill crane experts to determine the best electric crane system for your company.

QC Electromagnetic Overhead Crane

• Loading capacity of magnetic overhead crane: 5 ton to 50 ton
• Max. Lifting Height: 18m
• Span of coil magnetic crane: 7.5m~35m
• Control model: Cabin control /remote control /automatic control
• Application: Electromagnetic Overhead Cranes are mostly used for plates, extrusions, steel scrap, and other similar items. The lifting cranes are heavy duty equipment and the working level is A6.

They can be controlled by a single operator from the crane's control cabin, a safe distance away from the material to be transported, or via the automation system.

Magnetic overhead crane for coil handling in warehouse

Benefits of coil magnetic overhead crane

The following features of our magnetic coil lifter are its most notable benefits:

• Electro magnetic overhead cranes are well suited to coil lifting applications. Coil lifting magnets can improve stockyard efficiency by 40-60%. Customers benefit significantly from this alone in terms of stock efficiency. There is no need for additional labor in coil stockpiling or transportation. This results in time and labor cost savings.
• Magnet power can be adjusted and magnet temperature can be controlled using the electronic control system.
• The system alerts the operator if the temperature of the magnet changes.
• The system can be equipped with beams that allow +90 / -180 degree rotations based on the needs of the customer.
• Additionally, the coils can be stacked vertically and horizontally.
• Superior lifting safety - thanks to the electro permanent magnet property, the heavy coil won't drop or fall off even in a sudden power loss or blackout.
• Energy saving – consumes no power during lift;

Types of magnetic coil lifters

Sometimes it just isn't possible to transport a weight from one place to another safely and securely using a typical wire rope sling, alloy chain sling, or synthetic sling. Your alternatives for a coil lifter are extremely restricted; And a lifting magnet can handle coils that weigh up to several tons or lifting coil from a pallet in a warehouse.

We offer magnetic coil lifters for both horizontal and vertical eyes.

According to the needs of the client, we created a vertical eye coil lifter, a sort of magnetic lifting device for steel coil. As we can see, every coil is kept in a warehouse on a wooden pallet because the space between coils is so small and constrained that the client cannot use mechanical lifters.

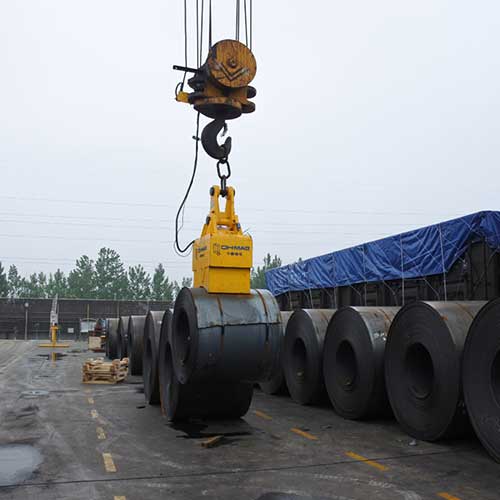

A horizontal eye coil lifter - magnetic lifting device designed is loading steel coils onto trucks and palletizing them side by side. In such cases, neither coil grabs, coil tongs, nor coil hooks will suffice because there is insufficient space or aisle for a mechanical lifting device to move freely.

All of the aforementioned selection factors are not an issue when using magnetic coil lifting equipment. As a professional lifting magnet manufacturer, we offer coil lifting magnets that are specially engineered to meet a wide range of dimensional, capacity, and special application requirements for quick and safe coil handling. To learn more about this type of coil lifter, please contact us.

Factors on choosing steel roll & coil magnetic overhead crane

There are several important factors to take into account when selecting a handling device to move massive coils:

• Minimum and maximum coil widths,
• Minimum and maximum inner and outer coil diameters,
• Preference for vertical or horizontal loading,
• The material's temperature,
• Crane lifting capability
• Strap width and location on coils,
• Count of straps on coils
• If applicable, information on protective material on the outer surface of coils.
• The qualities of the storage area.

Types of lifters for coil handling overhead crane

The coil lifter is a device that can be used to lift, move, stack, or reposition coils with either a vertical or horizontal eye position. It comes in a range of designs to accommodate the loads you expected to handle.The following categories of coil lifting equipment are currently in use:

• Coil Grab
• Coil Tongs
• C hook Coil Lifter

Coil lifter

Steel coil handling c hook

Coil lifting tongs
