Steel Coil Lifters for Industrial Overhead Crane & Gantry Cranes Coil Handling

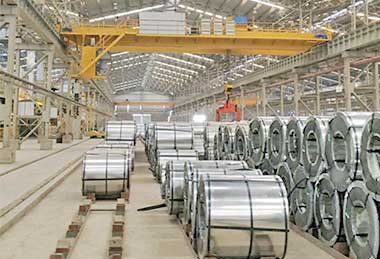

Overhead coil handling cranes

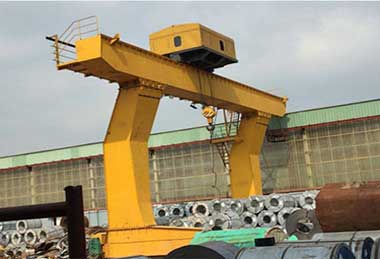

Gantry type coil handling cranes

The coil handling cranes with industrial overhead crane and industrial gantry cranes designs can be used in indoor or outdoor steel coil handling with capacity range from 5 ton to 250 ton. Customized overhead and gantry coil handling cranes can be customized with specific configurations and specifications , equipped with different coil lifter such as standard crane hook, double leg coil lifter, C hook coil lifter, tong and lifting clamp coil lifter, and electron-magnetic coil lifter, etc.

Types of coil lifters for coil handling cranes

Coil handling cranes are designed for types of steel coil handling precisely and safely throughout all machining processes. With different coil handling requirements, the industrial overhead crane and gantry cranes can be used steel coils lifting and transferring indoors and outdoor typically double girder or double beam crane designs.

Specialty overhead below-the-hook devices are optional for various steel coil handling applications solutions, such as standard hooks, double leg coil lifter, C hook coil lift, magnetic coil lifter,etc.

C hook coil lifter overhead crane for vertical coil handling

Tong crane for vertical coil handling

Tong crane for horizontal coil handling

Magnetic cranes for Coil handling

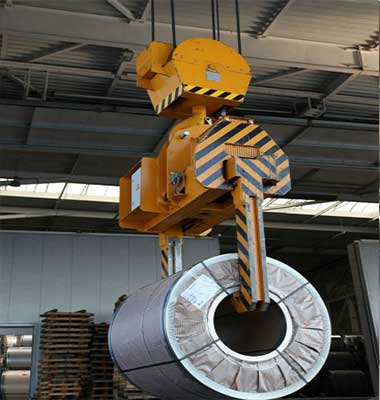

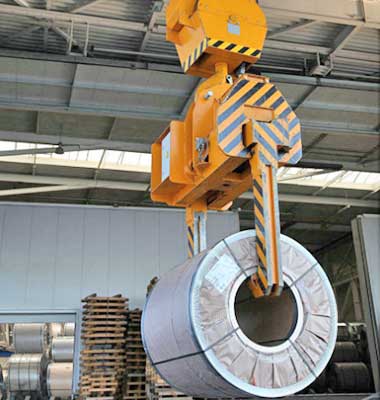

Tong coil lifter for steel coil handling- horizontal coil lifter, vertical coil lifters & tilt coil lifters

Crane lifting lifter for handling steel coils can be grouped in horizontal coil lifter, vertical coil lifter and tilt coil lifter.

The horizontal coil lifter is designed for handling horizontal steel coilsof different specifications in the hot rolling mill and cold rolling mills with capacity from 8 tons to 50 tons. With rotary design, the jaws of coil lifter can be turned over 90°mechanically and electrically, with an electrical detection device or a polyurethane protection device.

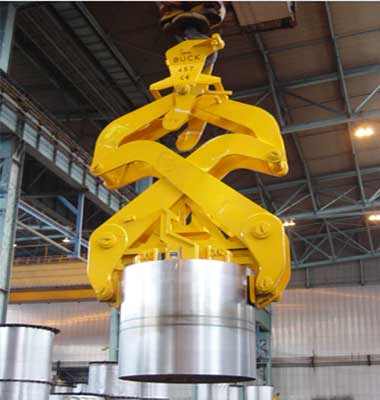

Vertical coil lifters is adopted for vertical steel coils loading and unloading in the cover furnace area and any other applications where vertical coil handling required with capacity from 8 tons to 50 tons with the features of reasonable structure, high safety and reliability.

Horizontal coil lifting tong

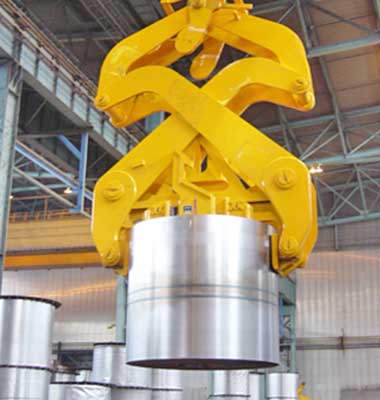

Vertical coil coil lifter

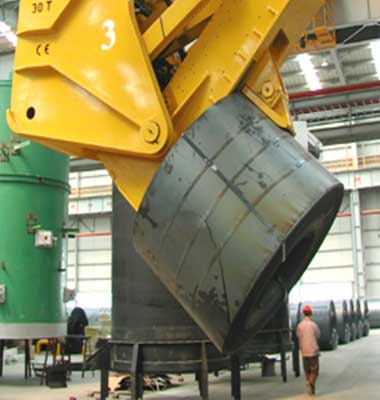

Tilt coil coil lifter

Coil lifter, under-hook-devices for overhead travelling cranes

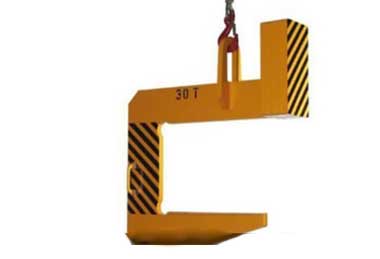

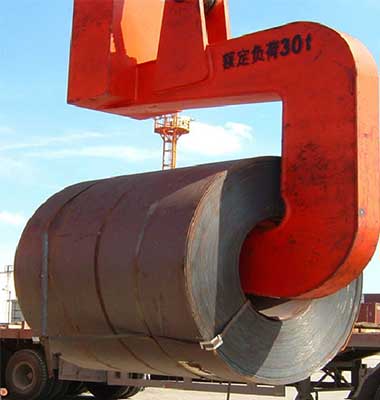

C hook coil lifters

Different types of C-hook coil lifters are adopted on industrial overhead cranes for steel coil rolls handling with high safety, All of our C hook coil lifters and overhead coil handling cranes are manufactured based on customer requirements.

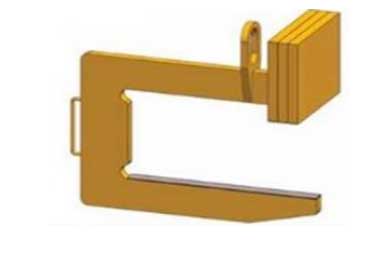

Counter Balanced C-hook coil lifter

Motorized Rotating C hook coil lifter

Adjustable C hook coil lifters for wide applications

Close Stacking C-hook coil lifter for Narrow Aisles

C-hook coil lifer for Narrow Coil rolls,e tc.

• Counter Balanced C-hook coil lifter -Counter balanced C-hook has a "L" shape dimension with the length of the low part equals the maximum width of the coil roll, offering full support to contacting area of the coil rolls, minimizing the possibility of damaging the inner wraps of coil rolls, etc.
• Motorized Rotating C hook coil lifter-With larger sections and corner radii , the the steel coil hooks can keep stresses to a minimum and provide maximum lifting life. With an electric motor, the motorized rotation C hook coil lifter can carry the steel coil rolls with the rotations of 360 degrees. The rotating coil lift provides additional safe and capability of high precision positioning of steel coils.
• Adjustable C hook coil lifter-The specialized C hook coil lifter are flexible & adjustable with wide application to handle rolls of different sizes.
• Close Stacking C-hook for Narrow Aisles-The C-hook coil lift is designed with shorter lifting arm, widely used for close stacking, which enables the lifting arm of C hook coil lifter without extending beyond the outer edge of the coils within range during operating. The overall width of the coil lift is reduced, decreasing its requirements for aisle space, increasing the capacity of storage.

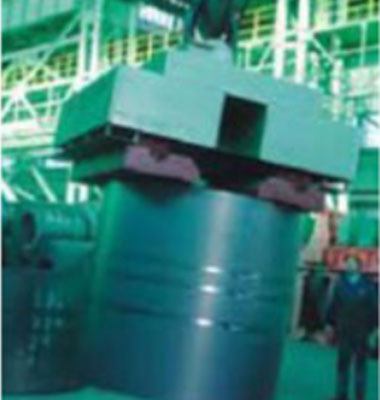

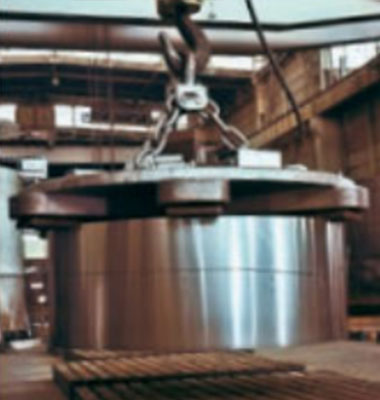

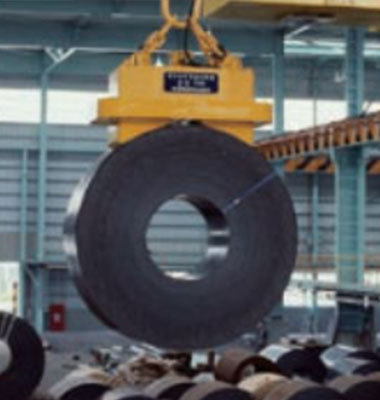

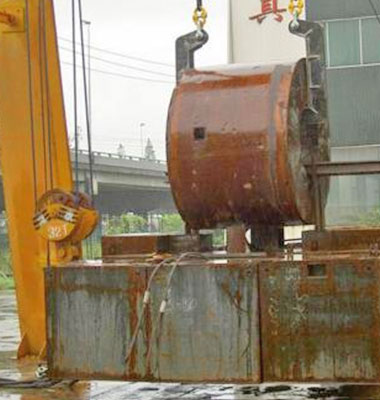

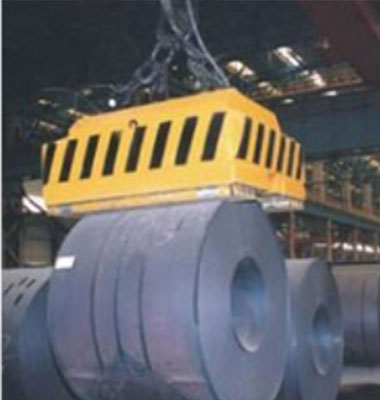

Electromagnetic coil lifter for coil handling cranes

The electromagnetic coil lifter is designed for steel coil handling, which can be grouped into vertical coil electromagnetic coil lifter, horizontal electromagnetic coil lifter and general use electromagnetic coil lifter which can handle steel coils vertically and horizontally flexibly. High temperature electromagnetic coil lifter are used for vertical or horizontal coil handling at anneal process with temperature from 100℃ to 600℃.

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

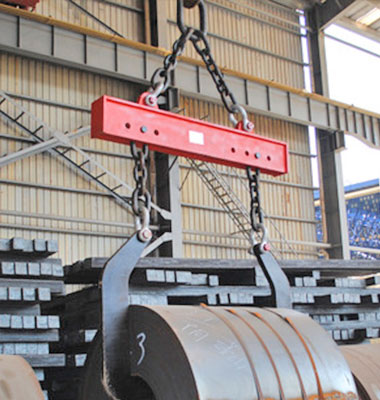

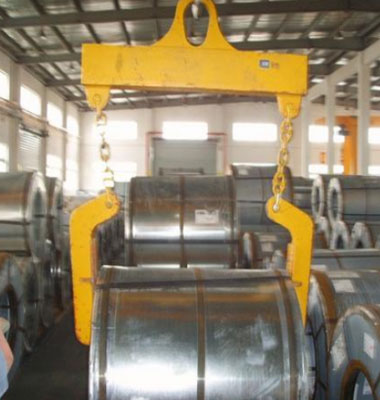

Double Leg Coil Lifter

Double leg coil lifters are the most simple, easy to use and economical below-the-hook devices for coil handling cranes. The two-sided coil lifters are designed with less aisle space, made of high tensile alloy steel, with coil width adjustment indicators, and optional coil protection, etc. Customized double leg coil lifter are available.

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Lifting Electromagnet for Lifting Steel Coil Vertically and Horizontally

Customized coil handling solutions

As a crane manufacturer and crane supplier, we are able to provide types of industrial cranes and related crane parts and accessories including types of below the hook devices. With process design, we can process and provide quality coil handling devices for your material handling equipment to handle your valued products with the features of durability, efficiency, and high safety. If you have any need of coil handling lifting devices and coil lifters, please feel free to contact us to get customized coil lifting devices at good price.
