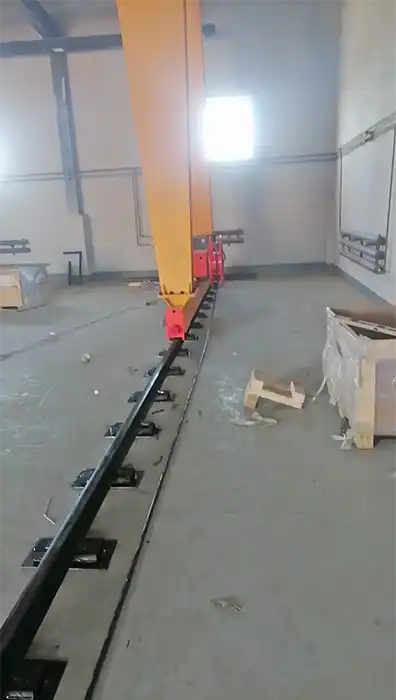

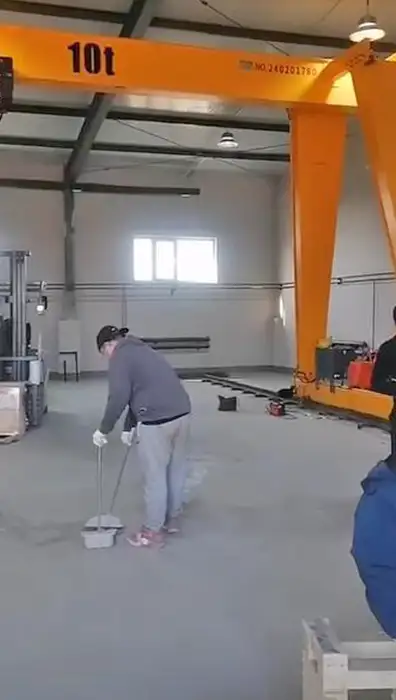

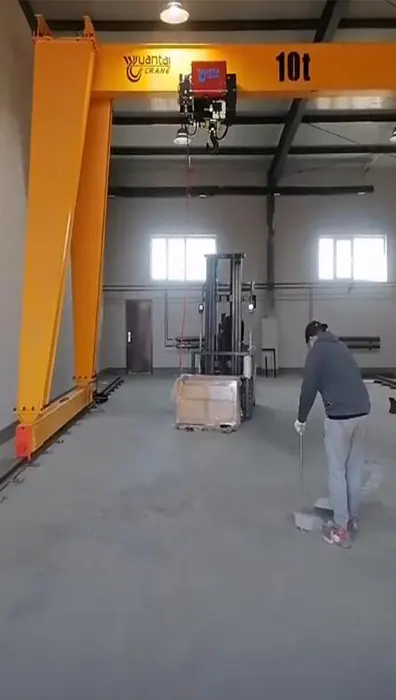

10 Ton Gantry Crane Installation on Uneven Ground in Indoor Workshops in Mongolia

In any workshop, getting things moving smoothly is crucial. But what happens when the ground isn't cooperating?  In the following a 10 ton gantry crane project in Mogolia is presented for your reference.This is a 10 ton single girder gantry crane with low headroom design that was installed in a workshop in Mongolia where the floors that aren't exactly flat. That's where we step in – to tackle the challenge of installing a 10ton gantry crane on uneven ground.

In Mongolia's indoor workshops, where every inch of space matters, installing a gantry crane isn't just about lifting heavy loads. It's about making sure everything runs like clockwork, safely and efficiently.

Firstly, let's talk about the importance of efficient material handling. In a fastpaced workshop environment, time is money. Any delays or inefficiencies in material handling processes can quickly add up, leading to lost productivity and increased costs. By investing in a gantry crane, workshops in Mongolia can streamline their material handling operations, allowing for faster, safer, and more reliable movement of goods.

However, installing a gantry crane on uneven ground presents its own set of challenges. Mongolia's indoor workshops often have floors that are far from level, which can compromise the stability and safety of the crane. Ensuring the crane is securely anchored and balanced becomes paramount to prevent accidents and ensure smooth operation.

Furthermore, the limited space available in indoor workshops adds another layer of complexity to crane installation. Maneuvering a large piece of equipment like a gantry crane requires careful planning and precision to avoid obstacles and maximize available workspace.

PreInstallation of 10 Ton Gantry Cranes in Workshops

Assessing Workshop Conditions

Before diving into the installation process, it's crucial to thoroughly assess the conditions of the indoor workshop in Mongolia. This step lays the foundation for a successful gantry crane installation and ensures that all potential challenges are identified and addressed proactively. Here's why assessing workshop conditions is so important and the key factors to consider:

Importance of Assessing Client's Workshop Conditions in Mongolia:

Mongolia's indoor workshops represent a dynamic environment characterized by unique challenges and opportunities. Here's why assessing workshop conditions is critical for a successful gantry crane installation:

• Unique Characteristics and Challenges: Mongolia's indoor workshops are diverse in size, layout, and infrastructure. They may vary from smallscale operations to larger industrial setups, each with its own set of challenges such as limited space, uneven ground, and harsh weather conditions.
• Better Planning and Preparation: Assessing workshop conditions beforehand allows for proactive planning and preparation. By understanding the specific challenges and limitations of the workshop environment, workshop owners and operators can anticipate potential obstacles and develop strategies to address them effectively.
• Minimizing Risk of Setbacks: A thorough assessment helps minimize the risk of unexpected setbacks during the installation process. Identifying potential issues early on allows for timely mitigation measures, reducing the likelihood of delays, accidents, or cost overruns.
• Tailored Installation: Every workshop has its own unique requirements and constraints. By conducting a thorough assessment, workshop owners and operators can tailor the gantry crane installation to meet the specific needs of the workshop. This ensures that the crane is positioned optimally, taking into account factors such as space availability, workflow efficiency, and safety considerations.
• Maximizing Efficiency and Effectiveness: A wellplanned and tailored installation maximizes the efficiency and effectiveness of the gantry crane within the workshop environment. By optimizing the crane's placement and functionality, workshop owners can enhance productivity, streamline material handling processes, and ultimately, improve overall operational efficiency.

In essence, assessing workshop conditions in Mongolia is not just about identifying challenges—it's about seizing opportunities to optimize crane installation and create a safer, more productive workspace. By investing time and effort into this critical step, workshop owners and operators can lay the groundwork for longterm success and operational excellence.

Factors to Consider:

Installing a gantry crane in a workshop requires careful consideration of various factors to ensure optimal functionality, safety, and efficiency. Here's a detailed look at the key factors to consider:

• Space Availability: The available space within the workshop is a critical factor in determining the feasibility of installing a gantry crane. Assessing the dimensions of the workshop floor and layout helps identify suitable locations for the crane that maximize workspace utilization while minimizing interference with other equipment or processes. Considerations include the crane's span length, clearance requirements, and proximity to work areas or storage areas.
• Flooring Material: The type and condition of the workshop floor significantly impact the stability and performance of the gantry crane. Factors such as floor flatness, surface texture, and loadbearing capacity must be carefully evaluated. Uneven or deteriorated flooring can compromise the crane's stability and lead to safety hazards. Depending on the condition of the floor, modifications or reinforcements such as leveling, resurfacing, or installation of additional support structures may be necessary to ensure the crane's safe operation.
• Ceiling Height: Adequate overhead clearance is essential for the safe operation of a gantry crane. Assessing the workshop's ceiling height ensures that there is sufficient space to accommodate the crane's lifting mechanism and allow for the vertical movement of loads without encountering any obstructions. Factors such as beam height, hook height, and trolley clearance must be considered to prevent collisions with the ceiling or other overhead structures. If the ceiling height is limited, adjustments to the crane's configuration or the workshop layout may be required to ensure compliance with safety standards.
• Electrical Requirements: Gantry cranes rely on electrical power for operation, making it essential to assess the workshop's electrical infrastructure. Evaluate factors such as voltage levels, available power outlets, and the capacity of the electrical system to support the crane's power requirements. Inadequate electrical infrastructure can lead to operational issues, power failures, or electrical hazards. Depending on the workshop's electrical setup, modifications or upgrades may be necessary to ensure compatibility with the crane's power needs.

By carefully considering these factors and addressing any potential challenges upfront, workshop owners and operators can ensure a successful gantry crane installation that meets their specific needs and requirements. Proper planning and preparation are essential for maximizing the crane's performance, longevity, and safety within the workshop environment.

By thoroughly assessing these workshop conditions, workshop owners and operators can identify potential obstacles and plan accordingly to ensure a smooth and successful gantry crane installation in Mongolia's indoor workshops.

Site Preparation

Preparing the site for gantry crane installation is a critical step that sets the stage for a smooth and successful project. Here's what you need to know about site preparation:

Clearing the Workshop Area:

• Before the installation of the gantry crane begins, it's crucial to ensure that the workshop area is clear of any obstacles or debris. This step is essential to facilitate a smooth installation process and to maintain a safe working environment. Here's why clearing the workshop area is so important:
• Ensuring Safe Installation: Removing obstacles and debris from the workshop area reduces the risk of accidents or injuries during the installation process. It allows installers to move freely and safely around the installation site without the risk of tripping or falling over objects.
• Preventing Interference: Obstacles or debris in the workshop area can hinder the movement of equipment and machinery required for the crane installation. By clearing the workspace, installers can ensure unobstructed access to the installation site, allowing for efficient and uninterrupted progress.
• Optimizing Space Utilization: Clearing the workshop area creates more space for maneuvering and positioning the crane components during the installation process. This enables installers to optimize the layout of the crane and maximize workspace utilization without being constrained by clutter or obstructions.
• Minimizing Safety Hazards: Machinery, materials, and other items left in the workshop area pose potential safety hazards during crane operation. By removing these hazards, workshop owners can create a safer working environment for crane operators and other personnel working in the vicinity.

To clear the workshop area effectively, it's essential to remove machinery, equipment, materials, and any other items that may obstruct the crane's movement or access to the installation site. This may involve relocating equipment to temporary storage areas, clearing away debris such as loose materials or scrap, and ensuring that the installation site is clean and free from any potential hazards.

By taking the time to clear the workshop area before installing the gantry crane, workshop owners and installers can create a safe and conducive environment for the installation process, ensuring a successful outcome and promoting a culture of safety in the workplace.

Ensuring Adequate Space:

Gantry cranes are substantial pieces of equipment that require ample space for safe and efficient operation. Before initiating the installation process, it's crucial to conduct a thorough assessment of the workshop layout to ensure that the crane has sufficient clearance in its intended location. Here's why ensuring adequate space is essential:

• Safe Operation: Adequate space around the gantry crane is vital for safe operation. It allows the crane operator to maneuver the crane and handle loads without the risk of collisions with nearby objects or structures. Insufficient space can increase the likelihood of accidents, damage to equipment, and injuries to personnel.
• Efficient Workflow: A wellplanned layout with sufficient space around the gantry crane promotes efficient workflow in the workshop. It allows for smooth movement of materials, machinery, and personnel, minimizing bottlenecks and delays in production processes. Additionally, ample clearance enables easy access for maintenance and repairs, reducing downtime and maximizing productivity.
• Consideration of Factors: When assessing space requirements for the gantry crane, several factors must be considered. These include aisle width, which should be wide enough to accommodate the crane's movement and allow for the safe passage of personnel and equipment. Overhead clearance is also critical to ensure that there are no obstructions above the crane's path, such as ceiling beams or lighting fixtures. Moreover, proximity to other equipment or structures must be evaluated to prevent interference and ensure smooth operation.
• Optimal Placement: Careful consideration should be given to the placement of the gantry crane within the workshop layout. The crane should be positioned in a location that minimizes travel distances for loading and unloading operations while maximizing accessibility to the materials being handled. Additionally, factors such as floor strength and stability should be taken into account to ensure that the crane's weight is adequately supported by the floor.

By ensuring adequate space for the gantry crane, workshop owners can promote safe, efficient, and productive operations in their facilities. A welldesigned layout that accommodates the crane's requirements contributes to a smoother workflow, reduced risk of accidents, and enhanced overall performance in the workshop environment.

Checking Workshop Floor for Evenness and Stability:

The workshop floor serves as the critical foundation for the gantry crane, making it imperative to evaluate its evenness and stability before installation. Here's why this step is crucial and how to go about it:

• Foundation of Safety and Performance: A solid and level workshop floor is essential for the safe and efficient operation of the gantry crane. Any unevenness or instability in the flooring can compromise the crane's performance, leading to issues such as misalignment, excessive vibration, and even structural damage. By ensuring a stable foundation, workshop owners can mitigate risks and promote optimal crane performance.
• Identification of Potential Hazards: Inspecting the workshop floor allows for the identification of potential hazards that could affect crane operation. Signs of cracks, dips, or deterioration may indicate structural weaknesses that need to be addressed before installing the crane. Addressing these issues early on helps prevent accidents, equipment damage, and costly repairs down the line.
• Prevention of Misalignment: An uneven workshop floor can result in misalignment of the crane's components, such as rails and wheels. This misalignment can lead to operational issues, including difficulty in moving loads smoothly and accurately. By ensuring that the floor is level and stable, workshop owners can minimize the risk of misalignment and ensure the crane operates as intended.
• Steps for Inspection: To check the workshop floor for evenness and stability, start by visually inspecting the surface for any visible signs of damage or deterioration. Look for cracks, uneven patches, or areas where the floor appears to be sagging or uneven. Additionally, use a level or straightedge to identify any dips or deviations from a level surface. Pay particular attention to areas where the crane will be installed and prioritize addressing any issues found in these areas.
• Addressing Issues: If any issues are identified during the inspection, take the necessary steps to address them promptly. This may involve filling cracks, leveling uneven surfaces, or reinforcing weak areas of the floor. Depending on the severity of the issues, professional assistance from contractors or structural engineers may be required to ensure that the floor is adequately prepared for crane installation.

By taking the time to check the workshop floor for evenness and stability, workshop owners can create a safe and stable foundation for the gantry crane installation. This proactive approach helps mitigate risks, optimize crane performance, and ensure a successful and efficient operation in the workshop environment.

Verifying Electrical Infrastructure:

Ensuring compatibility between the workshop's electrical infrastructure and the requirements of the gantry crane is crucial for a smooth installation process and safe operation. Here's why verifying the electrical infrastructure is essential and how to go about it:

• Reliance on Electrical Power: Gantry cranes operate using electrical power for various functions such as lifting, lowering, and traversing. Therefore, it's imperative to verify that the workshop's electrical infrastructure can adequately support the crane's power requirements. Failure to do so can result in operational issues, power failures, or even electrical hazards.
• Checking Voltage Levels: Start by checking the voltage levels of the workshop's electrical supply to ensure they meet the specifications of the gantry crane. The crane's manufacturer will provide guidelines on the required voltage for safe and efficient operation. If the workshop's voltage levels are insufficient, it may be necessary to upgrade the electrical system or install voltage converters to match the crane's requirements.
• Availability of Power Outlets: Assess the availability and proximity of power outlets to the crane's intended location. The crane will need to be connected to a power source for operation, so it's essential to ensure that there are sufficient outlets nearby. If additional outlets are needed, arrangements may need to be made to install them or extend existing ones to the crane's location.
• Assessment of Additional Electrical Work: Depending on the condition of the workshop's electrical infrastructure, additional electrical work or upgrades may be necessary to support the crane's operation safely. This could include installing circuit breakers, upgrading wiring, or reinforcing power distribution systems to handle the crane's power requirements. Engage with qualified electricians or electrical contractors to assess the workshop's electrical system and identify any necessary modifications.
• Preventing Delays and Complications: Addressing electrical compatibility issues upfront is critical for preventing delays and complications during the installation process. Failure to verify the electrical infrastructure's compatibility with the crane's requirements can result in unexpected setbacks, costly rework, and project delays. By proactively addressing these issues, workshop owners can ensure a smooth and efficient installation process.

In summary, verifying the workshop's electrical infrastructure is essential for ensuring the safe and efficient operation of the gantry crane. By checking voltage levels, assessing power outlet availability, and addressing any additional electrical work or upgrades, workshop owners can minimize the risk of complications and ensure that the crane operates reliably within the workshop environment.

By carefully preparing the site for gantry crane installation and addressing any potential issues upfront, you can minimize the risk of problems and ensure a successful and efficient installation process. Remember to prioritize safety at all times and consult with qualified professionals as needed to ensure that the site preparation meets the necessary standards and requirements.

What to Do When Installation Ground of Gantry Crane is Uneven

Installing a gantry crane on uneven ground presents unique challenges that require careful planning, precision, and expertise. The process involves assessing the ground conditions, preparing the installation site, and implementing strategies to ensure stability and safety. From selecting the right location to utilizing specialized techniques for leveling and anchoring, each step plays a crucial role in the successful installation of the crane.

Befor to talk about what to do on unevern ground. It is importan to know why to select the right location is important and why even ground is required.

Positioning the Crane: Select the Right Locations

Selecting the right installation location for your 10ton single girder gantry crane is crucial for its performance, longevity, and safety. In this section, we'll delve into the importance of choosing an appropriate location and considerations for ensuring level placement:

Importance of Selecting an Appropriate Installation Location:

Selecting an appropriate installation location for the gantry crane is crucial for ensuring its structural integrity, safety, and operational efficiency. Here's why it's important and what factors to consider:

• Structural Integrity: The installation location must have sufficient structural integrity to support the weight of the crane and the loads it will lift. Choosing a site with a strong and stable foundation helps prevent issues such as sinking, shifting, or structural failure, which could compromise the crane's stability and safety. Avoiding areas with weak or unstable foundations is essential to ensure the longterm reliability and performance of the crane installation.
• Clearance: Adequate clearance around the crane is necessary to ensure safe and unobstructed operation. Consider factors such as overhead obstructions, neighboring structures, and the proximity of other equipment or personnel. Ensuring sufficient clearance minimizes the risk of collisions, entanglements, or accidents during crane operation and facilitates smooth and efficient material handling processes.
• Accessibility: The chosen location should allow for easy access for installation, maintenance, and operation of the crane. Ensure that there is enough space for maneuvering and transporting materials to and from the crane without hindrance. Accessibility is critical for ensuring timely maintenance, repairs, and inspections, as well as facilitating efficient material handling operations within the workshop.
• Terrain: Assessing the terrain of the installation site is essential to determine its suitability for crane placement. Avoid areas with severe slopes, soft soil, or other challenging terrain features that could affect stability and performance. A level and stable surface provide a solid foundation for the crane, minimizing the risk of uneven settling, tilting, or instability during operation. Choosing a suitable terrain ensures safe and reliable crane operation in various environmental conditions.

By carefully considering these factors and selecting an appropriate installation location, you can ensure the structural integrity, safety, and efficiency of the gantry crane installation. Taking the time to assess the site conditions and address potential challenges upfront helps mitigate risks and ensures optimal performance throughout the crane's operational lifespan.

Considerations for Ensuring Level Placement:

Detailed steps for installing a gantry crane on uneven ground involve various techniques and procedures to ensure stability and safety. Here's a closer look at each method:

• Use of Leveling Tools: Utilize leveling tools such as spirit levels or laser levels to assess the levelness of the installation site. Place the leveling tool on different areas of the ground to identify any unevenness. Adjust the ground or use shims as needed to achieve a level surface where the crane will be positioned. This step is crucial for ensuring that the crane operates safely and efficiently without undue stress on its components.
• Support Leg Adjustment: If the ground is significantly uneven, adjust the support legs of the crane to compensate for the irregularities. Hydraulic leveling systems or manual adjustments can be used to raise or lower individual legs to achieve a stable and level position. Properly adjusted support legs distribute the weight of the crane evenly, reducing the risk of tilting or instability during operation.
• Surface Preparation: Prepare the ground surface by clearing debris, leveling uneven areas, and compacting soil as necessary to create a stable foundation for the crane. Remove any rocks, debris, or vegetation that may interfere with the crane's operation or stability. Leveling the ground and ensuring proper compaction help prevent settling or shifting of the crane over time.
• Alignment: Align the crane with the intended direction of operation to optimize its performance and efficiency. Ensure that the crane is positioned perpendicular to the runway or rail tracks, if applicable, to prevent misalignment during operation. Proper alignment minimizes wear and tear on the crane's components and ensures smooth movement along the designated path.
• Secure Anchoring: Anchor the crane securely to the ground or foundation to prevent movement or shifting during operation. Use appropriate fasteners or anchoring systems specified by the crane manufacturer to secure the crane in place. Proper anchoring enhances the stability and safety of the crane, especially in windy or highload conditions.
• Regular Monitoring: Periodically monitor the levelness and stability of the crane after installation, especially during initial operation. Check for any signs of uneven settling, shifting, or misalignment that may affect the crane's performance or safety. Make adjustments as needed to maintain optimal performance and safety throughout the crane's operational lifespan.

By following these detailed installation steps, you can ensure that the gantry crane is securely and safely installed on uneven ground, providing reliable performance and efficiency for your material handling needs. Regular monitoring and maintenance further enhance the longevity and reliability of the crane installation, ensuring safe operation in various work environments.

By carefully considering these factors and ensuring level placement, you can maximize the performance, safety, and longevity of your 10ton single girder gantry crane. Choosing the right installation location and taking steps to achieve level placement are essential for a successful crane installation and operation. Stay tuned as we explore the stepbystep installation process in the next section.

Assessing the Ground

Before embarking on the installation of your 10ton single girder gantry crane, it's crucial to thoroughly assess the ground where the crane will be placed. The significance of this assessment cannot be overstated, as it lays the foundation for a safe and successful installation.

Uneven ground presents unique challenges that must be carefully addressed to ensure the stability and functionality of the crane. Here, we'll discuss the importance of assessing the ground's unevenness and provide practical methods for evaluating it accurately.

Why Assessing the Ground Matters:

• Stability: The stability of a gantry crane is paramount for safe and efficient operation. When installed on uneven ground, the crane's stability is compromised, posing significant safety hazards. Uneven ground can cause the crane to tilt or shift unexpectedly, increasing the risk of accidents, equipment damage, and injuries to personnel. By assessing the ground beforehand, you can identify potential stability issues and take proactive measures to address them, such as leveling the ground or reinforcing the crane's support structure.
• Load Distribution: An uneven surface can lead to uneven weight distribution across the crane's support structure, placing excessive stress on certain components while underutilizing others. This imbalance can degrade the crane's performance and longevity, leading to premature wear and potential mechanical failures. By assessing the ground and ensuring a level foundation, you can promote uniform load distribution and optimize the crane's efficiency and durability.
• Foundation Integrity: Assessing the ground allows you to evaluate the integrity of the foundation on which the gantry crane will be installed. Uneven ground may conceal underlying issues such as soft spots, soil instability, or uneven subsurface conditions, which can compromise the crane's longterm stability and safety. By identifying and addressing these foundation concerns early on, you can mitigate the risk of structural damage, foundation failure, and costly repairs in the future.

In summary, assessing the ground before installing a gantry crane is critical for ensuring stability, optimizing load distribution, and preserving foundation integrity. By addressing any unevenness or instability in the ground, you can enhance the safety, performance, and longevity of the crane, creating a safer and more productive work environment for all personnel involved.

Methods for Evaluating Ground Unevenness:

• Visual Inspection: Begin by visually inspecting the ground surface for any noticeable irregularities such as dips, slopes, or surface debris. This initial assessment provides a basic understanding of the ground's condition and helps identify areas that may require further evaluation or intervention. Look for signs of erosion, settlement, or other visible indicators of unevenness.
• Leveling Tools: Utilize precision leveling tools such as a spirit level or laser level to quantify the degree of unevenness across the installation site accurately. These tools provide objective measurements of slopes or variations in elevation, enabling you to identify specific areas that may require corrective action. By measuring multiple points across the ground surface, you can create a detailed profile of its topography and assess the severity of any unevenness.
• Soil Testing: Conduct soil testing to evaluate the loadbearing capacity and stability of the ground beneath the installation site. Soil borings, cone penetration tests, or other geotechnical investigations can provide valuable data on soil composition, density, and bearing capacity. This information is essential for determining the appropriate foundation measures needed to support the gantry crane adequately. Soil testing helps identify potential challenges such as soft spots, soil settlement, or inadequate bearing capacity, allowing you to implement targeted solutions to mitigate unevenness effectively.
• Professional Survey: For complex installations or challenging terrain, consider engaging the services of a professional surveyor or geotechnical engineer. These experts have the knowledge, experience, and specialized equipment to conduct detailed surveys and assessments of ground conditions. They can provide valuable insights into the geological characteristics of the site, identify potential risks or hazards, and recommend appropriate solutions for mitigating unevenness. A professional survey ensures thorough evaluation and informed decisionmaking, reducing the risk of unexpected complications during the installation process.

By employing these methods for evaluating ground unevenness, you can accurately assess the condition of the installation site, identify potential challenges, and implement targeted solutions to ensure a stable and secure foundation for the gantry crane. This proactive approach helps minimize risks, optimize performance, and enhance safety during the installation and operation of the crane.

By thoroughly assessing the ground prior to installation, you can identify potential challenges and implement appropriate measures to ensure the stability and integrity of your gantry crane. Taking the time to evaluate ground unevenness sets the stage for a successful installation, enhancing safety and performance in the long run. Stay tuned as we delve into preinstallation preparation in the next section.

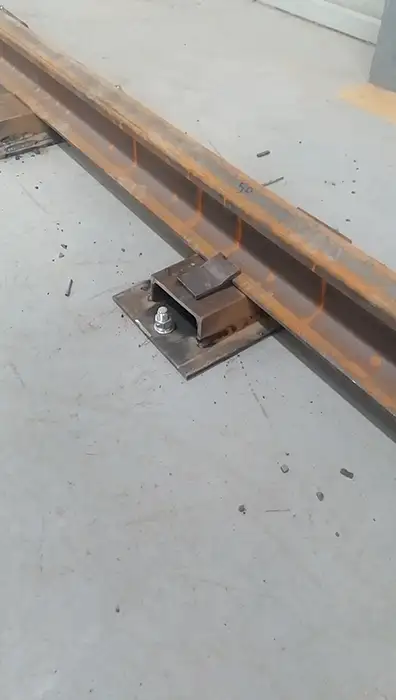

Using Shims or Pads

Shims or pads play a crucial role in stabilizing a 10ton single girder gantry crane, especially when installing it on uneven ground. These simple yet effective devices help compensate for variations in surface elevation and ensure that the crane is level and securely positioned. Let's delve into the purpose of shims or pads, as well as provide guidance on their proper placement and use:

Purpose of Shims or Pads:

• Compensating for Unevenness: Shims or pads serve a crucial role in compensating for uneven ground conditions beneath the crane's support legs. When installed strategically, shims or pads fill gaps or spaces between the legs and the ground, effectively leveling the crane and ensuring stability. This compensatory action mitigates the effects of unevenness, such as slopes or irregularities, and creates a solid foundation for the crane's operation.
• Enhancing Stability: The primary function of shims or pads is to enhance the stability of the gantry crane by providing a solid and level surface for the support legs to rest upon. Uneven ground can compromise the crane's stability, leading to potential safety hazards such as tipping or shifting during crane operation. By installing shims or pads, the crane's support legs are uniformly supported, minimizing the risk of instability and ensuring safe and reliable operation.
• Distributing Weight: Shims or pads play a critical role in distributing the weight of the crane and the loads it lifts more evenly across the ground surface. Uneven ground can result in uneven weight distribution, placing excessive stress on individual legs and increasing the risk of overloading. By leveling the crane with shims or pads, the weight is distributed more uniformly, reducing the strain on individual legs and minimizing the risk of structural damage or failure.

In summary, the purpose of shims or pads in gantry crane installation is multifaceted: they compensate for unevenness, enhance stability, and distribute weight evenly across the ground surface. By addressing these key aspects, shims or pads contribute to the safe and efficient operation of the crane, ensuring stability, reliability, and longevity in various ground conditions.

Proper Placement and Use of Shims or Pads:

Selecting the Right Material: It's crucial to choose shims or pads made from durable and loadbearing materials capable of withstanding the weight of the crane and resisting compression. Materials such as steel or reinforced rubber are commonly used due to their strength and resilience. These materials ensure that the shims or pads provide reliable support and stability to the crane's support legs.

Selecting the right material for shims or pads is paramount to ensuring the stability and safety of the gantry crane installation. Here's why it matters and why materials like steel or reinforced rubber are often preferred:

• Strength and Durability: Shims or pads must withstand the considerable weight of the crane and resist compression over time. Materials like steel and reinforced rubber offer exceptional strength and durability, capable of withstanding heavy loads without deforming or deteriorating. This durability ensures that the shims or pads provide longlasting support to the crane's support legs, maintaining stability and safety throughout the crane's operational lifespan.
• Loadbearing Capacity: The material used for shims or pads should have a high loadbearing capacity to effectively support the weight of the crane and distribute it evenly across the ground surface. Steel, known for its high strengthtoweight ratio, can withstand significant loads without failure, making it an ideal choice for heavyduty applications like gantry crane installations. Similarly, reinforced rubber materials offer excellent resilience and loadbearing capabilities, ensuring reliable support under demanding conditions.
• Resistance to Compression: Shims or pads experience substantial pressure from the crane's weight and movement, making resistance to compression a critical factor. Steel shims maintain their structural integrity even under extreme pressure, providing stable support for the crane's support legs without collapsing or deforming. Reinforced rubber materials exhibit similar properties, offering resilience and elasticity to absorb and distribute the load effectively, even on uneven ground surfaces.
• Versatility and Adaptability: Steel and reinforced rubber materials are versatile and adaptable, making them suitable for a wide range of ground conditions and environments. Whether the installation site is indoors or outdoors, on concrete or natural terrain, these materials can accommodate various applications and provide consistent performance. Their ability to withstand environmental factors such as moisture, temperature fluctuations, and chemical exposure further enhances their suitability for gantry crane installations in diverse settings.

In summary, selecting durable and loadbearing materials like steel or reinforced rubber for shims or pads is essential for ensuring the stability, safety, and longevity of gantry crane installations. These materials offer strength, resilience, and versatility, providing reliable support for the crane's support legs and maintaining stability under challenging conditions. By choosing the right material, you can optimize the performance and efficiency of your gantry crane while minimizing the risk of instability or failure during operation.

Determining Thickness:

Measure the gap between the crane's support legs and the ground to determine the required thickness of the shims or pads. Use a tape measure or calipers to accurately assess the gap and select shims or pads of appropriate thicknesses. In cases where the ground is severely uneven, multiple shims or pads of varying thicknesses may be stacked together to achieve the desired levelness.

Determining the appropriate thickness of shims or pads is crucial for achieving a level and stable foundation for the gantry crane. Here's why it matters and how to accurately assess and select the right thickness:

• Accurate Levelness: The gap between the crane's support legs and the ground directly impacts the levelness of the crane. Measuring this gap accurately allows you to determine the thickness of shims or pads needed to compensate for unevenness and achieve the desired levelness. By selecting the correct thickness, you ensure that the crane's support legs are uniformly supported, minimizing the risk of instability or tilting during operation.
• Precision Measurement: Use precise measuring tools such as a tape measure or calipers to assess the gap between the crane's support legs and the ground. Take multiple measurements at different points across the installation site to account for variations in ground unevenness. This comprehensive approach ensures accurate and reliable data, enabling you to make informed decisions when selecting shims or pads of appropriate thickness.
• Adapting to Uneven Ground: In cases where the ground is severely uneven, a single shim or pad may not provide sufficient elevation to level the crane effectively. In such instances, stacking multiple shims or pads of varying thicknesses allows for greater flexibility in achieving the desired levelness. By layering shims or pads, you can customize the elevation to accommodate the specific contours of the ground and ensure a stable foundation for the crane.
• Optimizing Stability: The goal of determining the thickness of shims or pads is to optimize stability and ensure safe and efficient crane operation. By accurately assessing the gap and selecting shims or pads of appropriate thickness, you minimize the risk of uneven weight distribution, tilting, or instability during crane operation. This proactive approach enhances safety and reliability, reducing the likelihood of accidents or equipment damage.

In summary, determining the thickness of shims or pads is a critical step in gantry crane installation, as it directly influences the levelness and stability of the crane. By using precise measurement techniques and selecting shims or pads of appropriate thickness, you can effectively compensate for uneven ground conditions and create a solid foundation for safe and efficient crane operation.

Placing Under Support Legs:

Position the shims or pads directly under the feet of the crane's support legs, ensuring that they are in full contact with both the leg and the ground surface. Proper placement ensures that the weight of the crane is evenly distributed across the shims or pads, minimizing stress and preventing instability during crane operation.

Proper placement of shims or pads under the support legs of the gantry crane is essential for ensuring stability, even weight distribution, and safe operation. Here's why it matters and how to achieve correct placement:

• Even Weight Distribution: Placing the shims or pads directly under the feet of the crane's support legs ensures that the weight of the crane is evenly distributed across the ground surface. This even distribution minimizes stress on individual legs and prevents overloading, reducing the risk of instability and structural damage during crane operation. By providing solid support under each leg, proper placement of shims or pads promotes balanced loading and enhances the crane's stability and performance.
• Maximizing Contact Area: Proper placement involves ensuring that the shims or pads are in full contact with both the support leg and the ground surface. This maximizes the contact area between the shim or pad and the ground, enhancing stability and loadbearing capacity. Ensuring full contact eliminates gaps or voids that could compromise support and lead to uneven weight distribution or instability. By optimizing contact area, you create a solid foundation for the crane's support legs, minimizing the risk of slippage or shifting during crane operation.
• Preventing Instability: Placing the shims or pads directly under the support legs helps prevent instability by providing a stable and level surface for the crane to rest upon. Proper placement ensures that the crane remains securely anchored to the ground, even when subjected to dynamic loads and movement during operation. By minimizing movement and vibration, correct placement of shims or pads reduces the risk of accidents, equipment damage, and personnel injury, enhancing safety and reliability in the work environment.
• Mitigating Stress: Properly positioned shims or pads help mitigate stress on the crane's support legs by evenly distributing the load across the ground surface. This reduces the risk of localized stress concentrations and fatigue, prolonging the service life of the crane components and minimizing the need for maintenance and repairs. By optimizing support and load distribution, correct placement of shims or pads contributes to the longterm reliability and performance of the gantry crane.

In summary, proper placement of shims or pads directly under the support legs of the gantry crane is crucial for ensuring stability, even weight distribution, and safe operation. By maximizing contact area, preventing instability, and mitigating stress, correct placement enhances the crane's performance and reliability, promoting a safe and efficient work environment.

Even Distribution:

Distribute the shims or pads evenly under each support leg to maintain balance and stability. Avoid overloading any individual shim or pad, as this can lead to uneven weight distribution and compromise the crane's stability. By ensuring even distribution, you optimize the effectiveness of the shims or pads in leveling the crane and supporting its weight.Ensuring even distribution of shims or pads under each support leg of the gantry crane is essential for maintaining balance, stability, and safe operation. Here's why it matters and how to achieve it:

• Balanced Loading: Even distribution of shims or pads ensures that the weight of the crane is uniformly supported across all support legs. This balanced loading minimizes stress on individual legs and components, preventing overloading and potential structural damage. By distributing the load evenly, you optimize the crane's stability and performance, enhancing safety and reliability during operation.
• Optimized Support: Distributing the shims or pads evenly under each support leg maximizes the support area and contact surface between the crane and the ground. This ensures that each leg receives adequate support, minimizing the risk of uneven settling or shifting. Proper support reduces the likelihood of leg deflection or deformation, maintaining the crane's levelness and stability under dynamic loads and movement.
• Prevention of Instability: Uneven distribution of shims or pads can lead to instability, as some legs may bear more weight than others. This imbalance increases the risk of tilting, tipping, or shifting during crane operation, posing safety hazards to personnel and equipment. By evenly distributing the shims or pads, you mitigate the risk of instability and ensure that the crane remains securely anchored to the ground, even under varying load conditions.
• Avoidance of Overloading: Overloading any individual shim or pad can compromise the crane's stability and performance. Excessive weight on a single shim or pad can cause it to compress unevenly or deform, leading to localized stress concentrations and potential failure. By evenly distributing the load, you prevent overloading and ensure that each shim or pad operates within its designed capacity, maximizing their effectiveness in leveling the crane and supporting its weight.
• Optimization of Effectiveness: Even distribution of shims or pads optimizes their effectiveness in leveling the crane and supporting its weight. By ensuring uniform support across all support legs, you create a solid and level foundation for the crane, enhancing its stability and performance. This promotes smooth and safe operation, minimizing the risk of accidents, equipment damage, and downtime.

In summary, maintaining even distribution of shims or pads under each support leg is critical for achieving balance, stability, and safe operation of the gantry crane. By optimizing support, preventing instability, and avoiding overloading, you enhance the crane's performance and reliability, creating a safer and more efficient work environment.

In summary, securing shims or pads in place is a critical step in gantry crane installation to prevent movement, enhance stability, and maintain safety during operation. By choosing the right fastening method and conducting regular maintenance, you can ensure that the crane remains securely anchored to the ground, providing reliable support and efficient performance for your material handling needs.

Regular Inspection:

Periodically inspect the shims or pads for signs of wear or deterioration, such as cracking, deformation, or loss of adhesion. Replace any damaged or worn shims or pads promptly to maintain stability and safety. Regular inspection ensures that the shims or pads continue to provide reliable support for the crane's operation and helps prevent potential hazards associated with unstable ground conditions.

Regular inspection of shims or pads is essential for ensuring the continued stability, safety, and reliable operation of the gantry crane. Here's why it matters and how to conduct inspections effectively:

• Early Detection of Wear or Deterioration: Periodic inspections allow you to identify any signs of wear or deterioration in the shims or pads before they escalate into larger issues. Common indicators of wear include cracking, deformation, or loss of adhesion between the shims or pads and the ground surface. By detecting these issues early, you can take proactive measures to address them and prevent potential hazards or disruptions in crane operation.
• Maintenance of Stability and Safety: Regular inspection and maintenance of shims or pads are essential for maintaining the stability and safety of the gantry crane installation. Damaged or worn shims or pads can compromise the crane's levelness and stability, increasing the risk of tilting, tipping, or instability during operation. Prompt replacement of damaged components ensures that the crane remains securely anchored to the ground, minimizing the risk of accidents or equipment damage.
• Prevention of Hazards: Unstable ground conditions can pose significant hazards to crane operation and personnel safety. Regular inspection of shims or pads helps prevent potential hazards associated with unstable ground, such as uneven weight distribution, excessive vibration, or structural instability. By promptly replacing damaged or worn components, you mitigate the risk of accidents or disruptions in crane operation, creating a safer work environment for all personnel involved.
• Optimization of Crane Performance: Maintaining the integrity of shims or pads through regular inspection and replacement contributes to the overall performance and efficiency of the gantry crane. A stable and level foundation ensures smooth and reliable crane operation, minimizing downtime and maximizing productivity. By investing in regular maintenance, you optimize the lifespan and performance of the crane installation, reducing longterm costs and ensuring a high level of operational efficiency.
• Adherence to Safety Standards: Regular inspection and maintenance of shims or pads align with industry safety standards and best practices for crane operation. These standards emphasize the importance of proactive maintenance to ensure the continued safety and reliability of crane installations. By adhering to these standards, you demonstrate a commitment to safety and compliance, safeguarding both personnel and equipment from potential risks and liabilities.

In summary, regular inspection of shims or pads is essential for maintaining stability, safety, and reliable operation of the gantry crane. By detecting and addressing issues early, you can prevent potential hazards, optimize crane performance, and ensure a safe and efficient work environment for all personnel involved.

By understanding the purpose of shims or pads and following proper placement and use guidelines, you can enhance the stability and safety of your 10ton single girder gantry crane, even when installed on uneven ground. These simple yet effective devices provide essential support and ensure that your crane operates smoothly and securely. Stay tuned as we discuss the importance of selecting an appropriate installation location in the next section.

Professional Assistance:

When dealing with particularly challenging or complex uneven ground conditions, it is advisable to seek the assistance of professional engineers or crane installers. They can offer expert guidance and tailored solutions to meet the specific needs of your workshop environment.

Why is seeking professional assistance important?

• Expertise and Experience: Professional engineers or crane installers possess extensive expertise and experience, enabling them to provide accurate assessments and solutions for different ground conditions.
• Customized Solutions: They can offer customized solutions based on the specific requirements of your workshop environment, ensuring a smooth installation process and achieving your desired outcomes.
• Risk Management: Professionals can identify and manage potential risks during the installation process, minimizing issues and taking appropriate measures to ensure safety.
• Compliance with Regulations: They are familiar with relevant regulations and standards, ensuring that the installation process complies with regulatory requirements and avoids potential violations or legal liabilities.
• Efficient Execution: Professional assistance ensures efficient execution, optimizing the installation process, saving time and costs, and ensuring efficient workflow.

Therefore, when faced with particularly challenging or complex uneven ground conditions, seeking the assistance of professional engineers or crane installers is crucial. Their expertise and experience can help you overcome various challenges, ensuring a smooth installation process and achieving high levels of safety and reliability for the crane.

Safety Measures

Safety is paramount when installing and operating a gantry crane on uneven ground in indoor workshops. Here are detailed safety precautions to ensure a safe working environment:

Installation Safety Precautions:
Prioritize the safety of personnel during the installation process by providing appropriate personal protective equipment (PPE) such as hard hats, gloves, and safety glasses.
Follow manufacturer guidelines and industry standards for crane installation to ensure structural integrity and stability.
Securely anchor the crane to the workshop floor using heavyduty bolts or anchors to prevent movement during operation.
Verify that all electrical connections are properly installed and grounded to prevent the risk of electric shock.

Operating Safety Precautions:
Conduct thorough training for personnel involved in crane operation, including instruction on proper operating procedures, load capacity limits, and emergency protocols.
Implement clear signage and markings to indicate safe operating zones and restricted areas around the crane.
Regularly inspect the crane and its components for signs of wear, damage, or malfunction. Address any issues promptly to prevent accidents or equipment failure.
Ensure that all personnel are aware of the crane's blind spots and follow proper communication protocols, such as hand signals or twoway radios, when working in close proximity to the crane.

Maintenance and Inspections:
Establish a regular maintenance schedule for the gantry crane, including lubrication of moving parts, inspection of electrical components, and structural integrity checks.
Conduct periodic inspections of the workshop floor to identify and address any changes in ground conditions that may affect the crane's stability or operation.
Keep detailed records of maintenance activities and inspections to track the crane's performance and compliance with safety regulations.

By implementing these safety measures, you can minimize the risk of accidents and injuries associated with installing and operating a gantry crane on uneven ground in indoor workshops. Remember that safety is everyone's responsibility, and regular training, maintenance, and inspections are essential for ensuring a safe and productive work environment.

Project Management in Mongolia

Effective project management is crucial for the successful installation of a 10ton gantry crane in Mongolia's indoor workshops. Here are key considerations to ensure a smooth and efficient process:

Logistics Planning:
Plan logistics meticulously, considering factors such as transportation of crane components to the installation site, availability of equipment and manpower, and scheduling of installation activities.
Coordinate with suppliers and logistics partners to ensure timely delivery of crane components and any additional materials or equipment needed for the installation.

Communication Strategies:
Establish clear lines of communication among all stakeholders involved in the project, including crane manufacturers, installation team members, workshop owners, and local authorities.
Use multiple communication channels, such as email, phone calls, and inperson meetings, to ensure effective coordination and timely exchange of information throughout the project.

Compliance with Local Regulations:
Familiarize yourself with local regulations and building codes governing crane installation and operation in Mongolia. Ensure that the installation process adheres to all relevant safety and regulatory requirements.
Obtain any necessary permits or approvals from local authorities before commencing the installation to avoid potential delays or legal issues.

Collaboration with Local Suppliers and Authorities:
Establish partnerships with local suppliers and service providers to facilitate the installation process. Local suppliers can provide valuable insights into logistical challenges, sourcing of materials, and navigating bureaucratic processes.
Collaborate closely with local authorities, such as municipal governments or building inspectors, to ensure compliance with regulations and obtain necessary permissions for crane installation.

Cultural Considerations:
Take cultural factors into account when planning and executing the project. Respect local customs and traditions, and be mindful of language barriers or communication differences that may arise when working with local stakeholders.

By proactively addressing these considerations and leveraging local resources and expertise, you can streamline the project management process and ensure a successful installation of the gantry crane in Mongolia's indoor workshops. Effective project management not only facilitates the installation process but also lays the groundwork for longterm success and operational efficiency.

Conclusion

Installing a 10ton gantry crane on uneven ground in indoor workshops in Mongolia requires careful planning, attention to detail, and adherence to safety protocols. As we conclude our comprehensive guide, let's recap the key considerations and emphasize the importance of proper installation:

• Assessment and Preparation: Thoroughly assess the workshop conditions, including space availability, flooring material, and electrical infrastructure, to ensure a solid foundation for crane installation.
• Adaptation to Uneven Ground: Implement strategies such as shimming, leveling, and custom fabrication to adapt the crane installation to uneven ground conditions and ensure stability and safety.
• Safety Measures: Prioritize safety throughout the installation process by following detailed safety precautions, providing adequate training for personnel, and conducting regular maintenance and inspections.
• Project Management: Manage the project effectively by addressing logistics, communication, compliance with local regulations, and collaboration with local suppliers and authorities.

Proper installation of the gantry crane not only enhances productivity by streamlining material handling processes but also ensures the safety of workers and equipment. By investing time and effort into the installation process and adhering to best practices, workshop owners in Mongolia can create a safe and efficient working environment that maximizes the potential of their gantry crane.

Thank you for joining us on this journey to master crane installation in Mongolia's indoor workshops. We hope this guide has provided valuable insights and guidance to help you navigate the challenges of installing a gantry crane on uneven ground. Here's to a successful and productive installation process!
