25 Ton Double Girder Gantry Crane for Precast Yard Poland
25 ton double girder gantry cranes & 2 ton pillar jib crane customized for Poland precast concrete factory. Check feedback from Poland precast yard now.
Basics of Cranes for Sale Poland
- Crane Type: Gantry Crane & Pilla Jib Crane
- Date of Placing Oder： 2019.09.03
- Date of Delivery ： 2019.10.23
- Way of Transportation： By Sea,Bulk Carrier
- Way of Payment： CIF
- Destination country： Poland
- Destination port：CIF, GDYNIA
- First Contact： 2018.12.2
- Application : Precast Concrete Industry
General configurations of 25 ton double girder gantry crane for Poland
Crane type | Double Girder Gantry Crane |
Model | MGO |
Working Class | FEM2M |
Capacity | 25 ton |
Span length (m) | 12 m + left cantilever and right cantilever 4 m |
Lifting Height（M） | 9 m |
Crane control | Remote control + Rod control + Ground control |
Voltage | 380v,50hz,3p |
Color | Orange |
Application | Outdoor use |
Quantity | 1 |
General configurations of 2 ton pillar jib crane for Poland

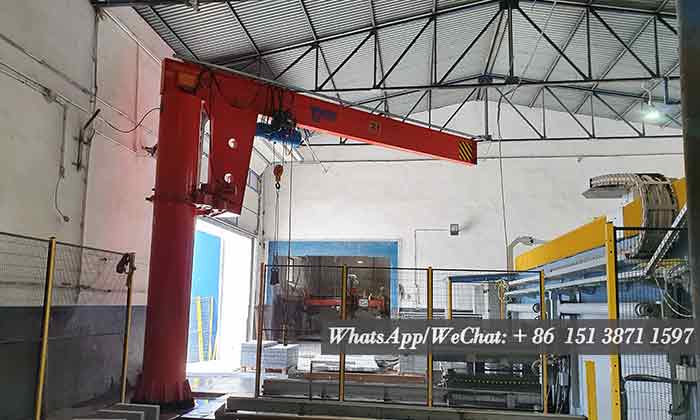

2 ton pillar jib crane with cd type electric wire rope hoist installed in Precast plate factory in Poland
Crane type | Pillar jib crane |
Working Class | M3 |
Capacity | 2 ton |
Arm length (m) | 7 m |
Lift Height（M） | 3.5 m |
Crane control | Ground control |
Voltage | 380v,50hz,3p |
Color | Standard |
Quantity | 1 |
Custom features of gantry crane and jib cranes for Poland Precast Yard
- 25 ton double girder gantry crane is designed with European style .
- The whole gantry crane is equipped with Frequency converter, the travelling speed of gantry crane is 2-20m/min , and hoisting speed is 1-4m/min .
- Cable reel of double girder gantry crane is 27.5kw with travelling length of 56m.
- Spare parts for free: 1 rope guide, 1 wire rope 90m, 4 buffers for gantry crane travelling, 4 buffers for hoist travelling, 2 contactors for hoisting structure, 2 contactors for gantry crane traveling structure, 2 towline pendants (below picture)
- BZ pillar jib crane is equipped with electric wire rope cd hoist, and the lifting speed is 11m/min.
- The MGO 20 ton gantry crane and BZ type 2 ton pillar jib cranes are painted in orange. The front and back of the gantry cranes are marked with the logos of Yuantai and customers's brand.
Customs declaration information registration
- The actual Chinese name of the goods: 门式起重机
- Goods declaration English name: Gantry Crane
- Installation fee: $4580 (15 days, 1 engineer)
- Inland shipping: $2100
- Port charge: 515 US dollars
- Sea freight: US$5340
Productions & delivery of gantry cranes for Poland

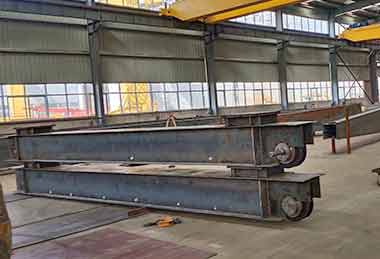

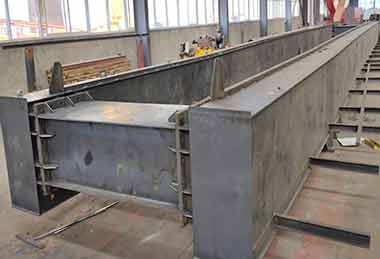

Main girder construction of double girder gantry crane 25 ton for precast manufacturing factory Poland
Main girder construction of double girder gantry crane 25 ton for precast manufacturing factory Poland

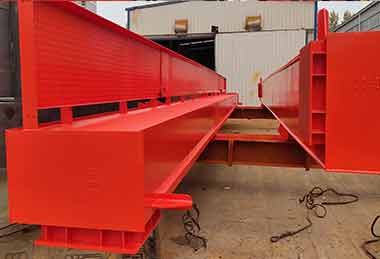

Main girder painted of double girder gantry crane 25 ton for precast manufacturing factory Poland

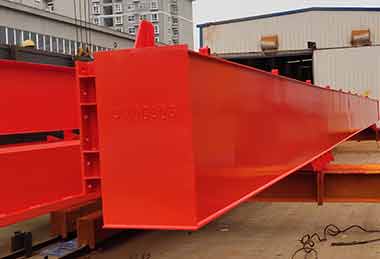

20 ton gantry crane main girder for manufacturing factory in Poland

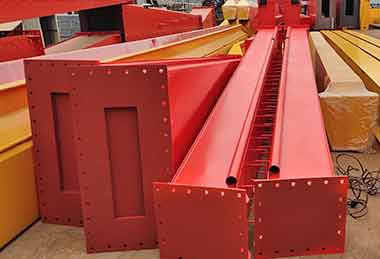

Supporting legs construction of 25 ton double girder gantry crane for precast manufacturing factory Poland

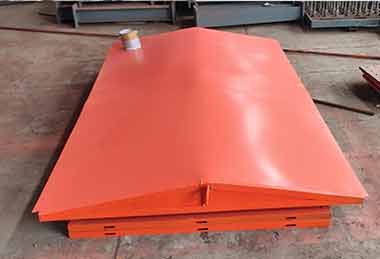

20 ton gantry crane for outdoor use with raining proof cover

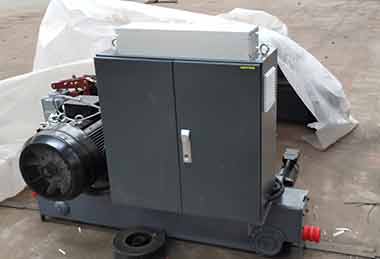

Eletrics of gantry crane electrics for Poland project

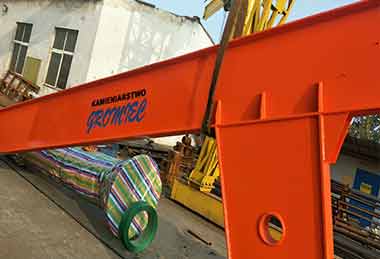

2 ton pillar jib crane for sale Poland

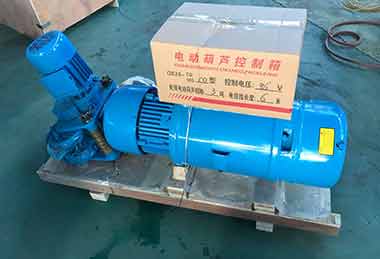

2 ton wire rope hoist for pillar jib crane for sale Poland

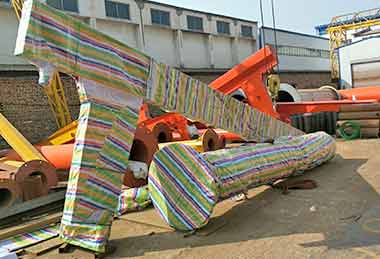

2 ton pillar jib crane packed for delivery to Poland
