Single Girder Underslung Crane 1 ton, 2 ton, 3 ton, 5 ton
Single girder underslung crane of various types for sale. Check 1 ton, 2 ton, 3 ton, 5 ton underslung crane sample pictures. Check now.
Overview of single girder underslung crane
Under hung crane runways are typically much lighter than top running systems, allowing for a more versatile use.
Underhung runways can be mounted on the ceiling because they are significantly lighter. Additionally, they can run parallel to one another without running into each other. underslung crane systems can be interlocked with one another, which is a mechanical advantage. An operator can move a load from one system to another by locking the adjacent ends of two cranes together. They can also connect with monorails to transfer materials along a predetermined path.
These cranes, which are typically suspended from roof trusses, are primarily used for maintenance tasks inside compact spaces like pumping stations and tiny workshops. Because of their compact design and construction, they are perfect for low buildings that call for a high hook height.
We are one of the top manufacturers and suppliers of overhead cranes in China, and we provide modular component packages that can handle any load up to 500 tons. Any factory shape or application can be quickly and easily modified to fit our range.

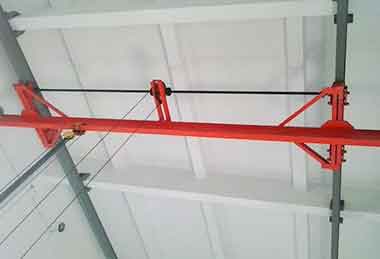

Electric underslung bridge crane vs. Manual underslung bridge crane
Underslung hoist - Underslung bridge crane with chain hoist & wire rope hoist

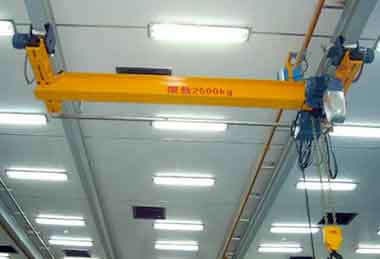

Electric chain hoist single girder underslung bridge crane

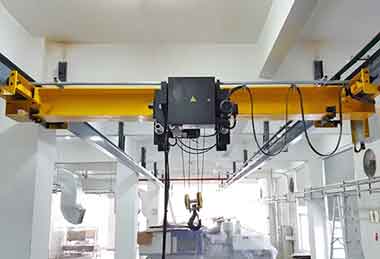

Electric wire rope hoist single girder underslung eot crane
Single girder underslung eot crane of different capacity and tonnages for your selection

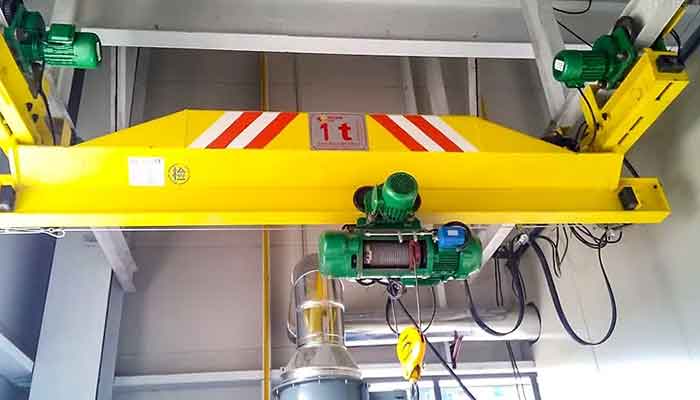

single girder underslung crane 1 ton, with Chinese style and cd/md wire rope hoist 1 ton, for light duty material handling

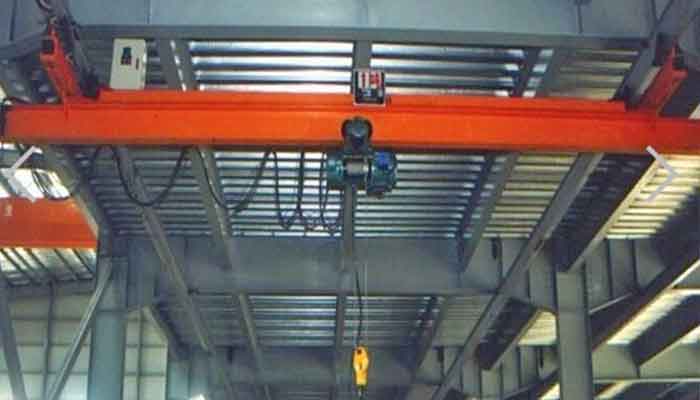

single girder underslung crane 1 ton for small loads handling with very light and small crane girder

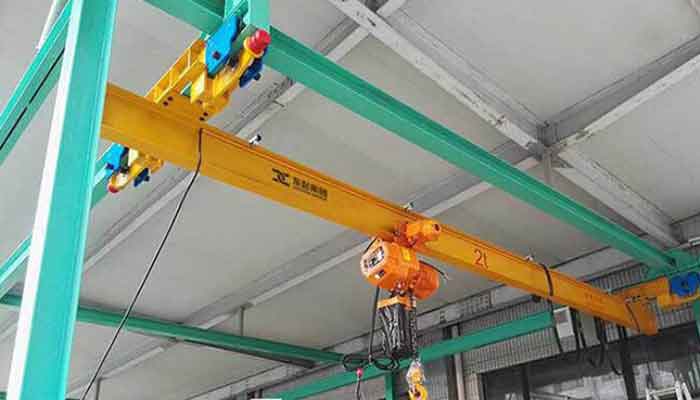

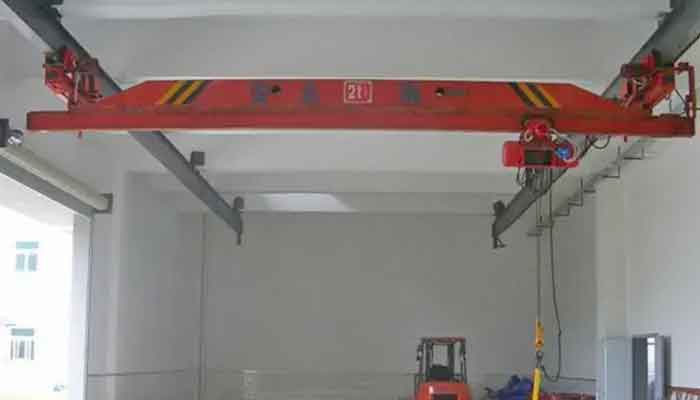

single girder underslung crane 2 ton, with ceiling mounted design, which will save your floor space
single girder underslung crane 2 ton, with free standing structure design, which has the undeslung bridge crane suspended on the supporting structure.

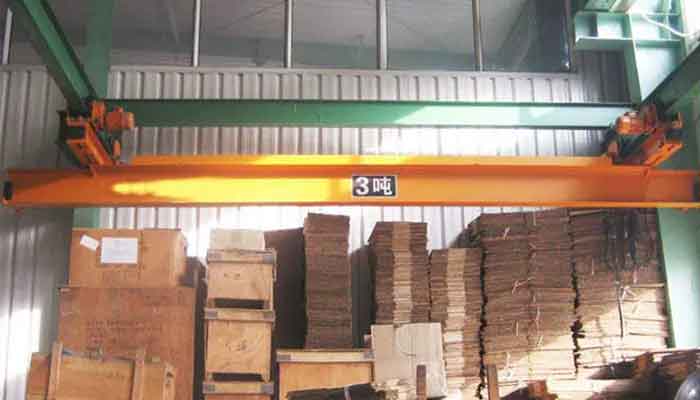

single girder underslung crane 3 ton, the small overhead travelling crane is used in the warehouse for storage , improve efficiency and save your floor working space.

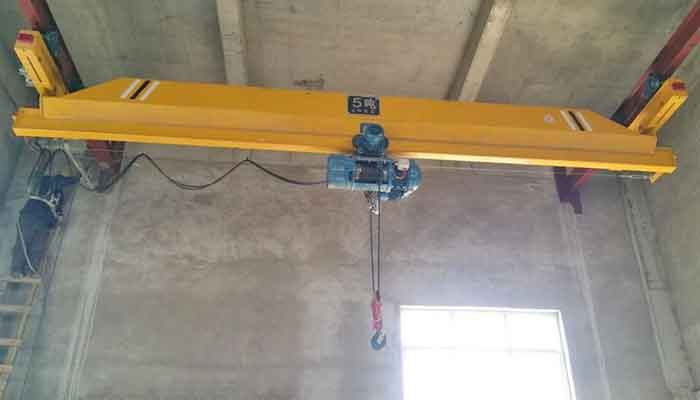

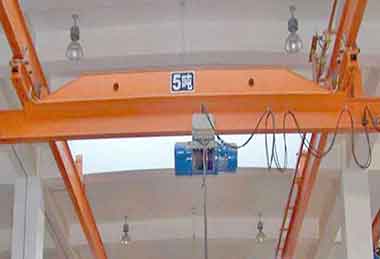

single girder underslung crane 5 ton. The maximun lifting capacity of single girder underslung bridge crane can be up to 10 tons once your roof structure or supporting structure has the necessary bearing force.
Customized single girder under- slung crane configurations for your application.
Underslung bridge cranes are typically attached to the building structure itself and don't need column support structures if the building structure can support the bridge crane. This kind of arrangement makes it possible to cover a larger area with fewer support columns. The absence of any columns from the work area below the crane is advantageous in facilities with constrained floor space or intricate processes. The distance of the hook from the floor is typically shorter in underslung bridge crane configurations. Your lifting requirements and the building itself will ultimately dictate your top priorities for crane configuration.
For lighter service and lower capacity applications, single girder underslung bridge crane configurations are most frequently used. They can also be constructed with two girders for greater capacities or additional hook height as required.
An underrunning hoist and trolley that moves across the bottom flange of the bridge beam will be used by a single girder underslung crane. The hoist and trolley of a double-girder underslung crane can travel either along the top or the bottom of the bridge beams.
When supported by roof or ceiling structures, under-hung bridge cranes also provide excellent side approach and maximize the use of the building's width and height. They are perfect for buildings that don't have enough vertical clearance to install an top running overhead crane system.
Additionally, both top-running and under-running overhead cranes can use single or double beams. In order to lift the same amount of weight, double beams can be used in higher capacity cranes instead of a single beam that is significantly larger.
If this can help you decide whether an overhead crane with a top running crane design or one with an under-hung crane design will be more advantageous for your lifting requirements. To sum up, top running bridge crane systems have the advantage of higher capacity lifts and allow for higher lift heights and more overhead space, while underslung bridge cranes offer flexibility, functionality, and ergonomic solutions.
Check more about the difference of top running bridge crane vs under running bridge crane. If you need any single girder under hung crane, please feel free to contact us be leave a message below.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
