Laminated Ladle Hooks and Ladle Beams for Heavy-Duty Steel Mill Cranes

The ladle hook is a specialized below-the-hook overhead crane attachment for ladle crane, teeming crane and charge cranes for handling heavy duty intermediate, tundish tank, hot metal ladle, hot metal can, iron ladle and steel ladle, etc. The ladle J hooks are featured as simple structure, easy operation, high safety and reliability. The steel plant used suspension beam or hang beam with laminated ladle J hooks are available with capacity from 10 ton to 80 ton. Customized below-the-hook devices for types of industrial process cranes are available.

Laminated ladle hook, High safety ladle handling below-the-hook devices

A ladle J hook beam spreader is consisted of ladle beam, a pair of laminated ladle J hooks .The ladle J hooks are specialized designed below-the-hook devices for heavy duty steel mill cranes such as ladle crane, teeming and scrap charging cranes , which are widely adopted for handling the intermediate tank, tundish tank, hot metal ladle, hot metal can, iron ladle and steel ladle, etc.

Ladle hook designs

The ladle hooks are made of high quality steel, which are laminated, riveted and welded to increase the overall durability and eliminate the chance of crack propagation and eventually expand the working life of ladle J hooks and ladle beam spreader. With various optional features, the laminated hooks can meet a wide lifting requirements and rigging applications satisfactorily.

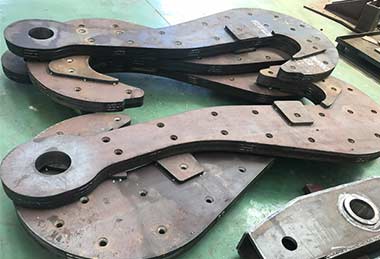

Laminated ladle hook for ladle handling

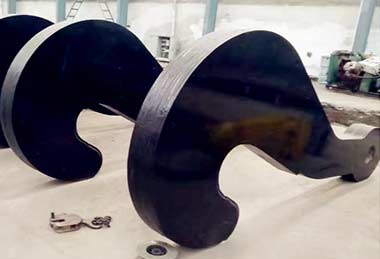

Laminated ladle hook for ladle handling

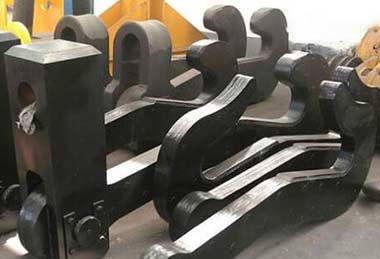

Laminated ladle hook for ladle handling

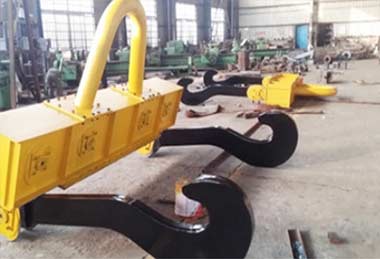

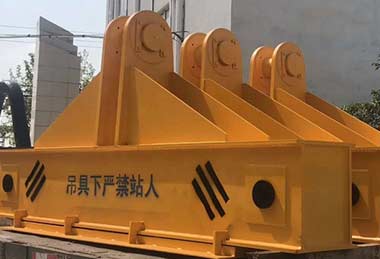

Ladle hook hanging beam spreader

The ladle beam body is made of high-quality low-carbon alloy steel. With a variety of optional features, the ladle beam spreader can be applied in a wide application with features of high strength, high temperature resistance and high flexibility.

J  hook beam spreader for ladle handling

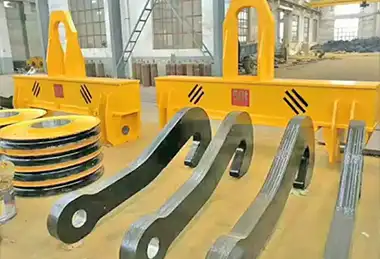

50 ton ladle hook  or the J  hook beam spreader for ladle handling

J  hook beam spreader for ladle handling

Applications

Ladle hooks and ladle beam spreaders are specially designed for extremely heavy duty crane which can withstand the severe and extreme industrial application environment with processed designs and features. Ladle hook beam spreader are most commonly adopted to lift and move the molten metal safely and also the laminated J hooks can be used for handling the baskets of scrap charging crane, and the heavy duty parent rolls, etc. Ladle hooks are available in a variety of sizes and capacities, up to over 80 Tons.

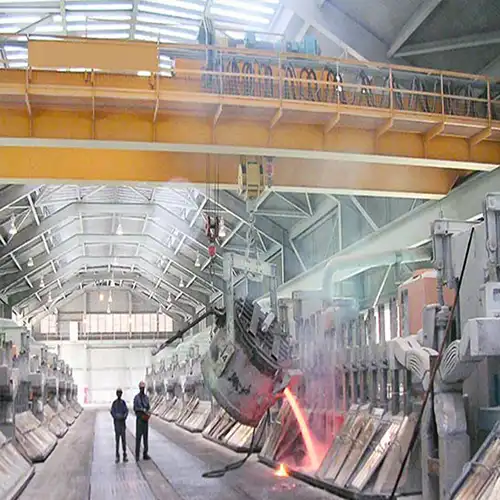

ladle hook or J hook with under hook devices for  ladle crane

J hook with under hook devices for charging crane

J hook with ladle bucket for overhead overhead travelling crane for hot ladle handling, tailored casting crane

Features of Ladle Factory used Ladle Sling Hook J Hook

1. The ladle J hook is made of high quality low carbon alloy steel with high strength and high temperature resistance, making the performance of ladle hook reliable and stable.
2. The ladle hooks are made of high quality steel, which are laminated, riveted and welded to increase the overall strength and toughness.
3. The ladle hook is with the features of simple structure, easy to operate, safe and reliable performance.
4. Various optional features, wide applications. The laminated ladle J hook beam spreaders are applicable to all kinds of metallurgical industry for handling heavy duty intermediate, tundish tank, hot metal ladle, hot metal can, iron ladle and steel ladle, etc.
