10 Ton Overhead Crane for Sale Pakistan
Single Girder Top Running Overhead Crane Design Remote + Pendant Control
10 ton overhead crane for sale Pakistan, Single girder top running overhead crane design, pendant control + remote control, 400V50hz3Ph. Check 10 ton overhead crane specification now.
Basics of 10 ton overhead crane for Pakistan
- Crane Type：single girder overhead crane and double girder hoist trolley
- Date of Placing Oder：2020.07.01
- Date of Delivery ：2020.5.18
- Way of Transportation： By shipping, 40 GP containers* 1
- Way of Payment：100% Letter of Credit
- Destination country： Pakistan
- Destination port：CFE, Chittagong port
- First Contact：2018.9,3
10 ton overhead crane main girder for pakistan 10 ton overhead crane main specifications & general requirements
Crane type | Double girder hoist trolley | |
Model | LD | LH |
Working Class | A3 | A3 |
Capacity | 16 ton | |
Span length (m)/ Effective Arm Length | 17.35M | / |
Lifting Height（M） | 10.5m | 9 m |
Crane control | Remote control + Pendant control | Remote control + Pendant control |
Voltage | 400v,50hz,3ph | 400v,50hz,3ph |
Color | Standard | Standard |
Indoor /outdoor | Indoor use | Indoor use |
Crane track | P24 | / |
Quantity | 1 | 1 |
Customized features of 10 ton single girder overhead crane top running design for sale Pakistan
- LD series of single girder overhead crane 10 ton requires the main girder cutting for the sake of easy transportation. And the crane system is equipped with Schneider Electric.
- The gauge of the 16 ton electric wire rope trolley is 1.8M, and the track of the trolley is 60*40 square steel. It is required the electrics of electric hoist trolley to be Schneider.
- LD 10 ton overhead crane trolley power supply sliding wire: seamless sliding wire 10 square meters, running length 19M, 1 collector.
- LD 10 ton overhead crane is required with track and pressure plate and clamping plates, track type P24, running length is 19M. The total length of the crane track is 38M, the pressure plate is 127 pieces, and the clamping plate is 5 pairs.
- The 16 ton electric crane hoist trolley and 10 ton bridge crane need to be declared separately according to the description of the customer's letter of credit;
- Requirements for the packaging of the goods' marks: each package of the goods must be written in English with the product name, gross and net weight, the country of origin of the goods, the name of the exporter, the name of the importer and the tax number;
- Detailed information on the weight of the goods package is required. The name, quantity and gross and net weight of the product contained in each package must be listed. The packing list must be submitted to the customer together with the original documents;
Customs declaration information registration
- The actual Chinese and English name of the goods: single girder overhead crane +double-girder hoist trolley
- Inland transportation cost from factory to port: 735USD
- Port charges: 700USD
- Shipping charge:1200USD
Gallary of 10 ton overhead crane & 16 ton hoist trolley for sale Pakistan

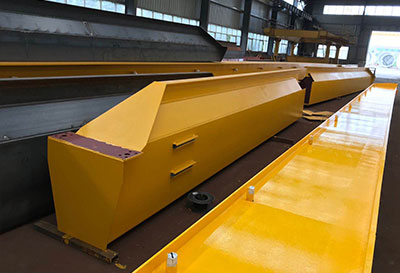

Main girder of 10 ton single girder top running overhead crane for sale Pakistan

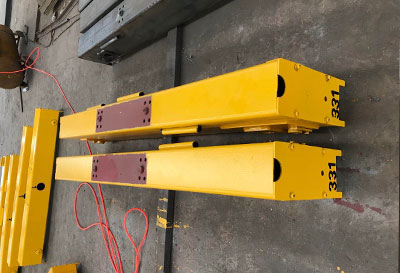

End carriages and end trucks of 10 ton overhead crane for sale Pakistan

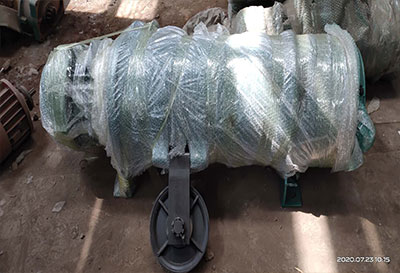

10 ton electric hoist for single girder overhead crane for sale Pakistan

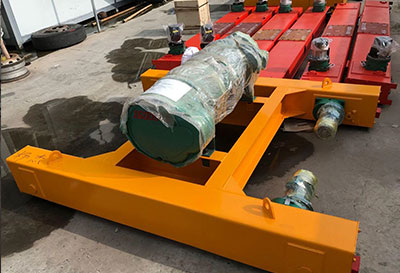

16 ton electric hoist trolley for double girder crane for sale Pakistan

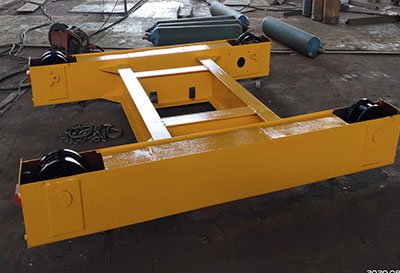

Double girder hoist trolley frame for sale Pakistan
Packing dimenstions of overhead crane and hoist trolley for sale Pakistan
Item | Qty | Number | Unit length(m) | Unit width(m) | Unit height(m) | unit weight(kgs) | Total volume(cbm) | Total gross weight(kgs) | Total net weight(kgs) |
Main girder | 1 | 1 | 11.23 | 0.75 | 1.13 | 2262 | 9.517425 | 2262 | 2262 |
Main girder | 1 | 2 | 6.35 | 0.75 | 1.13 | 1226 | 5.381625 | 1226 | 1226 |
End beam | 2 | 3-4 | 2.45 | 0.27 | 0.47 | 222 | 0.62181 | 444 | 444 |
10T Electric hoist | 1 | 5 | 2.31 | 0.71 | 0.96 | 85+780 | 1.574496 | 865 | 780 |
Accessory box | 1 | 6 | 0.8 | 0.8 | 0.68 | 150 | 0.4352 | 150 | 120 |
P24 Rail | 4 | 7-10 | 8 | 0.09 | 0.11 | 186 | 0.3168 | 744 | 744 |
P24 Rail | 2 | 11-12 | 3 | 0.09 | 0.11 | 70 | 0.0594 | 140 | 140 |
16T electric hoist trolley | 1 | 13 | 2.47 | 2.05 | 0.88 | 1180 | 4.45588 | 1180 | 1180 |
Total | 13 pcs |
|
|
|
|
| 22.36cbm | 7011kgs | 6896kgs |
