Overhead Crane 10 ton & 1 Ton Light Jib Crane Philippines
Good Price for Sale Philippines, Good Buy From China

Economical single girder overhead crane 10 ton & Light jib crane 1 ton for Philippines project. Check 10 ton overhead crane & 1 ton jib crane specification now.

Basics of single girder overhead crane for Philippines

Crane Type：overhead crane & jib crane
Date of Placing Oder：2018.3.10
Date of Delivery ：2018.4.15

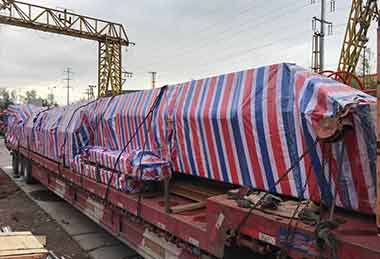

Way of Transportation： By shipping, 40Gp *2
Way of Payment：TT 50% Down payment
Destination country： Philippines
Delivery place：CIF Manila
First Contact：2013.5

Electric single girder overhead crane 10 ton & light jib crane 1 ton for sale Philippines

Main crane specifications & general requirements

Crane type	Chinese economical single girder overhead crane specification	Free standing slewing jib crane specification
Model	LD	BZ
Working Class	A3	A3
Capacity	10 ton	1 ton
Span length (m)	16.75 m	Effective span length 6 m
Lifting Height（M）	6m	6 m
Crane control	Ground control	Ground control
Voltage	220v,60hz,3p	220v,60hz,3p
Color	Yellow	Yellow
Application	Indoor use	Indoor use
Crane rail	144m	-
Quantity	1	1

Customized features of single girder overhead crane for sale Philippines

LD type 10 ton single girder overhead crane is required to be equipped with two remote controls

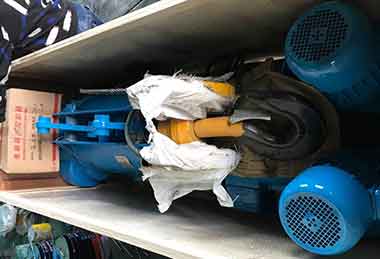

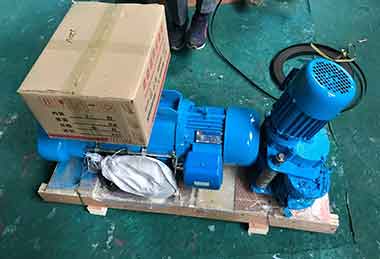

The electric wire rope hoist of the LD type overhead crane 10 ton is required to be equipped with an additional overload limiter.
Overhead Crane Track: P30, 10m/ piece, 15 pieces; 16 pairs of clamp plates, 610 pressure plates
Seamless sliding line: 10 mm2，73 meters, 1 collector

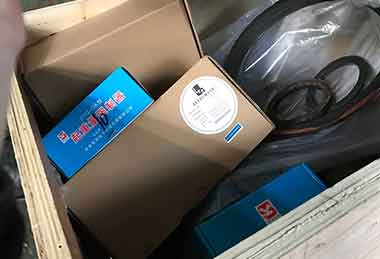

Wearing parts: the long travelling and cross travelling system of the ld type 10 ton overhead traveling needs an extra sets of wearing parts.
The electrical drawings of the eot crane needs to be provided during equipment production and manufacturing.
Configuration: Nanjing Special Motor, Schneider Electric.

Customs declaration information registration

The actual English name of the goods: electric single girder overhead crane & jib crane
Chinese and English name of cargo declaration:single girder overhead crane & jib crane
Inland transportation cost from factory to port: 1251 USD
Sea freight: 400 USD
Port charges: 1500 USD
