Industrial EOT Crane 5 Ton & 10 Ton, Economical Eot Crane Design
5 ton & 10 ton industrial eot crane for sale Oman. Single girder eot crane design, economical industrial crane,3 sets, check eot crane specifications now.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: eotcrane,oman
Your Trusted Overhead Crane Manufacturer & Supplier
Industrial EOT Crane 5 Ton & 10 Ton,
Economical Eot Crane Design for Oman
5 ton & 10 ton industrial eot crane for sale Oman. Single girder eot crane design, economical industrial crane,3 sets, check eot crane specifications now.
Basics of industrial eot crane 5 ton & 10 ton for Oman
- Crane Type：Industrial EOT Crane
- Date of Placing Oder：2018.6.13
- Date of Delivery ：2018.6.23
- Destination country： Oman
- Destination port：FOB, Qingdao
- First Contact：2015.12
10 ton overhead crane main specifications & general requirements
Crane type | Electric Industrial EOT crane | Electric Industrial EOT crane | Electric Industrial EOT crane |
Model | LD | LD | WBH |
Working Class | A3 | A3 | A3 |
Capacity | 5 ton | 10 ton | 5 ton |
Span length (m)/ Effective Arm Length | 21.84 M | 21.84 M | 21.84 M |
Lifting Height（M） | 9 m | 8.7 m | 9 m |
Crane control | Remote control | Remote control | Remote control |
Voltage | 420V 50 HZ 3P | 420V 50 HZ 3P | 200v,60hz,3p |
Color | Standard | Standard | Standard |
Quantity | 1 | 1 | 2 |
Crane Rail | P30 | P30 | P30 |
Quantity | 1 | 1 | 2 |
Customized features of Industrrial eot crane 5 ton & 10 ton for sale Oman
- 96m P30 track, 240 pressure plates, 12 pairs of clamping plates, 48m 10 flat seamless sliding contact line, 2 relays - 1 set
- 48m P24 track, 120 pressure plates, 6 pairs of clamping plates, 24m 6 flat seamless sliding contact lines, 1 relay ------- 2 sets
- Factory delivery, we are responsible for truck loading
- The main beam of electric eot cranes needs to be cut open to install a 40GP container, the size is arbitrary, the container size is 11.8*2.3*2.3m
Gallary of 10 ton & 5 ton industrial eot crane for sale Oman

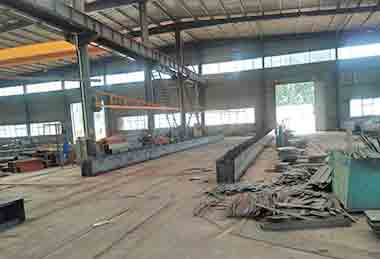

Main girder of industrial eot crane for sale Oman

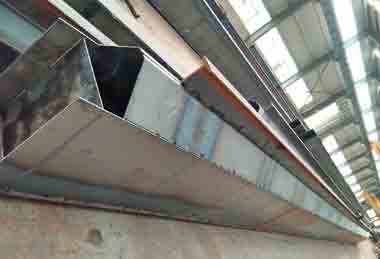

Main girder of industrial eot crane for sale Oman
Main girder of industrial eot crane for sale Oman
End girder of industrial eot crane for sale Oman
Brief introduction of LD type industrial eot crane
A single girder overhead crane is a light duty of overhead crane equipment. It is widely used to lift goods in plants, warehouses, and material stores. However, it is strictly prohibited to use it in potentially hazardous operating environments such as easily combustible, explosive, or corrosive environments, electromagnetic, electric grab, heat liquid, overloading, and dust, etc.
LD type single girder eot crane drawing
Main specifications of industrial eot cranes
| Model | LD type Single Girder EOT Crane | |||||||
| Lifting capacity | t | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Span | m | 7.5-31.5 or other specified span | ||||||
| Lifting height | m | 6, 9, 12 or other specified height | ||||||
| Lifting speed | m/min | 8 (8/0.8) | 7 (7/0.7) | 3.5 (0.35/3.5) | 3.3 (0.33/3.3) | |||
| Hoist traveling speed | m/min | 20 | ||||||
| Crane traveling speed | m/min | 20(30) | ||||||
| Working class | A3, A4, A5 | |||||||
| Power | 380V, 50Hz or other | |||||||
Special designed U shape box girder crane
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
