Overhead Crane Electromagnet for Steel Billet & Scrap Handling
Customized Crane Below Hook Devices for Steel Mill Cranes

Overhead crane electromagnets for sale Jordan. Rectangular electromagnet for steel billet handling & Round Electromagnet for Scrap Handling. Check now.

Project Overview

• Product Type：electromagnets for steel mill use
• Date of Placing Oder：2018.4.26
• Date of Delivery ：2018.5.26
• Way of Transportation： By shipping, bulk carrier
• Way of Payment：TT30%, Prepayment
• Destination country：Jordan
• Destination port：FOB, Qingdao
• First Contact：2016.11

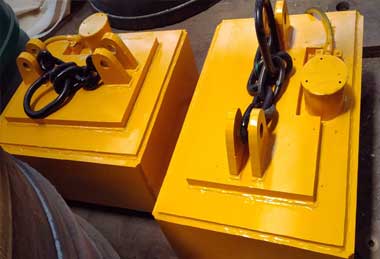

Electromagnet for Steel Billet & Steel Scrap Handling for Jordan Project

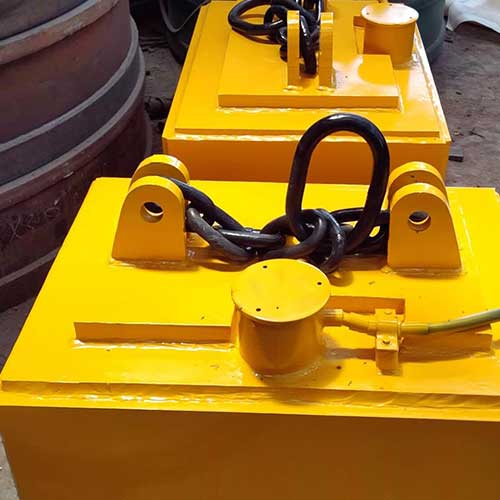

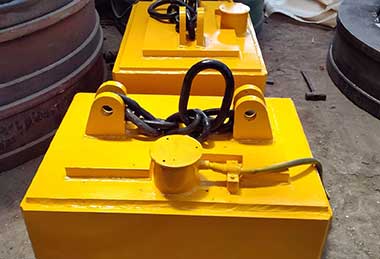

• Uses:Two rectangular electromagnets for steel billet handling
• Model: MW12-9070L/2, 2 sets
• Single steel billet size: 130mm*130mm, 8000mm long
• Maximum hanging 6 roots, maximum weight: 6.5T
• Electromagnet work temperature 400 ℃
• Work temperature of crane: 40 ℃
• Starting weight of the crane: 10T
• Control voltage DC 110V

Rectangular crane magnets crane for steel plate

Specifically designed for lifting and transporting medium-thickness steel plate. When lifting long steel plates, please use a combination of several electromagnets to prevent bending and deformation. The space length of electromagnets is 3-4m for medium-thickness steel plate (6mm-32mm), and the space length of extension parts of both ends is half of the space length.

Features of rectangular crane magnets

• The series is divided into two types based on lifting pieces: type 350 and type 400.
• ** Type 350 is appropriate for medium-thickness plate factories, ship building factories, and machinery manufacturing factories; it uses a magnet regulating control method and can lift one piece or multiple pieces of steel plate.
• ** The Type 400 is ideal for transporting as many pieces as possible at once. We can also design and manufacture high temperature type products for lifting and transporting steel plate below 700° C based on the needs of the customer.

Technical data of rectangular crane magnets

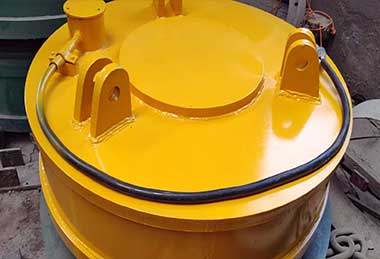

Round Electromagnet for Scrap Handling for Jordan Project

• 1 round electromagnet
• Uses: Grabbing waste steel，steel scrap
• Model: MW5-120L/1 , 1 set
• Diameter: 1200mm
• Electromagnet work temperature 200 ℃
• Work temperature of crane: 40 ℃
• Control voltage DC 240V
• As long as the above electromagnets are electromagnets, do not electrical control equipment.

MW5 series circular steel scrap lifting crane magnets

Crane lifting magnets are designed to lift and move ferromagnetic cast ingots, steel balls, sheets, bars, and scrap. At metallurgical plants, scrap yards, and ship-building plants, the magnet will be attached to cranes, excavators, and other hoisting machines.

Features of round crane magnet for steel scrap handling

• 75% or 60% Duty Cycle.
• Heavy duty welded construction.
• Insulation class H.
• Design with a strong deep magnetic field.
• Aluminum Coil, optional copper.

Technical data of round crane magnet for steel scrap handling

How to get your customized overhead crane magnet?

• What materials do you want to lift?
• Steel scraps, steel billet, ingot, plate, bar, or ball, for example. Please provide us with the dimensions of the steel plate (Length Width Thickness mm).
• What is the expected lifting capacity?
• On what type of working site does the magnet operate? Indoors or outside?
• Please provide your power information (__V, DC/AC, Hz) as well as crane information (single beam or double beam, single hook or double hook, how about the loading capacity).

If you want to know more about the overhead crane magnets, please feel free to contact us. Tailored crane magnets for your magnetic crane and steel mill cranes to improve your steel billets and scrap handling.
