5 Ton & 15 Ton Single Girder EOT Crane for Trinidad and Tobago
6 sets single girder eot cranes & 7 sets chain hoist for sale Trinidad and Tobago, cost-effective solution - complete overhead crane kit with no girder.
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: 15ton,overheadcraneforsale,TrinidadandTobago
Your Trusted Overhead Crane Manufacturer & Supplier
5 Ton & 15 Ton Single Girder EOT Crane, 6 Sets
for Sale Trinidad and Tobago , Cost-effective Solution
6 sets single girder eot cranes & 7 sets chain hoist for sale Trinidad and Tobago, cost-effective solution - complete overhead crane kit with no girder.
Basics of single girder eot crane for Sale Trinidad and Tobago
- Crane Type：Single Girder Overhead Crane
- Date of Placing Oder： 2017-2-28
- Date of Delivery ： 2017-03-10
- Way of Transportation： 2*40 GP,By Sea
- Way of Payment： LC 100%
- Destination country： Trinidad and Tobago
- Destination port：CIF Point Lisas
- First Contact：2016.10
General requirements & main specifications
Equipment | Modle | Working Class | Capacity（T） | Span （M） | Lifting height（M） | Crane control | Voltage | Color | Quantity |
European style single girder overhead crane with no box girder | HD | A5 | 13.4M | 10M | Ground control | 3ph 440V 60Hz | Yellow | 3 | |
European style single girder overhead crane with no box girder | HD | A5 | 13.4M | 10M | Ground control | 3ph 440V 60Hz | Yellow | 3 | |
Hook mounted electric chain hoist | - | - | 5T | - | 6M | Remote control | 3ph 220V 60Hz | - | 1 |
Manaul trolley electric chain hoist | - | - | 0.5T | - | 4M | Ground control | 1ph 220V 60HZ | - | 3 |
Manaul trolley electric chain hoist | - | - | 1T | - | 4M | Ground control | 1ph 220V 60HZ | - | 3 |
Customized features of single girder eot overhead crane for sale Trinidad and Tobago
- Any components other than the main beam of the 5 ton and 15 ton overhead crane must be included; paint with epoxy resin; the connection diagram of the main beam and the end beam are required.
- The whole crane system is equipped with ABM motors and Schneider Electrics.
- The travelling of the handle runs as a separate slide.
- P30 overhead crane track 360m, 30 pairs of clamps, and 1500 pieces of pressure plates.
- The seamless sliding contact line is 16 mm2, a total of 180m (60m*3)
- A complete set of spare parts are required to distributed to the 5 ton overhead crane and so does to the 15 ton overhead crane. The overhead crane spare parts are including the decoupling device, cart buffer, lifting contactor, lifting brake pad, running brake pad, rope guide, flashlight door, and lifting limit.
- The other 4 sets of overhead travelling cranes will be given free decoupling device, cart buffer and lifting contactor.
- Norway hoist are required to do the load testing with 1.5 times the rated load
- The remote control of the fixed type hook mounted electric chain hoist is two sending and one receiving; the trolley travelling electric chain hoist is equipped with a manual trolley.
Gallary of single girder eot overhead crane for sale Trinidad and Tobago

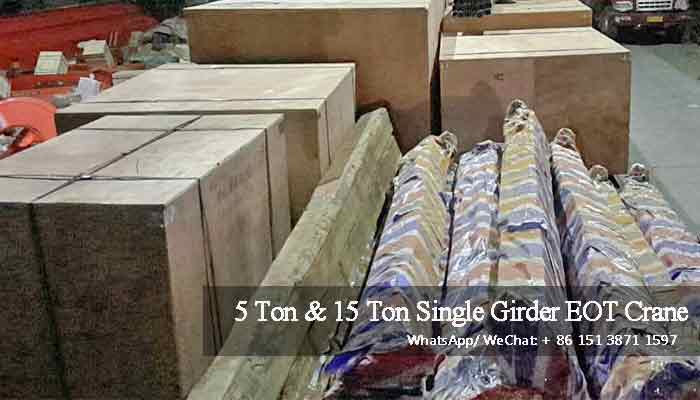

5 ton and 15 ton single girder eot crane for sale Trinidad and Tobago with no main girder , very economical solution

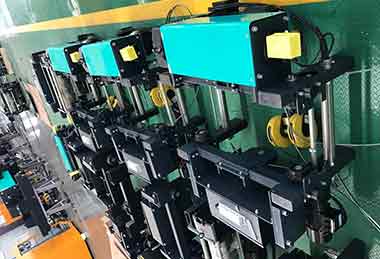

6 sets of wire rope hoist for sets of 5 ton eot crane and 3 sets of 15 ton eo crane for sale Trinidad and Tobago

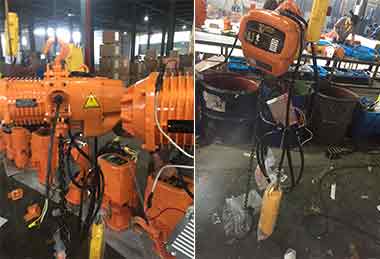

7 sets of electric chain hoist with hook mounted design or manual trolley design for sale Trinidad and Tobago

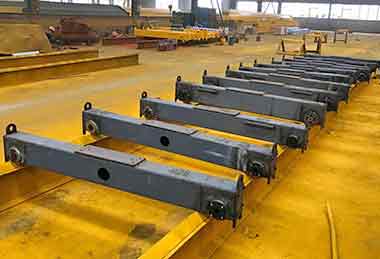

European style single girder eot crane kits for sale Trinidad and Tobago

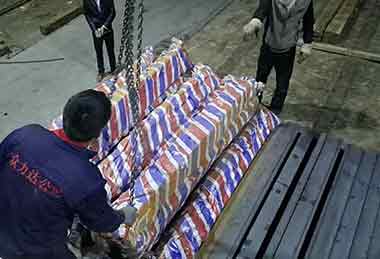

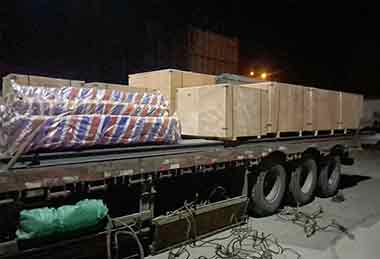

Single girder overhead crane packed for delivery to Trinidad and Tobago
Single girder overhead crane packed for delivery to Trinidad and Tobago
