Single Girder EOT Crane & Gantry Cranes 5 Tons for sale Sri Lanka
Single Girder Remote Control Crane
Single girder cranes 5 tons for sale Sri Lanka, Single girder eot crane and single girder gantry crane with remote control for sale Sri Lanka. Check single girder remote control crane.
Overview of single girder cranes for sale Sri Lanka
- Crane Type：single girder cranes
- Date of Placing Oder：2019.12.6
- Date of Delivery ： 2020.1.17
- Way of Transportation： 4 Containers
- Way of Payment： 30%T/T 70% LC at sight
- Destination country： Sri Lanka
- Destination port：CFR Colombo
- First Contact：2019,12.6
- Industry: Steel Industrial
5 ton single girder gantry crane for sale Sri Lanka with 28.645m crane span design Main specifications & general requirements of single girder overhead crane & gantry crane
Crane Type | Model | Working Duty | Tonnage（T） | Span (m) | Lifting Height（M） | Crane control | Voltage | Color | Applications | Crane rail | Quantity |
Single girder overhead eot crane | LD, equipped with low headroom CD | A4 | 5 | 27.382 | 3.71 | Remote control | 400v/50hz/3p | standard | Indoor use | Included | 2 |
P24 crane track | P24 | Travelling length 60m, with clamping plats and welding plates | |||||||||
Seamless sliding wire | 6mm2 | 60m | |||||||||
Single girder gantry crane | MH equipped with low headroom wire rope hoist CD | A4 | 5 | 28.645 | 8 | Remote control | 400v/50hz/3p | standard | Indoor use | included | 1 |
P38crane track | P38 | Travelling length 99.5 m, with clamping plats and welding plates Travelling length 60m, with clamping plats and welding plates | |||||||||
Crane cable reel | / | General power：8.3KW，travelling length 99.5m | |||||||||
Production gallary of Sri Lanka single girder eot crane & gantry crane 5 ton

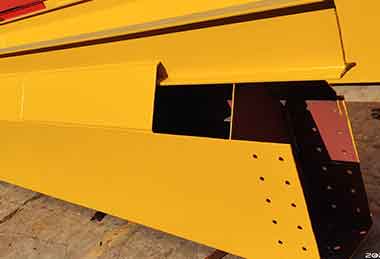

Main girder of overhead single girder crane with span length of 27.382m for sale Sri Lanka
Due to the 27.383 m long span will be cut to the sake of easy delivery
Single girder electric wire rope hoist for sale Sri Lanka
Low headroom electric wire rope hoist for sale Sri Lanka
Supporting legs of single girder gantry crane for delivery to Sri Lanka
Feedback of single girder gantry crane 5 ton feedback picture
Single Girder Cranes Parts and Componets Container Packing lists
Container packing list： 1*40HC |
|
|
|
|
|
|
|
|
|
Item | No | Serial# | Length(m) | Width(m) | Height(m) | Weight(kgs) | Volume(cbm) | G.W.kgs | N.W.kgs |
EOT Main girder | 1 | 1 | 10 | 0.55 | 1.22 | 1940 | 6.71 | 1940 | 1940 |
EOT Main girder | 1 | 2 | 9.05 | 0.65 | 1.22 | 1750 | 7.17665 | 1750 | 1750 |
Gantry girder | 1 | 12 | 9.95 | 1.66 | 1.26 | 2490 | 20.81142 | 2490 | 2490 |
End carriages | 4 | 7-10 | 4.1 | 0.24 | 0.3 | 230 | 1.1808 | 920 | 920 |
| 7pcs |
|
|
|
|
| 35.88cbm | 7100kgs | 7100kgs |
1*40HC |
|
|
|
|
|
|
|
|
|
Item | No | Serial# | Length(m) | Width(m) | Height(m) | Weight(kgs) | Volume(cbm) | G.W.kgs | N.W.kgs |
EOT Main girder | 1 | 3 | 8.8 | 0.65 | 1.22 | 1710 | 6.9784 | 1710 | 1710 |
EOT Main girder | 1 | 4 | 9.92 | 0.55 | 1.22 | 1880 | 6.65632 | 1880 | 1880 |
Gantry girder | 1 | 13 | 9.68 | 1.64 | 1.26 | 2430 | 20.002752 | 2430 | 2430 |
200m P38 rails | 32 |
| 6.25 | 0.115 | 0.135 | 219 | 3.105 | 7008 | 7008 |
| 35pcs |
|
|
|
|
| 36.74cbm | 13028kgs | 13028kgs |
Item | No | Serial# | Length(m) | Width(m) | Height(m) | Weight(kgs) | Volume(cbm) | G.W.kgs | N.W.kgs |
EOT Main girder | 1 | 5 | 8.85 | 0.65 | 1.22 | 1740 | 7.01805 | 1740 | 1740 |
EOT Main girder | 1 | 6 | 8.9 | 0.65 | 1.22 | 1690 | 7.0577 | 1690 | 1690 |
Gantry girder | 1 | 11 | 9.8 | 0.7 | 1.21 | 1830 | 8.3006 | 1830 | 1830 |
Ground beams | 2 | 20-21 | 6.95 | 0.46 | 0.58 | 485 | 3.70852 | 970 | 970 |
Hoist in plywood box | 1 | 22 | 1.56 | 1.23 | 0.71 | 530 | 1.362348 | 530 | 480 |
Hoist in plywood box | 2 | 23-24 | 1.56 | 1.12 | 0.71 | 505 | 2.481024 | 1010 | 900 |
Components in plywood box | 1 | 25 | 1.08 | 0.61 | 0.68 | 200 | 0.447984 | 200 | 180 |
120M P24 rails（15pcs 8m each） | 15 |
| 8 | 0.09 | 0.11 | 178 | 1.188 | 2670 | 2670 |
| 24pcs |
|
|
|
|
| 31.57cbm | 10640kgs | 10460kgs |
1*40HC |
|
|
|
|
|
|
|
|
|
Item | No | Serial# | Length(m) | Width(m) | Height(m) | Weight(kgs) | Volume(cbm) | G.W.kgs | N.W.kgs |
Leg | 4 | 16-19 | 8.7 | 1.7 | 0.5 | 1300 | 29.58 | 5200 | 5200 |
Components in plywood box | 2 | 26-27 | 0.75 | 0.61 | 0.68 | 160 | 0.6222 | 320 | 260 |
Cable reel in box | 1 | 28 | 1.36 | 1.36 | 0.85 | 240 | 1.57216 | 240 | 220 |
Rail fittings and bus bar in box | 1 | 29 | 1.36 | 0.93 | 0.57 | 780 | 0.720936 | 780 | 700 |
Gantry saddle | 2 | 14-15 | 1.7 | 0.78 | 0.78 | 325 | 2.06856 | 650 | 650 |
| 10pcs |
|
|
|
|
| 34.56cbm | 7190kgs | 7030kgs |
