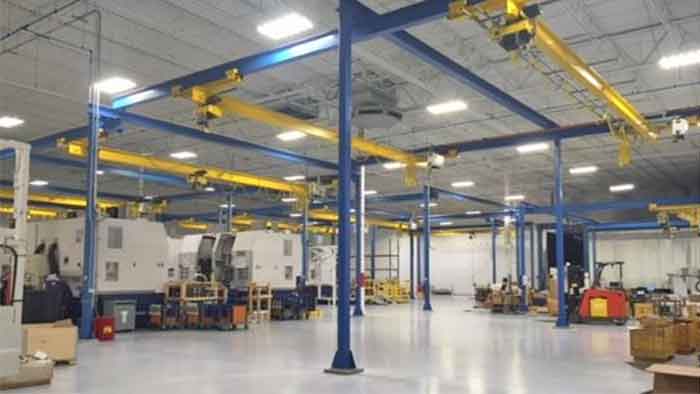

Freestanding Underhung Bridge Crane System
light,Small & Economical Underhung Bridge Cranes

Freestanding underhung bridge crane system - single girder underhung bridge crane with freestanding crane runway up to 10 ton. Freestanding bridge crane for sale.

Underhung crane runways offer greater versatility and usability than top running systems because they are typically much lighter. Underhung runways are remarkably lighter and can be mounted on the ceiling. They can also run parallel to one another without running into each other. Underhung crane systems also have the mechanical advantage of being able to interlock multiple systems, allowing operators to transfer loads between them. They can also interlock with monorails to transfer materials along a predetermined route.

Underhung freestanding runways have a bolt-togethe connection design, so assembly doesn't call for a certified welder. An underhung crane's capacity to interlock with a fixed spur, crossover, and neighboring cranes is one of its key benefits. This interlocking ability eliminates the need for re-handling by allowing a load to be moved throughout the plant system without having to set it down.

• Capacities of freestanding bridge crane : up to 10 tons
• Bridge Span Lengths, overall: up to 60' (standard)
• Runway Spans of underhung freestanding crane system : unlimited
• Height (Floor-to-Trolley ) : customized
• Clevis: customizable.
• Note: Customized freestanding single girder bridge cranes are available. Contact us to get your customized freestanding crane system with tailored specifications.

Details  of underhung freestanding bridge crane d esign

Underhung runway systems are designed to support the freestanding workstation bridge crane from the lower flange of the runway girder. I or W flanged beams are frequently used to make these girders. For applications with high working frequency, heavy duty patented track runways are available. In order to resist wear, patented track is constructed with a hardened lower flange.

A cost-effective way to transfer loads between building bays is by connecting underhung runways and monorail spurs, which can both use the same track and can both be interconnected using transfer switches. The freestanding system is simple to expand and has no inherent features that would interfere with the runway's path.

Features  of under running freestanding bridge cranes

• Bult-connection construction design does not need a certified welder.
• Usually have capacities ranging from 0.5 tons to 10 tons.
• The maximum standard span is 55 feet.
• Limitless lengths are offered.
• Takes into account transfer switches
• Columns can be fastened to footers made of reinforced concrete or concrete slabs as thin as 6 inches.
• The freestanding underhung bridge crane are equipped with types of hoists with the motorized, hand chain, push, and pneumatic powered designs and types.
• Standard systems are pre-engineered.

Delivery of single girder underhung freestanding bridge cranes

• Ships come fully equipped with: an assembly manual, hardware, and runway electrification.
• When foundations are not required, chemical anchors are offered.
• Drawings from computer-aided design are provided.

Multiple Cranes Sharing the Same Runway

Using a runway to support multiple overhead bridge cranes is frequently the most practical use of a runway. When this is necessary, large and uneven loads can frequently be lifted with two cranes of similar or different capacities. Additionally, one runway can service numerous work cells spread out along a bay's runway as well as multiple bridge cranes. By designing zones within each cell that cranes can enter but not exit, you could, for example, have a 10 Ton runway system with 5 Ton overhead bridge cranes operating on the 10 Ton runway.

There are sophisticated load summing controls available that can monitor the loads of multiple cranes operating on the same runway. This is especially useful when you need the added flexibility of using multiple bridge cranes while also protecting your runways from overloads that could lead to unsafe crane operation.

Aside from electronic limiting devices, please contact our application engineers to learn about the many different standard and custom mechanical devices available to allow multiple overhead bridge cranes to be used safely on a single runway.

Applications  of Freestanding Underhung Bridge Crane System

The freestanding bridge crane are widely used for material handling,  such as, Die manipulation and repair, Plastic molding, Steel fabrication, Material handling, Burn tables, Burial vault manufacturing, Concrete pipe and burrier manufacturing, Food grade stainless steel equipment available for the food and pharmaceutical industries, etc.

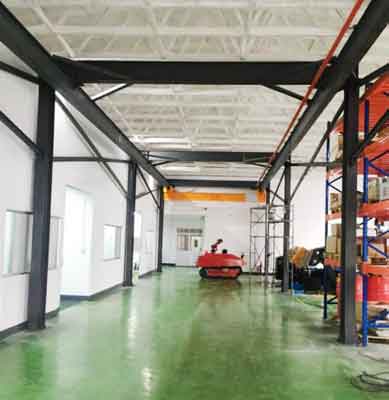

2.8 ton freestanding bridge crane with underhung bridge crane design

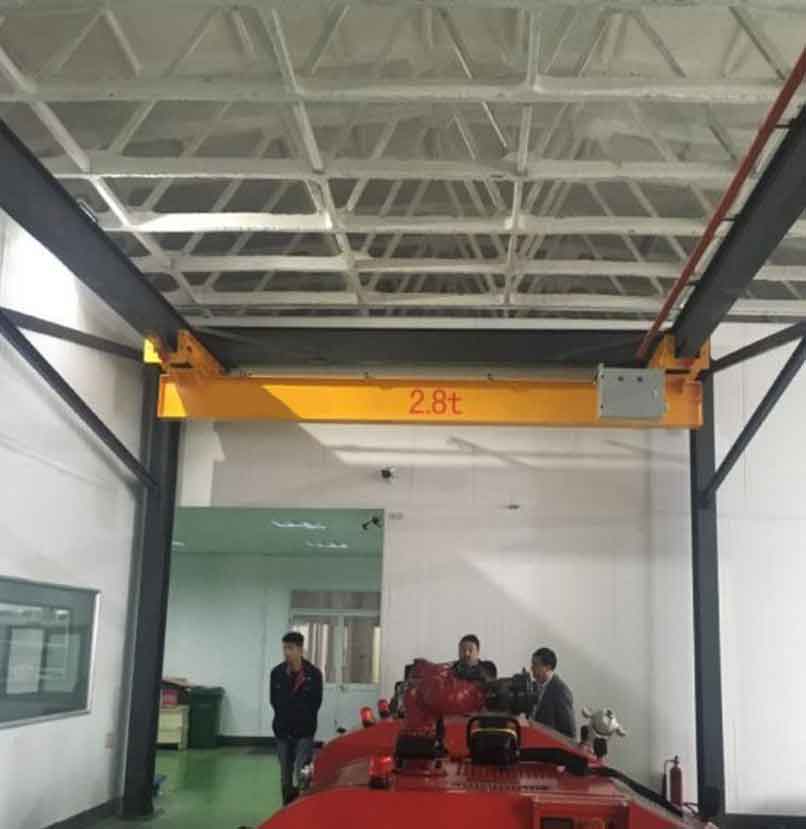

2.8 ton freestanding bridge crane with underhung bridge crane design

Benefits and Advantages of Adopting Single Girder Underhung Bridge Crane

The lifting capacity of a single girder underhung bridge crane, also referred to as a single girder under running or under slung crane, is never more than 10 tons. It is not a type of heavy duty overhead crane. The single girder underslung crane system is typically lighter than that of the top running crane, which can result in lighter design requirements on the building or supporting structure for the crane. The underhung bridge crane is designed for flexibility and functionality. The crane can be suspended from the building structure and doesn't need supporting columns.

A single girder underhung bridge crane is also very adaptable for manufacturing or manufacturing processes that require lifting and moving materials along a fixed path. The bridge crane can work quickly and effectively, increasing productivity. When compared to other types of overhead cranes, this underhung bridge crane is extremely cost effective.

The single girder underhung bridge crane has a light dead weight, is simple to install, and has an all-around sensible and small design. Under-hung bridge cranes are a good choice to help with lifting tasks when a building lacks sufficient headroom and needs a crane for material lifting. When the crane is to be used for an existing building rather than a new building, the application and the building or work place dimensions typically determine the best crane type for your specific work needs.

It is necessary and crucial to communicate with your crane supplier about your specific work needs and requirements if you intend to purchase a single girder underhung bridge crane for your facility. The supplier can suggest a suitable under hung crane based on your needs based on the information you provide.

Why to Select Our Underhung Free Standing Bridge Cranes

Bring together industry experience

All of our bridge cranes are designed and manufactured based on strict product testing and successful application experience, with the goal of reducing maintenance costs, extending service life, improving production efficiency, and increasing customer return on investment.

Compact structure design saves empty energy space

Using computer finite element optimization design, it minimizes self-weight, saves space, and reduces plant structure pressure and cost while ensuring mechanical strength, rigidity, stability, and safety.

Easy bridge crane maintenance

Our free standing bridge cranes have strict quality control to ensure reliable hoisting product quality and excellent performance in the hands of customers. At the same time, it is easy for customers to maintain and operate.

Efficient after sale service for your freestanding crane systems

We not only provide you with free pre-sales consultation and program design, but also have a team ready to serve you at any time, truly making you worry-free.
