Classical design with twin hooks & one motor / Premium quality electric chain hoist / High standard lifting with good balance and safety

Twin hook electric chain hoist is a specially designed low headroom electric chain hoist,which posses all the basic functions of electric chain hoist with the features of compact structure, low headroom & low profile, easy installation, low cost. With single motor & twin hook hoist design, the electric chain hoists are able to ensure the simultaneous movement of two hooks, featured as well balanced, high stability and safety which are very beneficial for handling objects with two lifting points and the goods & loads that need balances when lifting.

With low headroom design & customized twin hooks, the specialized electric chain hoists offering an economical and effective overhead hoist crane solution for many tricky and troublesome application such as workshops with low ceiling height, or applications with limited overhead space or material handling required highly on balance and stability, etc.

Main Structures & components

The twin hook electric chain hoists is developed on the bases of low headroom electric chain hoists and it has a very similar structure of the low headroom electric chain hoists. The twin hook hoists are mainly consisted of the components & parts including electric motor, transmission mechanism, chains, hook and safety devices, etc. The distance between the two lower hooks can be customized from 0- 3 meter. All of the twin hook electric chain hoists can be customized for your specific setup,with good and reliable performances to make the best value of your investment!.

Electric chain hoist with double hooks

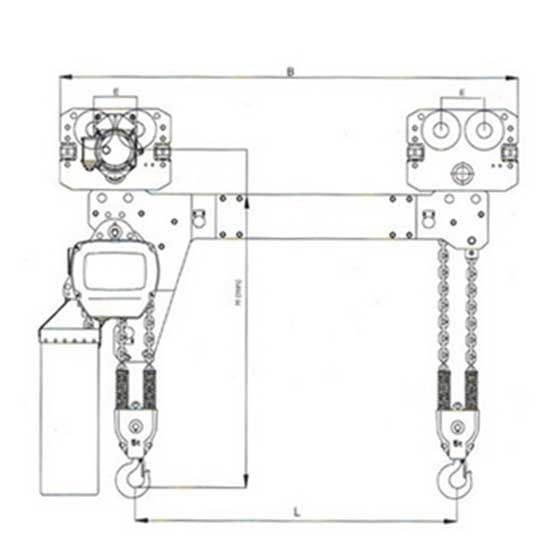

Electric chain hoist with double hook design drawing

Main parameters

With the twin hook designs, the low headroom electric chain hoist blocks can balance two ends with the advantage of well balance and stability , widely used for long & large volumes handling. The lifting capacity of the twin hook hoists are from 0.5 ton -50 ton, and main parameters and hoist specifications are presented for your reference. Customized twin hook hoists please feel free to contact us.

Main parameters of twin hook hoists

• Lifting capacity of twin hook hoists : 0.5~50 ton
• Standard chain length: 3m (can be customized)
• Mounting type of twin hook hoists: With upper hook (fixed) or with trolley
• Lifting speed of twin hook hoists : Single/Double speed option
• Chain diameter of twin hook hoists : 6.3~11.2mm (as per different capacities)
• Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
• Power specification of twin hook hoists ::200~690V,50/60HZ,3 Phase
• Working duty of twin hook hoists :M3
• Working temperature of twin hook hoists : -40ºC ~ +40ºC

Advantages & Features

With single motor & double hooks design, the electric chain hoists are able to ensure the simultaneous movement of two hooks which are very beneficial for handling objects with two lifting points and the goods & loads that need balances when lifting. Besides the advantages and features of the well balanced, high safety and stability, the twin hook hoists have the following features generally:

• Duel hook & one motor design - Classical design for good balance, stability and safety.
• Electric motor with partial outer cover -Made of high strength aluminum, with features of solid quality, light weight ,splendid heat dissipation, continuous use, enclosed structure, which enables the twin hook hoists can be used in chemical plants and electroplating factories, etc.
• Side kind braking - Ensures absolute safety when the power off and even with excess load. Together with motor braking as the double braking system to strengthen security and durability of two hook hoists.
• Gear- Made of alloy steel with heat treatment, durable and long working life.
• Hooks-Hot forging and heat treatment hook.
• Chain-FEC80 ultra strong heat treatment alloy steel,strong and durable, which is applicable in the conditions of rain water, sea water, chemicals and other severe conditions.
• Protection class : IP54 for the twin hook hoists and push button
• Noise of lifting :When lifting with single/ double speed, the noise is around 81dB.


Applications

With different mountings ,ie, hook mounted, lug mounted, trolley mounted, the electric chain hoists are widely used on overhead cranes, gantry cranes, jib cranes, monorail cranes & H & I beam cranes, etc.

Low headroom electric chain hoists with twin hooks are typical used for the following applications:

• With double hook hoist design & twin hook hoists designs, the electric chain hoists are applicable for long & heavy loads handling , and also they are ideal for material handling required highly on balance and stability on horizontal movement such as the handling of liquid containers, etc.
• With low headroom design, the twin hook hoists can be used for applications with low ceiling heights or limited overhead space.

How to Select the Right Chain Hoist

• Capacity: the maximum weights of the loads you intend to lift at present and in the future
• Lift: length of lifting chain your hoist needed.
• Lifting Speed: the speed of the load being lifted which may be confined by the features of loads and surrounding environment -what if the load is fragile or in the hazardous environments, or there is no enough space for lifting loads safely?
• Voltage & Power: The correct voltage of power source needs to be confirmed to prevent chain hoists damage caused by the wrong voltages.
• Pendant Control Cable Length: Customized based on specific needs and requirements
• Trolley selection: Plain trolley, geared trolley or motorized trolley?
• I Beam Flange Width: An I-beam, also known as H-beam, W-beam or WF-beam is a beam with an I- or H-shaped cross-section.

Once the above information be confirmed, the main parameters needed for the quotation of a Twin hook hoist is confirmed. Please reach out to a trusted and reliable electric hoist manufacturer and supplier to confirm the details and get the customized price to for you twin hook low headroom electric chain hoists.

Get your customized twin hook hoists

We can offer help to confirm the specifications of the twin hook hoists your need. If you don't see a capacity or style needed please feel free to contact us. We'll be happy to provide you an customized electric chain hoist and crane solution suitable to your requirements at cost-effective price.We are reliable and we deliver exceptional value.

Buying a double hook & twin hook low headroom hoists is an beneficial investment. With low headroom and low profile hoist design, the electric chain hoist can save your working space in the existing building, lower your cost on workshop modification and maybe the low profile electric chain hoist will save your initial invest on the construction of new workshop. With twin hook hoist design, the electric chain hoists offers you a well balanced overhead travelling hoist crane solution for long & heavy loads handling with high safety and stability. Send us a inquiry about the twin hook hoists now.
