Explosion-proof electric chain hoist is a kind of "explosion-proof" electric chain hoist, which can be divided into gas explosion-proof hoist and dust explosion-proof hoist according to the use environment. According to the mounting type, the explosion proof electric chain hoist can be grouped in trolley type explosion proof hoist & hook mounted explosion proof chain hoist . The trolley type explosion proof electric hoist is used on on H beam or I beam to transfer loads from left and right with a motorized trolley or manual trolley, and with a hoist hook to lift up and down . And the hook suspension explosion proof chain hoist is a stationary type electric chain hoist, which is anchored by a hook in a place with the lifting hook to lift loads up and down.

The explosion-proof electric hoist are made of special non-sparking materials, which will not produce mechanical sparks when they rub against each other during operation, and will not detonate gas in flammable and explosive places, effectively preventing fire accidents and ensuring customer property and personal safety.All in all, the explosion proof chain hoist is also spark proof hoist, flame proof hoist, and safe hoist in hazardous applications.

Motorized trolley explosion proof electric chain hoist - explosion proof hoist series

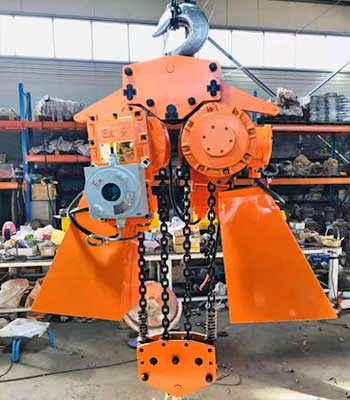

Hook suspension explosion proof electric chain hoist - explosion proof hoist series

Low headroom explosion proof electric chain hoist - explosion proof hoist series

• Power source of explosion proof chain hoist: 200V(50/60Hz), 220V(60Hz),380V(50Hz), 400V(50Hz),415V(50Hz),440V(60Hz), 3 phase. Other voltage are available upon request.
• Operation voltage of explosion proof chain hoist 24/36/48V
• Operation method of explosion proof chain hoist Pendant type push button cord (floor operation)2-push-button-system for both hook suspension type and manual operated type trolley；4-push-button-system for motorized trolley type.
• Power supply method of explosion proof chain hoist Cable power supply system
• Push button cord and power supply cable of explosion proof chain hoist Rubber insulated flexible cable (3RNCT)
• Insulation of motor F class
• Braking system for lifting and lowering Pull-rotor motor brake

Your Trusted Explosion Proof Hoist Crane Manufacturer & Supplier

Explosion proof electric chain hoist with motorized trolley

The explosion-proof electric chain hoist has a rated power supply of 380V, a frequency of 50HZ, and a rated power of 0.5KW. The installation and disassembly of electric chain hoists are very convenient, safe and fast. The newly designed explosion proof electric chain hoist adopts the disc brake motor as driving power, and the planetary reducer is used for deceleration. It has the characteristics of compact structure, small size, light weight, high efficiency, convenient use, reliable braking and simple maintenance.

Notices：It is strictly forbidden to be used for lifting personnel, and overloading is strictly prohibited.

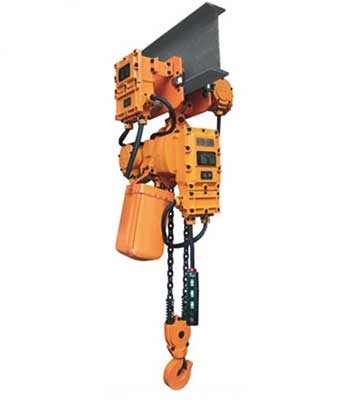

Electric trolley explosion proof electric chain hoist - explosion proof hoist series

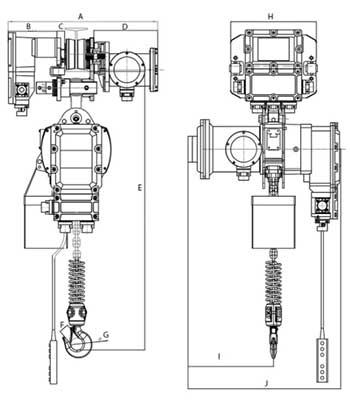

Electric trolley explosion proof electric chain hoist drawing

Main specification of explosion proof electric chain hoist

• Hoist capacity of explosion proof electric chain hoist: 1 ton, 2 ton, 3 ton, 5 ton,
• Lifting speed of explosion proof electric chain hoist: 6.9m/min, 6.4m/min, 5.6m/min, 2.8m/min, 2.8m/min
• rotation speed of explosion proof hoist:1440r/min,
• Chain size of explosion chain fall hoist : 7.1mm,11.2mm
• Beam width: 80-160mm，82-178mm，100-178mm,110-180mm

1 ton -5 ton explosion proof chain hoist with single chain fall

1 ton -5 ton explosion proof chain hoist with double chain fall

Applications conditions of explosion proof electric chain hoist

The electric hoist should be guaranteed to work under the following working conditions:

• The altitude does not exceed 2000m
• The ambient relative humidity is not more than 95% (+25℃)
• The surrounding medium temperature: -5℃--+40℃
• In the In the mine with vigor and vitality
• In the place of five significant shaking and shock vibration
• Pollution level: Class 3 Safety category: Class II

Uses of explosion proof electric chain hoist

• It is suitable for low-speed and small-stroke In terms of material handling, equipment installation, mines and engineering construction,
• it is inexpensive, high-quality, safe and reliable. It is widely used in petroleum, petrochemical, petrol stations, oil depots, gas production, chemical industry, military industry, electric power, mining, electronics, railways and other potentially fire and explosion hazardous environments.
• Explosion proof electric chain hoist is often used in environment where ignitable gases,vapor or combustible dust exists.
• Class 1,division 1 classified locations.An area where ignitable concentration flammable gases,vapors or liquids can exist all of the time or some of the time under normal operating conditions.

Definition about explosion proof grade:

• IIB containing ethylene or gases and vapors of equivalent hazard.
• IIC containing acetylene,hydrogen or gases and vapors of equivalent hazard.
• IIBT4 is suitable for using in zone 2.Highest temperature not more than 135℃
• IICT4 is suitable for using in zone 1 and zone 2.Highest temperature nor more than 135℃

Structure and parts of explosion proof electric chain hoists

The explosion-proof electric chain hoist uses a disc brake motor as the power, and the planetary reducer reduces speed.

It has the characteristics of compact structure, small size, light weight, high efficiency, convenient use, reliable braking, and simple maintenance.

Main parts and components of exploison proof electric chain hoist

Drawing of explosion proof electric chain hoist

• Clutch: As an emergency overload protection, the clutch will function and the motor will slip if an abnormal load is applied.
• Cooling fan: A cooling fan prevents motor overheating when used continuously for an extended period of time.The hollowed-out fan cover and cooling fin not only improve fan heat dissipation capacity, but also make the fan run more quietly.
• Limit switch without guide frame: The absence of a guide frame ensures that the hoist lifts and drags the weight diagonally.
• Aluminum shell: Except for the connecting case, all other parts of the hoist body are made of aluminum, which is light in weight but has exceptional rigidity, as well as high dust and water resistance.
• Magnetic force generator: The magnetic force generator is the most recent design that is featured for generating magnetic force. It allows for immediate braking as soon as the electric power is turned off. As a result, braking safety while loading is ensured.
• Dual rates Hoists with built-in inverters: Use a built-in inverter to power the hoist. Dual speeds reduce swing in operation, allowing the hoist to start steadily and stop slowly. The speed ratio can be adjusted; the standard speed ratio is 4:1; if you have any special requirements, please let us know when you inquire.
• Advantages of an anti-phase protector: When a power-supply wiring error occurs, the control circuit is unable to move, preventing the motor from being burned.
• Hooks: It is hot forging with perfect strength and is difficult to break.The lower hook's operation safety is ensured by its 360-degree rotation and safety tongue piece.
• High-quality chain:It is made of ultra-strong heat-treated alloy steel imported from Japan.
• Advantages: It is approximately safe when used in rain water, sea water, under chemical and other adverse conditions.
• Using a hand switch: Hand switch operation is made easier by an ergonomic shape design. The button with a light, soft operating sensation ensured that the operator did not become fatigued after a long period of operation.

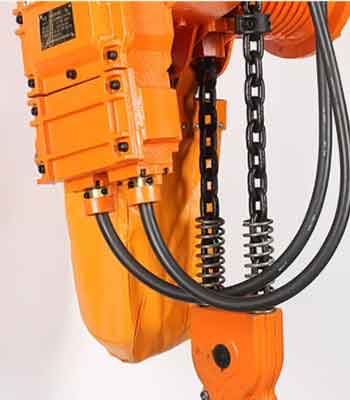

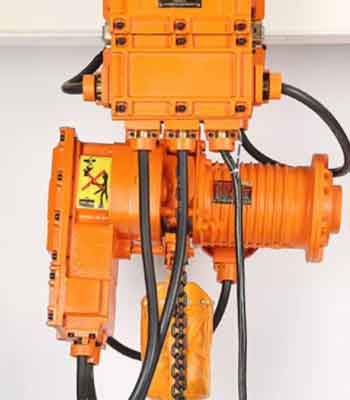

Parts and components of explosion proof electric chain hoist

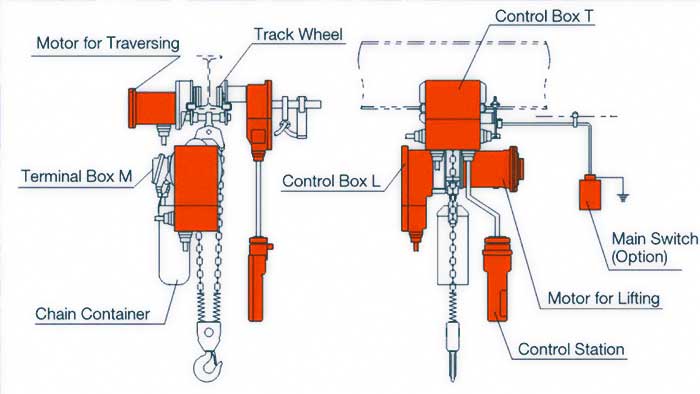

Parts and components of explosion proof electric chain hoist

Parts and components of explosion proof electric chain hoist

Advantage of explosion proof electric chain hoist

• Thickened casting shell - A thickened one-piece casting shell that is impact resistant, safe, and firm.
• Safety Explosion-proof Motor -If the motor fails in a confined space, it can effectively prevent accidents.
• Limit Switch Prevents Topping - The limit switch rises and falls and automatically stops when the limit is reached.
• Explosion-proof Handle Operation -Humanized design, explosion-proof level of handle operation, safe and dependable.

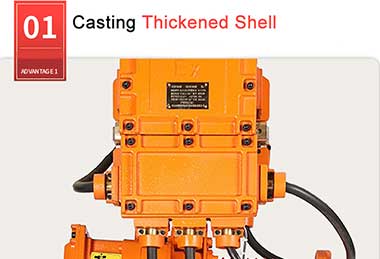

Thichkened shell of explosion proof chain hoist

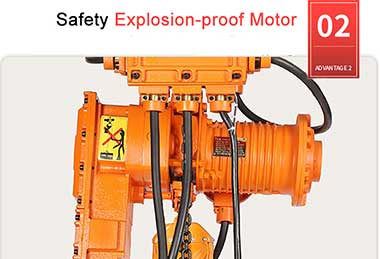

Explosion proof motor of explosion proof chain hoist

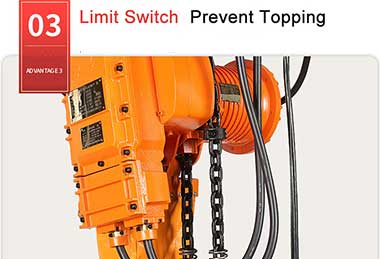

Limit switch of explosion proof chain hoist

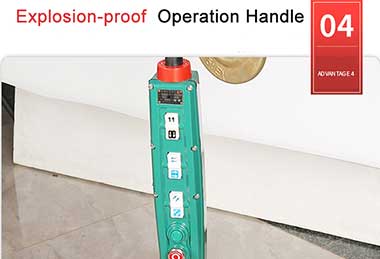

Explosion proof control of explosion proof chain hoist

Explosion-proof electric chain hoists are an excellent replacement for wire rope electric hoists with low tonnage and lifting height. It is widely used in factories, mines, warehouses, docks, construction sites, shopping malls, hotels, and other industries, and is generally installed on overhead I-beam tracks or suspended on fixed frames and special spreaders to lift goods and complete equipment, etc. It is appropriate for low-lying areas and environments with dust, damp, and decayed gases. Please contact us if you have any questions about the explosion proof hoist or flame proof hoist.

Your Trusted Explosion Proof Hoist Crane Manufacturer & Supplier

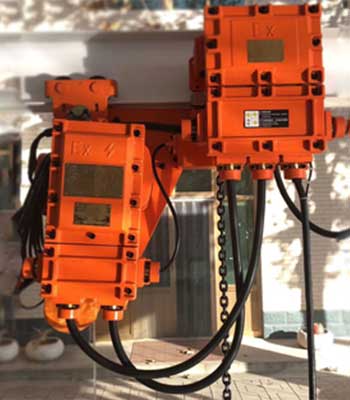

Low headroom explosion proof electric chain hoist

The low headroom exproof hoist is designed for limited workshop for higher lifting or lower facility construction cost. With low profile hoist design, the lifting height of electric chain hoist can be increased by 200 ~ 500mm, compared with ordinary CD /MD electric chain wire rope hoist,

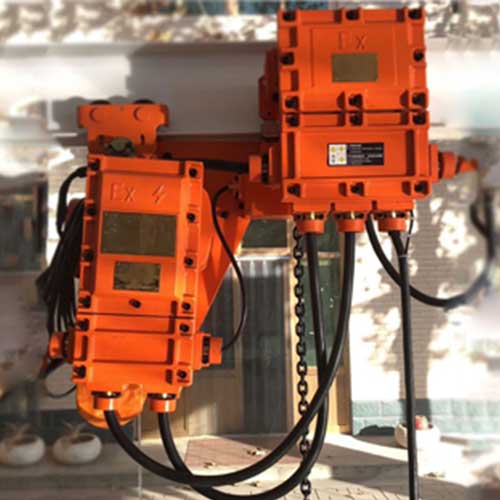

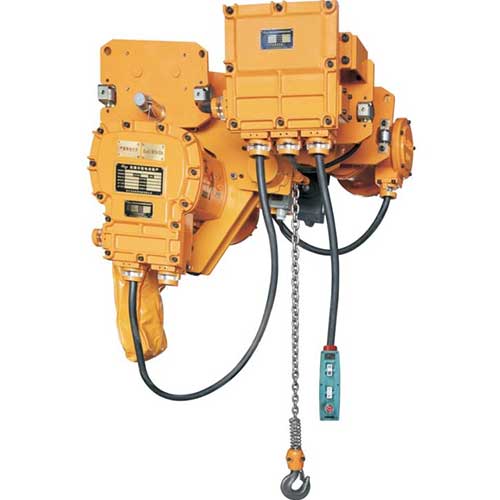

Low headroom explosion proof chain hoist

Low headroom explosion proof chain hoist

Main parameters of explosion proof electric chain hoists

Main specifications of low headroom electric chain hoists are presented for your reference. Customized flame proof hoist are available. More information, please feel free to contact us.

• Rated capacity of exproof & flame proof hoist ：1ton，2 ton，2ton，3 ton，3 ton，5 ton
• Lifting speed of exproof & flame proof hoist ：6.8m/min，6.8m/min，3.4m/min，5.6m/min，3.4m/min，2.8m/min
• Lifting Motor Power of exproof & flame proof hoist :1.5KW,3.0KW,1.5KW,3.0KW,3.0KW,3.0KW
• Running motor power of exproof & flame proof hoist :0.4kw,0.4kw,0.4kw,0.4kw,0.4kw,0.75kw
• Beam width of exproof & flame proof hoist :100-160mm,82-178mm,100-160mm,110-180mm,110-180mm,110-180mm

Low headroom hoist is for limited space application or to lower building construction cost, which is a very cost-effective material hanlding hoist. Customized flame proof hoists are available. Any need on low headroom chain hoist, please feel free to contact us.

Features of explosion proof electric chain hoist

• Low profile design, higher lifting. The lifting height of the electric chain hoist can be increased by 200 ~ 500mm, compared with ordinary CD /MD electric chain wire rope hoist.
• Excellent three-in-one transmission technology, the hoisting reducer is made of high-quality alloy steel, with three-stage deceleration, stable operation, long life and reliable performance, avoiding many shortcomings of long-distance transmission of CD hoist intermediate shaft.
• The motor is a specially designed new self-cooling cone type motor. The motor shell is made of aluminum alloy material with good heat dissipation performance. The motor insulation grade is F grade and the protection grade is IP54, which is one grade higher than ordinary motors.
• The electrical components are from Schneider , using large-capacity contactors and other components. The connection between the control switch and the motor and electrical components uses quick plugs, which makes on-site installation faster; the cables of each leakage part of the explosion proof hoist are protected by PE bellows to ensure reliable cable connection. .
• The spark proof hoists can be customized according to user requirements in terms of hoist operation, hoisting speed either single spepd, double speed or variable frequency stepless speed , hoist control either remote control operation or pendant control operation, overload protection, motor overheating protection and other functions, etc.

Advantages of explosion proof electric chain hoist

The structure is exquisite, the appearance is beautiful, and it has many unique advantages:

• The main body of the exproof electric chain hoist has no leaking cables, and the cables are arranged inside the exproof electric chain hoist by various means, so that the appearance of the exproof electric chain hoist is more beautiful; for example, the supporting shaft is a hollow thick-walled steel pipe. The overall weight of the electric exproof electric chain hoist is reduced, and the cables of the left and right parts of the exproof electric chain hoist can be passed through it.
• The structure of the exproof electric chain hoist is compact, and the counterweight is a counterweight box type. Users can add various scrap steel or stone materials, etc., which saves steel and reduces the external size compared with the counterweight block type low-headroom electric exproof electric chain hoist;
• The operation of the exproof electric chain hoist is driven by the NF series helical gear reducer. The driving wheels on both sides transmit the torque through a hexagonal steel, which has large transmission torque and high reliability, avoiding the failure of the flat key shearing. It is very beneficial to the installation and adjustment of the running part of the exproof electric chain hoist;
• The outer cover of the exproof electric chain hoisting main engine is a square welded structure with mounting bolt holes on all sides, which is highly versatile and can be quickly changed to a fixed or suspended trolley-operated electric exproof electric chain hoist, and the rope can be drawn in a 360° direction.
• The whole structure is easy to disassemble and install, convenient for maintenance and good maintainability.

Your Trusted Explosion Proof Hoist Crane Manufacturer & Supplier

Hook suspension explosion proof electric chain hoist

What is a hook suspension electric chain hoist ? The hook suspension explosion proof chain hoist is a stationary type electric chain hoist, which is anchored by a hook in a place with the lifting hook to lift loads up and down. The explosion proof electric chain hoist is a kind of light and small lifting equipment, which consists of motor, drive mechanism and sprocket. The chain electric hoist is produced in accordance with international standards

Light duty eexplosion proof electric hoist hoist with hook suspension design with capacity of 1 ton, 2 ton, 3 ton, 5 ton

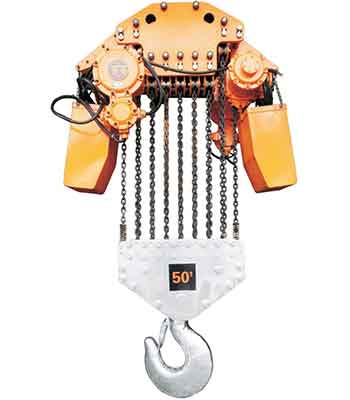

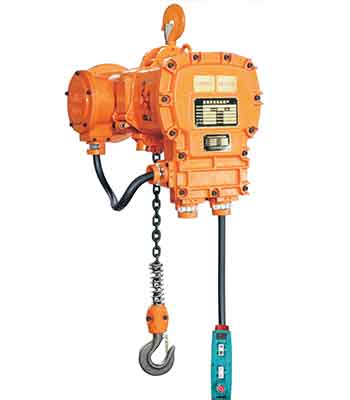

Hook suspension explosion proof electric chain hoist

Hook suspension explosion proof electric chain hoist

Main specifications of explosion proof chain hoist with hook suspension design

• Capacity of explosion proof chain hoist :1 ton,2 ton,3 ton,5ton,
• Lifting speed of explosion proof chain hoist:6.9m/min,6.4m/min,5.6m/min,2.8m/min
• Motor power of explosion proof chain hoist:1.5kw,3.0kw,3.0kw,3.0kw,
• Rotation speed of explosion proof chain hoist:1440r/min
• Voltage of explosion proof chain hoist: 220-440v 3phase50/60Hz
• Chain size of explosion proof chain hoist:7.1mm,7.1mm,11.2mm,11.2mm

The body is beautiful in shape with strong and durable characteristics. Internal gears are all quenched at high temperatures, increasing the wear resistance and toughness of gears. Adopt international advanced technology, fine workmanship, tight fit between gears. Advanced structure and performance, small size, light weight, reliable performance, easy operation. The electric chain hoist can be controlled by the operator with pendant button on the ground or by wireless remote control.

Heavy duty explosion proof electric hoist hoist with hook suspension design with capacity of 10 ton, 15 ton, 20 ton, 30 ton, up to 35 ton

Hook mounted explosion proof electric chain hoist

Hook mounted explosion proof electric chain hoist

Main specifications of explosion proof electric chain hoist

• Rated capacity of explosion proof hoist:10 ton,15ton,20ton,30ton,35ton
• Lifting motor power of explosion proof hoist: 3.0*2kw
• Running motor power of explosion proof hoist: 0.75kw, 0.75*2kw
• Chain size of explosion proof hoist: 11.2mm
• Beam size of explosion proof hoist:150-202mm,150-200mm,130-180mm

Heavy duty explosion proof electric hoist hoist with hook suspension design with capacity of 10 ton, 15 ton, 20 ton, 30 ton, up to 35 ton Customized explosion proof hoist can be designed with capacity up to 50 ton , 70 ton, etc. If you have any need of safety hoist in hazardous application, please feel free to contact us.

Safe operation of explosion proof electric chain hoists：

• Select the appropriate type of electric explosion proof hoist to avoid overloading.
• Check the chain fall explosion proof hoist before use to see if there is any wear, nicks, etc., if any, replace it in time.
• The operator must wear the corresponding dustproof protective gear to avoid adverse effects on the body caused by the special environment.
• When the electric explosion proof hoist lifts heavy objects, the heavy objects should be hung at the center of gravity of the hook to avoid the phenomenon of heavy objects falling.
• When ex-proof hoist lift heavy objects, do not explosion proof hoist it obliquely, so as to avoid shaking of the heavy objects and aggravate the chain load.
• Make heavy objects rise at a constant speed, do not rush for success.
• When explosion proof hoisting, people should not stand under the dropped heavy objects to prevent the heavy objects from falling and causing danger.

For the use of dust explosion-proof electric explosion proof hoists, it is necessary to standardize. It is necessary to read the instructions before using the equipment, and then start work after familiarizing yourself with the equipment and specifications to avoid accidents. If there is need, please feel free to contact us for consultation. Our factory specializes in the production of dust explosion-proof electric chain explosion proof hoists.

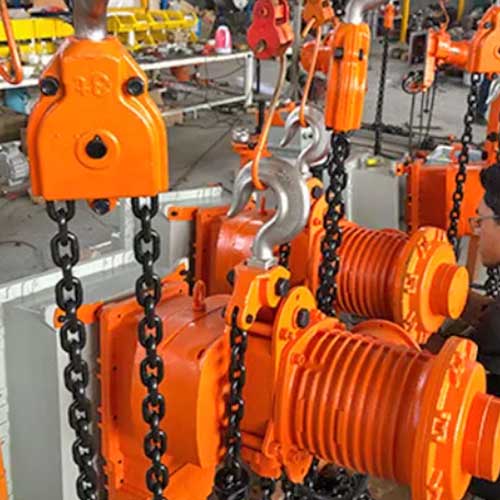

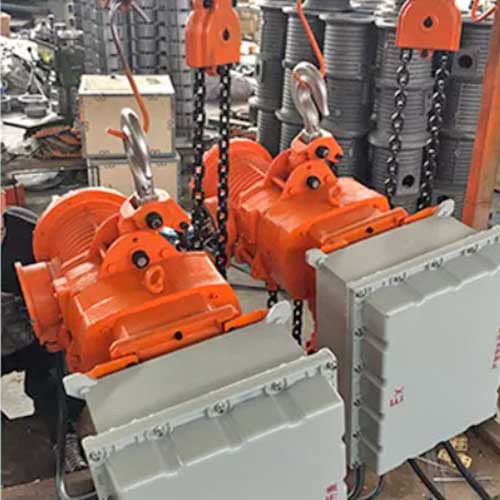

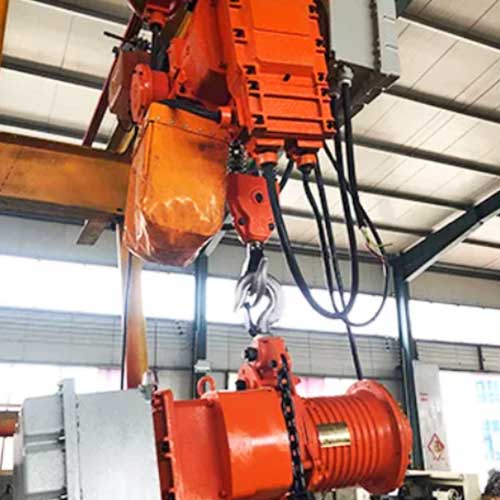

Explosion proof electric chain hoist, safe，spark proof & flame proof up to 35 ton

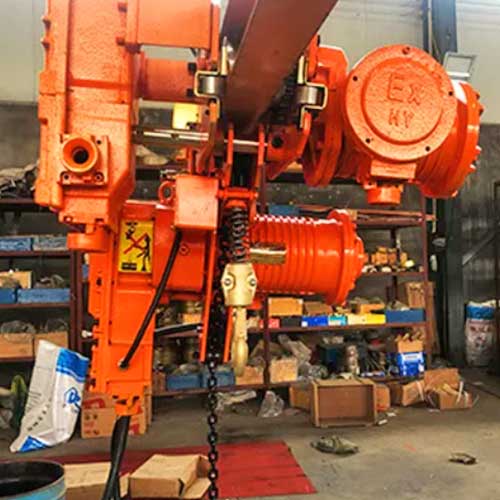

Explosion proof electric chain hoist, safe，spark proof & flame proof up to 35 ton
