Electric Chain Hoist with Manual Trolley: Affordable Manual Trolley Chain Hoists
Manual trolley electric chain hoist is a light duty electric chain hoists which is mounted or suspended on a manual trolley or hand operated hoist trolley, equipped on small single girder crane, overhead H Beam & I beam, monorail systems, and other rails, with lifting capacity from 500kg to 20 ton for light duty and small loads handling. The manual trolley electric chain fall hoists is an economical but effective trolley hoists with the combination of manual trolley and electric chain hoists which will be a cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.Customized manual trolley electric chain fall hoists are available. If you have any need or want to buy a trolley chain hoist please send us an inquiry.
Economical hoisting solution - combination of effective electric chain hoists & cheap manual hoist trolley

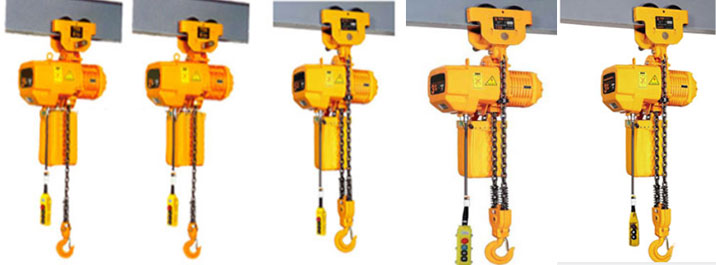

Manual trolley electric chain hoist for sale
The manual trolley electric chain fall hoists is an economical but effective trolley hoists with the combination of manual trolley and electric chain hoists which will be a cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.

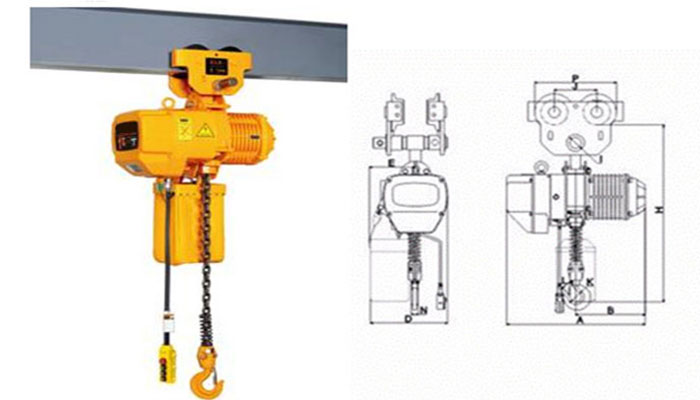

Main parameters of manual trolley electric chain hoist
- Electric hoist type: Electric chain hoists with manual trolley or hand operated trolley
- Lifting capacity of trolley chain hoist :500kg, 1ton, 2 ton, 3 ton, 5 ton, up to 20 ton or customized
- Lifting height of manual trolley chain hoist:100m
- Lifting speed of manual trolley electric chain hoist: 6.8 m/min 5.4 m/min 2.7 m/min
- Certification of manual trolley electric chain hoist : CE SGS ISO
- Type of manual trolley: plain trolley or geared trolley
- Working class of manual trolley electric chain hoist:M3
- Power supply of manual trolley electric chain hoist: as your request
- Working temperature of manual trolley chain hoist: -20℃~+40℃
- Chain material of manual trolley chain hoist: G80 Oil Black
- Protection class of manual trolley chain hoist: IP 54
- Control option of manual trolley chain hoist: Pendant control/remote control
- Chain falls design of manual trolley chain hoist: according to the capacity

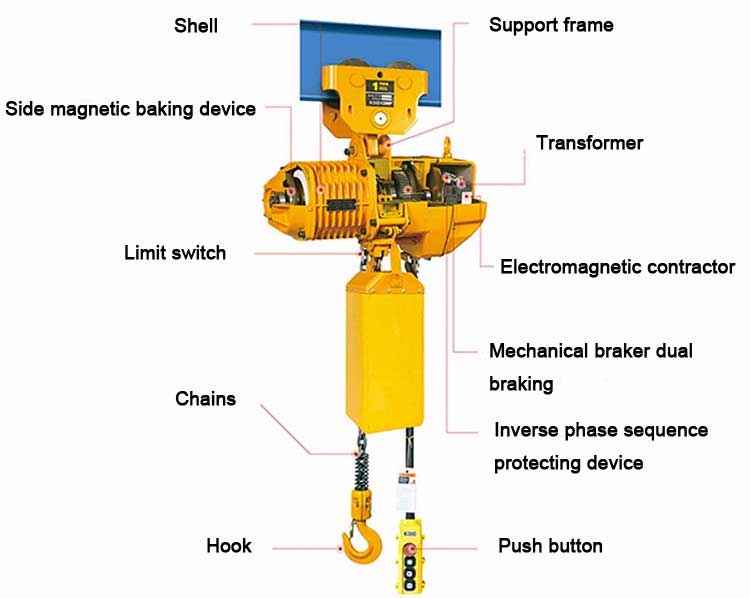

Manual trolley electric chain hoist -combination of effective electric chain hoists & cheap manual hoist trolley Main structure & components of electric chain hoists with manual trolley
Manual trolley electric chain hoist is a light duty electric chain hoists which is mounted or suspended on a manual trolley or hand operated hoist trolley, which is an economical combination of effective electric chain hoist block with cheap manual hoist trolley. The structure and components of the manual trolley electric chain hoist is same with that of the motorized electric chain hoist except the mounting trolley. Generally, the electric chain hoist is consisted of electric motor, transmission mechanism, chains, hook and safety devices, etc. And all of our electric chain hoist blocks are processed according to international standards and all of our electric chain hoist can be customized for your specific setup with good and reliable performances to make the best value of your investment!
Main structures and components of the manual trolley electric chain hoists are as the same of the motorized electric chain hoist except the suspension trolley. The main electric chain hoist parts are presented for your reference. Any need of manual trolley electric chain hoist, please feel free to contact us.
Light & durable hoist shell
The protective shell of this electric chain hoist is made with high-strength tensile steel or die-cast aluminum. Compact, lightweight, and highly durable, it protects the internal components of your electric chain block.
Durable gear with long service life
High-quality helical gears in this electric chain block reduce vibration and impact, ensuring smooth operation and long-term performance for industrial lifting tasks.
High-performance lifting motor
The motor of this electric chain hoist works continuously under full load for 30 minutes with high efficiency. Ideal for electric chain blocks requiring stable and reliable lifting.
Electric trolley
Designed for electric chain hoists, this motorized trolley features a high-strength steel frame and wear-resistant wheels. Compact, efficient, and easy to install, it improves lifting speed and maneuverability.
Manual trolley
The manual trolley of this electric chain hoist allows precise movement along the beam using human power. Safe and reliable for controlling electric chain blocks without electricity.
Durable lifting chain
Made of low-carbon steel alloy with hardened surfaces and anti-rust coating. Provides superior safety, long service life, and smooth operation in electric chain blocks and hoists.
Hoist hook
Forged for strength and durability, with optional 360° rotation and safety latch. Compatible with electric chain hoists and chain blocks for safe lifting.
Electrics
Chint brand components with phase sequence protection, ensuring safe operation for electric chain hoists and electric chain blocks.
Limit switch
Automatically stops the motor when the hook exceeds the up/down limit, ensuring safety in electric chain hoists and chain blocks.
Wireless remote control
Optional wireless control for electric chain hoists enables safer and more convenient operation of electric chain blocks.
Pendant control
Low-voltage pendant or remote control ensures safe operation of electric chain hoists and electric chain blocks, including UP/DOWN, Forward/Reverse, Start, and Emergency Stop.
Manual hoist trolley & hand operated hoist trolley
The features of the the manual trolley or hand operated hoist trolley are as following:
- High strength low alloy steel structure enables the manual lift plain trolley can support the loads with 4 times of safe rated load but overload is not allowed.
- The manual plain trolley can very applicable to various types of steel H beams , i beams or other suspended rails , which can be used with your monorail hoists, and i beam hoists, electric chain hoist, etc.
- High quality steel, Compact structure, Small volume Light weight, Safe and reliable performance, Easy installation and Eye- catching outlook.
Any inquiry on manual hoist trolley, please feel free to leave a message below.
Applications of electric chain hoists with manual hoist trolley
Manual trolley electric chain hoist is frequently used on small single girder crane, overhead H Beam & I beam, monorail systems, and other rails for light duty and small loads handling. The manual trolley electric chain fall hoists is an cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.
The manual trolley electric chain hoist is an ideal light duty hoisting equipment for loading & unloading in factories,warehouses, or other workshops for machinery installation, dispatching goods, equipment maintenance.
Electric chain hoist for KBK crane
This electric chain hoist is optimized for KBK cranes, offering efficient lifting and enhanced durability. Compatible with manual trolley or motorized trolley configurations.
Electric chain hoist for jib crane
Suitable for jib cranes, this electric chain hoist ensures smooth operation, safety, and long-lasting performance. Ideal for use with electric chain blocks in manufacturing or warehouse environments.
Electric chain hoist for portable gantry crane
This electric chain hoist is engineered for portable gantry cranes, combining compact design and high-strength lifting components. Supports both manual trolley and motorized trolley operations.
Customized manual trolley electric chain hoist, Cost-effective electric chain hoist price
To get your customized electric chain hoist with manual trolley, it is important to get the main parameters and specification of the manual trolley hoist you need, and the following information need to be confirmed.
Information needed to get specific manual trolley electric chain hoists price：
- Required capacity of manual trolley chain hoists: weight of the loads need to be lifting based on current and future needs.
- Lifting speed of manual trolley chain hoists: depending on production output needs.
- Lifting height of manual trolley chain hoists: highly confined by the building height.
- Power supply of manual trolley chain hoists: single phase or 3-phase
- Duty cycle of manual trolley chain hoists: how often the manual trolley hoist will be operating per day.
- Budget of manual trolley hoists: consider more than the chain hoist cost, but also the quality and the future maintenance.
Once the specifications of the manual trolley electric chain hoist are determined you can reach out to your trusted and reliable suppliers to buy manual trolley hoist with best value. We can offer help to confirm the specifications of manual trolley electric chain hoist your need. If you don't see a capacity or style needed please feel free to contact us. We'll be happy to provide you an electric chain hoist solution suitable to your requirements at cost-effective price. Send your inquiry of manual trolley electric chain hoists now.
Frequently Asked Questions on Manutal Trolley Electric Chain Hoist
Find answers to the most common concerns of crane buyers and operators about manual trolley electric chain hoists, including lifting capacity, safety, and customization.
1. What is a manual trolley electric chain hoist?
It's an economical hoist combining a light-duty electric chain hoist with a hand-operated trolley for vertical lifting in light-duty applications.
- Mounted on H-beams, I-beams, monorails, or small single girder cranes.
- Supports lifting capacities from 500 kg to 20 tons.
- Ideal where frequent vertical lifting is required but horizontal movement is minimal.
- Customizable for specific workshop or factory setups.
2. How do I choose the right lifting capacity?
Select the lifting capacity based on the heaviest load you plan to lift, considering future needs.
- Capacities range from 500 kg to 20 tons.
- Ensure compatibility with beam or monorail system and trolley type.
- Frequent small loads vs. occasional heavy loads affect capacity choice.
- Never overload; choose a capacity above expected maximum for safety.
3. What types of manual trolleys are available?
Plain and geared trolleys are available, suitable for different beam types and load positioning needs.
- Plain trolleys: simple horizontal movement along short spans.
- Geared trolleys: easier horizontal maneuvering for precise positioning.
- Made of high-strength alloy steel for safety and durability.
- Compact design allows easy installation and adjustment.
4. What safety features are included?
Modern hoists include limit switches, durable chains, reliable hooks, and optional pendant or wireless controls.
- Limit switches stop hoist at top/bottom positions.
- G80 oil-black chains, hardened and anti-rust.
- Forged hooks with safety latches and optional 360° rotation.
- Pendant or wireless remote controls improve safe operation.
5. Where are these hoists commonly used?
They are ideal for small cranes, monorails, workshops, and warehouses handling light-duty loads.
- Used for loading/unloading, equipment maintenance, or workshop assembly.
- Works on overhead H-beams, I-beams, and monorail rails.
- Compatible with portable gantry cranes, jib cranes, and KBK cranes.
- Compact design is perfect for tight or confined spaces.
6. How can I get a customized hoist?
Provide your load, lifting height, speed, power supply, and duty cycle to a reliable supplier for a cost-effective solution.
- Specify single-phase or three-phase power.
- Choose plain or geared trolley depending on workflow.
- Optional controls: pendant or wireless remote for safety.
- Suppliers can help confirm the best configuration for efficiency and safety.
