125kg, 250kg, 500kg KBK Jib Crane & Low Deadweight Jib Crane
Light jib crane, kbk crane design, low deadweight, easy position, to improve productivity & safety. Light, easy jib crane 125kg, 250kg, 500kg for sale.
| Crane Type | KBK jib crane or low-deadweight floor/wall-mounted jib crane; 125–500 kg capacity; lightweight jib with 180°/270°/360° rotation; electric chain hoist; ISO A3–A5 / FEM 1Am–3M duty class; 380/400/415V, 50Hz, 3Ph power supply for electric systems. |
| Crane Capacity | 125 kg, 250 kg, and 500 kg standard configurations; customized light-duty capacities available. |
| Span Length | Typically 1–4 m jib outreach with 180°–360° rotation, depending on the mounting and jib configuration. |
| Lifting Height | Typically 2–5 m; customized according to workstation height, building clearance, and lifting requirements. |
| Coverage Area Type | Circular or sector-shaped coverage within the jib radius; workstations, machine areas, assembly stations, production lines, maintenance points, workshops, and localized lifting zones. |
| Application | Light material handling, workstation lifting, machine loading and unloading, assembly, maintenance, production lines, electronics manufacturing, workshops, and localized lifting. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized 125 kg, 250 kg, or 500 kg capacity; KBK profile or lightweight I-beam jib; outreach, lift height, rotation, mounting, electric chain hoist, manual/electric trolley, controls, and lifting attachments. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Jib Crane
Tags: jibcrane,freestandingcrane,kbkcrane
Light KBK Jib Cranes Low Deadweight, Easy to Position
125kg, 250kg, 500kg, 750 kg kbk Jib Crane
Workstation Jib Cranes to Improve Productivity and Ergonomics
As one of the world's leading crane manufacturers of high-performance and dependable industrialcranes, overhead crane components, and drives, Cranes and Components to meet your material flow requirements and logistics needs. In particular, KBK pillar slewing jib crane , Portable kbk jib crane and wall-mounted slewing jibs from EOTCRANEKIT are extremely versatile and reliable. Since 1984, EOTCRANEKIT has been in the KBK modular crane industry, types of jib cranes will meet your application requirements precisely, quickly, and efficiently.

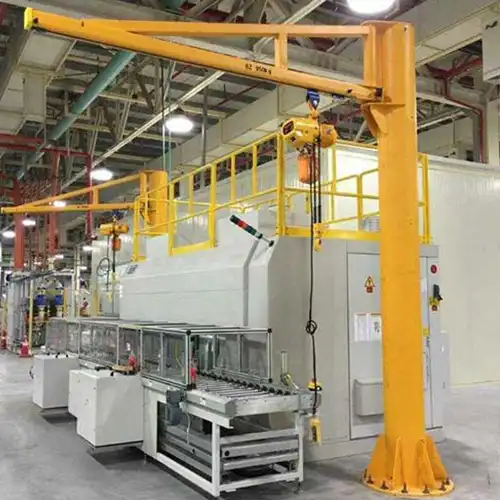

Free Standing kbk Jib Crane
A free standing KBK jib crane is a light-duty, modular lifting solution designed for flexible material handling. It uses a KBK (light crane system) track as the jib arm, allowing smooth and quiet movement. Mounted on a floor column, it provides 180°–270° rotation, ideal for workstation use, assembly lines, and small-area lifting. Its compact design makes it easy to install without modifying building structures.
Main Specifications of KBK jib crane with Pillar jib crane design
- Capacity of free standing kbk jib crane : 125kg, 250kg, 500kg, 750kg,
- Cantilever beam profile: I-beam, KBK track
- Operating mode: electric , manual , hand chain
- Rotation mode of free standing kbk jib crane : electric , manual
- Rotation radius of free standing kbk jib crane (m):2, 3, 4, 5, 6, 7
- Lifting height of free standing kbk jib crane (m):2, 3, 4, 5
- Total height of free standing kbk jib crane (m):4, 5, 6, 7
- Rotation angleof free standing kbk jib crane (A°): 270
Applications of Free Standing KBK Jib Crane
- Workstation Handling – Perfect for lifting and positioning light loads (up to 1 ton) right where they're needed, reducing manual effort.
- Precision Assembly – Smooth and quiet KBK track allows accurate placement of components in electronics, automotive, or small machinery assembly.
- Machine Loading/Unloading – Ideal for feeding CNC machines, presses, and other production equipment with minimal floor obstruction.
- Packaging & Palletizing – Moves boxes, bags, or containers efficiently in shipping and packing areas.
- Maintenance Support – Helps remove motors, gearboxes, and other parts for service without requiring large overhead cranes.
- Lean Production Layouts – Easy to install in work cells, supports flexible, space-saving production lines.
- Ergonomic Workplaces – Reduces strain on operators by allowing fingertip control and smooth load movement.
Light duty pillar jib crane with electric chain hoist - Pillar mounted jib hoist crane with kbk cantilever design
Portable kbk Jib Crane
portable kbk jib cranes is a new series of jib cranes with self-supportive jib design, mounted on wheels and rollers for wide material handling with maneuverability and wide adaptability.
Main Specificaitons of KBK jib crane with portable jib crane design
- Jib crane types: portable kbk jib cranes on wheels, equipped with manual hoist or electric hoists
- Rated load of portable jib kbk crane : 0.08t, 0.125, 0.25t, 0.5t, 1 ton
- Lifting height of portable kbk jib crane : 1.5m, 2m, 3m
- Turning radius of portable kbk jib crane : 2m, 3m
- Rotation angle of portable kbk jib crane : 360°
- Rotary way of portable kbk jib crane : electric or manual
- Lifting speed of portable kbk jib crane : 8m/min or 8/0.8m/min
Features of portable kbk jib crane
The small and light duty movable kbk jib crane on wheels or rolling rollers is a small and light duty movable jib crane with small and medium-speed lifting equipment, with unique jib structure design, safe and reliable operation, time and energy savings, high efficiency and flexibility, and cost-effectiveness.
Applications of portable kbk jib cranes
The kbk cantilever jib crane is widely used for various workstation applications in outdoor and indoor environments, a perfect choice for short distance and concentrated load handling, and a good alternative overhead cranes for automatic production lines with high efficiency, and other application conditions, etc.
KBK Wall Mounted Jib Crane 125kg,250kg,500kg
Wall-mounted cantilever cranes are widely used in different places in various industries. They have the characteristics of simple structure, safety and reliability, and energy saving. They can be flexibly operated in the designed working space according to local conditions.There are many specifications of the cantilever crane series - the lifting capacity of the column-type cantilever crane can range from 100Kg to 2000Kg, which is widely used in material handling on the workpiece post, especially in the working area with small space, which can greatly shorten the workpiece handling time and effectively Improve work efficiency.
Main Specifications of KBK jib crane with wall mounted jib crane design
- Lifting weight of wall mounted kbk jib crane (Kg): 125, 250, 500,
- Rotation mode of wall mounted kbk jib crane: electric, manual
- Rotation radius of wall mounted kbk jib crane ( m): 3, 4
- Lifting height of wall mounted kbk jib crane ( m): 2, 2.5, 3
- Total height of wall mounted kbk jib crane (m): 3, 4
- Rotation angle of wall mounted kbk jib crane ( °): 270, 180
How Jib Cranes Can Be Utilized in Your Workspace
Manual material handling or moving relatively light items is frequently dangerous, time-consuming, and a strain on employees' ergonomics. EOTCRANEKIT slewing jib cranes, in combination with a wide range of hoist units, enable cargo to be hoisted and carried rapidly and effortlessly, as well as deposited gently and precisely. As a result, safety and efficiency are improved.
Consider the following features of KBK pillar- and wall-mounted slewing jibs:
- Light and quick load handling
- Ease of use, as well as a high level of operational safety and reliability
- Load capacity of up to 5 tonne
- Installation is simple thanks to the system's provided fittings.
Benefits of KBK jib crane
Exact Control
- Jib lengths and load capacities that are finely graded for exactly implementing specified specifications
- Slewing range limit stops for precise operating radius adjustment
Great adaptability
- A large array of hoist units is available.
- Control in order to achieve certain requirements
- A wide range of applications is available.
Additional Features
- Complete electrical equipment is included in the delivery.
- Crane weather protection components for outdoor cranes
