Telescoping gantry crane of 500kg -10 ton, telescopic height & width for light duty hoisting. Steel telescoping gantry & steel gantry crane for sale. Telescoping gantry cranes with telescoping gantry design & portable gantry design , your most flexible & cost-effective small gantry crane solutions for light duty material handling,etc.

According to differenr standards, the steel telescoping gantry crane can be grouped into different types.

• In terms of the ways of crane telescoping , the telescoping gantry crane can be grouped into height telescopic gantry crane and 3 way steel telescoping gantry crane.
• In terms of gantry power, it can be grouped into manual telescoping crane and motorized steel telescoping gantry crane, and
• In terms of raw materials of gantry, it can be grouped in telescoping steel gantry crane and aluminium gantry crane, etc

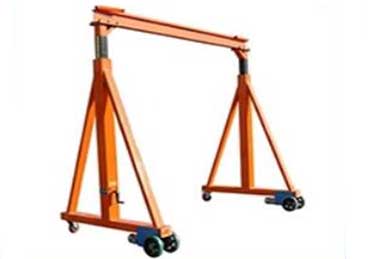

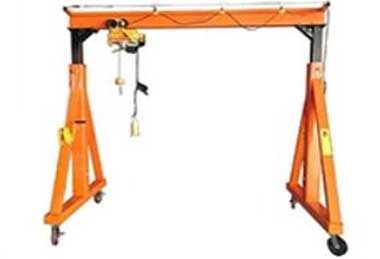

Height adjustable telescoping gantry crane with manual movable gantry crane design

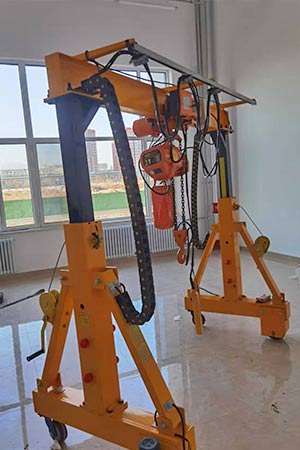

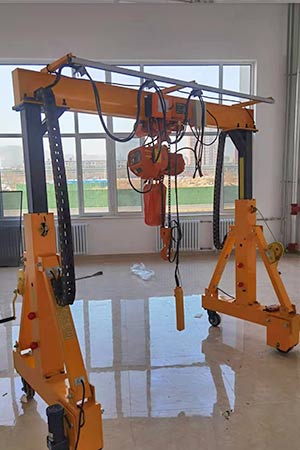

Height adjustable telescoping gantry crane with motor powered movable gantry crane design

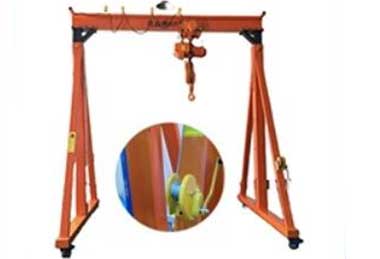

Height steel telescoping gantry crane with winch

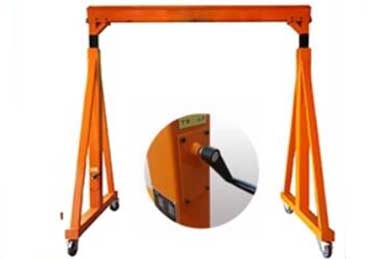

Height adjustable telescoping gantry crane with worn gear

Parameters of small steel telescoping gantry crane

• Types of small steel telescoping gantry crane:Height steel telescoping gantry cranes
• Lifting capacity of steel telescoping gantry crane : 0.5 ton ~ 5 ton,
• Span length of steel telescoping gantry crane: 3~ 9 m
• Lifting height of steel telescoping gantry crane: 2.6-3.8 m
• Working class of steel telescoping gantry crane: A2
• Motion type: Hand push type universal castor with brake device
• Height range instruction: According to the actual use requirements to increase the lifting height and height of the body
• Custom designed telescoping gantry are available.

Based on your application conditions and your requirements, steel telescoping gantry cranes can be processed and provided. Please contact us to get your customized small steel telescoping gantry crane at lower crane costs.

Height adjustable steel telescoping gantry cranes

Telescoping gantry cranes are a type of small movable gantry cranes with height telescoping gantry designs,, providing the most flexible gantry crane solutions for light material handling. The telescopic heightgantry cranes can be easily relocated to any place and adjusted to provide different lifting heights.The small steel telescoping gantry crane can be moved easily, disassembled and installed quickly, with small ground covering space.

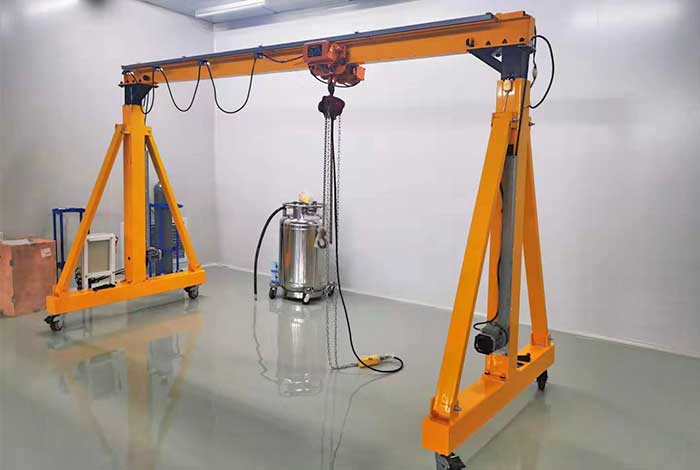

Telescoping gantry crane for lab use with low and telescoptic height design

Telescoping gantry crane for lab use with low and telescoptic height design

Main parameters of height steel telescoping gantry crane

Telescoping gantry cranes are a type of small movable gantry cranes with height telescoping gantry designs, providing the most flexible gantry crane solutions for light material handling. The main parameters of the steel telescoping gantry crane are presented for your reference to get your ideal custom small gantry crane. Contact us to get more information on the hegith steel telescoping gantry cranes.

Parameters of small steel telescoping gantry crane

• Types of small steel telescoping gantry crane:Height steel telescoping gantry cranes
• Lifting capacity of steel telescoping gantry crane : 0.5 ton ~ 5 ton,
• Span length of steel telescoping gantry crane: 3~ 9 m
• Lifting height of steel telescoping gantry crane: 2.6-3.8 m
• Working class of steel telescoping gantry crane: A2
• Motion type: Hand push type universal castor with brake device
• Height range instruction: According to the actual use requirements to increase the lifting height and height of the body
• Custom designed telescoping gantry are available.

Features of telescopic height gantry crane

• Light weight, stable gantry crane structure design, high safety.
• With moisture and corrosion protection , telescoping gantry offers a long working life.
• Explosion proof design are available for steel telescoping gantry crane.
• Height and Span length of steel gantry cranes can be telescoping.
• Span and lifting height of telescoping steel gantry cranes can be customized size.
• Detachable steel tube design make the assembly and dismantle of the steel movable gantry crane easy.
• Height telescoping of small gantry crane can be achieved by hand winch or by turbine according to request.

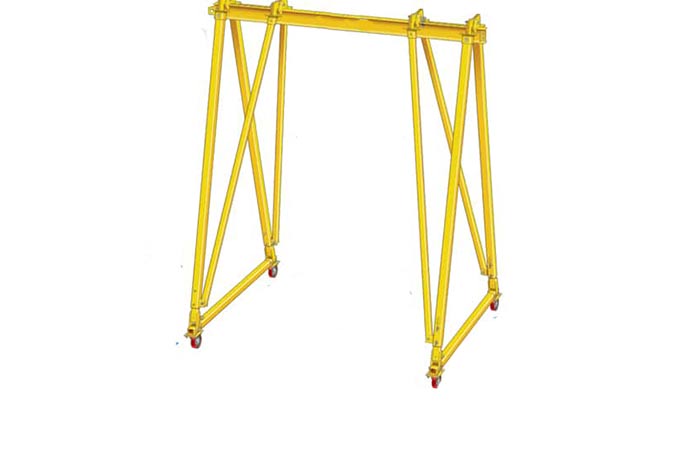

3-way telescoping gantry crane

The 3 way steel telescoping gantry crane is extremely flexible in configuration and use, which can be adjusted in three direction such as , the height telescoping , span telescoping and tread telescoping . The small steel telescoping gantry cranes is designed with capacity of 10 tons of capacity and with a truly stable A-frame gantry design. The small steel telescoping gantry crane can be assembled in either full beam or cantilever configuration.

Features of 3 way adjustale telescoping gantry crane

• A truly stable A-frame small gantry crane structure
• Capacities of the steel telescoping gantry crane is up to 10 tons
• Special locking system holds the span of the small gantry crane in place
• I-Beam self-centers over load on uneven surfaces
• Mold-on polyurethane swivel casters of the telescoping small gantry cranes have four -position locks for secure placement
• With span in cantilever position, load can be guided off end of span onto other lift conveyances

Advantages of 3 way telescoping small gantry crane

Three-way telescoping small gantry cranes are capable of multiple functions because of their stability and adjustability. Due to the stability and adjustability, the three way telescoping small gantry cranes are multifunctional.

• With a three-way telescoping crane design, the small gantry cranes can be adjusted in terms of crane span, height, and tread to fit different applications and requirements.
• The small three-way steel telescoping gantry crane is usually designed as a portable A-frame gantry crane, which enable the small gantry crane capable of handling loads from site to site in and out of your workshops.
• The small steel telescoping gantry cranes can be disassembled easily and quickly for transport by trucks, making them useful in a wide applications.
• Due to the special design, the portable gantry crane provide high stability because the I-beam is free to pivot as it self-centers over the load. With high flexibility and control, the small steel telescoping gantry crane can be used on uneven floors, aisles, and under other overhead obstacles.

How to adjust the steel telescoping gantry cranes

Height adjustable telescopic gantry crane with steel gantry design

Span adjustable telescoping ganty crane with steel gantry design

Tread adjustable telescoping gantry crane with steel gantry design

• Height adjustable telescoping gantry crane by adjusting the telescoping leg support frames. Usually spring lock steel pins of the gantry frame are removed, the leg frame height can be raised or lowered and then the steel pins will be reinserted at the new height. The height steel telescoping gantry crane is very useful during operation when there are overhead obstructions that must be cleared .
• Span adjustable telescoping gantry crane which refers to the change of the clear span distance on the beam when the traffic access in a facility is narrow, but overhead clearances are wide open. Under the provided conditions, the leg frames of small gantry crane can be moved closer together on the I-beam to narrow down the clear span to pass through the facility.
• Tread adjustable telescoping gantry crane is required when both traffic access and overhead space is narrow. Tread width is the space between wheels on one leg frame, which determines how much space is needed to move the small gantry crane lengthwise through a facility while maintaining the full span length.

Application of steel telescoping gantry crane

Telescoping Gantry Crane is designed and manufactured for the small and the medium and factory or plant to meet the material handling needs in daily production . The small steel telescoping gantry cranes can be used in various applications such as assembly workshop,machining workshop, the mold manufacturing & installing workshops, automobile factories,research laboratory, general manufacturing, small freight station, warehouse, garage, maintenance station, repair shops and other occasions where lifting is required on infrequent base. .

Height telescoping gantry crane with steel gantry and motor driven

Height telescoping gantry crane with steel gantry and manual driven

Height adjustable telescoping gantry crane with steel gantry and manual hoist

Why select our telescopic height gantry crane

• Ease of Assembly - All components of the steel telescoping gantry cranes are designed and produced with the features of easy assembly and installation.
• Ease of Operation - The steel telescoping gantry cranes were engineered to be easy to operate to ensure the safety of operation and to increase productivity.
• Versatility- Complete set of overhead travelling crane systems are designed and provided to to meet your particular needs. The small steel gantry cranes with telescoping and portable gantry design offers the most flexible and versatile crane lifting solution.. The steel telescoping gantry cranes can be moved to almost any location and can be easily adjusted to offer lifting height of different sizes.
• Safety -All of our gantry cranes are pre-engineered for powered hoisting operation—with a factor of 15% of the gantry capacity for the combined weight of the hoist & trolley and an additional factor of 25% of the gantry crane capacity for the impact of powered hoists.
