5 Ton Semi-Gantry Cranes – Space-Saving Lifting Solution

Compact and practical, 5-ton semi-gantry cranes handle medium loads efficiently while saving floor space in workshops and industrial yards. Check more on low built gantry crane to save your space!

Introduction

Semi-gantry cranes are a practical lifting solution designed to save space while handling medium-weight loads efficiently. Unlike full gantry cranes that require runway beams on both sides, semi-gantry cranes use one fixed support and one movable leg, which allows them to operate in tighter workshops or yards where space is limited. They are particularly suited for facilities that need overhead lifting without compromising floor space.

In small to medium-sized industrial settings, space is often a premium. Workflows, storage areas, and equipment layouts need to coexist without crowding. Semi-gantry cranes offer a solution that keeps lifting operations efficient while leaving more room for people, machines, and material storage. This makes them especially appealing for workshops that handle steel fabrication, machinery maintenance, or assembly tasks.

For a semi-gantry crane, typical uses include:

• Workshop material handling: Lifting and moving steel plates, rods, or machinery parts within limited spaces.
• Assembly lines: Supporting production workflows where partial overhead lifting is needed without a full gantry setup.
• Maintenance tasks: Positioning heavy equipment or parts safely during repairs or installation.
• Small storage yards: Loading and unloading raw materials, semi-finished products, or containers where a full crane isn't practical.

Overall, semi-gantry cranes combine compact design with reliable lifting performance. They are practical, cost-effective, and fit naturally into spaces where traditional full gantry cranes would be overkill.

What is a 5 Ton Semi-Gantry Crane?

A 5-ton semi-gantry crane is a type of overhead lifting equipment designed to handle medium loads—up to five tons—while using less floor and structural space than a full gantry crane. It features one leg running on the ground or a runway beam and another side supported by a wall, column, or fixed beam. This combination allows the crane to move horizontally along the runway while lifting and transporting materials safely and efficiently.

single girder 5 ton semi gantry crane for indoor use

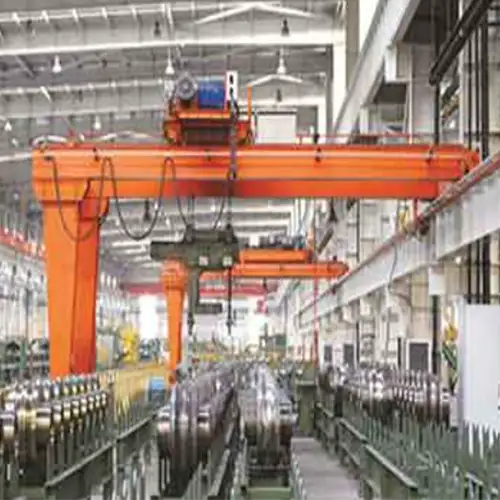

double girder 5 ton semi gantry crane indoor use

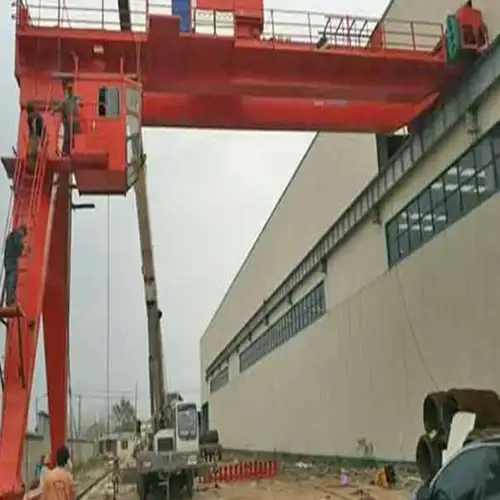

outdoor semi gantry crane 5 ton

Key Features:

• Lifting capacity up to 5 tons.
• Single fixed support side, reducing structural requirements.
• Movable side with wheels or rails for horizontal travel.
• Compact design suitable for workshops, storage yards, and industrial spaces with limited room.
• Electric hoist and trolley system for smooth lifting operations.

Difference Between Semi-Gantry and Full Gantry Cranes:

• Support structure: Full gantry cranes have two legs running on rails on either side of the workspace; semi-gantry cranes use only one leg on the ground.
• Space requirement: Semi-gantry cranes occupy less floor space and are easier to fit into narrow workshops.
• Installation cost: Semi-gantry cranes typically require fewer materials and lower installation costs.
• Mobility: Full gantry cranes cover wider areas, while semi-gantry cranes focus on smaller or confined workspaces.

Advantages of Semi-Gantry Design:

• Space-saving: Ideal for workshops and small yards where a full gantry crane cannot fit.
• Cost-effective: Reduced structural requirements lower both upfront and long-term expenses.
• Flexibility: Can be installed on one side along walls or columns, making it adaptable to existing layouts.
• Safety and efficiency: Lifts medium-weight loads with stable operation while keeping the workspace open for other activities.

In short, a 5-ton semi-gantry crane delivers reliable lifting power while keeping your workshop organized and accessible. It's a practical choice for companies that want efficiency without sacrificing valuable floor space.

Space-Saving Benefits

One of the biggest advantages of a 5-ton semi-gantry crane is its ability to save space without compromising lifting performance. Unlike full gantry cranes, which need two legs running along both sides of a workspace, a semi-gantry crane only requires support on one side. This significantly reduces its footprint, making it a great option for workshops, production lines, and storage areas where every square meter counts.

Reduced Footprint Compared to Full Gantry Cranes

• Takes up less floor space, leaving room for other equipment or storage.
• Minimal structural support needed on one side reduces installation complexity.
• Easier to integrate into existing workshops without major renovations or additional support beams.

Ideal for Narrow or Restricted Workshop Areas

• Perfect for narrow aisles or areas where a full crane would block access.
• Can operate safely in limited spaces, such as smaller factories, maintenance areas, or urban industrial yards.
• Reduces congestion while maintaining the ability to lift and move medium-weight materials efficiently.

Flexibility in Layout and Installation

• Can be mounted alongside walls, columns, or existing structures, adapting to available space.
• Adjustable spans and lifting heights allow for custom setups depending on workflow needs.
• Easier to relocate or modify within the facility compared to full gantry cranes.

In short, semi-gantry cranes provide a practical solution for workshops and small yards. They keep your workspace open, improve workflow efficiency, and allow lifting operations to happen without getting in the way of other tasks.

Applications and Industries

A 5-ton semi-gantry crane is versatile and well-suited for a variety of industrial environments. Its compact design and moderate lifting capacity make it ideal for operations where space is limited but reliable overhead lifting is still required.

Small to Medium-Sized Manufacturing Workshops

• Perfect for workshops that produce metal parts, machinery components, or fabricated structures.
• Can handle materials like steel plates, aluminum sheets, or machinery molds efficiently.
• Keeps the floor space open for other operations, storage, or movement of workers and equipment.

Assembly Lines and Maintenance Areas

• Supports production workflows by transporting parts between stations.
• Useful in maintenance shops for lifting engines, equipment, or machinery during repairs or installations.
• Reduces manual labor and speeds up operations, keeping production lines running smoothly.

Material Handling in Steel, Machinery, or Plastic Industries

• In steel workshops, it can move steel plates, rods, or coils safely within tight spaces.
• In machinery factories, it assists with lifting heavy components during assembly or testing.
• In plastic or injection molding facilities, it can handle molds or raw material containers efficiently.
• Provides consistent lifting performance without requiring a full gantry crane footprint.

Overall, a 5-ton semi-gantry crane fits naturally into small to medium industrial settings. It balances lifting capability with space efficiency, making it a practical tool for workshops, assembly lines, and industrial yards that handle medium-weight materials daily.

Installation Considerations

Installing a 5-ton semi-gantry crane requires careful planning to ensure safety, efficiency, and long-term reliability. While these cranes are more compact than full gantry models, proper preparation is still critical.

Site Requirements: Floor Space, Runway Beam, and Power Supply

• Floor space: Ensure the area can accommodate the crane's footprint, including the movable leg and the path of the trolley.
• Runway beam: One side of the crane usually travels along a rail or beam; check that the structure can handle the crane's weight and load.
• Power supply: Confirm voltage compatibility, distance to power sources, and the type of electrical connection required. Poor power planning can limit crane performance or cause frequent downtime.

Ease of Installation and Maintenance

• Semi-gantry cranes are easier to install than full gantry cranes due to fewer structural supports.
• Modular designs allow partial assembly on-site, reducing installation time and labor costs.
• Regular maintenance is straightforward: inspect the hoist, trolley, wheels, and runway for wear, and lubricate moving parts as needed.
• Easy access to components ensures downtime is minimal and operational efficiency stays high.

Safety Considerations and Compliance

• Confirm that the installation meets local safety regulations and industrial standards.
• Check load limits, emergency stop functions, and safety switches before use.
• Train operators to use the crane safely, especially in tight or high-traffic areas.
• Regular inspections and proper operator training prevent accidents and extend the crane's lifespan.

Proper installation planning not only ensures smooth operations but also protects personnel and equipment. Paying attention to these considerations will help buyers get the most out of their 5-ton semi-gantry crane, both in safety and productivity.

Cost and ROI

When choosing a 5-ton semi-gantry crane, understanding the costs and potential return on investment (ROI) is crucial. While initial price is important, long-term operational efficiency and maintenance requirements also play a big role.

Comparison with Full Gantry Cranes

• Semi-gantry cranes usually cost less upfront due to fewer structural supports and simpler installation.
• Require less floor preparation, reducing construction expenses.
• Full gantry cranes cover larger areas but come with higher material and installation costs.

Long-Term Operational and Maintenance Benefits

• Reduced footprint and simpler design make maintenance easier and faster.
• Fewer structural components mean fewer potential points of failure.
• Energy-efficient hoists and trolley systems can lower electricity costs over time.

Practical Tips for Maximizing Investment

• Choose a crane that fits your current and anticipated load requirements—don't overbuy.
• Schedule regular maintenance to prevent expensive repairs.
• Consider modular or adjustable designs to accommodate future workflow changes.
• Confirm warranty terms and availability of spare parts.

A well-selected semi-gantry crane can save both space and money while improving workplace efficiency.

Buyer's Checklist

Before purchasing a 5-ton semi-gantry crane, it's important to review key factors and ask the right questions to ensure you get a crane that fits your operations safely and efficiently.

Key Factors Before Ordering

• Span: Ensure the crane's reach covers your operational area without obstruction.
• Height: Confirm lifting height is sufficient for your workflow and storage needs.
• Duty cycle: Check if the crane's rated usage matches your operational frequency.
• Floor load: Verify that the facility floor or runway can support the crane and its maximum load.

Questions to Ask the Manufacturer

• What type of hoist and trolley system is included?
• Can the crane be customized for my workshop layout?
• Are spare parts readily available, and what is the lead time?
• Does the crane meet local safety standards and certifications?

Customization Options

• Adjustable span or lifting height for future needs.
• Optional weatherproofing or protective covers for outdoor operations.
• Specialized hoists for handling unique materials like coils, molds, or bulk items.
• Integration with existing workflows or automation systems if required.

Conclusion

A 5-ton semi-gantry crane offers a practical and efficient solution for lifting in spaces where a full gantry crane would be too large or cumbersome. Its compact design saves floor space, while still providing reliable lifting capacity for medium-weight loads. By combining a reduced footprint with flexible installation options, these cranes help maintain smooth workflows in workshops, assembly lines, and industrial yards.

Key Benefits Recap:

• Space-saving: Ideal for narrow or restricted areas, leaving room for other operations.
• Operational efficiency: Smooth hoist and trolley movement ensures precise handling and faster material transport.
• Cost-effective: Lower installation and maintenance costs compared to full gantry cranes, with long-term reliability.

For workshops or facilities with limited space, or where operational flexibility is important, a 5-ton semi-gantry crane is often the most practical choice. It balances lifting performance, safety, and efficiency, making it a smart investment for industrial operations that want dependable overhead lifting without taking up too much room.
