Electromagnetic Crane for Steel Round Bar Lifting
 Electromagnetic Overhead Crane for Sale

Overhead crane for steel round bar handling with electromagnet. 10 ton & 12 ton electromagnetic overhead crane for sale. Check steel round bar handling overhead crane design.

 overhead electromagnetic crane for steel round bars handling

Steel Round Bar Handle Crane

How to lift steel round bar safely and quickly, and efficiently? As a professional material handling crane manufacturer, we provided types of cranes for steel round bar handling. In the following, we  will show you how magnetic lift can help you achieve that.

Gantry crane with electromagnet for round bars and rods handling

Electromagnetic gantry crane is designed based on double girder gantry crane.  They are also can be used for indoor & outdoor steel round bar handling.

Double girder gantry cranes are classified into three types as common lifting equipment: light, medium, and heavy cranes. The lifting weight ranges from 5 to 500 tons, and the span ranges from 18 to 50 meters. We can also tailor the double girder gantry crane to your specific requirements.

Overhead crane with electromagnet for round bars and rods handling

Electromagnetic Overhead crane is developed based on the double gireder overhead crane design.  The fuselage has a detachable electromagnetic chuck and a configured operating system to control the electromagnetic chuck's transportation and lifting of metal objects. It is appropriate for indoor or outdoor operation, crossing, loading and unloading, or transporting permeability metal products and materials such as steel ingots, structural steel, iron, scrap iron, scrap steel, and other materials.

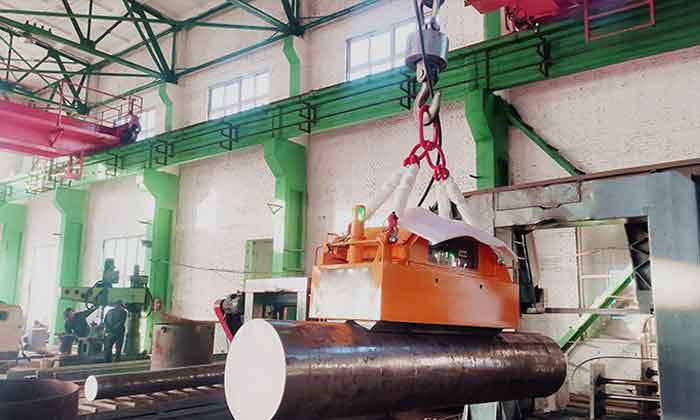

Magnetic overhead crane for indoor steel bar handling

Trial lift of steel bars and rods of varying diameters and weights. The intended application was to load and unload bars and rods for truck.

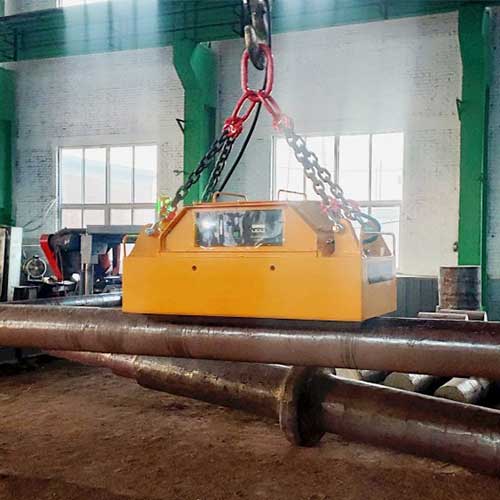

overhead crane with magnetic lifter for handling steel rod

Specifications of the steel bars and rods to be lifted:

• Length: 2000mm-8000mm;
• Diameter:φ300mm -φ500mm
• Maximum weight: 12 ton

Lifting magnet manufacturer's solution:

Specifically designed and manufactured electrically switched permanent magnetic lifter, with remote control.

Features of These  Above Mentioned Lift Magnets:

• Magnetic gripping surface with a groove in the center, specifically designed to fit the protruded surface of the rod.
• One operator can manage the entire lifting process when it is remote controlled.
• During the lift, no power is consumed; electricity is only used during the magnetization and demagnetization phases.
• Even if the power goes out, you can keep hold of the heavy round bar.

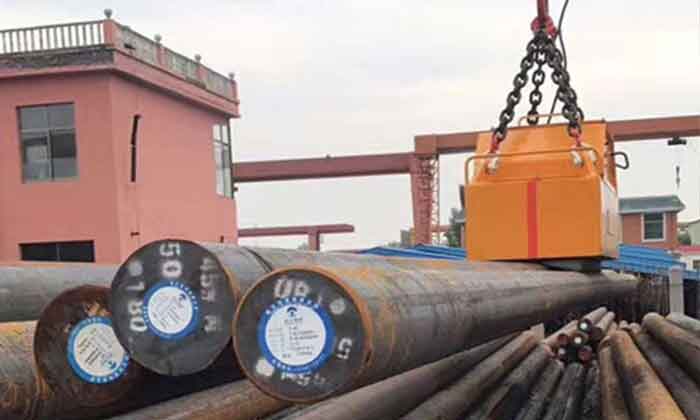

Gantry crane with electromagnet for steel round bar for outdoor application

The electromagnet gantry crane will be used in logistic company for handling outdoor round bar stocks.

Electromagnetic gantry crane for steel round bars handling

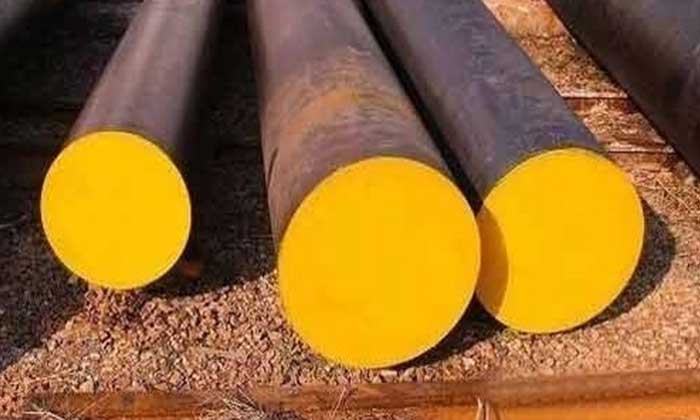

Steel round bar specifications:

• Diameter: φ100-550mm
• Maximum weight: 10 ton

Handling requirement:

• Loading & unloading 1 bar for cutting machine
• Loading & unloading 2-3 bars for truck

Lifting magnet overhead crane manufacturer's solution:

Customized electromagnet gantry crane with remote controlled lift magnet, which can lift 2-3 bars one time depending on the diameter of bars.

Custom electromagnet overhead crane for various types of steel handling

In addition to steel round bars and rods, our overhead electromagnet crane is ideal for steel tubes, pipes, profiles, plates, slabs, billets, and other ferrous steel materials weighing 500kg to 40 tons.

We recommend magnetic lifting beams for long and heavy materials such as steel plates, profiles, tubes, and so on.Battery powered lifting magnets are an excellent choice for handling work where power is inconvenient or unavailable.Contact us with your requirements; we can tailor magnetic lifting solutions  and steel mill cranes to maximize your handling efficiency.
