Mobile Gantry Crane 0.5 Ton, Low Headroom Mobile Overhead Crane
500kg mobile gantry crane for space limited workshop. Customized low headroom mobile overhead crane for sale Saudi Arabia, Small crane, economical price.
| Crane Type | 500 kg Mobile Overhead / Gantry Crane System with Steel Frame, Manual or Motorized Wheels, Electric Chain Hoist / Wire Rope Hoist, Radio Remote Control, Working Class A3, 380V, 60Hz, 3Ph, Yellow, Customized for Compact Indoor Material Handling. |
| Crane Capacity | 500 kg |
| Span Length | 3 m Inner Width, 3.5 m Total Width |
| Lifting Height | 1.74 m Lifting Height, 2 m Overall Height, |
| Application | Suitable for light-duty material handling in workshops, warehouses, maintenance areas, assembly stations, and other locations requiring a compact mobile lifting solution. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Fixed/adjustable height, steel/aluminum frame, manual/motorized wheels, chain/wire rope hoist, pendant/remote control, and indoor/outdoor configurations. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Mobile Gantry Crane For Sale
Tags: lowheadroomcrane
Your Trusted Overhead Crane Manufacturer & Supplier
Mobile Gantry Crane 0.5 Ton for Sale Saudi Arabia
115mm Low Headroom Mobile Overhead Crane for Limited Space Workshop
500kg mobile gantry crane for space limited workshop. Custom 115mm low headroom mobile overhead crane for sale Saudi Arabia, Small crane, economical price.
Overview of 500kg mobile overhead crane for Saudi Arabia
- Crane Type：500kg mobile ovehread crane
- Date of Placing Oder：2021.01.29
- Date of Delivery ：2021.02.28
- Way of Transportation： Truck
- Way of Payment：30% Prepayment
- Destination country： Saudi Arabia
- Destination port：FOB, Shanghai Port
500kg mobile overhead crane main specifications & general requirements
Crane type | Mobile overhead crane and gantry crane |
Working Class | A3 |
Capacity | 500kg |
Span length (m) | 3m innder width, 3.5m total width |
Lifting Height（M） | 1.74 m lifting height, and totatl height 2 m |
Crane control | Remote control |
Voltage | 380v,60hz,3p |
Color | Yellow |
Quantity | 1 |
Customized features of 500kg mobile overhead crane for sale Saudi Arabia

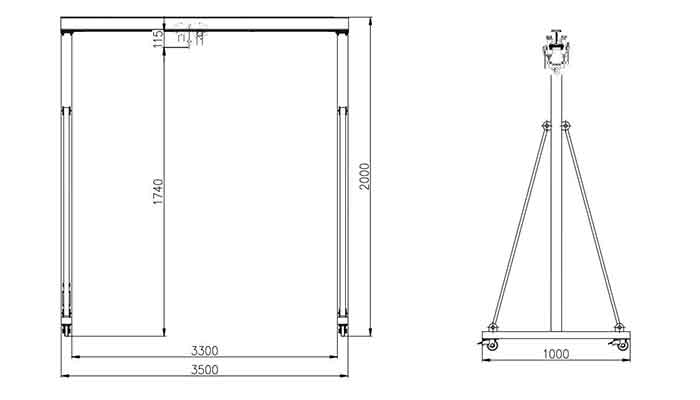

- The mobile overhead crane system is designed with manual travelling and lifting. The design drawing of the small mobile gantry crane is shown in the figure below.

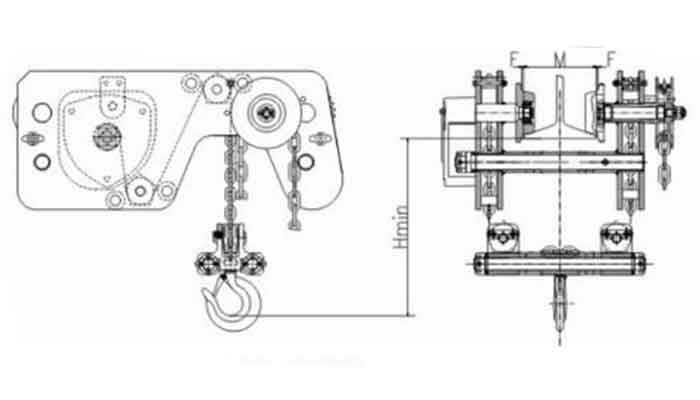

- The gantry hoist is an ultra-low headroom chain hoist with a headroom height of 115mm. See the gantry hoist drawing below.
- The wheels of the 0.5 ton small mobile gantry crane are universal wheels, and the length of the ground beam is 1 meter, which enables the turning in possible at the limited space at the customer's site.

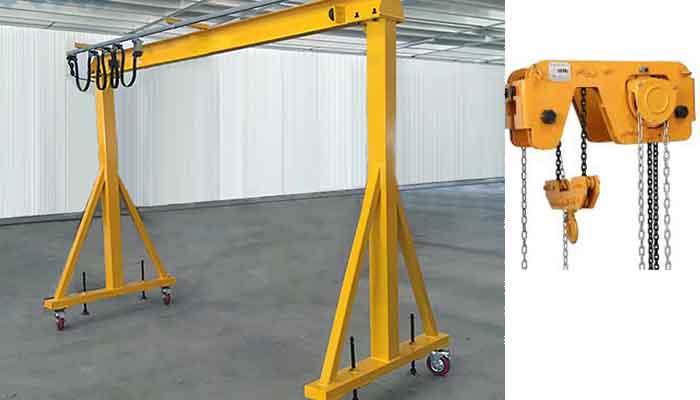

Mobile overhead gantry overhead crane
Capacity:500kg
Width:3m inner width, 3.5m total width
Height: 1.74 m lifting height, and total height 2 m
Crane control:Remote control
Voltage: 380v,60hz,3p
Supper low gantry hoist parameters
Model: SHB010
Loading capacity: 1 ton
Hoist height: 2.5
Length of lifting chain: 2.5m
Width of hoist rail: 7.5.100.125mm
Diameters of the chain and chain fall: 5.0mm*2
Weight: 52kg
Headroom height: 115mm
Gallary of 500kg mobile overhead gantry crane manufacturing for sale Saudi Arabia

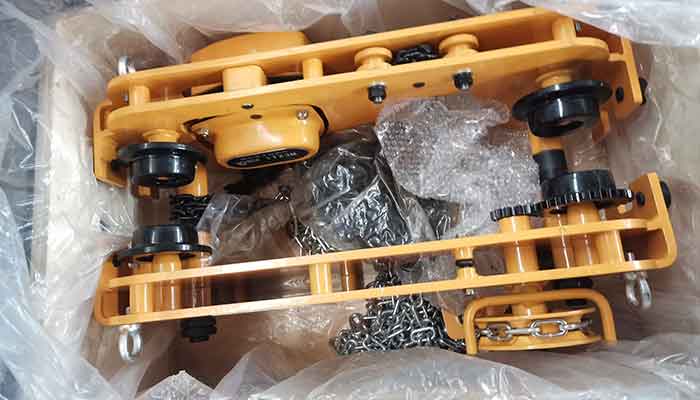

Supper low headroom manual chain hoist for sale Saudi Arabia

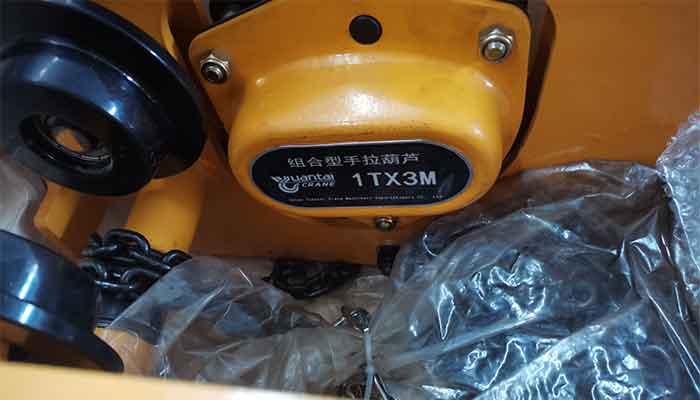

Manual chain hoist for mobile overhead crane for sale Saudi Arabia

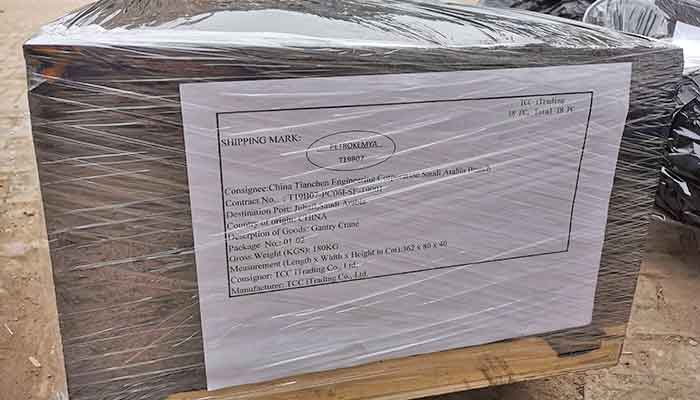

Gantry hoist packed for delivery to Saudi Arabia

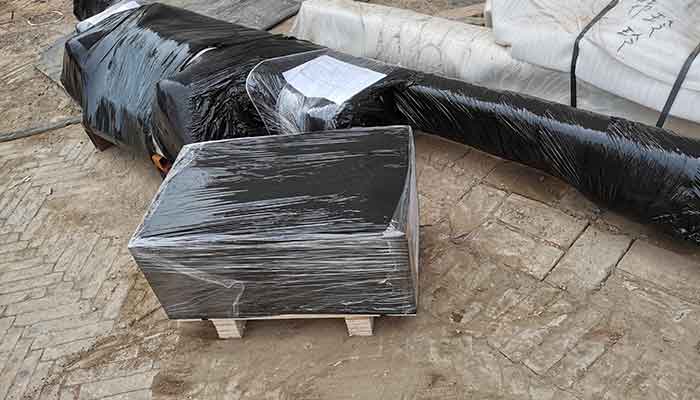

Main steel frame structure and parts of mobile overhead gantry crane for delivery to Saudi Arabia
