Workshop Jib Crane & Electric Jib Crane for Your Workshops
Custom Worhsop Cranes for Sale, Small & Most Economical Electric Jib Cranes

Electric jib cranes & workshop jib cranes for sale good price. Types of electric jib cranes, floor jib, wall jib, fixed jib & portable jib crane for different workshops.

Jib cranes are one of the most versatile and reliable workshop cranes in our portfolio, designed to minimize the effort and inconvenience of lifting and loading heavy objects in confined spaces. Electric Jib cranes are highly adaptable and can be used in almost any industry or shop where something too heavy to lift needs to be handled easily. Workshop jib cranes for sale can be used for a wide range of lifting applications. Whether you need to transfer materials to a conveyor or lift goods stored in a difficult-to-reach location, an electric Jib crane will meet all of your lifting requirements with maximum efficiency and reliability.

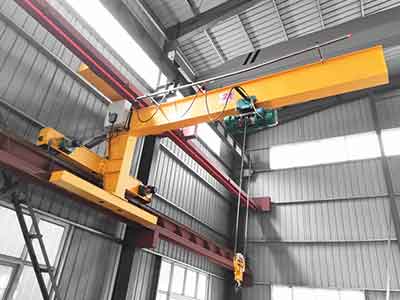

Wall-Mounted Jib Cranes-Fixed Jib Cranes for Workshops

Wall-mounted workshop jib cranes are ideal for applications with limited floor space. Electric Jib cranes, as the name implies, are mounted on the walls or building columns and thus do not require any floor space. These space-saving jib cranes are available in three different variants: manual, hand geared, or motorized rotation.

Wall Bracket Workshop Jib Cranes —If you need a heavy-duty but cost-effective lifting solution, wall bracket electric jib cranes are the way to go. All you need is a workshop with adequate structural support for the jib. These Wall Bracket workshop Jib Cranes not only make installation easier, but they also provide more functionality in terms of lifting capacity, rotation, and safety.

Wall Mounted Cantilever Designed Workshop Jib Cranes — Wall Cantilever Electric Jib Cranes are perfect for workplaces with low ceilings because they may be mounted very close to the lowest ceiling obstruction by effectively utilizing the unused vertical space. They can be used underneath your current overhead crane arrangement and are especially helpful for moving and lifting goods and objects in crowded work locations due to their distinctive form.

Floor Mounted Jib Cranes-Fixed jib crane for 360 degree rotating in workshops

Workshopjib cranes of this kind are built with floor mounting in mind. These workshop cranes can rotate 360 degrees and come in any lifting capacity, height, and span, making them appropriate for a wide range of lifting operations. These electric jib cranes can accommodate multiple workstations and workshops when placed in open spaces and using a greater span.

Wall Travelling Jib Cranes- Electric Travelling Jib Crane for Linked Workshops

The wall travelling jib cranes for sale can increase your workshop's efficiency without taking up valuable floor space or getting in the way of other equipment. They are suitable for transporting goods laterally through an assembly line. These custom-engineered workshop jib cranes might prove to be a cost-effective solution for a range of lifting applications because they are made to match your unique needs.

Portable Jib Cranesfor flexiblematerial handling in workshops

Portable Jib cranes that are movable can be moved from one location to another and can be used both inside and outside, as their name suggests. These types of workshop jib cranes, which are self-supporting and very effective, give you the most flexibility and functionality thanks to their distinctive design.

Choosing the Best CustomElectric Jib Crane for YourWorkshops andWorkstation

We offer various types of workshop cranes and electric jib cranes, each with its own lifting capacity, span, lifting height, mounting options, and functionality. Our experts offer professional advice on which type of jib crane will be best suited for your specific needs to assist you in selecting the best workshop jib crane for your specific working shops.

Custom and Bespoke Workshop Jib Crane Systemsfor your Applications

Our own bespoke workshop Jib cranes are made to order from only the most durable materials to ensure quality and operation quality. Whatever lifting task you require, our workshop cranes can complete it quickly and efficiently. If a swing Jib crane is not what you're looking for, check out our hot sale overhead crane & gantry systems offering to see what other types of cranes we have.

Electric workshop jib cranes are the absolute best choice for buyers looking for the best lift equipment for their workshop. We provide you with various types of jib cranes for your workshop material handling operations. In the following, the most popular types of workshop jib cranes are presented for your reference.

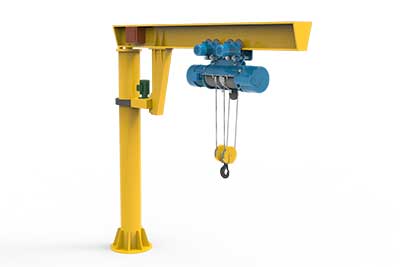

Floor Mounted Electric Jib Crane for Workshops - Custom workshop jib crane

• BZ Electric Jib Crane
• Lifting Capacity: 0.5t-20t
• Valid Radius: 3-15m
• Lifting Height: 3-8m
• SlewingAngle: 0-360°
• Lifting Speed: 0.33-8m/min
• Traveling Speed: 10/min
• Slewing Speed: 0.4-1r/min
• Work Duty: A3, A4

BZ workshop jib cranes are one of our company's most popular products, and they may be the best choice for a standard workstation and workshops. This workshop crane can be installed in any location in your workshop. Furthermore, it has a maximum rotation of 360 degrees (any rotation is available). This model's jibs can lift heavy loads of up to 20 tons, making them suitable for replacing gantry cranes and bridge cranes in fixed area material handling. BZ type of electric jib cranes are excellent tools and helps in the loads handling lifting and machinery maintenance .

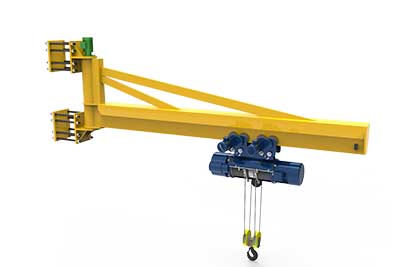

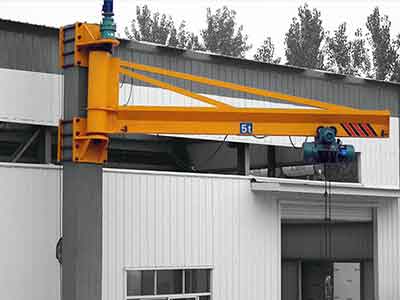

Wall Mounted Electric Jib Crane for Inside or Outdoor Workshops Use

• BX Electric Jib Crane
• Lifting Capacity: 0.5-10t
• Valid Radius: 3-8m
• Lifting Height: 6-30m
• SlewingAngle: 0-180°
• Lifting Speed: 0.7-8m/min
• Traveling Speed: 10/min
• Slewing Speed: 0.4-1r/min
• Work Duty: A3, A4

This type of eletric jib crane does not require any floor space or foundation support. It has no ceiling or space requirements, so you can use it freely in a small workshop or workplace with a low ceiling. This wall crane is mounted on a wall bracket and has a rated capacity of less than 5 tons. Furthermore, it can be rotated to a certain degree; the maximum rotation is 270 degrees.

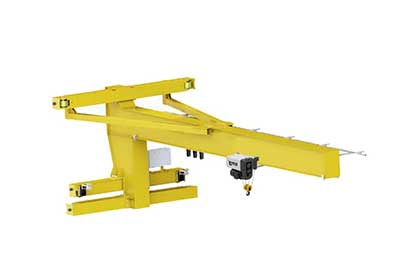

Wall Travelling Electric Workshop Jib Crane

• BB Electric Jib Crane
• Lifting Capacity: 0.5-16t
• Valid Radius: 5-12.5m
• Lifting Height: 6-30m
• Lifting Speed: 0.35-8m/min
• Hoist Traveling Speed: 10/min
• Crane Traveling Speed: 20m/min
• Work Duty: A3, A4

Another type of wall jib crane is the BB series of wall travelling electric jib crane, which is developed on the baises of BX series of wall mounted jibs. However, this travelling jib crane cannot rotate to a certain degree; instead, it can travel along the plant's rail. This workshop jib crane is best suited for lifting dense and short-distance loads. If none of the workshop jib cranes listed above meet your needs and you want a portable jib crane. All of your requirements can be met by a portable crane in the workshop. This crane is lightweight and portable, and it can be installed in any corner of your workshop. The crane has a sturdy triangle base that ensures material safety while lifting.

Comparison of Fixed /Stationary jib crane v.s. Portable jib craneon wheels

Which is best for your workshop , the stationary jib crane or portable jib crane? What is the merits and demerits of the stationary jib crane and portable jib crane? Check the comparison of fixed jib cranes and roller jib cranes.

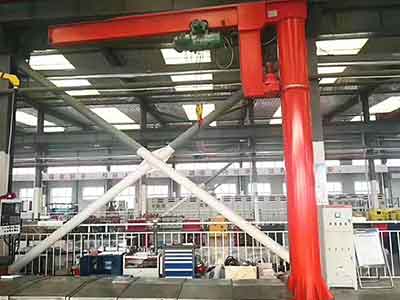

Floor mouned stationary jib crane

As for the fixed jib crane, the most important aspect is to construct the foundation. We will provide the foundation drawing and detailed procedure to clients, and the foundation is not a problem if the drawing and procedure are followed.

Main parameters of stationary jib crane for reference

• Type: BZtypes workshop jib cranes
• Lifting capacity: 0.5-10t,
• Lifting height: 3-12m,
• Working class: A3.

Features of stationery workshop jib cranes
Stationary jib cranes, also known as free-standing cranes or pillar jib cranes, are widely used both indoors and outdoors. The stationary jib crane has greater capacities, longer spans, and more rotations than the wall mounted jib crane. Please contact us if you have any questions about the stationary jib crane.

It should be noted that the maximum lifting capacity of a stationary jib crane is 16 tons, and that the lifting height and arm length should not exceed 6 meters. We can customize the nonstandard jib crane to meet your specific requirements.

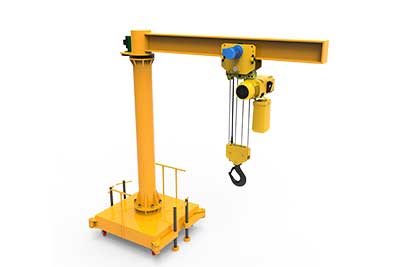

Portable jib crane for workshops

There is another type of jib crane that does not require foundations but performs the same function as a floor mounted workshop jib crane; it is a portable jib crane with a base plate and wheels; the wheels are fixed when it is lifting and handling, and the lifting and handling work should be stopped when it is moving; in other words, move while lifting and lift while moving. Portable jib cranes are widely used in varaious special working conditions.

Main Parameters of workshop portable jib crane

• Rated load: 0.125- 2 ton
• Base width:1200-1400mm
• Stand bar width: 1018-1218mm
• L&h: 3000mm
• H: 3700-3900mm

Features of portable workshop jib cranes

The workshop jib crane on wheels is one types of workshop crane and light duty cranes. The portable jib crane, also known as mobile jib crane or movable jib crane, is one of the most affordable electric cranes for short-distance material handling.

The maximum lifting capacity is 2 tons, and the lifting height and arm length cannot exceed 4m. Because of its limited lifting capacity, portable jib cranes are not as popular as stationary jib cranes, but because they solve the foundation problem, they are a better choice for most small workshops.

Custom Workshop Jib Cranes & Alternatives

Being able to customizeevery aspect of your workshopjibcraneorder,we will dicuss the variety of lifting heights, beam lengths and bracing options that we provide.

Swing jib design- Manual or motorized slewing?

A manually rotated workshop jib crane has the advantage of being a less expensive option. In many cases, manual rotation is perfectly adequate, whereas electric rotation is an unnecessary luxury. This is why, before you dive in, you should consider both your needs and your budget.

under or over braced wall mounted jib cranes？ This will be determined by your lifting needs as well as the position in which it will be installed. An under braced Jib crane has the supporting beam under the Jib arm, allowing it to go all the way up to the roof, giving you the highest possible lift height and lifting capacities.

An overbraced Jib crane has the bracing support over the top of the Jib arm, so it can't lift as high, but it can use the entire length of the jib arm, unlike underbracing, which restricts movement along the beam, though somewhat minimally.

Crane Safety Considerations

When using swing jib cranes in a busy business setting, there are a lot of considerations to make. Even if you have purchased high-quality equipment from and us and taken advantage of our inspection services, you still need to conduct your everyday operations in accordance with the law to reduce the likelihood of accidents and injuries.

Swing electric jib cranes operate in such a way that heavy loads can move horizontally and vertically through the arc of the beam's travel. Loads that are not properly secured may fall and pose a serious hazard to equipment operators and other side users. Proper maintenance will also ensure that the lifting accessories you use with your swing electric jib cranes remain in good working order. Employees will face increased risks as a result of complications caused by wear and tear, corrosion, and other types of damage.

Get your customworkshopjib crane design

Whatever the size of your facility, investing in high-quality jib cranes can improve productivity while actively promoting employee health and safety. Staff will suffer from the strain of manual lifting heavy objects. This will no longer be an issue with a jib crane gantry system. Instead, you will be able to move equipment, components, and goods without taking any risks or risking physical problems later on.

• Please help our workshop jib crane engineer confirm the following information as much as possible in order to provide you with a suitable jib crane solution and specific jib crane price as soon as possible:
• The type of theworkshopjib crane: the pillar type (with the pillar itself, mounted on ground) or wall mounted type (mounted on the wall or column)?
• Lifting capacity: ____?
• Lifting height: ____?
• Valid Radius (the jib length): ____?
• Rotating angle: 180, 270, 360 or other degree?
• Power voltage: ____（ 240V 50Hz 3phase?）
• Operation: Through Pendant/Radio Remote
• Indoor/Outdoor:
• Application (What are you planning to lift):
• Environment (Normal/ hazardous):
• Building drawing if possible:
• Location:
• Industry type: (Eg: Auto, steel, sugar, stone etc.)
• Your full company address and contact details:

If you have any questions about how to choose aworkshopjib crane, please leave us a message or send us an email. Within 24 hours, our electric jib crane engineer will get back to you very soon. ElectricJib cranes are still the most popular light duty cranes in the market; thejibhoistusedcan be an electric wire rope hoist with a motorized trolley or an electric chain hoist with a motorized trolley and a manual trolley; low cost, simple operation; why not install one in your workshop? Please contact us if you have any jib crane requirements.
