Heavy Duty Wire Rope Hoist 16 Ton -80 Ton

Heavy duty electric wire rope hoist , 16 ton - 80 ton capacity, 6- 96 m lifting height, square hoist design, maximum reliability. Check hoist specifications.

Hoist type Heavy duty wire rope hoist
Hoist capacity 16 ton -80 ton
Lifting height 6 m - 96 m
Voltage 220~440V, 50/60Hz
Note Customized heavy duty electric hoists are available.

Category: Wire Rope Hoist Crane

Your Trusted Electric Wire Rope Hoist Crane Manufacturer & Supplier

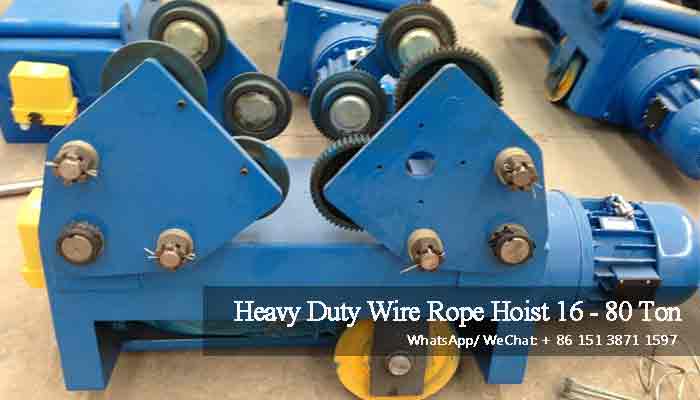

Heavy Duty Wire Rope Hoist 16 Ton -80 Ton

HC type electric wire rope hoist is a type heavy duty hoist with capacity up to 80 . The heavy duty electric hoist systems are built to the highest quality standards to ensure maximum reliability in day-to-day operation.HC type heavy duty wire rope hoists are built with the most advanced technology available and have proven their dependability, safety, and durability year after year, from motor to rope, gearbox, brakes, and electrical and electronic systems.

Overview of large capacity electric wire rope hoists

HC type heavy duty wire rope hoist is also called HC model square wire rope electric hoist. The HC type heavy duty hoist adopts the latest professional standards at home and abroad. Through the transformation of the pulley block ratio and the motor, the HC type wire rope hoist can be used to lift a weight of 10 ton - 100 ton, a lifting height of 6m - 96m. And the working level of heavy duty hoist is M3-M6.

HC type heavy duty wire rope hoist specifications

  • Capacity(T): 16~80, customized up to 100 ton.
  • Lifting height(m): 9-48 or as request
  • Lifting speed(m/min): 2.4~3.5(0.24~0.35)
  • Travel speed(m/min): 20
  • Power supply: AC, 3-phase, 220~440V, 50/60Hz
  • Working duty: M3~M6
  • Applications: Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Advantage of electric wire rope hoist heavy duty

  • Compact design, heavy duty, large capacity & tonnages.
  • Variety of hoist specifications & wide application
  • Running smoothly, easy operation.
  • Easy operation and maintenance

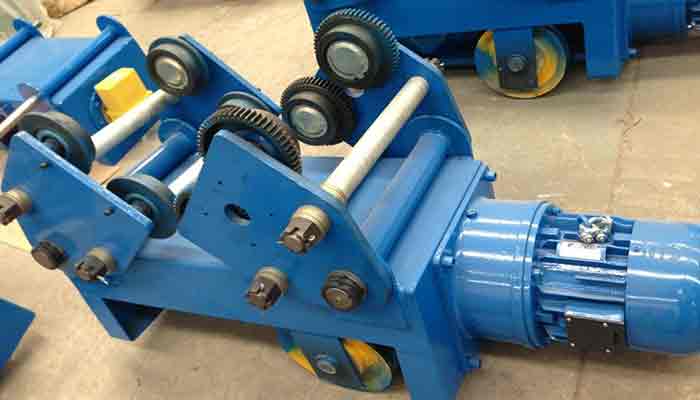

Heavy duty wire rope hoist crab trolley for double girder crane

Heavy duty wire rope hoist crab trolley for double girder crane

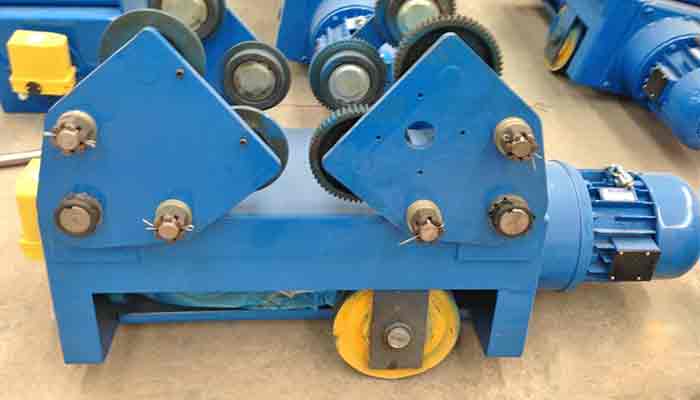

Motorized trolley travelling heavy duty wire rope hoist for single girder crane

Motorized trolley travelling heavy duty wire rope hoist for single girder crane

Features of heavy duty hoist

  • HC type electric hoist has the advantages of small size, light weight, simple operation, convenient use, rectangular appearance, large lifting capacity and stable operation. The wire rope electric hoist can be divided into running trolley type and fixed type.
  • Adopting a square shell structure, which is conducive to installation, transportation, and beautiful appearance. The weight limit is adopted, the hoist structure is simple, and the performance is reliable.
  • The anti-chaotic rope guide device can effectively prevent the random winding of the wire rope and the wire rope during the ascending and descending process. The guide rope nut adopts an integral bisected structure, and the spring automatically adjusts the tightness and is durable.

Application of heavy duty electric wire rope hoist

HC type heavy duty wire rope hoist is an improved electric hoist, developed based on the CD type electric wire rope hoist, which completely solves a series of problems such as over-lifting, brittleness of the rope guide, wire rope disorder, oil leakage from the reducer, and frequent electrical failures. Widely used in factories, mines, railways, docks, warehouses and service industries, it is a kind of lifting equipment that can adapt to various working conditions.

Electric wire rope hoist for heavy loads handling with capaicty from 16 ton -80 ton

Electric wire rope hoist for heavy loads handling with capaicty from 16 ton -80 ton

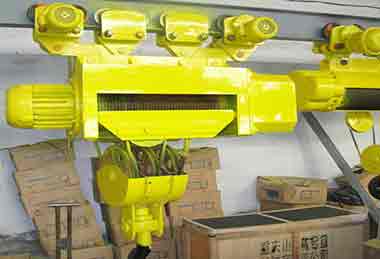

motorized travelling electric wire rope hoist heavy duty large capacity

Motorized travelling electric wire rope hoist heavy duty large capacity

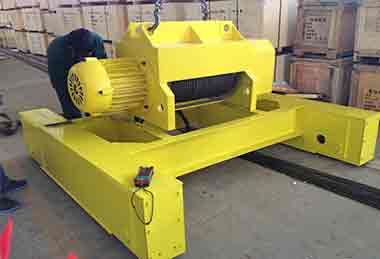

 Large tonnage electric hoist,rectangular hoist design

Large tonnage electric hoistrectangular hoist design

HC type large-tonnage heavy duty wire rope electric hoist is a kind of small lifting equipment wire rope hoist. It has the advantages of a compact structure, light weight, small size, high part versatility, and simple operation. It can be installed individually on an I-beam or mounted on an electric or manual crane, double beam, cantilever, gantry, or other types of crane. If you have any need or question, please feel free to contact us.Contact us to get your customized drawing of your heavy duty wire rope hoist now.
