10 Ton RTG Crane Drawing | 10m Span & 10m Lift A5
10 ton RTG crane drawing with 10m span, 10m lifting height, 6m wheel base, NR electric hoist, ISO A5 duty and 415V 50Hz power supply.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: RTG Crane Drawing
Tags: RTGGantryCraneDrawing
Overview:
This drawing covers a 10-ton Rubber Tyred Gantry Crane (RTG) — model RTG 10t-10m-10m A5 NR, file name 1. RTG 10t-10m-10m A5 NR.pdf. It is built for yards that need flexible material handling without fixed rails. Key dimensions: 10m span, 10m lifting height, 6m wheel base. Hoisting comes from a 10t NR electric hoist running at 0.8~5.0 m/min; trolley and crane travel both run 1.0~10 m/min. Power is 3-phase 415V 50Hz, duty class ISO A5. The structure uses a box girder with conductor rail on top, rigid/flexible legs, a trolley carrying the hoist, and tyre-type long travel with drive motors on both sides.
Project & Technical Overview
- Equipment Type: Rubber Tyred Gantry Crane (RTG)
- Product Model: RTG 10t-10m-10m A5 NR
- Drawing File: 1. RTG 10t-10m-10m A5 NR.pdf
- Duty Class: ISO A5
- Lifting Capacity: 10.0 t (10,000 kg)
- Crane Span: 10.0 m (10,000 mm)
- Lifting Height: 10.0 m (10,000 mm)
- Wheel Base: 6.0 m (6,000 mm, center distance between wheels)
- Hook Center to Girder Bottom: 750 mm
- Hoist Model: NR Electric Hoist
- Hoisting Speed: 0.8~5.0 m/min
- Trolley Traveling Speed: 1.0~10 m/min
- Crane Traveling Speed: 1.0~10 m/min
- Control Mode: Pendant / Remote Control
- Power Supply: 3P 415V 50Hz
- PDF Drawing:RTG 10t-10m-10m A5 NR Rubber Tyred Gantry Crane Drawing 10t Capacity 10m Lift 10m Span 6m Wheel Base NR Hoist 3P 415V 50Hz
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Lifting Capacity | 10.0 t (10,000 kg) |
| Crane Span | 10.0 m (10,000 mm) |
| Lifting Height | 10.0 m (10,000 mm) |
| Hook Center to Girder Bottom | 750 mm |
| Wheel Base / Track Gauge | Wheel Base 6.0 m (6,000 mm) |
| Hoisting Speed | 0.8~5.0 m/min |
| Trolley Traveling Speed | 1.0~10 m/min |
| Crane Traveling Speed | 1.0~10 m/min |
| Hoist Model | NR Electric Hoist |
| Crane Traveling Model | LH Type |
| Control Method | Pendant / Remote Control |
| Power Supply & Voltage | 3P 415V 50Hz |
| Structure Type | Box girder with conductor rail on top; rigid/flexible legs; trolley on main girder with hoisting mechanism; tyre-type long travel with drive motors |
Hoist Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Hoist Type | NR Electric Hoist |
| Lifting Capacity | 10 t |
| Lifting Height | 10 m |
| Lifting Speed | 0.8~5.0 m/min |
| Trolley Traveling Speed | 1.0~10 m/min |
| Lifting Motor Power | 9.5 kW |
| Lifting Motor Rotation Speed | 1440 r/min |
| Lifting Motor Phase | 3 |
| Lifting Motor Voltage | 415 V |
| Trolley Traveling Motor Frequency | 50 Hz |
| Trolley Traveling Motor Power | 0.96 kW |
| Trolley Traveling Motor Rotation Speed | 1440 r/min |
| Trolley Traveling Motor Phase | 3 |
| Trolley Traveling Motor Voltage | 415 V |
| Trolley Traveling Motor Frequency | 50 Hz |
Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Crane Traveling Model | LH Type |
| Crane Traveling Speed | 1.0~10 m/min |
| Crane Traveling Motor Power | 2 × 1.5 kW |
| Crane Traveling Motor Rotation Speed | 1440 r/min |
| Crane Traveling Motor Phase | 3 |
| Crane Traveling Motor Voltage | 415 V |
| Crane Traveling Motor Frequency | 50 Hz |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 10 t |
| Lifting Height | 10 m |
| Span | 10 m |
| Wheel Base | 6 m |
| Hoisting Speed | 0.8~5.0 m/min |
| Trolley Traveling Speed | 1.0~10 m/min |
| Crane Traveling Speed | 1.0~10 m/min |
| Lifting Motor Power | 9.5 kW |
| Trolley Traveling Motor Power | 0.96 kW |
| Crane Traveling Motor Power | 2 × 1.5 kW |
| Power Supply | 3-Phase, 415 V, 50 Hz |

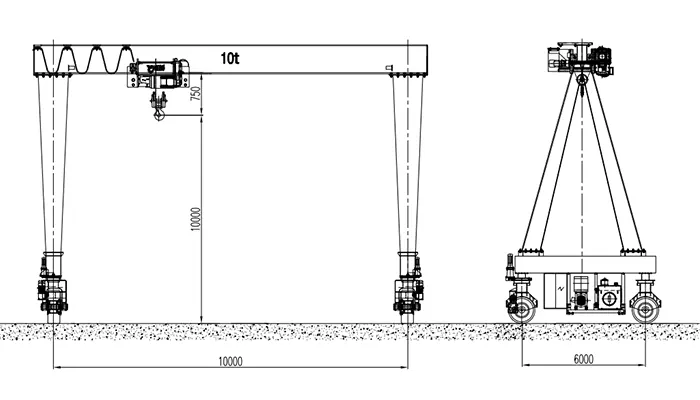

Drawing Views & Structural Information
| View / Item | Description |
|---|---|
| Main View (Left) | Rated lifting capacity: 10t; Lifting height: 10000 mm (10 m); Span: 10000 mm (10 m); Hook center to girder bottom: 750 mm |
| Side View (Right) | Wheel base / track gauge: 6000 mm (center distance between wheels); one set of drive wheel assemblies per side |
| Structure Type | RTG (Rubber Tyred Gantry Crane); main girder: box girder with conductor rail on top; legs: rigid/flexible on both sides; trolley: runs on main girder with hoisting mechanism; long travel: tyre-type with drive motors |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 1. RTG 10t-10m-10m A5 NR.pdf, where "10t-10m-10m" correspond to lifting capacity 10t, lifting height 10m, and span 10m.
- ISO A5 Duty Class: Suited to medium-duty handling in general outdoor and indoor yards.
- Hoist & Travel Parameters: NR electric hoist with 9.5 kW lifting motor and 0.96 kW trolley motor; LH-type crane travel with dual 1.5 kW motors.
- Power Supply: All motors run on 3-phase, 415V, 50Hz — standard European industrial power.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized RTG Gantry Crane
This drawing shows a 10-ton RTG crane with 10m span, 10m lifting height, and 6m wheel base, using an NR electric hoist and LH-type long travel. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your yard dimensions — lifting capacity (10t), span (10m), lifting height (10m), wheel base (6m), and required travel speeds. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in hoist selection (NR), crane travel model (LH), power supply (3P 415V 50Hz), and duty class (A5). |
| Step 4: Precision Manufacturing & Global Delivery | Built to ISO and international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (RTG 10t-10m-10m A5 NR Drawing Analysis)
Common technical questions on the 10t capacity, 10m span, 10m lifting height, 6m wheel base, NR hoist, and LH-type crane travel.
1. What are the advantages of the RTG (Rubber Tyred Gantry) design?
No fixed rails needed — the crane travels freely on tyres. That gives real flexibility in outdoor yards, especially where ground conditions allow and rail installation isn't practical.
2. What is the function of the 6-meter wheel base in this RTG crane?
The 6m wheel base (6000 mm between wheels) keeps the crane stable during travel and spreads load evenly across the tyre assemblies — lower ground pressure, safer operation.
3. How does the NR electric hoist perform in this configuration?
The NR hoist uses a 9.5 kW lifting motor (1440 r/min) and a 0.96 kW trolley motor, giving 0.8~5.0 m/min lifting and 1.0~10 m/min trolley travel. Precise and efficient for 10-ton loads.
4. What are the power requirements for this RTG crane?
3-phase, 415V, 50Hz. The lifting motor, trolley motor, and crane travel motors (2 × 1.5 kW) all run on this standard European industrial configuration.
5. What does the model designation "RTG 10t-10m-10m A5 NR" mean?
RTG = Rubber Tyred Gantry Crane; "10t-10m-10m" = 10-ton capacity, 10m lifting height, 10m span; "A5" = ISO A5 duty class; "NR" = NR series electric hoist.
Need Customized Drawings & Pricing for Your Project?
Send your yard dimensions, capacity requirements, span, lifting height, and power supply specs. Yuantai Crane consultants will provide a complimentary CAD layout drawing and quote within 24 hours.
Yuantai RTG Gantry Crane Solutions
Yuantai Crane supplies custom RTG (Rubber Tyred Gantry Crane) solutions worldwide — outdoor freight yards, logistics hubs, port terminals. Each system is tailored to your capacity, span, lifting height, wheel base, travel speed, and power supply.
Typical Technical Specifications:
- Lifting Capacity: 5.0–50.0 Tons (This Model: 10.0 t)
- Span: 10.0–40.0 Meters (This Model: 10.0 m)
- Lifting Height: 6.0–30.0 Meters (This Model: 10.0 m)
- Duty Class: ISO A5–A7 (This Model: A5)
- Hoist Type: NR Electric Hoist (This Model: 10t NR)
- Traveling System: LH-Type Crane Traveling (This Model: 2 × 1.5 kW)
- Power Supply: 3P 415V 50Hz (Customizable)
- Applications: Outdoor Freight Yards, Logistics Hubs, Building Material Depots, Heavy Machinery Yards, Port Terminals
Yuantai provides global buyers with engineering design, non-standard structural customization, Factory Acceptance Testing (FAT), export packaging, logistics delivery, and installation guidance.
Engineering Support & Crane Customization
Handling a 10-ton load across a 10m span with 10m lifting height and a 6m wheel base takes solid mechanical and electrical engineering. This drawing reflects Yuantai Crane's work in custom RTG structural design, tyre-type long travel, and reliable power delivery.
| Customer Challenge & Site Requirement | Yuantai Custom Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Flexible Outdoor Material Handling Needs a crane that runs without fixed rails and adapts to changing yard layouts. | RTG design with tyre-type long travel and drive motors on both sides — no rail installation required. | Type: RTG | Wheel Base: 6.0 m | Travel Speed: 1.0~10 m/min |
| Precise 10-Ton Load Handling Reliable hoisting and trolley travel for medium-duty work. | NR electric hoist with 9.5 kW lifting motor and 0.96 kW trolley motor for smooth, accurate positioning. | Hoist: NR | Lifting Speed: 0.8~5.0 m/min | Trolley Speed: 1.0~10 m/min |
| Standard European Power Supply Must match 3-phase 415V 50Hz industrial grids. | All motors (lifting, trolley, crane travel) configured for 3P 415V 50Hz — seamless integration into European facilities. | Power Supply: 3P 415V 50Hz | Lifting Motor: 9.5 kW | Travel Motors: 2 × 1.5 kW |
How to Evaluate If This Solution Fits Your Facility?
- 10T RTG Design: 10m span, 10m lifting height, 6m wheel base — flexible outdoor handling without fixed rails.
- Reliable NR Hoist & LH Travel: NR electric hoist at 0.8~5.0 m/min lifting, LH-type crane travel at 1.0~10 m/min.
- Standard Power Configuration: 3-phase 415V 50Hz, 9.5 kW lifting motor, 2 × 1.5 kW crane travel motors.
- ISO A5 Duty Class: Built for medium-duty cycles in general yard and logistics work.
Unsure If This Layout Suits Your Yard?
Send us your site dimensions — span, lifting height, wheel base, travel speed. Yuantai Crane engineers will provide a free customized CAD general arrangement drawing, structural stress evaluation, and accurate quotation with a 24-hour response.
