Workstation Gantry Crane, Portable Gantry Crane Lifting System

The heavy duty workstation gantry crane systems with single-girder or double-girder and cantilevered, single-leg, or double-leg, etc. The light duty small workstation gantry crane with steel workstation gantry crane, aluminum gantry crane, adjustable gantry crane, and portable gantry crane, among others, are available. Machine shops, parts assembly lines, and truck service centers are all common industrial applications for these workstation crane systems.

Aluminium workstation gantry crane

Steel workstation gantry crane

Adjustable workstation gantry crane

Portable Workstation gantry crane

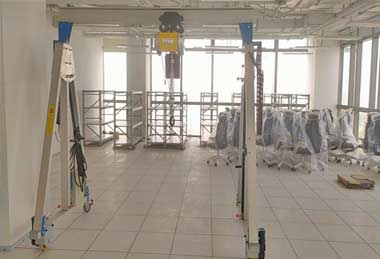

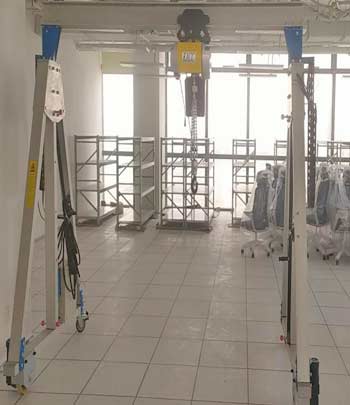

Aluminum workstation gantry crane

500kg -10 ton light weight workstation gantry crane system, a type of aluminum lightweight gantry crane system with stationary or portable design and features such as light duty, foldability, ease of use, and quick installation, among others. Aluminum light weight workstation gantry crane systems are available in a variety of sizes and configurations for easy setup and dismantling. The aluminum lightweight workstation gantry crane can be folded into a small package for transport or storage when not in use.

• Capacity of aluminum workstation crane system : 0.5 ton ~ 3 Ton, 10 ton
• Span of aluminum workstation crane system : 2~6m
• Adjustable height of aluminum workstation crane system : 2~6m
• Trolley travel of aluminum workstation crane system : electric/manual
• Cart travel of aluminum workstation crane system : electric /push manual
• Application: Indoor workshop/warehouse for material or parts lifting and transport.

Steel workstation gantry crane

steel workstation gantry cranes, also known as steel mobile workstation gantry cranes, are a lightweight, flexible, and efficient form of movable gantry crane. Workshop, warehouse, shipyard, freight yard, workstation, garage, and other indoor and outdoor applications employ steel mobile gantry cranes with fixed height steel workstation gantry crane designs or adjustable gantry crane designs.

Our crane company and crane factory, as a professional and experienced portable overhead crane supplier, offer a one-stop shop for steel workstation gantry cranes, from design, fabrication, and installation to solid after-sale service and maintenance, ensuring you have the most pleasant crane purchasing experience possible.

• Gantry Type:Steel mobile gantry crane
• Crane Capacity of steel workstation gantry Crane:0.5 ton to 10 ton, customized up to 20 ton
• Crane Span of steel workstation gantry Crane:2-12 m
• Lifting Height of steel workstation gantry Crane:1m-9m(customized)
• Working Class of steel workstation gantry Crane: A3,A4

Then steel workstation gantry crane specification are presented for your reference. For your customized steel mobile gantry crane design, please feel free to contact us.

Adjustable workstation gantry crane

Your most flexible and cost-effective small workstation gantry crane solutions for light duty material handling, etc. are adjustable gantry workstation cranes with height adjustable gantry design and portable gantry design.

Adjustable gantry workstation cranes are a type of compact portable gantry crane with height-adjustable gantry designs, making them the most versatile gantry crane options for light material handling. The gantry workstation cranes with customizable heights can be simply moved to any location and altered to give varying lifting heights. The tiny adjustable gantry crane is easy to move, disassemble, and reassemble, and takes up little ground space.

Parameters of small adjustable gantry crane

• Types of small adjustable gantry crane:Height adjustable gantry cranes
• Lifting capacity of adjustable gantry crane : 0.5 ton ~ 5 ton,
• Span length of adjustable gantry crane: 3~ 9 m
• Lifting height of adjustable gantry crane: 2.6-3.8 m
• Working class of adjustable gantry crane: A2
• Motion type: Hand push type universal castor with brake device
• Height range instruction: According to the actual use requirements to increase the lifting height and height of the body
• Custom designed adjustable gantry are available.

Portable workstation gantry crane

Mobile gantry cranes, also known as portable gantry workstation cranes, are a type of gantry crane that is tiny, light, adaptable, and efficient. Portable rolling gantry cranes, as one of the most cost-effective small gantry cranes, are widely used in indoor and outdoor applications such as workshops, warehouses, shipyards, freight yards, workstations, garages, and so on.

Parameters of portable type crane

• Types of small gantry crane: portable gantry crane,
• Lifting capacity of portable gantry crane : 0.5t~10t,
• Span length of portable gantry crane: 2~16m
• Lifting height of portable gantry crane: 2~12m
• Working class of portable gantry crane: A2
• Total adjustable height variation of adjustable gantry : 1m
• Provide Custom Option
