4*25 Ton Portable Gantry RTG Crane Lifts Concrete Slab Singapore

100 ton RTG crane for concrete slab handling Singapore. Portable gantry crane with rubber tire crane wheels for concrete hoisting, high mobility & safety. The portable gantry crane for sale in Singapore is an 80 ton rtg crane to handle the concrete slabs, with a custom rtg crane design. To acquire your bespoke rtg cranes, check out the 100 ( 4*25)ton rubber typred gantry crane specifications for your reference.

What is a RTG Crane?

A RTG crane is a type of mobile gantry crane with rubber tyred wheels with high mobility that is widely used to help material handling in yards or ports for larger and heavy loads handling such as containers, concrete beams, stone blocks or bundles of marble plates, etc. Rubber-tired gantry cranes are also commonly employed to lift and transfer concrete beams, assemble massive manufacturing components, and position pipes in various engineering projects.

This sort of rubber tyred mobile crane is available in a variety of specs and configurations to suit various yard operations. We may also modify the portable crane to match your exact needs at a factory pricing. The rtg crane is an excellent choice for handling huge loads because it is both efficient and adaptable.

Main parameters of 80 ton rtg crane

Main parameters of rtg crane for Singapore

• Type of gantry crane : Portable gantry crane with rubber tyred wheels
• Working class of rubber tired gantry crane: A3,
• Lifting capacity of rubber tired gantry crane: 100 ( 4* 25)
• Span of rtg crane of rubber tired gantry crane:11.5m
• Lifting speed of rubber tired gantry crane: 1-1.6m/min
• Lifting height of rubber tired gantry crane: 6 m,
• Travel speed of rubber tired gantry crane:0-16m/min
• Rotate speed of rubber tired gantry crane: 0-6m/mine

Technical highlights o f rtg crane

Our lifelong devotion to the crane manufacturing sector is to produce high-quality gantry crane and rubber tired gantry cranes to boost our clients' business productivity. Dedicated research and development in crane technology can assist us in maintaining this commitment. Customers chose us as their gantry crane manufacturer because of the following technical characteristics of the rtg cranes.

Your crane operator will be able to operate the crane comfortably and productively thanks to Smart RTG's intelligent steel constructions and operator cabins.

Furthermore, your rtg crane's safety performance will be boosted as it is fitted with the industry's top active load control system.

Your portable crane will perform more efficiently thanks to the universal range of power operations in your rtgs.

Rtg crane design

The Singapore client is very professional who utilize gantry crane picture and tools to show us the specifications and parameters of the Rtg crane they required.

• Metal Structure of rtg crane -The rubber gantry crane's main metal construction is made up of the main beam, legs, and bottom beam, among other things, and each component is joined by welding or flange connection.
• Main Beam -The crane's main beam is the major force-bearing element. It's built in the shape of a box.
• Two primary beams support the trolley track. The first is to lay track in the center of the main girder section, and the second is to lay track on a web on one side of the upper flange plate edge.
• Support Legs -The legs have a box-shaped variable cross-section structure in general. Because the inner side of the leg plane is typically flat, the room inside the leg is larger, which is ideal for the electrical and power room layouts.
• To ensure the size between the two main beams and boost lateral rigidity, connecting rods are used to connect the two legs.
• Bottom Beam -The bottom beam is usually a box-shaped construction with equal sections that is attached to the crane operating mechanism by a pin shaft, and the connecting lug is made of thick plate.
• Trolley Frame -The trolley frame is typically an I-beam integrated construction with walkways on both sides and four-corner suspension platforms for pulley and component maintenance.

General assemby of 100 ton rtg crane for sale Singapore

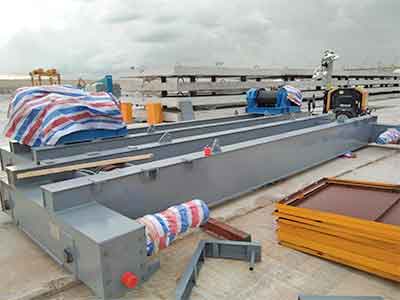

Double girder crane for 100 ton rtg crane for sale Singapore

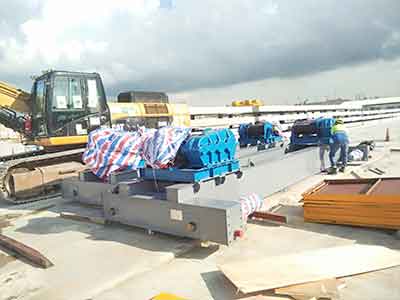

Double girder open winch trolley for 100 ton rtg crane for sale Singapore

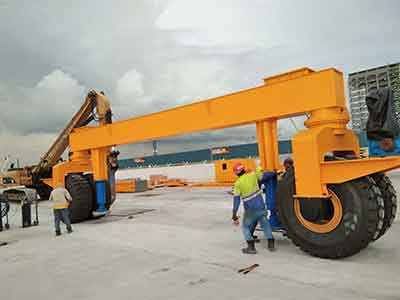

Grantry crane beam and wheel installation of 100 ton rtg crane for sale Singapore

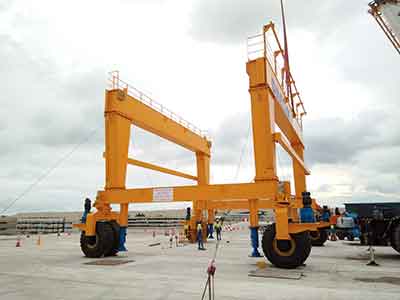

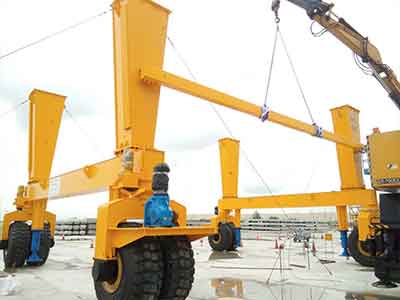

Crane installation of 100 ton rtg crane for sale Singapore

Crane installation of 100 ton rtg crane for sale Singapore

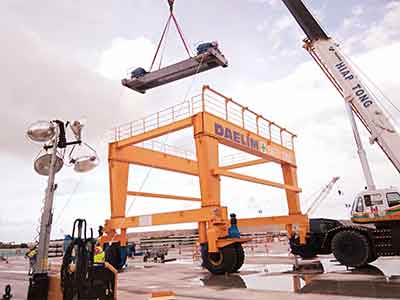

General assembly of 100 ton rtg crane for sale Singapore

Inspection before operation

• Check for impediments in the crane's walking path and remove the anti-climbing gear if necessary.
• Perform the engine's pre-work inspection as needed.
• Check to see if the lights on the main beam and the crane's running mechanism are working properly (only for night work).
• Check the hanger connection signal and the spreader turn lock indicator light for proper operation.
• Examine each limiter, emergency stop switch, and other safety devices for proper operation.
• Check to see if the communication equipment and the alarm device are in working order.
• Run a no-load test to see if the mechanisms are working properly.
• Carry out a heavy-duty test run: slowly raise a heavy box 0.3 meters and halt, inspecting the lifting and braking performance; move the trolley and inspect the anti-sway system for proper operation.

Matters needing attention in operation

• The height of the lift should be 0.3 meters higher than the height of the loads, such as containers.
• The rtg crane must stay inside the white line.
• During the day, turn off all lights, and during the night, switch on floodlights.
• Overloading or lifting the load diagonally are not permitted.
• Spreaders and commodities should not be allowed to pass over people's heads.
• Except in exceptional circumstances, it is not permitted to transport people up and down the spreader or freight (such as equipment repair and maintenance).

What are the uses of rtg cranes?

For your industrial applications, there are various types of rtg cranes. It could be a rubber-tyred container gantry crane for usage at ports, a mobile boat hoist for lifting ships or boats, or a heavy-duty mobile gantry crane for engineering projects. We'll go through a few rubber-tyred gantry cranes that are commonly employed in engineering tasks.

Uses of rtg crane for conceret block handling

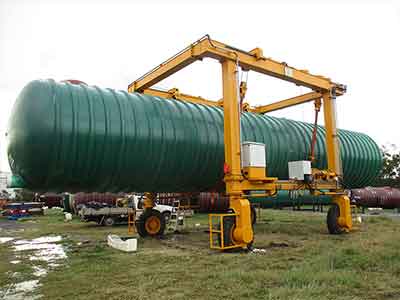

Uses of rtg crane for cylinder handling

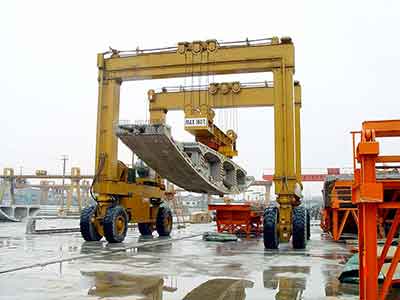

Uses of rtg crane for conceret beam handling

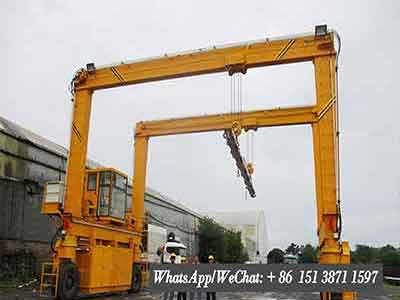

Uses of rtg crane for various loads handling with customized below-the-hook devices

100 ton RTG crane for concrete slab handling Singapore. Portable gantry crane with rubber tire crane wheels for concrete hoisting, high mobility & safety. The portable gantry crane for sale in Singapore is an 80 ton rtg crane to handle the concrete slabs, with a custom rtg crane design. To acquire your bespoke rtg cranes, please feel free to contact us get your customized rubber tyred gantry crane design.
