Overview:
This drawing covers a QDY Double Girder Ladle Crane (Foundry Crane / Metallurgical Crane) — model QDY50t-33.5m A7, file name 6. QDY50t workshop width 35m bridge top elevation +16m A7 cabin control for molten metal hot processing (including furnace, ladle, casting processes) workshop length approx. 65~70m heat insulation shield should be installed under main girder 2 units.pdf. It is a double girder, bridge-type foundry crane designed for molten metal hot processing including furnace, ladle, and casting processes. Key features: cabin control, heat insulation shield under the main girder, and a workshop length of approximately 65~70m. Key dimensions: 33.5m span, 12m lifting height, 2.8m trolley gauge. The lifting speed is 7.8 m/min with a 75 kW motor; trolley travel runs at 39.3 m/min with an 11 kW motor; crane travel runs at 76.6 m/min with dual 15 kW motors. Power is 3-phase 480V 60Hz, duty class M7/A7. The bridge top elevation is +16m, and the workshop width is 35m. This order covers 2 units. Note: distance from workshop backspin to crane peak should be ≥400mm.
Project & Technical Overview
- Equipment Type: Foundry Crane (Ladle Crane / Metallurgical Crane, QDY Type)
- Product Model: QDY 50t-33.5m A7
- Drawing File:50 Ton Foundry Crane | 33.5m Span, 12m Lift, Heat Shield
- Application: Molten Metal Hot Processing (Furnace, Ladle, Casting)
- Workshop Width: 35 m
- Workshop Length: Approx. 65~70 m
- Bridge Top Elevation: +16 m
- Duty Class: M7 (ISO A7)
- Lifting Capacity: 50.0 t (50,000 kg)
- Crane Span: 33.5 m (33,500 ± 5 mm)
- Lifting Height: 12.0 m (12,000 mm)
- Trolley Gauge: 2.8 m (2,800 mm)
- Lifting Speed: 7.8 m/min
- Trolley Traveling Speed: 39.3 m/min
- Crane Traveling Speed: 76.6 m/min
- Lifting Motor Power: 75 kW
- Trolley Traveling Motor Power: 11 kW
- Crane Traveling Motor Power: 2 × 15 kW
- Rail Size: Trolley: P43 / Crane: QU80 (Recommended)
- Control Mode: Cabin Control
- Heat Protection: Heat Insulation Shield under Main Girder
- Power Supply: 3P 480V 60Hz
- Quantity: 2 Units
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M7 (ISO A7) |
| Lifting Capacity | 50.0 t (50,000 kg) |
| Crane Span | 33.5 m (33,500 ± 5 mm) |
| Lifting Height | 12.0 m (12,000 mm) |
| Trolley Gauge | 2.8 m (2,800 mm) |
| Lifting Speed | 7.8 m/min |
| Trolley Traveling Speed | 39.3 m/min |
| Crane Traveling Speed | 76.6 m/min |
| Lifting Motor Power | 75 kW |
| Trolley Traveling Motor Power | 11 kW |
| Crane Traveling Motor Power | 2 × 15 kW |
| Rail Size (Trolley) | P43 |
| Rail Size (Crane) | QU80 (Recommended) |
| Control Mode | Cabin Control |
| Heat Protection | Heat Insulation Shield under Main Girder |
| Power Supply & Voltage | 3P 480V 60Hz |
| Workshop Width | 35 m |
| Workshop Length | Approx. 65~70 m |
| Bridge Top Elevation | +16 m |
| Quantity | 2 Units |
Hoist Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Lifting Capacity | 50 t |
| Lifting Speed | 7.8 m/min |
| Lifting Motor Power | 75 kW |
| Lifting Height | 12 m |
| Working Duty | M7 |
| Trolley Gauge | 2800 mm |
| Power Supply | 480V 60Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 39.3 m/min |
| Trolley Traveling Motor Power | 11 kW |
| Trolley Working Duty | M7 |
| Trolley Rail Type | P43 |
| Crane Traveling Speed | 76.6 m/min |
| Crane Traveling Motor Power | 2 × 15 kW |
| Crane Working Duty | M7 |
| Crane Rail Type | QU80 (Recommended) |
| Power Supply | 480V 60Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Rated Lifting Capacity | 50 t |
| Span | 33.5 m |
| Lifting Height | 12 m |
| Trolley Gauge | 2.8 m |
| Lifting Speed | 7.8 m/min |
| Trolley Traveling Speed | 39.3 m/min |
| Crane Traveling Speed | 76.6 m/min |
| Lifting Motor Power | 75 kW |
| Trolley Traveling Motor Power | 11 kW |
| Crane Traveling Motor Power | 2 × 15 kW |
| Control Mode | Cabin Control |
| Heat Protection | Heat Insulation Shield under Main Girder |
| Power Supply | 3-Phase, 480 V, 60 Hz |
| Workshop Width | 35 m |
| Workshop Length | Approx. 65~70 m |
| Bridge Top Elevation | +16 m |
| Quantity | 2 Units |

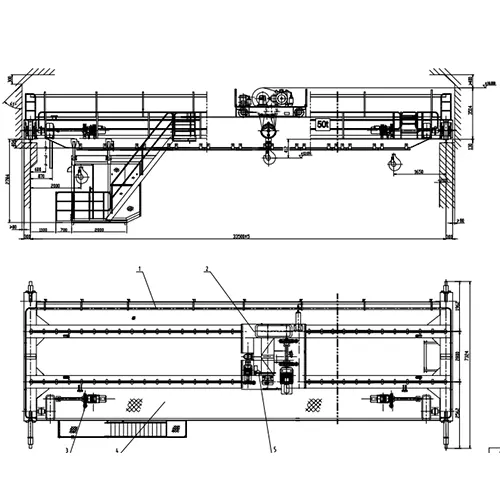

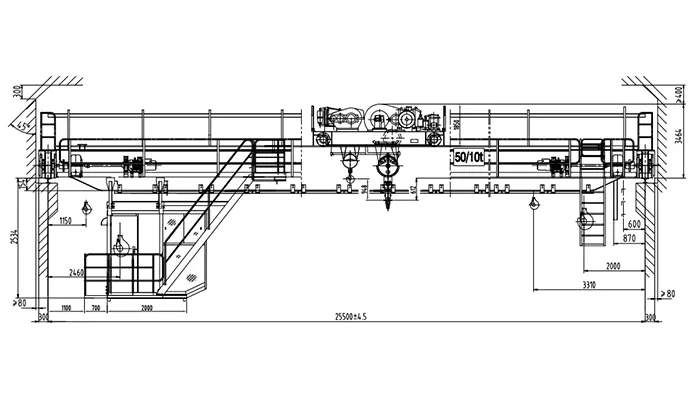

Drawing Views & Structural Information
| View / Item | Description |
|---|---|
| Main View (Left) | Span: 33500 ± 5 mm; Trolley gauge: 2800 mm; Trolley overall width: 5300 mm; Lifting height: 12000 mm (12 m); Main hook limit: 1650 mm; Distance from workshop backspin to crane peak: ≥400 mm; Cabin with access platform and ladder; Overall height: 3514 mm; Bridge top elevation: +16 m |
| Top View (Middle) | Double girder, bridge-type; trolley with open winch hoisting mechanism; long travel mechanism; cabin control; heat insulation shield under main girder; overall dimensions 7324 mm × 2800 mm |
| Section View (Right) | Open winch trolley with 50t hook; trolley overall width: 5300 mm; wheel base: 1130 mm; long travel mechanism; emergency brake; cabin with access platform and ladder |
| Structure Type | QDY Double Girder Ladle Crane (Foundry Crane); double girder bridge structure; open winch trolley with 50t hook; long travel mechanism; electric system; cabin control; heat insulation shield under main girder for molten metal hot processing |
| Key Components | 1. Electric system; 2. Trolley (open winch); 3. Long travel mechanism; 4. Bridge structure; 5. Emergency brake |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 6. QDY50t workshop width 35m bridge top elevation +16m A7 cabin control for molten metal hot processing (including furnace, ladle, casting processes) workshop length approx. 65~70m heat insulation shield should be installed under main girder 2 units.pdf, where "50t" is the lifting capacity, "33.5m" is the span, and "A7" is the duty class.
- Workshop Clearance: Distance from workshop backspin to crane peak should be ≥400 mm.
- Control Mode: Cabin control.
- Heat Insulation Shield: A heat insulation shield must be installed under the main girder to protect the crane structure and electrical components from the extreme heat of molten metal hot processing (furnace, ladle, casting).
- Application: Molten metal hot processing including furnace, ladle, and casting processes.
- Workshop Dimensions: Width 35 m; Length approx. 65~70 m; Bridge top elevation +16 m.
- Rail Type: Trolley rail P43; crane rail QU80 (recommended).
- ISO M7/A7 Duty Class: Suited to heavy-duty handling in demanding foundry environments.
- Quantity: 2 units.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Foundry Crane
This drawing shows a 50-ton QDY foundry crane with 33.5m span, 12m lifting height, cabin control, heat insulation shield under the main girder, designed for molten metal hot processing in a 35m wide, 65~70m long workshop with 2 units. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your facility dimensions — lifting capacity (50t), span (33.5m), lifting height (12m), trolley gauge (2.8m), workshop dimensions, and control requirements. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, heat shield design, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in trolley type (open winch), control mode (cabin), heat shield configuration, power supply (3P 480V 60Hz), and duty class (M7/A7). |
| Step 4: Precision Manufacturing & Global Delivery | Built to international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
