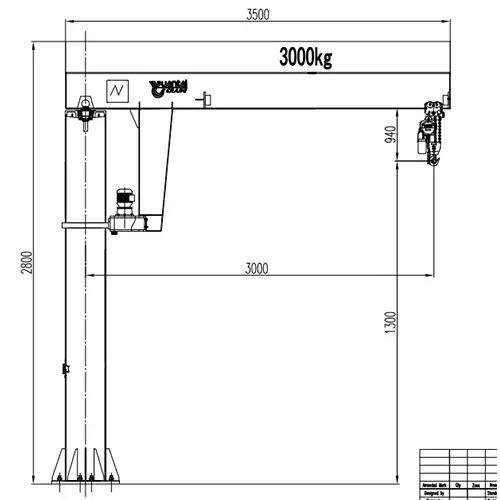

Pillar Jib Crane for Light Engine Assembly 3t r3.5m h1.3m
Compact pillar jib crane for handling 3t components indoors with 3.5m reach, 1.3m height, 120° rotation and A4 medium-duty rating.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Pillar Jib Crane Drawings
Tags: 3TonJibCraneDrawing
Overview: 3 Ton Compact Pillar Jib Crane for Indoor Assembly & Maintenance

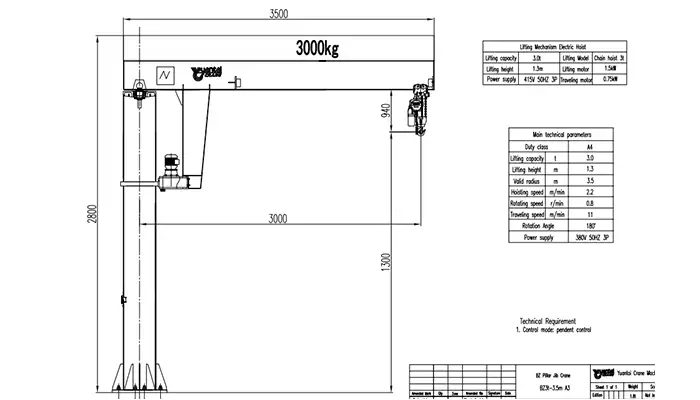

Yuantai Crane BZ 3t Compact Pillar Jib Crane Drawing (Valid Radius 3.5m, Total Beam 3.5m, Lifting Height 1.3m, A4 Duty, Electric Chain Hoist)
Engineered and manufactured by Yuantai Cranes, this compact 3 Ton BZ Pillar Jib Crane (Model: BZ3t-3.5m) is designed for indoor light assembly, maintenance, and material handling—such as lifting engine components, small gearboxes, and workshop parts. Built to A4 medium-duty standards, it offers a practical 3.5m valid radius (3.5m total beam length), 1.3m lifting height, low-headroom 3t electric chain hoist, single-speed hoisting, motorized trolley travel, and 120° motorized rotation.
Who is this crane for? Ideal for automotive/diesel engine assembly, small gearbox repair, light fabrication, and maintenance workshops with limited headroom.
Project & Technical Overview
- Equipment Type: Compact Pillar Jib Crane (Electric Chain Hoist)
- Model Number: BZ3t-3.5m A4
- Drawing PDF File: BZ Compact Pillar Jib Crane Drawing 3 Ton (3.5m Radius, 1.3m Lifting Height)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A4 (Medium Duty / FEM 1Am / ISO M4)
- Control Method: Pendant control
- Lifting Mechanism: 3t Electric Chain Hoist (Low Headroom)
- Application Target: Indoor handling of light engines, gearboxes, and general workshop components
- Key Dimensions: Total Height 2.8m, Lifting Height 1.3m, Valid Radius 3.5m, Total Beam Length 3.5m, Hoist Headroom 940mm
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A4 (Medium Duty) |
| Lifting Capacity | 3.0 t (3000 kg) |
| Total Crane Height | 2800 mm (2.8 m) |
| Lifting Height | 1.3 m (1300 mm) |
| Valid Radius (Center to Hook) | 3.5 m (3500 mm) |
| Total Beam Length | 3500 mm (3.5 m) |
| Hoisting Speed | 2.2 m/min (Single Speed) |
| Rotating Speed | 0.8 r/min |
| Trolley Traveling Speed | 11 m/min |
| Rotation Angle | 120° (Motorized Electric Rotation) |
| Power Supply | 415V / 50Hz / 3P (Hoist) / 380V / 50Hz / 3P (Crane) |
| Hoist Headroom / Clearance | 940 mm (Compact Low Headroom) |
| Total Crane Weight | Approx. 1.2 t (depending on configuration) |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist (Model: 3t Chain Hoist) |
| Lifting Motor Power | 1.5 kW |
| Traveling Motor Power | 0.75 kW |
| Control Voltage | 24V / 36V Safety Voltage |
| Chain Type | High-strength alloy steel chain |
| Hoist Protection Class | IP54 / IP55 (dust and moisture protection) |
Technical Requirement
Note:
- Control Mode: Pendant control with 24V/36V safety voltage.
- Precision Positioning Note: Single-speed hoisting (2.2 m/min) with motorized trolley travel (11 m/min) allows efficient positioning. For fine alignment, consider upgrading to a dual-speed hoist.
- Foundation Requirement: Reinforced concrete foundation slab (min. C25/C30) with anchor bolts required for 3t capacity and 3.5m rotational moment arm.
- Rotation Limit: Designed for 120° rotation. For 180°/270°/360° coverage, contact us for a customized configuration.
- Drawing and technical data are for reference only. For customized dimensions, contact us for a free consultation.
- Depending on complex site conditions or specialized customization, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability for any consequences arising from unauthorized usage.
Key Facts About BZ3t-3.5m Compact Pillar Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for light indoor material handling.
1. What is this crane and what is it designed for?
This is a BZ3t-3.5m Compact Pillar Jib Crane with a 3-ton lifting capacity, designed for indoor light material handling and workshop assembly. It is specifically configured for handling light engines, gearboxes, and general workshop components during maintenance and assembly operations.
Ideal applications: automotive engine assembly, small gearbox repair, light fabrication, and maintenance workshops with limited headroom.
2. What does "BZ3t-3.5m" mean in the model number?
- BZ = BZ series jib crane (column-mounted slewing jib)
- 3t = Maximum lifting capacity of 3.0 metric tons
- 3.5m = Total jib arm length of 3,500 mm (3.5 meters)
The valid working radius is 3.5 meters (3500 mm) from the pivot center to the hoist hook. This means the crane can lift 3 tons at a maximum distance of 3.5 meters from the column center.
3. What are the key lifting specifications?
| Lifting Capacity | 3.0 t |
| Lifting Height | 1.3 m |
| Valid Radius | 3.5 m |
| Hoisting Speed | 2.2 m/min (single speed) |
| Rotation Angle | 120° |
| Rotation Speed | 0.8 r/min |
| Traveling Speed | 11 m/min |
| Duty Class | A4 |
| Hoist Model | 3t Chain Hoist |
| Column Height | 2.8 m |
Buyer Tip: If your lifting height exceeds 1.3m or you need a larger working radius, Yuantai can customize the column height and beam length to suit your specific workshop layout.
4. What is the duty class A4 and what does it mean for my application?
The duty class is A4 (FEM/ISO classification), which means:
- Medium duty cycle — suitable for regular intermittent use
- Rated for up to 1,000–2,000 hours of operation per year
- Ideal for workshops, assembly lines, and light maintenance facilities
- Perfectly matched to the regular but light nature of component assembly and handling work
What does this mean for you? If your workshop operates 1–2 shifts per day with moderate lifting frequency, A4 is the right duty class. For heavier, continuous operations, consider A5 or A6 duty cranes.
5. What power supply and control options does this crane require?
Power Supply:
- Hoist: 415V / 50Hz / 3-Phase
- Crane: 380V / 50Hz / 3-Phase
- Lifting Motor: 1.5 kW
- Traveling Motor: 0.75 kW
Control Modes:
- Pendant control — wired handheld controller with 24V/36V safety voltage
Buyer Note: Pre-configured for 415V/380V 50Hz 3-phase power. If your facility uses a different voltage (e.g., 220V, 440V, 480V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for light engine and component assembly?
- 3t capacity — handles light engines, gearboxes, and workshop components
- 120° rotation — positions loads over workbenches and assembly areas
- Motorized trolley travel — enables efficient movement along the jib arm
- 3.5m working radius — covers a practical work area from a single column
- A4 duty class — matches the regular but light nature of assembly work
- Indoor use — protected from harsh environments
- Pendant control — simple, reliable operation with good visibility
- Low headroom design — only 2.8m total height, ideal for workshops with low ceilings
- Compact footprint — minimal floor space required for the column base
Why buyers choose this model: It offers the perfect balance of lifting capacity, reach, and compact design for workshops where space and headroom are limited, but reliable 3-ton lifting is still required.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Compact Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of compact pillar jib crane solutions for light assembly shops, maintenance bays, and industrial workshops. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 3.0 t)
- Valid Radius / Arm Length: 2–8 m (This Model: 3.5 m valid radius / 3.5 m total beam)
- Lifting Height: Customized according to application (This Model: 1.3 m / 2.8 m total height)
- Rotation Angle: 120° / 180° / 270° / 360° (This Model: 120° Motorized)
- Duty Class: A3–A5 (This Model: A4 Medium Duty)
- Hoist Type: Electric Chain Hoist (This Model: 3t Chain Hoist, 940mm headroom)
- Hoisting Speed: Single Speed 2.2 m/min
- Rotating Speed: 0.8 r/min
- Traveling Speed: 11 m/min
- Control Method: Pendant Control
- Power Supply: 380/415V, 50/60Hz, 3Ph (This Model: 415V / 380V 50Hz 3P)
- Lifting Motor Power: 1.5 kW
- Applications: Light engine assembly, gearbox handling, workshop maintenance, and general indoor material handling
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Handling 3-ton engine components and workshop parts across a practical 3.5-meter radius? This technical drawing illustrates how Yuantai Crane customizes A4 medium-duty pillar jib cranes with compact chain hoists to optimize indoor workshop productivity.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Low indoor headroom Needing a compact crane under low workshop ceilings or mezzanines. | Compact pillar-mounted design with only 2.8m total height and 940mm hoist headroom, maximizing available vertical space. | Total Height: 2.8m | Hoist Headroom: 940mm | Lifting Height: 1.3m |
| Efficient component handling Moving light engines and gearboxes between workstations. | Motorized trolley travel (11 m/min) combined with 120° motorized rotation for smooth, efficient positioning. | Trolley Speed: 11 m/min | Rotation: 120° | Rotation Speed: 0.8 r/min |
| Practical 3.5m reach for compact bays Covering assembly stations within a small workshop footprint. | Rigid A4 structural design engineered to handle full 3-ton capacity at a 3.5-meter valid radius. | Capacity: 3.0t | Valid Radius: 3.5m | Duty Class: A4 |
How to Evaluate If This Solution Fits Your Facility
- Height & Overhead Clearance: Ensure workshop clear height is at least 3.0 meters (total crane height is 2.8m).
- Radius Coverage Check: Offers a 120° coverage area across a 7-meter diameter working sector, serving compact assembly stations.
- Foundation Rigidity: Due to the 3t load and 3.5m arm moment, a reinforced concrete foundation (min. C25/C30) with anchor bolts is required.
- Power Supply Compatibility: Pre-configured for 415V / 380V / 50Hz / 3P electrical supply (customizable to match your local plant voltage).
- Rotation Requirement: This model offers 120° rotation. If you need 180°, 270°, or 360° coverage, please specify during inquiry.
