50/10 Ton Foundry Crane | 25.5m Span, 12m Lift, Dual Hook
50/10 ton foundry crane for molten metal handling, with 25.5m span, 12m lift, dual hooks, cabin and remote control, full VFD and two cranes in one bay.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Ladle & Foundry Overhead Crane
Tags: ladlecrane,LadleOverheadCraneDrawing
Overview:
This drawing covers a QDY Foundry Crane (Ladle Crane / Metallurgical Crane) — model QDY 50/10t-25.5m-12m A7,Key features: cabin control + remote control, full VFD on all motions, and a 300m travel length. Key dimensions: 25.5m span, 12m lifting height, 2.0m trolley gauge. The main hook runs at 1.4~7.9 m/min with a 75 kW motor; the auxiliary hook runs at 1.8~10.5 m/min with a 19 kW motor; trolley travel runs at 4.4~25.8 m/min with a 7.5 kW motor; crane travel runs at 8.5~50.6 m/min with dual 13 kW motors. Power is 3-phase 380V 50Hz, duty class M7/M6. This order covers 2 units in the same bay. Note: distance from workshop backspin to crane peak should be ≥400mm.
Project & Technical Overview
- Equipment Type: Foundry Crane (Ladle Crane / Metallurgical Crane, QDY Type)
- Product Model: QDY 50/10t-25.5m-12m A7
- PDF Drawing File: 50/10 Ton Foundry Crane | 25.5m Span, 12m Lift, Dual Hook
- Application: Molten Metal Handling
- Duty Class: M7 / M6 (ISO A7 / A6)
- Main Hook Capacity: 50.0 t (50,000 kg)
- Auxiliary Hook Capacity: 10.0 t (10,000 kg)
- Crane Span: 25.5 m (25,500 ± 4.5 mm)
- Lifting Height: 12.0 m (12,000 mm)
- Trolley Gauge: 2.0 m (2,000 mm)
- Travel Length: 300 m
- Main Hook Speed: 1.4~7.9 m/min
- Auxiliary Hook Speed: 1.8~10.5 m/min
- Trolley Traveling Speed: 4.4~25.8 m/min
- Crane Traveling Speed: 8.5~50.6 m/min
- Main Lifting Motor Power: 75 kW
- Auxiliary Lifting Motor Power: 19 kW
- Trolley Traveling Motor Power: 7.5 kW
- Crane Traveling Motor Power: 2 × 13 kW
- Max. Wheel Load: 502.6 kN (Long Travel) / 186.3 kN (Trolley)
- Rail Size: Trolley: P43 / Crane: QU80 (Recommended)
- Control Mode: Cabin Control + Remote Control
- Control System: Full VFD (Variable Frequency Drive)
- Power Supply: 3P 380V 50Hz
- Quantity: 2 Units (Same Bay)
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M7 / M6 (ISO A7 / A6) |
| Main Hook Capacity | 50.0 t (50,000 kg) |
| Auxiliary Hook Capacity | 10.0 t (10,000 kg) |
| Crane Span | 25.5 m (25,500 ± 4.5 mm) |
| Lifting Height | 12.0 m (12,000 mm) |
| Trolley Gauge | 2.0 m (2,000 mm) |
| Travel Length | 300 m |
| Main Hook Speed | 1.4~7.9 m/min |
| Auxiliary Hook Speed | 1.8~10.5 m/min |
| Trolley Traveling Speed | 4.4~25.8 m/min |
| Crane Traveling Speed | 8.5~50.6 m/min |
| Main Lifting Motor Power | 75 kW |
| Auxiliary Lifting Motor Power | 19 kW |
| Trolley Traveling Motor Power | 7.5 kW |
| Crane Traveling Motor Power | 2 × 13 kW |
| Max. Wheel Load (Long Travel) | 502.6 kN |
| Max. Wheel Load (Trolley) | 186.3 kN |
| Rail Size (Trolley) | P43 |
| Rail Size (Crane) | QU80 (Recommended) |
| Control Mode | Cabin Control + Remote Control |
| Control System | Full VFD (Variable Frequency Drive) |
| Power Supply & Voltage | 3P 380V 50Hz |
| Quantity | 2 Units (Same Bay) |
Hoist Mechanism Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Main Hook Capacity | 50 t |
| Main Hook Speed | 1.4~7.9 m/min |
| Main Lifting Motor Power | 75 kW |
| Auxiliary Hook Capacity | 10 t |
| Auxiliary Hook Speed | 1.8~10.5 m/min |
| Auxiliary Lifting Motor Power | 19 kW |
| Lifting Height | 12 m |
| Working Duty | M7 |
| Control System | Full VFD |
| Power Supply | 380V 50Hz 3P |
Trolley & Crane Traveling Technical Parameters
| Component / Motor Drive | Technical Specification |
|---|---|
| Trolley Traveling Speed | 4.4~25.8 m/min |
| Trolley Traveling Motor Power | 7.5 kW |
| Trolley Working Duty | M7 |
| Trolley Rail Type | P43 |
| Crane Traveling Speed | 8.5~50.6 m/min |
| Crane Traveling Motor Power | 2 × 13 kW |
| Crane Working Duty | M6 |
| Crane Rail Type | QU80 (Recommended) |
| Max. Wheel Load (Long Travel) | 502.6 kN |
| Max. Wheel Load (Trolley) | 186.3 kN |
| Control System | Full VFD |
| Power Supply | 380V 50Hz 3P |
Summary of Key Parameters
| Parameter | Value |
|---|---|
| Main Hook Capacity | 50 t |
| Auxiliary Hook Capacity | 10 t |
| Span | 25.5 m |
| Lifting Height | 12 m |
| Trolley Gauge | 2.0 m |
| Travel Length | 300 m |
| Main Hook Speed | 1.4~7.9 m/min |
| Auxiliary Hook Speed | 1.8~10.5 m/min |
| Trolley Traveling Speed | 4.4~25.8 m/min |
| Crane Traveling Speed | 8.5~50.6 m/min |
| Main Lifting Motor Power | 75 kW |
| Auxiliary Lifting Motor Power | 19 kW |
| Trolley Traveling Motor Power | 7.5 kW |
| Crane Traveling Motor Power | 2 × 13 kW |
| Max. Wheel Load | 502.6 kN (Long Travel) / 186.3 kN (Trolley) |
| Control Mode | Cabin Control + Remote Control |
| Control System | Full VFD |
| Power Supply | 3-Phase, 380 V, 50 Hz |
| Quantity | 2 Units (Same Bay) |

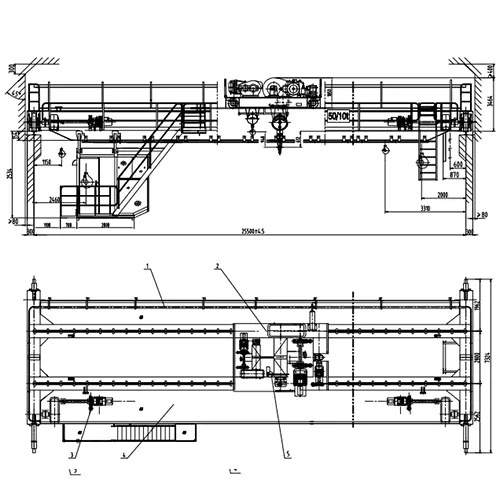

Drawing Views & Structural Information
| View / Item | Description |
|---|---|

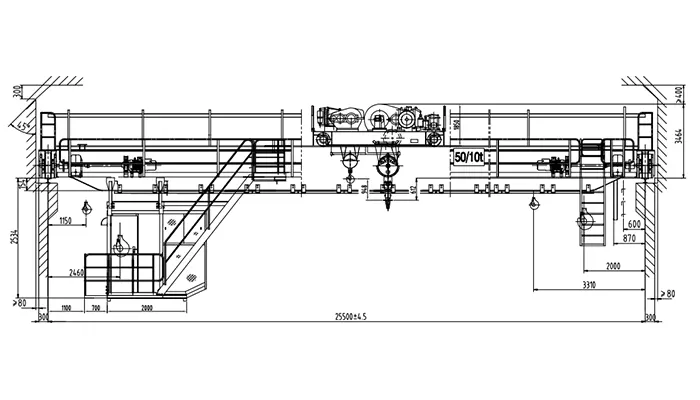

| Main View (Left) | Span: 25500 ± 4.5 mm; Trolley gauge: 2000 mm; Trolley overall width: 5300 mm; Lifting height: 12000 mm (12 m); Main hook limit: 3310 mm; Auxiliary hook limit: 1650 mm; Distance from workshop backspin to crane peak: ≥400 mm; Cabin with access platform and ladder; Overall height: 3464 mm; Travel length: 300 m |
| Top View (Middle) | Double girder, bridge-type; trolley with open winch hoisting mechanism; long travel mechanism; cabin control + remote control; overall dimensions 7924 mm × 2000 mm |
| Section View (Right) | Open winch trolley with 50t main hook and 10t auxiliary hook; trolley overall width: 5300 mm; wheel base: 1130 mm; long travel mechanism; emergency brake; cabin with access platform and ladder |
| Structure Type | QDY Foundry Crane (Ladle Crane); double girder bridge structure; open winch trolley with 50t main hook and 10t auxiliary hook; long travel mechanism; electric system; cabin control + remote control; full VFD control |
| Key Components | 1. Electric system; 2. Trolley (open winch); 3. Long travel mechanism; 4. Bridge structure; 5. Emergency brake |
Technical Requirements & Notes
Important Notes:
- Model Designation: The drawing file name is 5. QDY50/10t-25.5m-12m A7 cabin control + remote control full VFD travel 300m two units same bay 2 units.pdf, where "50/10t" are the main/auxiliary hook capacities, "25.5m" is the span, "12m" is the lifting height, and "A7" is the duty class.
- Workshop Clearance: Distance from workshop backspin to crane peak should be ≥400 mm.
- Control Mode: Cabin control + remote control.
- Full VFD: All motions — hoisting, trolley travel, and crane travel — use variable frequency drive for smooth, precise control.
- Dual Hook Configuration: 50t main hook and 10t auxiliary hook for flexible lifting operations.
- Travel Length: 300 m.
- Two Units Same Bay: This order covers 2 units operating in the same bay, requiring coordinated control and safety systems.
- Emergency Brake: Equipped with an emergency brake subassembly for safe operation.
- Rail Type: Trolley rail P43; crane rail QU80 (recommended).
- ISO M7/A7 Duty Class: Suited to heavy-duty handling in demanding foundry environments.
- Drawings and specifications above are for reference. For customized span, height, speed, or power ratings, contact us for a free engineering evaluation.
- Unauthorized reproduction, distribution, or manufacturing from these drawings without written authorization from Yuantai Crane Machinery is prohibited. Yuantai assumes no liability for unauthorized applications.
How to Get Your Customized Foundry Crane
This drawing shows a 50/10-ton QDY foundry crane with 25.5m span, 12m lifting height, cabin + remote control, full VFD, 300m travel length, and 2 units in the same bay, designed for molten metal handling. Yuantai Crane builds to your exact structural and regional requirements.
| Customization Step | Detailed Description |
|---|---|
| Step 1: Provide Site Parameters | Share your facility dimensions — main hook capacity (50t), auxiliary hook capacity (10t), span (25.5m), lifting height (12m), trolley gauge (2.0m), travel length (300m), and control requirements. |
| Step 2: Free CAD Drawing & Engineering Review | Our engineering team prepares customized general arrangement drawings, wheel load verification, and structural safety layouts at no cost. |
| Step 3: Technical Confirmation | Work with your consultants to lock in trolley type (open winch), dual hook configuration, control mode (cabin + remote), full VFD, power supply (3P 380V 50Hz), and duty class (M7/A7). |
| Step 4: Precision Manufacturing & Global Delivery | Built to international standards, with Factory Acceptance Testing (FAT) before dispatch to your site. |
Frequently Asked Questions (QDY 50/10t-25.5m-12m A7 Foundry Crane Drawing Analysis)
Common technical questions on the 50t main hook, 10t auxiliary hook, 25.5m span, 12m lifting height, cabin + remote control, full VFD, 300m travel, and 2 units same bay.
1. What is the application of this QDY foundry crane?
This QDY foundry crane is designed for molten metal handling in foundry operations. It is used in steel mills, foundries, and smelting plants where molten metal needs to be transported safely and efficiently. The dual hook configuration (50t main + 10t auxiliary) provides flexibility for different lifting needs.
2. What are the advantages of full VFD on this foundry crane?
Full VFD (Variable Frequency Drive) on all motions — hoisting, trolley travel, and crane travel — provides smooth acceleration and deceleration, precise load positioning, and reduced mechanical wear. For molten metal handling, this ensures safe and reliable operation with minimal risk of load swing or shock.
3. What is the significance of operating 2 units in the same bay?
Operating 2 units in the same bay requires coordinated control and safety systems to prevent collision. This configuration increases operational flexibility and throughput, allowing two cranes to work together or independently in the same bay for efficient molten metal handling.
4. What are the advantages of cabin + remote control?
Cabin control provides the operator with a clear view of the working area and a comfortable working position, while remote control allows the operator to move freely and control the crane from a safe distance. This dual control mode offers maximum flexibility for different operational needs in foundry environments.
5. What does the model designation "QDY 50/10t-25.5m-12m A7" mean?
QDY = Foundry Crane (Ladle Crane); "50/10t" = main hook 50t, auxiliary hook 10t; "25.5m" = 25.5-meter span; "12m" = 12-meter lifting height; "A7" = ISO A7 duty class.
6. What are the power requirements for this foundry crane?
3-phase, 380V, 50Hz. The main lifting motor (75 kW), auxiliary lifting motor (19 kW), trolley travel motor (7.5 kW), and crane travel motors (2 × 13 kW) all run on this configuration, with full VFD control on all motions.
7. What is the max wheel load for this crane?
The max wheel load is 502.6 kN for the long travel wheels and 186.3 kN for the trolley wheels. This ensures the crane can safely operate on the recommended rail sizes (P43 for trolley, QU80 for crane).
Need Customized Drawings & Pricing for Your Project?
Send your facility dimensions, capacity requirements, span, lifting height, dual hook configuration, travel length, and control requirements. Yuantai Crane consultants will provide a complimentary CAD layout drawing and quote within 24 hours.
Yuantai Foundry Crane Solutions
Yuantai Crane supplies custom QDY Foundry Crane (Ladle Crane) solutions worldwide — steel mills, foundries, smelting plants, and heavy industrial facilities. Each system is tailored to your capacity, span, lifting height, hook configuration, trolley type, control mode, travel length, and power supply.
Typical Technical Specifications:
- Main Hook Capacity: 20–500 Tons (This Model: 50 t)
- Auxiliary Hook Capacity: 5–200 Tons (This Model: 10 t)
- Span: 10.0–40.0 Meters (This Model: 25.5 m)
- Lifting Height: 10.0–30.0 Meters (This Model: 12.0 m)
- Travel Length: 50–300 Meters (This Model: 300 m)
- Trolley Type: Open Winch Trolley (This Model)
- Duty Class: ISO A5–A8 (This Model: M7/A7)
- Control Mode: Cabin Control + Remote Control (This Model)
- Control System: Full VFD (This Model)
- Structure: Double girder, bridge-type
- Power Supply: 3P 380V 50Hz (Customizable)
- Applications: Steel Mills, Foundries, Smelting Plants, Molten Metal Handling, Heavy Industrial Facilities
Yuantai provides global buyers with engineering design, non-standard structural customization, Factory Acceptance Testing (FAT), export packaging, logistics delivery, and installation guidance.
Engineering Support & Crane Customization
Handling a 50-ton main load and 10-ton auxiliary load across a 25.5m span with 12m lifting height, cabin + remote control, full VFD, 300m travel length, and 2 units in the same bay for foundry operations takes solid mechanical and electrical engineering. This drawing reflects Yuantai Crane's work in custom foundry crane structural design, open winch trolley systems, and reliable power delivery for demanding metallurgical environments.
| Customer Challenge & Site Requirement | Yuantai Custom Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Molten Metal Handling with Dual Hook Flexibility Requires a crane capable of handling both heavy and light loads in foundry operations. | QDY foundry crane with 50t main hook and 10t auxiliary hook on an open winch trolley for flexible molten metal handling. | Main Hook: 50 t | Auxiliary Hook: 10 t | Span: 25.5 m | Lift: 12 m |
| 2 Units Same Bay Operation Needs coordinated control of two cranes in the same bay for increased throughput. | 2 units supplied for same-bay operation with coordinated control and safety systems, full VFD for precise motion control. | Quantity: 2 Units | Travel: 300 m | Control: Full VFD |
| Heavy-Duty Foundry Operations Requires reliable performance for demanding foundry cycles. | M7/A7 duty class with 75 kW main lifting motor, 19 kW auxiliary motor, and robust travel drives for continuous operation. | Main Motor: 75 kW | Aux Motor: 19 kW | Travel Motors: 2 × 13 kW | Max Wheel Load: 502.6 kN |
How to Evaluate If This Solution Fits Your Facility?
- 50/10T QDY Foundry Crane Design: 25.5m span, 12m lifting height, 2.0m trolley gauge — designed for molten metal handling with dual hook flexibility.
- Dual Hook Configuration: 50t main hook and 10t auxiliary hook for flexible lifting operations.
- Full VFD Control: Smooth, precise motion control on all motions for efficient foundry operations.
- Cabin + Remote Control: Dual control mode for maximum operational flexibility.
- 2 Units Same Bay: Coordinated operation for increased throughput and flexibility.
- 300m Travel Length: Covers long runways in large metallurgical facilities.
- M7/A7 Duty Class: Built for heavy-duty continuous operation in demanding foundry environments.
- Emergency Brake: Additional safety feature for secure load holding in emergencies.
