8 Rollers Jib Crane 2 Ton for Glass Handling on Rooftop
4 sets of 2 ton roller jib crane on wheels for sale Qatar. The roller jib cranes with tailored crane specifications fully meet client's lifting requirements and application conditions, which is the second order from the Qatar client. Long term cooperation is build on the bases on high-quality equipment and timely after sale services, which is our aim. We are always trying to exceed themself.
Cooperation and Qatar client back ground
On December 20, 2021, we received a new roller jib crane inquiry from a Qatar customer, who had cooperated with us once before.
The headquarter of the customer's enterprise is located is Doha, Qatar. Their business is relatively extensive, mainly including concrete & asphalt plants, concrete placing booms, concrete cooling plants, concrete recycling plants, lifting equipment, building maintenance units, generators and related parts and services.
This is the second order of roller jib cranes on wheels from this Qatar customer.
Overview of 2 ton roller jib cranes for Qatar
- Crane Type：rolling jib cranes with 8 rollers
- Date of Placing Oder：2022.01.27
- Date of Delivery ：2022.2.25
- Way of Transportation： LCL
- Way of Payment：50% prepaid
- Destination country： Qatar
- Destination port：FOB, Tianjin Port
- First Contact：2020.7 .27
- Application industry: Construction contracting
- Use of roller jib crane: glass handling to hoist glass from the earth ground to rooftop of building.
Main specifications of roller jib crane
Crane type | Roller jib crane |
Model | |
Working Class | A3 |
Capacity | 2 ton |
Span length (m) | 2.8 , the effective arm lenght / jib cantilever |
Lifting Height（M） | 50 m, (l.84 m jib column + 48.16 m under supporting ground height) |
Crane control | Remote control |
Voltage | 400v,50hz,3p |
Color | Standards |
Quantity | 4 |
Lifting requirements and application conditions of roller jib cranes
The Qatar customer sent this inquiry via WhatsApp, stating that another two sets of roller jib cranes were required. The effective length of the arm is 1.3m. The arm is immobilized. Roller jib cranes will be used on the construction roof top to hoist the glass from the ground.
In the early stages, it is approximately 2 ton, the lifting height is 50m (including the underground height), the effective arm length is 2.8m, and the arm does not rotate, according to the parameter information provided by the customer.
Following detailed communications, the following are the final requirements for rolling jib cranes on wheels:
- On the roof, the rolling jib will be used to lift the glass that has been placed on the ground.
- When not in use or when the project is completed, the jib crane must be mobile so that it can be moved to another location.
- The arm does not need to rotate and can be fixed; the maximum lifting capacity is 2t.
- The lifting height is 50 meters (48.16m in building height plus 1.84m of the jib column).
- The roller jib crane's arm is 3 m long.
Roller jib crane design for rooftop glass handling
roller jib cranes with 8 rolling wheels to ensure glass handling on the rooftop
Based on customer requirements, we have designed the following solutions.
- Lifting capacity of portable jib crane : 2 ton
- Lifting height of roller jib: 50m(1.84m+48.16m)
- Span (arm length): 3m (effective arm length: 2.8m)
- Power supply: 400v/50hz/3p
- Working duty of mobile jib crane : A3
- Control: Pendant control & Remote control
- Jib hoist type: electric chain hoist with electric trolley
- Jib Cantilever Rotation: No
- Rolling Wheels Design: 4 Rolling wheel at one side of foundation, all together 8 wheels.
- To ensure safety and stability, the roller jib cranes are equipped with counter weight.
The design and price for the jib crane solution have received the client's full approval. Due to our partnership, the customer had previously purchased comparable roller jib cranes and was familiar with our portable jib crane and services, so this time he directly ordered four mobile jib cranes, and everything went very smoothly.
Features of the 8 rollers jib cranes 2 ton

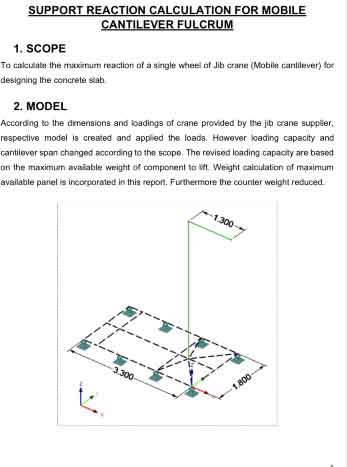

8 rollers design for the portable jib cranes
The specifications for the roller jib cranes in the second order are essentially the same as those from the previous inquiry. To ensure operation safety under loading, the roller jib crane's foundation, or chassis design, must be lengthened and equipped with eight wheels altogether.
The client company has very professional engineers and technical teams, and they have issued a calculation book, but it is necessary to confirm whether it is feasible with our technical personnel.

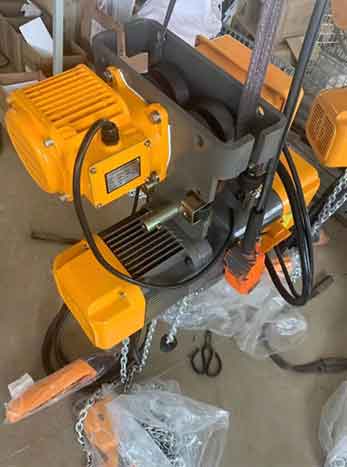

New type of electric chain hoist for 50 m lifting height
Because the lifting height exceeds 30 meters and approaches 50 meters, the new EQ model electric chain hoist is recommended.
- The new EQ type electric chain hoist is optimized for high lifting heights and busy working environments.
- This EQ type electric chain hoist's motor has a heat dissipation device, which is more appropriate for this working condition.
- Furthermore, the new ones have an overload limiter to ensure safety during operation.

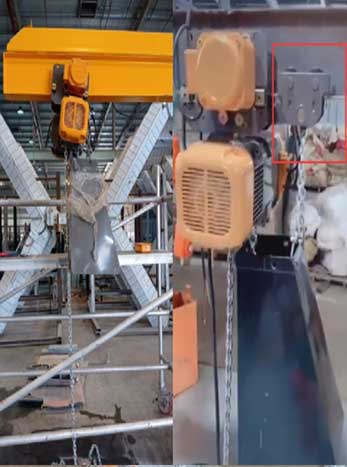

Extra hoist trolley to balance jib hoist
When the lifting height is 50 meters for the general type electric chain hoist design, the weight of the chain falls is all put together on the right side of the hoist, and the left side of the chain fall hoist is pressed up.
In this case, we added an extra hoist trolley to balance it and keep the jib hoist from tilting.

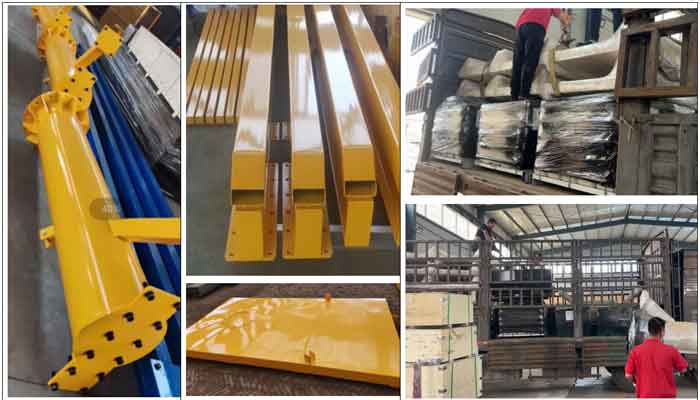

Production and delivery of roller jib cranes 2 ton
We have been hard at work on the road, understanding customer needs and providing excellent solutions and cost-effective hoist and crane products.

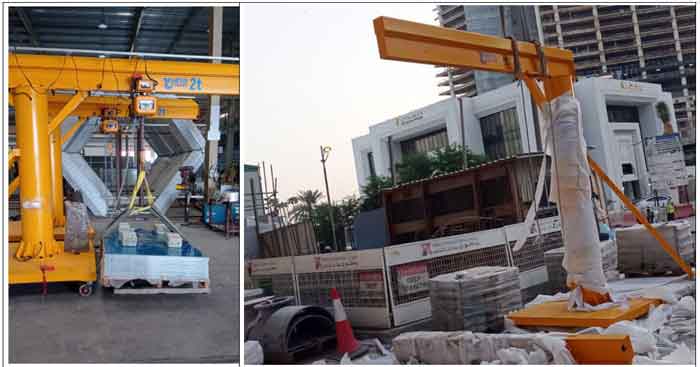

Roller crane feedback after assembly at workingsite Qatar

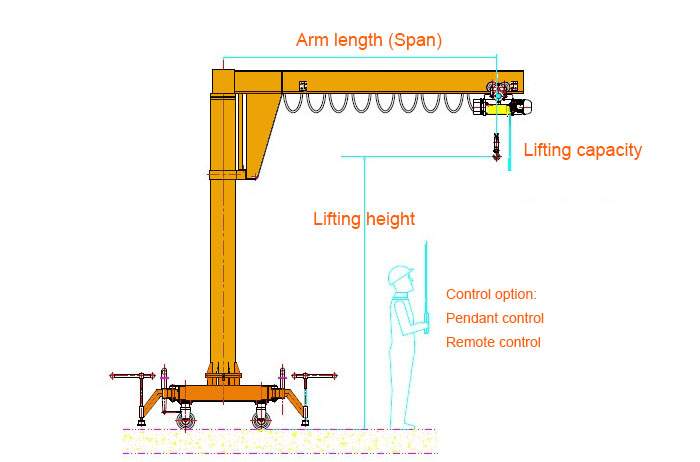

How to get rolling jib crane for your application
If any interest of the portable rolling jib crane , please contact us and we will tailored roller jib cranes for your particular needs.
- Roller Jib crane specifications：Lifting capacity:____Lifting height: Span (arm length):______
- Slewing Jib design: Rotating or not? Manual or electric rotating ?
- Rotation: 90°? 180°? 270°? 360°?
- Power supply (e.g. 380V 50Hz 3Phase):
- Hoist type you prefer: electric wire rope hoist, electric chain hoist, manual chain hoist
- Roller jib crane application : indoor or outdoor?
- What materials will the jib crane lift?
