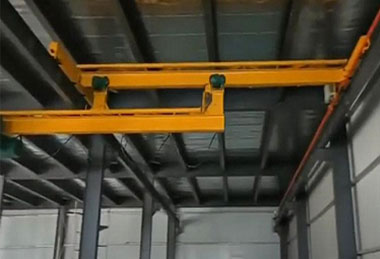

Telescoping bridge cranes

Telescoping bridge cranes are a type of overhead cranes either in under-hung crane deisgn or top running crane design ,or  in a single or double girder design have a secondary bridge that extends beyond the end of the bridge beam. A telescoping overhead crane can extend beyond a support or building column to lift material in an adjacent bay, then retract to pass by the column. These adjustable telescopic cranes typically can extended in one direction, but they can be designed to reach in both directions to maximize crane utilization. If there is enough headroom, telescoping bridge cranes are a low-cost way to add hook coverage to a custom bridge crane.

Designed to reach into adjoining bays, the telescopic cantilever or extended bridge can reach through open doors and outside of buildings with the help of thetelescoping bridge cranes.

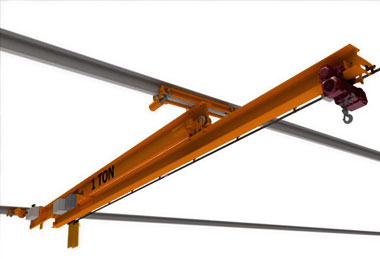

Telescoping bridge crane developed based on ld series of top running single girder overhead cranes

Telescoping bridge crane developed based on lx series of under running single girder overhead cranes

A telescoping bridge is useful when you need to move a load by an overhead traveling crane into another bay or through an open door. These telescoping bridge cranes have a second bridge beam directly beneath the main bridge beam. This secondary beam is equppied with a series of trolleys and kick-up devices that allow the underhung beam to telescope. This one-of-a-kind feature can solve a variety of material-handling problems.

Features of telescoping bridge cranes

• Standard capacities range from one to ten tons. Larger capacities are available if required by an application.
• Telescoping bridge cranes can be fully equipped with all of the same features as standard overhead bridge cranes, such as pendant stations, radio controls, two-speed and variable controls, and travel alarms and lights.
• Furthermore, zoning controls can be added to limit the travel of the bridge crane when the telescoping bridge is extended.
• Due to the additional weight of the secondary beam and the cantilevered load that transfers the entirety of the weight of the main girder to a single runway, the runway beams, larger wheels, and end trucks must be taken into account in telescoping crane designs.

We have experience dealing with the design issues posed by telescoping cranes, so we can reply to your inquiries as they come up. Please feel free to contact us to consult about your requirements for a telescoping bridge crane.

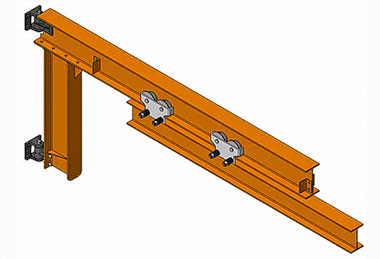

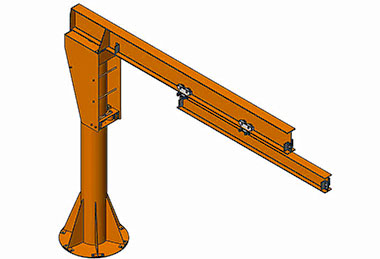

Workstation crane with telescoping design

Telescopic beam Kbk cranes are a special type of kbk cranes with overhung telescopic beams that extend out from the main crane beam working area for loads hoisting and moving. These beams can effectively increase the auxiliary work area, overcoming obstacles or barriers, and making the best use of the available space. Load handling close to obstacles or between columns is simple and affordable with the help of the kbk overhung crane and extending crane with telescopic beam. KBK telescopic crane for sale.

The telescopic beam of the light kbk crane system can extend out at one or two sides with an overhanging distance of up to 2.5 m, allowing it to handle loads outside the main beam's working area and enabling material handling beneath the line, around heating pipes, and in between factory columns, among other places.

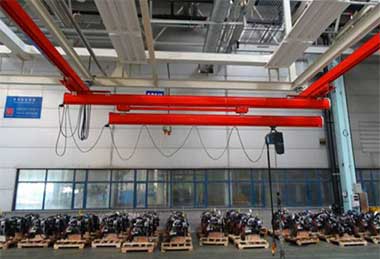

Telescopic kbk cranes

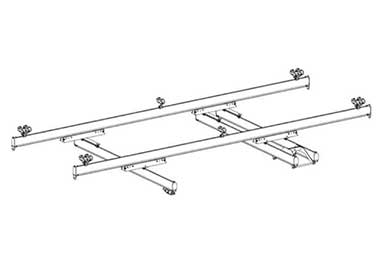

Telescopic kbk cranes drawing

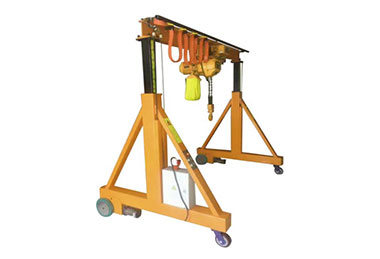

Telescoping gantry cranes

Telescoping Gantry Cranes are ideal for all lifting and loading tasks in your shop. To accommodate low ceilings or roofs, these telescopic height and span gantry crane can be adjusted to meet your loads handling requirments and application conditions. The four locking casters make moving and transporting simple, and they provide a stable base when lifting. Available in capacities ranging from 0.5 to 2 tons, they can lift a wide variety of items and equipment. The trolley or hoist are not included.

Telescopic gantry crane with a capacity of 500kg to 10 tons and telescopic height and width for light duty hoisting. Steel telescoping gantry & steel gantry crane for sale. Telescoping gantry cranes with telescoping gantry design and portable gantry design, your most versatile and cost-effective small gantry crane solutions for light duty material handling, etc.

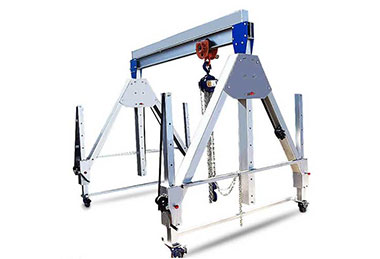

500kg -10 ton light weight telescopinc gantry crane system, a type of aluminum lightweight gantry crane system with stationary or portable design and features such as light duty, foldable, easy use, and quick assembly, among others. Aluminum light weight gantry crane systems are available in a variety of sizes and designs for easy assembly and disassembly. The alumninum lightweight ganty crane can be folded up into a small package for transport or storage when not in use.

Features of telescoping gantry cranes

• The Telescoping Gantry Crane can be used to lift and position materials almost anywhere. Standard adjustable height ranges from 8 to 12 feet.
• Reach all corners of your plant with portable gantries. Utilize to move and lift objects, or to tow heavy machinery such as motors and equipment. Quick disassembly for transport by service truck.
• Adjustable gantries can be used on uneven floors, through doorways, aisles, and under mezzanines or other overhead obstacles by adjusting the height, span, and tread. Excellent warehouse and welding shop gantries.
• Relocatable Gantries: Almost all portable Gantries are relocatable, making them ideal for rented facilities or future workflow changes.
• Track-Mounted Gantries: Our track-mounted gantries are an excellent choice for manual or motorized travel over a fixed route.
