25 Ton Single Girder Gantry Crane Australia
Low headroom Gantry Crane 25 Ton Good Price

Single girder gantry crane 25 ton, single beam goliath crane with low headroom electric hoist for Australia. Check 25 ton gantry crane specifications.

Overview of 25 ton single girder gantry crane

  • Crane Type:single girder gantry crane & goliath crane with low headroom electric hoist
  • Date of Placing Oder:2019.2.14
  • Date of Delivery :2019.4.22
  • Way of Transportation: By shipping, 1*40GP+1*20GP
  • Way of Payment:TT
  • Destination country: Australia
  • Destination port:CFR Newcastle port
  • First Contact:2013.12. 24
Main steel structure of 25 ton single girder gantry crane and goliath crane Main steel structure of 25 ton single girder gantry crane and goliath crane

25 ton gantry crane main specifications & general requirements

Crane type

Single Girder Gantry Crane with Low Headroom Electric Hoist

Model

MH

Working Class

A4

Capacity

25 ton

Span length (m)

16 M

Lifting Height(M)

5.72 m

Crane control

Pendant control

Voltage

415v,50hz,3p

Color

Standard

Crane Rail

P38

Quantity

1

Customized features of 25 ton single girder gantry crane for sale Australia

  • The electrical brand is Schneider Electric;
  • The main beam of the low headroom electric hoist gantry crane needs to be cut off;
  • The total height of the single girder gantry crane required by the customer for is 9M.
  • With track and pressure clamping plates, track model P38, the running length of the  single girder gantry crane is 50M. The total length of the track is 100M, and the track needs to be placed in a 40-foot container. There are 324 pressure plates and 17 pairs of clamping plates.
  • Power supply  of the gantry crane : single pole busbar 250A,travelling length 50M, 6 collectors;
  • Cable reels and cables: the total power of the gantry crane is 25.9KW, and the travelling length is 50M.

Customs declaration information registration

  • The actual Chinese and English name of the goods: single girder electric hoist gantry crane
  • Chinese and English name of cargo declaration: single girder electric hoist gantry crane
  • Inland transportation cost from factory to port: 1200USD
  • Port charges: 1200USD

Gallary of 25 ton single girder gantry crane for sale Australia

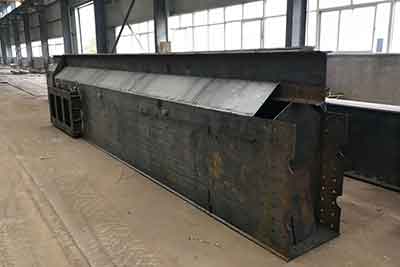

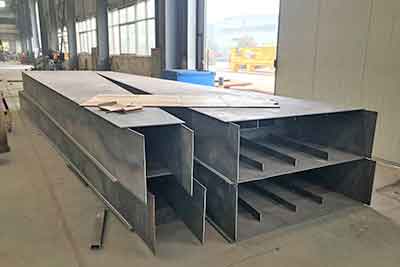

Main girder of 25 ton single girder electric low headroom gantry crane for sale Australia

Main girder of 25 ton single girder electric low headroom gantry crane for sale Australia

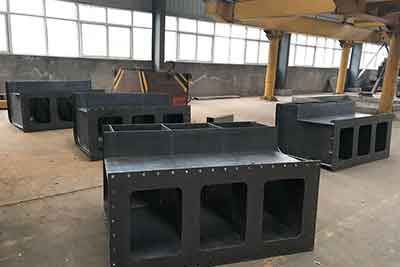

Supporting legs of 25 ton gantry crane under construction for sale Australia

Supporting legs of 25 ton gantry crane under construction for sale Australia

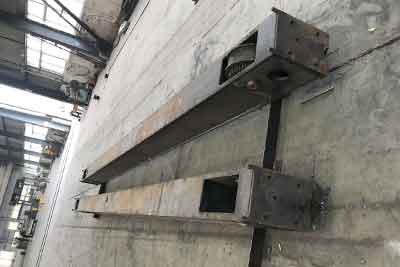

Ground beam of single beam gantry crane 25 ton for sale Australia

Ground beam of single beam gantry crane 25 ton for sale Australia

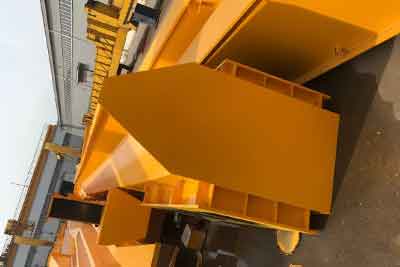

Main steel structrue parts of 25 ton goliath gantry crane for sale Australia

Main steel structrue parts of 25 ton goliath gantry crane for sale Australia

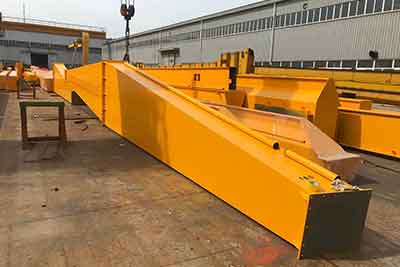

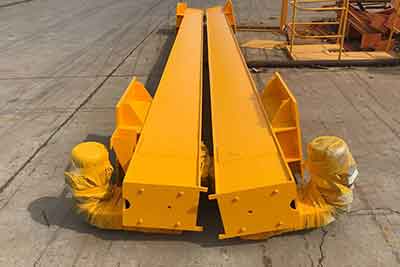

Main girder of single girder beam gantry crane 25 ton painted

Main girder of single girder beam gantry crane 25 ton painted

Main girder of single girder electric hoist crab trolley packed for delivery to Australia

Main girder of single girder electric hoist crab trolley packed for delivery to Australia

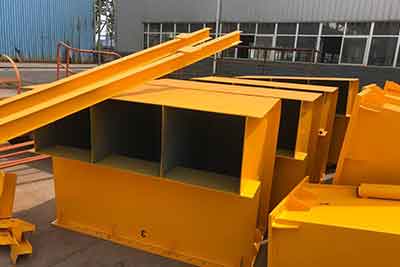

 Ground beam of single girder electric hoist gantry crane 25 ton for sale Australia

Ground beam of single girder electric hoist gantry crane 25 ton for sale Australia

Main steel structrue of 25 ton gantry crane for sale Australia

Main steel structrue of 25 ton gantry crane for sale Australia

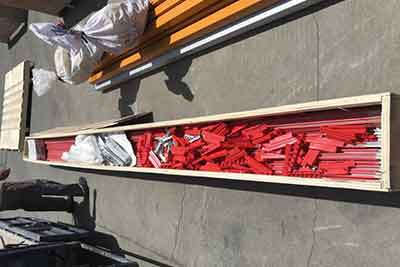

Single pole busbar for the power supply of 25 ton single girder low headroom gantry crane

Single pole busbar for the power supply of 25 ton single girder low headroom gantry crane

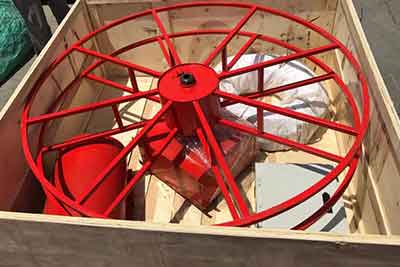

Cable reel of single girder gantry crane for sale Australia

Cable reel of single girder gantry crane for sale Australia
