Floor Mounted Electric Jib Crane 7 Ton for Sale Ecuador Mining Use

Electric jib crane 7 ton for sale Ecuador, good price. Floor mounted jib crane 7 ton, customized lifting height 8.39M+6.6M underground height, 440v.Check now.

Background of the 7 ton jib crane projects in Ecuador

The mining industry in Ecuador has seen significant growth over the years, leading to an increased demand for efficient and reliable material handling equipment. In response to this demand, a prominent equipment supplier introduced a cuttingedge solution, the Floor Mounted Electric Jib Crane with a lifting capacity of 7 tons, tailored specifically for mining applications in Ecuador. This case study explores the successful implementation of the Electric Jib Crane and its positive impact on productivity and safety in a local mining operation.

The client, a major mining company in Ecuador, faced the challenge of improving material handling processes within their underground mining site. The existing manual methods were timeconsuming and posed safety risks to the workers. They sought a specialized solution that could handle heavy loads efficiently and navigate the unique underground terrain.

Features of Electric jib crane application conditions :

• Heavy Load Lifting: The mining site required a crane with a high lifting capacity of 7 tons to handle the heavy materials regularly encountered in their operations.
• Limited Space: The mining tunnels had limited space, necessitating a compact and flexible material handling solution that could operate effectively in confined areas.
• Safety Concerns: Safety was of paramount importance due to the hazardous nature of mining activities. The client sought equipment that would minimize risks and enhance worker safety.

Floor mounted electric jib crane 7 ton for heavy duty loads handling solution

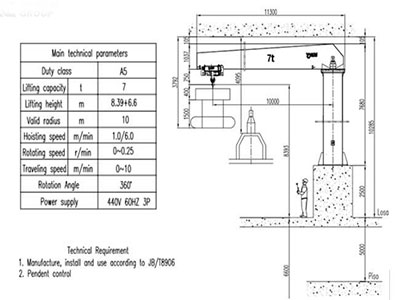

Technical data of Electric Jib Crane for Sale Ecuador

• Lifting capacity: 7 tons
• Lifting height: 8.39+6.6 meters underground height
• Valid radius: 10 meters
• Duty class: A5
• Hoisting speed: 0/6.0m/min
• Rotating speed: 0~0.25r/min
• Traveling speed: 0~10m/min
• Lifting motor: 4/9.1kW
• Traveling motor: 0.45kW
• Rotation Angle: 360°
• Power supply: 440V/60HZ/3Phase

Ask for 7 ton jib crane price

After careful evaluation of the client's requirements, the equipment supplier proposed the installation of a Floor Mounted Electric Jib Crane with the following technical specifications:

• Lifting Capacity: 7 tons, enabling the crane to lift and transport heavy loads effortlessly.
• Lifting Height: A customized lifting height of 8.39 meters above ground level and an additional 6.6 meters underground height, catering to the specific needs of the mining tunnels.
• Valid Radius: 10 meters, providing a wide operational range without compromising on stability.
• Duty Class A5: Indicating the crane's capability for heavyduty applications, aligning perfectly with the client's mining operations.
• Hoisting Speed: 0/6.0m/min, allowing for both precise and efficient lifting of materials.
• Rotating Speed: 0~0.25r/min, enabling a full 360° rotation to access materials from various angles.
• Traveling Speed: 0~10m/min, ensuring smooth movement throughout the mining site.
• Lifting Motor: 4/9.1kW, providing ample power for lifting operations.
• Traveling Motor: 0.45kW, allowing the crane to move efficiently along the floor.
• Rotation Angle: 360°, granting unrestricted movement for optimal material positioning.
• Power Supply: 440V/60HZ/3Phase, matching the electrical specifications available at the mining site.

Productions and delivery of heavy duty electric jib crane 7 ton

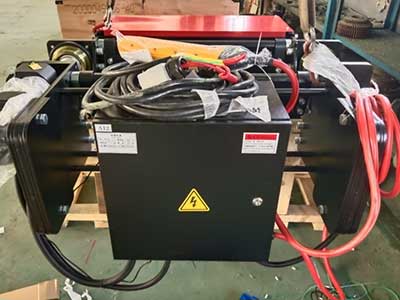

7 ton electric hoist for floor mounted electric jib crane

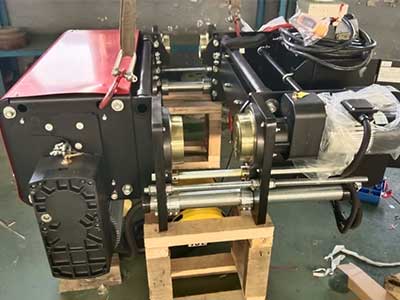

Electric wire rope hoist 7 ton for the jib crane 7 ton

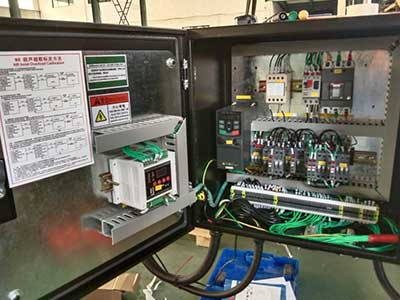

Electric box of electric jib hoist 7 ton

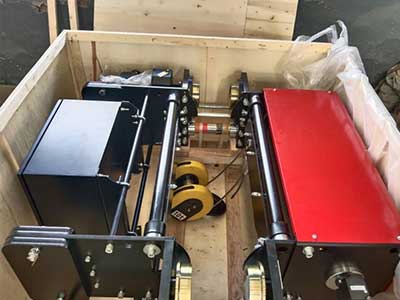

7 ton electric jib hoist packaged for delivery

Features of floor mounted electric jib hoist 5 ton

High Lifting Capacity for Mining Operations:
The 5ton electric jib crane hoist, featuring a Europeanstyle low headroom design, is a powerhouse in the mining industry. With its impressive lifting capacity, it excels at handling heavy loads commonly encountered in mining operations, ensuring efficient material handling and enhanced productivity.

Optimized Space Utilization in Confined Mining Sites:
The crane's spacesaving benefits with the low headroom design make it an excellent fit for mining sites with limited overhead clearance. Its compact nature allows for easy installation and optimization of space utilization within the confined and often challenging mining areas.

Precision and Smooth Operation:
Designed for precision and smooth operation, the electric jib crane guarantees accurate material handling, essential for the diverse and intricate tasks in the mining industry. Its controlled movements ensure seamless positioning of materials, contributing to increased operational efficiency.

Safety Features to Ensure Worker Protection:
Safety is of utmost importance in mining, and this crane is equipped with various safety features. The overload protection prevents lifting beyond its rated capacity, ensuring secure and reliable operations. Moreover, limit switches offer controlled lifting within predetermined upper and lower limits, minimizing the risk of accidents and potential hazards.

Enhanced Versatility with DualSpeed Capability:
The dualspeed capability of the crane allows for both slow and precise movements, essential for delicate material handling, as well as faster load handling during timesensitive mining operations. This versatility enhances its adaptability to various mining tasks and requirements.

Variable Frequency Drive for Optimal Load Control:
Equipped with a Variable Frequency Drive (VFD), the crane ensures smoother acceleration and deceleration, reducing wear and tear on components and optimizing load control. This feature enhances equipment life and minimizes maintenance requirements.

Remote Control Option for Operator Safety and Efficiency:
The crane's remote control option provides increased flexibility in mining operations, allowing operators to control the crane from a safe distance. This feature enhances worker safety and ensures operational efficiency in the dynamic mining environment.

Easy Maintenance for Reduced Downtime:
The crane's easy maintenance with accessible critical components simplifies inspection and upkeep tasks, reducing downtime and optimizing productivity in mining operations.

Electric jib crane cantilever and column

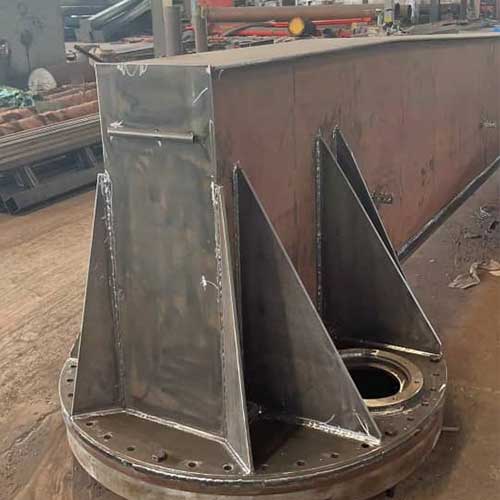

cantilever or arm of the floor mounted jib crane with electric motorized rotating - slewing jib crane design

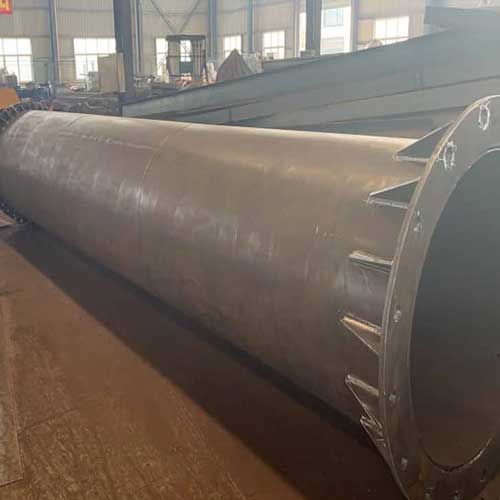

Column of 7 ton pillar mounted jib crane

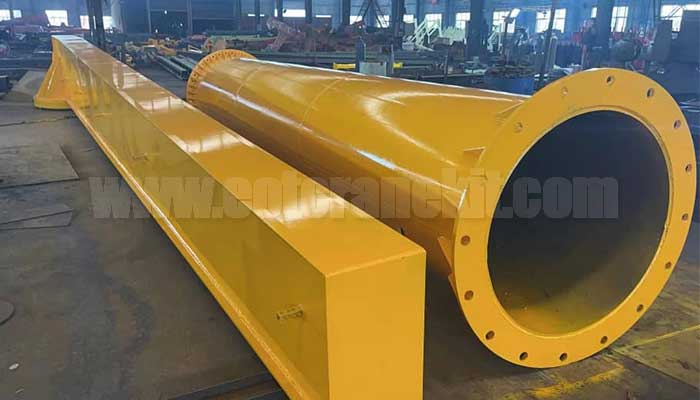

I beam cantilever and column of pillar jib crane

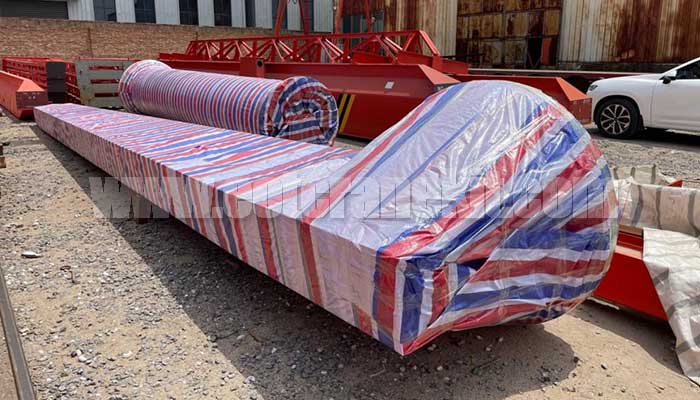

Cantilever and column of pillar mounted electric jib crane 7 ton

The electric jib crane boasts a robust 7ton lifting capacity and features a wellengineered cantilever and columns. The cantilever, extending horizontally from the vertical pillar, is designed with high strength and rigidity to effortlessly handle heavy loads. Its considerable length ensures an extensive working area coverage, enabling seamless material handling and positioning.

On the other hand, the columns, constructed from durable steel, provide a stable and reliable support system. Their height and dimensions determine the crane's lifting height and working clearance, catering to various industrial needs. Additionally, the base plate securely anchors the crane to the ground, establishing a solid foundation for safe and efficient operations. Through meticulous design and production, this electric jib crane guarantees exceptional performance, emphasizing safety, durability, and efficiency in heavyduty applications.

Features of the 7 ton electric jib crane for mining use in Ecuador

The 7ton electric jib crane designed for mining use comes with several features that make it wellsuited for the challenging and demanding conditions of mining operations. Some of the key features include:

• High Lifting Capacity: The crane is designed to handle heavy loads up to 7 tons, making it suitable for lifting and transporting large materials commonly found in mining applications.
• Customized Lifting Height: The crane's lifting height is customized to meet the specific requirements of mining sites. In this case, it has a lifting height of 8.39 meters above ground level and an additional 6.6 meters underground height, allowing it to access materials from different levels within the mine.
• Duty Class A5: The crane is classified under Duty Class A5, indicating its capability for heavyduty use. This robust design ensures it can withstand the rigors of continuous operation in the mining environment.
• Floor Mounted Design: The crane is floor mounted, providing stability and a strong foundation for lifting heavy loads while also minimizing the need for additional support structures.
• 360° Rotation: The crane offers a full 360degree rotation, allowing it to reach materials from various angles without the need for repositioning the crane or the load, thereby enhancing operational efficiency.
• Wide Valid Radius: With a valid radius of 10 meters, the crane has a broad operational range, allowing it to cover a significant area within the mining site without the need for frequent relocation.
• Hoisting Speed: The crane is equipped with a variable hoisting speed of 0/6.0 meters per minute, allowing for both precise and rapid lifting of materials based on the specific requirements of the task.
• Rotating Speed: The rotating speed ranges from 0 to 0.25 revolutions per minute, enabling controlled and steady rotation while handling materials.
• Traveling Speed: The crane has a traveling speed of 0 to 10 meters per minute, ensuring smooth and efficient movement throughout the mining site.
• Powerful Lifting Motor: The crane is equipped with a lifting motor that provides a power output of 4/9.1kW, ensuring sufficient force to handle heavy loads effectively.
• Traveling Motor: The traveling motor has a power output of 0.45kW, enabling the crane to move along the floor of the mining site smoothly.
• Safety Features: As mining operations can be hazardous, the crane is equipped with safety features such as limit switches, emergency stop buttons, and overload protection to ensure the safety of workers and prevent accidents.
• Adaptability to 440V Power Supply: The crane is designed to operate on a 440V/60HZ/3Phase power supply, which is commonly available in industrial settings, including mining sites.

Overall, the 7 ton electric jib crane for mining use is a highly efficient, flexible, and safe material handling solution, designed to improve productivity and safety in the challenging environment of mining operations.

Benefits of using floor mounted electric jib crane 7 ton

The implementation of the Floor Mounted Electric Jib Crane brought about remarkable improvements in the mining operation:

• Enhanced Productivity: The crane's 7ton lifting capacity and precise hoisting speed significantly accelerated material handling processes. This resulted in reduced downtime and increased overall productivity.
• Improved Safety: The crane's floormounted design and 360° rotation capability allowed for safe and precise positioning of materials, reducing the need for manual handling by workers and mitigating safety risks.
• Optimized Space Utilization: The compact design and flexible maneuverability of the crane made it ideal for operating within the limited space of the underground mining tunnels.
• Reliability and Durability: The Duty Class A5 rating of the crane proved its robustness and ability to withstand the demanding conditions of the mining environment, ensuring longterm reliability.

The Floor Mounted Electric Jib Crane with a 7ton lifting capacity has proven to be an invaluable addition to the Ecuadorian mining operation. Its versatility, efficiency, and safety features have led to significant improvements in material handling processes, contributing to increased productivity and enhanced worker safety. As the mining industry continues to grow, the adoption of advanced material handling equipment like the Electric Jib Crane will undoubtedly play a pivotal role in ensuring continued success and sustainability.
