Column-Mounted Jib Cranes

Column-mounted jib cranes are an essential wall crane for material handling , offering reliable and efficient lifting capabilities across various industries. By attaching directly to vertical columns, these cranes optimize workspace usage while providing robust support for diverse lifting tasks. Industries such as manufacturing, warehousing, assembly lines, and maintenance facilities rely on these cranes to streamline operations and improve productivity.

Space Efficiency

One of the primary benefits of column-mounted jib cranes is their ability to maximize space utilization.

• Optimal Use of Vertical Structures: These cranes attach to existing concrete or steel columns, eliminating the need for additional support structures.
• Preserved Floor Space: By avoiding the need for freestanding supports, they ensure that valuable floor space is available for other operations or equipment.

This space-saving feature is particularly advantageous in environments where efficient layout planning is crucial.

Ease of Installation

Installing column-mounted jib cranes is straightforward and requires minimal modifications to existing structures.

• Quick Setup: Their design minimizes the time and effort needed for installation, allowing for faster integration into operational workflows.
• Reduced Structural Changes: There is no need for extensive alterations, making them an ideal choice for retrofitting into established facilities.

This ease of installation ensures minimal downtime, enabling businesses to maintain productivity during the setup process.

Cost-Effective Solution

Column-mounted jib cranes offer a cost-efficient approach to material handling, both during installation and over the lifespan of the equipment.

• Lower Initial Costs: Utilizing existing columns reduces the expense of creating dedicated support systems.
• Reduced Maintenance Expenses: Their simple design and durable construction lead to lower maintenance costs over time.

These cranes provide an affordable alternative to standalone systems without compromising performance or reliability.

Column-mounted jib cranes deliver significant advantages for industries seeking efficient and economical material handling solutions. With their space-saving design, simple installation process, and cost-effectiveness, they stand out as a practical choice for improving workflows and operational efficiency.

Types of Column-Mounted Jib Cranes for Sale

Column-mounted jib cranes come in a variety of designs, each tailored to meet specific operational needs. Below are the key types based on arm length and design, offering different advantages to enhance material handling efficiency.

By Arm Length and Design

Low Headroom Cantilever Column Cranes Cantilever column cranes feature a compact and sturdy arm extending from a single support point. This design is ideal for tight or confined spaces.

• Space Efficiency: The crane arm is mounted to a single vertical support column, minimizing the need for additional floor space.
• Applications: Perfect for small workshops, maintenance areas, or warehouses with limited space.
• Benefits: Provides excellent lifting capabilities without occupying much room, making it suitable for light to moderate load handling. It's an excellent choice when space is a premium.

Tie Rod Cantilever Column Cranes Tie rod cantilever column cranes have a longer arm supported by tie rods, allowing them to reach further and cover larger areas.

• Extended Reach: The tie rods provide additional structural support, allowing the crane arm to extend further than standard cantilever cranes.
• Applications: Ideal for larger workspaces like assembly lines or expansive storage areas where materials need to be moved over a greater distance.
• Benefits: Offers increased flexibility for handling larger materials or covering a wider operational area. The extended reach is perfect for tasks that require more lifting capacity or larger coverage.

Telescopic Arm Column Cranes Telescopic arm column cranes feature an adjustable arm that can extend and retract based on the specific task, offering dynamic reach flexibility.

• Adjustable Reach: The crane's telescoping arm allows it to adapt its length according to the task, providing versatile lifting solutions for various operations.
• Applications: Ideal for industries with fluctuating lifting needs or when workspace dimensions vary depending on the task.
• Benefits: The ability to adjust the arm length makes this crane highly versatile, suitable for businesses with diverse material handling tasks or when handling materials of different sizes.

Each type of column-mounted jib crane is designed with specific operational benefits in mind. Whether you're dealing with tight spaces, need extended reach, or require adjustable lifting capacities, there is a column-mounted jib crane that can improve your material handling efficiency and help streamline your operations.

By Hoist Type

Manual Hoists Manual hoists are an affordable and efficient solution for lifting lighter loads, especially in settings where lifting is not a frequent task.

• Cost-Effective: Manual hoists have a lower upfront cost compared to electric hoists, making them an ideal choice for businesses with limited budgets or those that don't require frequent lifting.
• Applications: These hoists are best suited for light-duty tasks, such as small workshops, garages, or facilities where material handling is infrequent or occasional.
• Benefits: Manual hoists are easy to operate, require minimal maintenance, and are often portable. This makes them versatile and convenient for a range of basic tasks, without the need for complex installation or additional power sources.

Electric Hoists Electric hoists are built for higher efficiency and are capable of handling heavier loads, making them the preferred option for environments where frequent lifting is required.

• Efficiency: Electric hoists provide faster, smoother, and more consistent operation, reducing the need for manual labor and increasing overall productivity.
• Applications: These hoists are ideal for high-frequency lifting tasks found in industrial environments, warehouses, assembly lines, and heavy-duty workshops, where continuous or regular operation is necessary.
• Benefits: Designed for continuous operation, electric hoists offer higher lifting capacities and faster cycle times. This makes them an excellent choice for more demanding environments, enhancing operational efficiency and minimizing downtime.

Choosing the Right Hoist Type

Selecting the right hoist type for your column-mounted jib crane depends on the specific needs of your workspace. For light, occasional tasks, manual hoists are a cost-effective and flexible choice. On the other hand, if you require high lifting capacities and continuous operation, electric hoists are the more efficient option, providing the reliability and speed needed for industrial or high-demand environments.

Carefully considering factors like frequency of use, load weight, and operational demands will help ensure you choose the most suitable hoist to optimize your crane's performance and efficiency.

By Rotating Design

Manual Rotating Cranes Manual rotating column-mounted jib cranes require the operator to control the crane's rotation, offering a more hands-on, precise approach.

• Operator-Controlled: The crane's rotation is manually adjusted by the operator, allowing for careful positioning and control of the load.
• Applications: Ideal for tasks where the rotation angle is adjusted less frequently, or for environments that require precise, fine-tuned movements. These cranes are often used in assembly lines, maintenance areas, and small workshops.
• Benefits: Manual rotation is simple, cost-effective, and has no need for electrical components, making it an economical option for environments with lighter, less frequent operational demands.

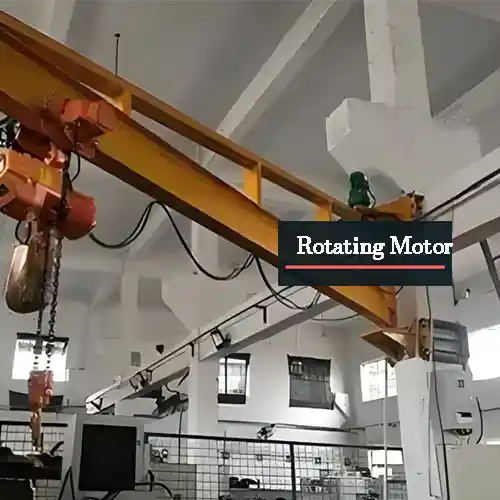

Electric Rotating Cranes Electric rotating column-mounted jib cranes feature an automated rotation system, providing smooth and quick movement with minimal operator effort.

• Automated Rotation: The electric system allows for faster and more efficient rotation, which enhances productivity and reduces operator fatigue.
• Applications: These cranes are best suited for high-volume, continuous operations where quick rotation and convenience are essential, such as in large warehouses, manufacturing plants, or high-speed assembly lines.
• Benefits: Electric rotating cranes offer increased efficiency, especially in applications requiring frequent or rapid adjustments. They also improve operator safety by reducing the manual handling required and minimizing the risk of errors.

Choosing Between Manual and Electric Rotating Designs

When deciding between manual or electric rotating designs, consider key factors like the frequency of crane rotation, desired speed, and precision requirements:

• Manual Rotating Cranes are well-suited for tasks with less frequent rotation, offering precision and control for lighter, occasional use.
• Electric Rotating Cranes are ideal for high-efficiency, high-frequency applications, providing faster rotation speeds and enhanced productivity.

Ultimately, your choice should align with your operational needs, balancing cost considerations with the required performance for your specific work environment.

By Installation Column Type

Concrete Wall Column Jib Crane

Steel Beam Column Jib Crane

Concrete Wall Columns Concrete wall columns are a popular choice for column-mounted jib cranes, particularly in environments where durability and stability are paramount.

• Stability: Concrete columns provide a robust foundation, ensuring crane stability during operations, especially when handling heavy or dynamic loads.
• Reinforcement Needs: While concrete is strong, it may require additional reinforcement or support to handle large or high-capacity loads. This is particularly important for cranes operating under heavy-duty conditions.
• Applications: Concrete columns are commonly used in manufacturing facilities, large warehouses, or environments where the crane needs to be securely anchored and where space limitations are not a concern.
• Benefits: Concrete columns offer long-lasting support with minimal maintenance, making them a reliable option for static, high-load environments. Their durability makes them ideal for heavy-duty tasks.

Steel Beam Columns Steel beam columns offer a more flexible and lightweight solution while still providing the necessary strength for crane operations.

• Flexibility and Strength: Steel columns are lighter than concrete, offering greater flexibility in design and easier installation. They still provide substantial strength for handling moderate to heavy loads.
• Less Reinforcement: Compared to concrete, steel beam columns typically require less reinforcement, making them quicker and more cost-effective to install.
• Applications: Steel beam columns are ideal for environments that require flexibility, such as warehouses with changing layouts or industries with moderate to heavy load requirements. They are also suitable for facilities that might need to modify or relocate equipment.
• Benefits: Steel columns are easier to modify or relocate, providing greater adaptability. They are particularly beneficial in dynamic environments where the crane system might need to be adjusted or reconfigured as facility needs evolve.

Choosing Between Concrete and Steel Beam Columns

When deciding between concrete and steel beam columns, consider the following factors:

• Load Requirements: Concrete columns are better suited for heavy-duty applications that require superior stability and strength. Steel beam columns, on the other hand, offer sufficient support for moderate to heavy loads with the added benefit of flexibility.
• Space Constraints: Concrete columns require more space for installation, whereas steel beam columns are more adaptable and can fit in tighter spaces.
• Flexibility Needs: Steel columns are a better choice for environments where the layout may change over time or where crane systems might need to be adjusted or relocated.

Ultimately, the choice between concrete and steel beam columns depends on the specific needs of your facility, the type of work being performed, and the level of flexibility required. Concrete columns offer stability and durability for static, heavy-load environments, while steel beam columns provide adaptability and cost-effective installation options for more dynamic spaces.

Customizable Options on Wall-Mounted Jib Cranes

Wall-mounted jib cranes are versatile material handling solutions that can be customized to fit the specific needs of your workspace. Below are key features that can be tailored to optimize crane performance for different operational environments.

Arm Length

• Standard Arm Lengths: Wall-mounted jib cranes are often available with standard arm lengths that are suitable for general material handling needs in typical environments such as warehouses or small workshops.
• Custom Arm Lengths: For more specialized workspaces, custom arm lengths can be designed to extend or shorten the crane's reach. This ensures that the crane can access hard-to-reach areas or cover a larger workspace, making it more efficient for specific tasks.
• Adjustable Lengths: Some models come with adjustable arms that can extend or retract based on operational requirements. This provides greater flexibility for varying load sizes and workspace configurations, allowing the crane to adapt to changing needs.

Lifting Height

• Standard Lifting Heights: Wall-mounted jib cranes are generally available with standard lifting heights that meet typical operational requirements for everyday material handling tasks.
• Custom Lifting Heights: If your facility has higher ceilings or you need to lift materials to a specific height, custom lifting heights can be specified. This option ensures that the crane can lift materials to the precise height required for specialized tasks, such as lifting heavy machinery or bulky items.
• Variable Heights: Certain models offer adjustable lifting heights, allowing flexibility for handling different load types or accommodating changes in your facility layout. This feature is especially useful for dynamic work environments where operational needs may evolve.

Hoist Type

• Manual Hoists: Manual hoists are a cost-effective option for light-duty tasks and less frequent lifting operations. They are ideal for small-scale operations, where precise control and occasional use are required. Manual hoists offer simplicity and low maintenance.
• Electric Hoists: For more frequent lifting or heavier loads, electric hoists are the preferred option. They offer faster lifting speeds and greater efficiency, reducing operator effort and enhancing productivity. Electric hoists are perfect for high-volume tasks, such as in industrial environments and assembly lines.
• Pneumatic Hoists: In environments where harsh conditions like high humidity or exposure to chemicals are common, pneumatic hoists are ideal. They provide smooth, reliable lifting without the need for electrical power and are known for their durability and high performance in tough conditions.

Anti-Corrosion Coatings

Standard Coatings: Wall-mounted jib cranes typically come with standard protective coatings to prevent wear and tear from general use. These coatings provide a basic level of protection against minor environmental factors.

Specialized Anti-Corrosion Coatings: For operations in harsh environments, specialized coatings are available to protect the crane from corrosive elements. This is especially important in industries such as marine, chemical, or food processing, where exposure to saltwater, chemicals, or high humidity is common.

• Galvanized Coating: Commonly used in outdoor and marine applications, galvanized coatings offer excellent resistance to corrosion caused by exposure to saltwater and moisture.
• Epoxy or Powder Coating: Ideal for environments exposed to chemicals, extreme temperatures, or abrasive elements, these coatings provide enhanced durability and resistance, ensuring the crane maintains its integrity over time.

These customizable features make wall-mounted jib cranes an excellent choice for a wide variety of applications, ensuring that they can be tailored to meet specific operational needs. Whether you need a crane for high-frequency use in a manufacturing line or for occasional lifting in a harsh environment, these options help optimize crane performance, increase longevity, and provide cost-effective solutions for your material handling needs.

Hot Sale Capacity of Wall Column Jib Cranes

Wall column-mounted jib cranes come in a variety of capacities, catering to a wide range of lifting requirements. These popular capacities are designed to handle different load sizes, ensuring businesses can choose the right solution for their specific needs.

• 500 kg (0.5 ton): Ideal for light loads, this capacity is perfect for small workshops or facilities where lighter materials such as tools, equipment, and smaller components need to be moved. It is commonly used in assembly lines, maintenance tasks, and light material handling operations where space is limited.
• 1 Ton: A versatile option for small to medium loads, the 1-ton capacity is widely used in general industrial applications. It is suitable for lifting materials like motors, machine parts, and other medium-sized components. This capacity is typically found in smaller manufacturing environments, warehouses, and light industrial settings.
• 2 Ton: Offering a bit more lifting power, the 2-ton capacity is well-suited for handling medium-sized equipment and larger parts. It is commonly used in manufacturing, construction, and repair operations, where the lifting of heavier materials is routine, yet space efficiency remains a priority.
• 3 Ton: The 3-ton crane is designed for handling heavier loads, such as large machinery parts and bulky industrial goods. This capacity is frequently used in assembly lines, warehouses, and production areas where more substantial items need to be lifted safely and efficiently.
• 5 Ton: With a higher lifting capacity, the 5-ton crane is perfect for heavy-duty applications, capable of handling large, heavy parts, industrial equipment, and machinery. It is commonly employed in industries such as heavy manufacturing, automotive assembly lines, and large warehouses where there is a need to manage substantial materials.

These popular capacities ensure that wall column-mounted jib cranes are suitable for a wide variety of industrial environments, providing efficient, safe, and space-saving lifting solutions for different load sizes.

Key Features of Wall Column-Mounted Jib Cranes

• Clamping Design: Wall column-mounted jib cranes are designed to be securely attached to existing vertical columns, whether they are concrete or steel. This clamping design simplifies the installation process, minimizing the need for major structural modifications and reducing setup time. This makes them an ideal solution for companies looking to maximize space and improve material handling efficiency with minimal disruption to existing facilities.
• Rotational Capabilities: Typically, wall column-mounted jib cranes offer a standard 270-degree rotation, providing ample coverage within the workspace. However, depending on the specific operational needs, the rotation range can be customized. Whether the workspace is confined or requires more flexibility, these cranes can be adapted to suit a variety of material handling tasks, improving efficiency and versatility in the workplace.
• Load Handling Capacity: Wall column-mounted jib cranes come in a wide range of capacities to accommodate different lifting needs. From lighter loads such as tools and small parts to heavier materials like machinery and equipment, these cranes are designed to handle the specific weight requirements of various applications. The selection of the right load capacity ensures safe and efficient lifting operations, whether it's for assembly lines, maintenance tasks, or other industrial processes.
• Customization: One of the main advantages of wall column-mounted jib cranes is their customization options. These cranes can be tailored to suit specific requirements, including adjustable arm lengths, varying lifting heights, and hoist types. Additionally, options for anti-corrosion coatings can be included for use in harsh environments, such as marine or chemical applications. The ability to customize these cranes ensures that they are well-suited to the unique needs of each workplace, enhancing both functionality and performance.

270-Degree Wall Column-Mounted Cranes vs. 360-Degree Rotation Pillar Column-Mounted Cranes

Wall Column-Mounted Jib Cranes (270-Degree Rotation)

Pillar-Mounted Jib Cranes (360-Degree Rotation)

Column-Mounted Jib Cranes (270-Degree Rotation)

Column-mounted jib cranes with a 270-degree rotation are designed for more confined workspaces. These cranes offer efficient material handling in areas where full rotation is not required. They are typically mounted on existing concrete or steel columns, which helps save floor space and simplifies installation.

• Rotation: Up to 270 degrees.
• Ideal for: Semi-circular workspaces or confined areas.
• Mounting: Attached to existing vertical columns.
• Applications: Perfect for assembly lines, small warehouses, and maintenance tasks.

These cranes provide sufficient coverage in many industrial environments while optimizing available space. The 270-degree rotation is perfect for handling tasks within a limited range, offering a cost-effective and space-efficient solution.

Pillar-Mounted Jib Cranes (360-Degree Rotation)

Pillar-mounted jib cranes offer a full 360-degree rotation, allowing unrestricted movement in any direction. These cranes are supported by independent freestanding pillars, offering maximum flexibility and coverage over large areas. They are ideal for tasks that require a full-circle range of motion.

• Rotation: Full 360 degrees.
• Ideal for: Large, open workspaces.
• Mounting: Freestanding pillar.
• Applications: Suitable for large manufacturing facilities, extensive maintenance areas, and multi-directional material handling.

Pillar-mounted jib cranes are perfect for operations where versatility and complete rotational movement are required. They provide full access to the entire workspace, making them ideal for larger environments where flexibility is essential.

Key Differences

• Rotation Range: Column-mounted cranes are limited to 270 degrees, while pillar-mounted cranes offer full 360-degree rotation.
• Workspace Coverage: 270-degree cranes are better for smaller, semi-circular areas, while 360-degree cranes provide complete access in large open spaces.
• Mounting: Column-mounted cranes utilize existing vertical columns, while pillar-mounted cranes are supported by their own independent pillars.

In conclusion, the choice between 270-degree wall column-mounted jib cranes and 360-degree pillar-mounted jib cranes depends on the specific requirements of your workspace, such as size, rotation needs, and available mounting options.

Advantages and Disadvantages of Wall Column-Mounted Jib Cranes

Advantages of Wall Column-Mounted Jib Cranes

• Space Efficiency Wall column-mounted jib cranes are highly space-efficient, as they utilize existing vertical columns for support. This eliminates the need for additional floor space, making them ideal for tight or cluttered work environments.
• Cost-Effective Installation These cranes require minimal structural modifications, which lowers the overall cost of installation. Attaching the crane to an existing column reduces the need for a freestanding support structure, which can be expensive and time-consuming to install.
• Quick and Simple Installation The installation process is relatively straightforward and can typically be completed faster than for freestanding cranes. This is due to the simplified design, which doesn't require complex foundations or heavy structural reinforcements.
• Flexibility and Adaptability Wall column-mounted jib cranes can be customized in terms of arm length, lifting height, and hoist type. This adaptability makes them suitable for a wide range of applications, from light-duty material handling to more heavy-duty tasks.
• Increased Productivity These cranes improve efficiency by allowing workers to lift and move materials within a defined workspace, reducing manual labor and increasing overall productivity. The 270-degree rotation range ensures that materials can be accessed from multiple angles within the workspace.
• Reduced Operational Costs Since these cranes use existing columns, they reduce the need for additional construction or infrastructure changes, helping to lower both installation and long-term operational costs.

Disadvantages of Wall Column-Mounted Jib Cranes

• Limited Rotation Range One of the primary drawbacks of wall column-mounted jib cranes is their limited rotation range, typically up to 270 degrees. This limitation means that these cranes are not suitable for applications that require a full 360-degree rotational range, which is necessary for some larger or more dynamic workspaces.
• Dependence on Existing Structure The performance and safety of wall column-mounted jib cranes are dependent on the strength and stability of the existing column. If the column is not structurally sound or suitable for supporting the crane's load, reinforcement may be needed, which could add additional costs.
• Limited Workspace Coverage Wall column-mounted jib cranes are best suited for semi-circular or defined areas, which can limit their use in more expansive, open work environments. For full workspace coverage, a pillar-mounted crane may be a better option.
• Load Capacity Restrictions While wall-mounted cranes are available in a range of load capacities, they may not be suitable for handling extremely heavy loads, especially in applications that require lifting at maximum reach. The crane's capacity is often determined by the column's strength and design, which may require extra considerations for heavy-duty applications.
• Installation Constraints Although the installation is generally simple, it may still be constrained by the available space and the existing structure's compatibility. Some columns may require additional reinforcement or may not be able to accommodate a crane, limiting the installation flexibility.

In summary, wall column-mounted jib cranes offer significant space savings, cost efficiency, and operational flexibility in suitable applications. However, their limitations in rotation range, dependence on existing structures, and potential load capacity restrictions should be considered when evaluating whether they are the right choice for a specific operation.

Wall Column Size Considerations When Buying

When purchasing a wall column-mounted jib crane, it's essential to consider the size and strength of the column to ensure the crane operates safely and efficiently. The key factors to evaluate include column diameter or width, height, material strength, and foundation design.

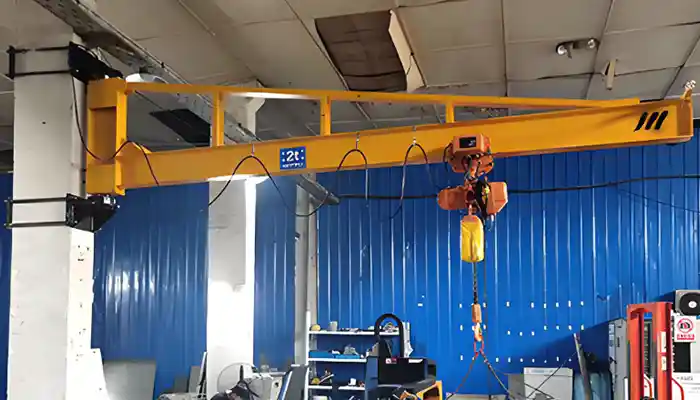

2 ton wall mounted jib crane mounted on concrete column

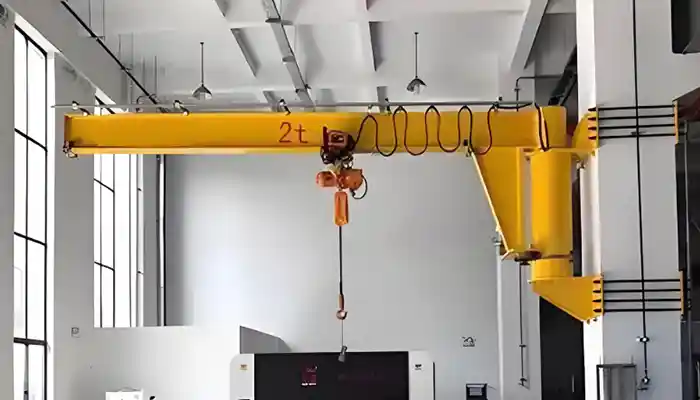

2 ton wall mounted jib crane mounted on concrete column

Column Diameter or Width

• Load-Bearing Capacity: The size of the column plays a vital role in determining how much weight it can support. A larger diameter or width allows for greater load-bearing capacity, enabling the crane to handle heavier weights. Smaller columns may not be able to support such loads and could require additional reinforcement to ensure safety.
• Design Requirements: A larger column offers more stability and may allow for larger cranes with higher capacity. Conversely, a smaller column may limit crane size and design options, potentially requiring specialized reinforcement.

Column Height

• Impact on Lifting Reach: The height of the column determines how high the crane can lift objects. Taller columns offer greater vertical clearance, making it easier to lift items to higher elevations and access elevated work areas.
• Crane Performance: A taller column allows the crane to reach higher areas within the workspace, improving overall crane performance. Columns that are too short could limit vertical reach, restricting the crane's ability to lift large or tall items.

Material Strength and Type

• Concrete Columns: Concrete columns are known for their strength and durability, especially when handling heavy loads. However, they may require additional reinforcement to prevent settling or failure under load. For heavy-duty applications, concrete columns might need external reinforcements like steel bracing or plates.
• Steel Columns: Steel columns offer flexibility in design and are generally stronger than concrete columns. However, they are more prone to buckling under extreme loads or dynamic stresses. Steel columns must be carefully assessed for structural integrity and may require reinforcement to handle higher loads or operational forces.

Foundation Design

• Ensuring Stability: The foundation is critical for the stability of the column-mounted jib crane. Whether the column is made of concrete or steel, a solid, level foundation is essential to prevent movement or tilting, which could compromise the crane's function and safety.
• Size and Depth Requirements: The foundation size and depth depend on the column material and the crane's load capacity. Heavy-duty columns or taller cranes require deeper and more robust foundations. A foundation that is too small or shallow may not provide the stability needed for safe operation.

By understanding the influence of column diameter, height, material strength, and foundation design, you can select the appropriate column type for your jib crane. Proper column sizing ensures the crane will operate effectively, handle the necessary loads, and minimize the need for reinforcements, installation complexity, and long-term maintenance costs.

Impact of Jib Crane Column Size on Crane Cost

When planning the installation of a wall-mounted jib crane, the size and design of the supporting column—whether concrete or steel (H-beam)—play a significant role in determining both the installation and overall crane costs. Since the crane is directly attached to the wall column, careful consideration of the column design is essential before moving forward with the project. Here are the key factors to consider:

Column Design Considerations

• Pre-embedded Components in Concrete Columns: For concrete wall columns, it's recommended to include pre-embedded components, such as anchor bolts and mounting plates, within the column during its initial construction. These embedded components help ensure secure attachment and proper alignment of the crane, reducing installation time and complexity later on. Pre-embedding can be more cost-effective compared to retrofitting the column after construction, as it simplifies crane mounting and minimizes potential structural modifications.
• Steel (H-Beam) Columns: When using steel H-beam columns, the column design typically involves a more flexible and customizable structure. Steel beams are often easier to work with, and the installation can be more straightforward due to the strength and adaptability of the material. However, the costs associated with steel columns can vary based on the required load-bearing capacity and the complexity of welding or bolting needed for proper attachment.

Consultation and Custom Design Services

• Column Design Consultation: It is highly recommended to consult with experts when designing the wall column for crane installation. Professional consultation ensures that the column can support the specific crane model, load capacity, and operational requirements. Experts can also assist in determining whether additional reinforcement is needed to ensure the column meets safety standards and performance expectations.
• Custom Design Adjustments: In some cases, custom column designs may be necessary to accommodate specific crane systems, such as those requiring unusual lifting capacities or workspace configurations. Customizing the column design, whether it's adjusting the size, material, or reinforcements, will influence both the material costs and the overall crane installation cost.

Column Size and Crane Cost

• Impact on Material Selection: The size and material of the column affect both the cost of the crane installation and the crane's overall performance. Larger columns or those requiring additional reinforcement will increase the initial installation costs. Additionally, selecting higher-strength materials, such as reinforced concrete or steel, may raise upfront material costs but can result in reduced maintenance costs and a longer lifespan.
• Direct Crane Cost. When the mounted column is designed with extra large sizes, the t
• Impact on Installation Complexity: Columns with non-standard sizes, intricate reinforcement, or unusual designs may increase the complexity of the installation process. More detailed planning and engineering input will be required, which can lead to higher installation costs. However, a well-designed column and proper preparation can reduce the overall installation time and help minimize costly delays.

In conclusion, the design and size of the column are integral to the overall cost of the jib crane installation. Whether using concrete or steel columns, it is crucial to plan the column design carefully in advance to ensure the crane will operate safely and efficiently. Pre-embedded components, expert consultation, and custom design adjustments can help optimize both the installation process and long-term cost-effectiveness.

Installation Process of Wall Column Jib Cranes

Installing a wall-mounted jib crane requires careful planning and precise execution. The installation process involves evaluating the workspace, assessing the structural integrity of the supporting columns, and following specific steps to secure the crane components. Here's an overview of the key stages in the installation of wall column-mounted jib cranes:

Preparation and Site Assessment

Before the installation begins, a thorough assessment of the site is essential to ensure everything is in place for a smooth setup. This process includes:

• Evaluating Available Space: Determine the available space for the crane's movement and operation. This includes considering headroom, access points, and the area around the column to ensure the crane can operate without obstructions.
• Column Type and Load Requirements: Assess whether the column is concrete or steel, and calculate the load capacity of the column to ensure it can safely support the crane and the materials it will handle. The type of column will affect the installation approach and material requirements.
• Structural Integrity of Columns: Ensure that the column (whether concrete or steel) is structurally sound and capable of withstanding the forces exerted by the jib crane during operation. For concrete columns, verify that they are properly reinforced. For steel columns, check the strength and weld points to ensure they will bear the necessary loads.
• Foundation Evaluation: The foundation must be checked to ensure it can support the crane's weight and operational load. If additional reinforcement is needed, such as reinforcing the foundation for heavier cranes, this should be done before proceeding with installation.

Installation Steps for Wall-Mounted Jib Cranes

The installation process for a wall-mounted jib crane depends on the type of supporting column—concrete or steel. Each material has its specific requirements to ensure a safe and stable installation. Below are the detailed installation steps for both concrete and steel columns.

Concrete Columns

For concrete wall columns, the installation process generally involves the following steps:

• Drill Anchor Points: Start by drilling holes at the specified anchor points on the concrete column. These points are critical for securing the crane's mounting brackets and must align precisely with any pre-embedded components or anchor bolts in the column. Proper alignment ensures the crane is securely attached and able to handle the intended loads.
• Use Chemical Anchors: Chemical anchors, also known as resin-based adhesives, are commonly used to secure the bolts into concrete. These anchors provide a strong bond that improves the holding capacity of the bolts, ensuring that the crane's components are firmly attached to the column. The use of chemical anchors is particularly effective for securing heavy-duty cranes that will bear significant loads.
• Reinforce as Necessary: Depending on the required load-bearing capacity, additional reinforcement may be needed for the concrete column. If the crane will handle heavy or high-capacity loads, you may need to add steel plates or structural supports around the anchor points. This reinforcement helps ensure the stability of the crane and prevents damage to the concrete column over time.

Steel Columns

For steel beam wall columns, the installation steps typically include:

• Bolting or Welding: The mounting brackets of the crane are either bolted or welded directly to the steel beam. The choice between bolting and welding will depend on the design of the crane and the load requirements. Bolting offers flexibility for future adjustments, while welding provides a permanent, solid attachment. Either method ensures a strong connection to the steel column, capable of supporting various loads.
• Adding Gussets or Plates: In cases where additional strength is needed, gussets or reinforcing plates may be welded or bolted to the steel column. These additional supports help distribute the load more evenly and provide extra stability, particularly in applications where the crane will handle heavy loads or operate in challenging conditions. Reinforcing plates are essential for ensuring the crane's structural integrity over the long term.

The installation process for wall-mounted jib cranes varies based on whether the supporting column is concrete or steel. For concrete columns, the process involves drilling anchor points, using chemical anchors, and reinforcing the column if necessary. For steel columns, the crane is typically bolted or welded to the column, with gussets or plates added for additional support as needed. Proper installation ensures the crane operates efficiently, safely, and reliably.

Alignment and Stability

Proper alignment and stability are crucial for the crane's safety and effective operation. During the installation, ensure that:

• Proper Alignment of Crane Components: The crane arm, hoist, and rotating mechanisms should be aligned correctly with the column and other structural components. Misalignment can cause uneven load distribution, which may lead to operational inefficiency or damage to the crane and supporting structures.
• Stability Check: After the crane is mounted, check for stability to ensure that the crane doesn't tilt, sway, or move during operation. This is especially important for cranes in high-load or high-traffic areas.
• Test the Crane Mechanism: Once installation is complete, conduct tests to ensure that the crane operates smoothly and that the hoisting, rotating, and lifting functions are working as expected. A load test may also be conducted to verify the crane's load capacity and stability under typical operational conditions.

The installation of wall column-mounted jib cranes involves careful site assessment, selection of the right mounting method based on column type, and ensuring proper alignment for stability. By following these steps and ensuring thorough preparation, crane owners can ensure a safe, efficient, and long-lasting installation. Whether working with concrete or steel columns, professional consultation and precise installation practices are key to achieving optimal crane performance.

Operational Considerations for Wall Column-Mounted Jib Cranes

When operating wall column-mounted jib cranes, several key factors contribute to the safety, longevity, and efficiency of the equipment. Proper safety protocols, routine maintenance, and space optimization are essential for ensuring smooth and productive crane operations in the workplace. Below are the critical operational considerations for these cranes:

Safety Protocols

Overload Protection: Wall column-mounted jib cranes should be equipped with overload protection mechanisms to prevent the crane from lifting more than its rated capacity. This feature ensures that the crane operates within safe limits, reducing the risk of structural damage, failure, or injury.

Emergency Stop Mechanisms: An emergency stop function is essential for quickly halting crane operation in case of a malfunction or emergency situation. Operators should be trained to use the emergency stop button properly and know how to react in case of unforeseen circumstances, such as load imbalance or mechanical issues.

Operator Training: Proper training is critical to ensure crane operators are aware of safe operational practices, such as how to handle loads safely, perform daily inspections, and understand the limitations of the crane. Training programs should include:

• Safe lifting techniques.
• Correct use of the hoist and crane arm.
• Procedures for avoiding swinging loads or hazardous movement.
• Proper emergency shutdown procedures.

Load Handling Practices: Operators should be educated on load distribution, securing loads, and avoiding excessive swinging, which could affect both safety and the crane's lifespan. Clear communication and signaling practices should be in place to ensure safe interactions with other workers and prevent accidents.

Maintenance and Longevity

Regular Inspections: Routine inspections are crucial to maintaining the crane's performance and safety. Operators and maintenance personnel should check the following key components regularly:

• Crane Arm: Look for signs of wear, cracking, or bending. Any structural weakness in the arm could compromise safety.
• Hoist Mechanism: Ensure that the hoist functions smoothly, checking for fraying or wear on the cables, proper lubrication, and overall operation.
• Rotating Mechanisms: Inspect the rotation bearings and drives to prevent misalignment, wear, or failure. Properly maintained rotation systems ensure smooth operation and protect the crane's structural integrity.

Column Integrity: The supporting column must be regularly checked for signs of corrosion, wear, or structural damage, especially in environments with high humidity, chemicals, or harsh conditions. Reinforcement may be needed over time if load demands increase or the column shows signs of deterioration. Ensuring column stability is crucial for preventing accidents.

Lubrication and Cleaning: Keeping the crane's moving parts clean and well-lubricated ensures smooth operation and reduces wear and tear. Regular cleaning also helps identify any issues early on, such as loose bolts, frayed cables, or excessive dust accumulation.

Scheduled Maintenance: It's important to establish a routine maintenance schedule that includes checking key components, lubricating moving parts, and replacing worn-out elements before they fail. Maintenance should be done according to the manufacturer's recommendations, which will vary based on crane usage and environmental conditions.

Space Optimization

Maximizing Workspace: One of the primary benefits of wall column-mounted jib cranes is their ability to save space. By mounting the crane to an existing wall column, you can optimize the available floor space, especially in tight areas. This is particularly valuable in:

• Confined or High-Density Workspaces: Where maximizing usable floor area is critical for other activities, such as assembly, storage, or additional machinery.
• High Ceilings: Wall-mounted cranes allow full use of vertical space, utilizing headroom without occupying valuable floor area, and they are ideal for environments with limited floor space.

Efficient Material Handling: Wall-mounted jib cranes are highly effective for material handling in areas where conventional overhead cranes may be too large or impractical. They provide precise control and accessibility in narrow aisles or between machines, enhancing workflow and reducing the time spent transporting materials.

Integration into Layout: Careful planning of crane placement can further enhance workspace optimization. Mounting the jib crane at an optimal height and position ensures that it reaches the desired lifting areas without blocking pathways or interfering with other equipment.

The operational success of wall column-mounted jib cranes relies on adherence to safety protocols, regular maintenance, and effective space utilization. By implementing safety measures, conducting routine inspections, and optimizing workspace design, you can ensure that the crane operates efficiently, with minimal downtime, and contributes to a productive and safe working environment. Regular operator training and a proactive maintenance approach will also enhance the crane's longevity and performance.

Applications of Wall Column Jib Cranes

Wall column-mounted jib cranes are versatile material handling solutions widely used across various industries. Their compact design and space-saving functionality make them ideal for improving efficiency in a variety of applications. Below are the key applications of these cranes:

Manufacturing and Assembly

• Material Movement Between Workstations: Wall column-mounted jib cranes are often used in manufacturing environments to move materials or components between different workstations. By reducing the need for manual lifting and transport, these cranes help streamline the production process, increase speed, and reduce worker fatigue.
• Improved Assembly Line Productivity: In assembly lines, where precision and speed are crucial, wall-mounted jib cranes allow for quick and easy lifting of parts and materials. The ability to rotate within a defined workspace helps position components precisely where they are needed, enhancing assembly line flow and overall productivity.

Warehousing and Storage

• Efficient Loading and Unloading: Wall column-mounted jib cranes are commonly used in warehouses to load and unload heavy or bulky items, such as pallets, containers, or machinery. The crane's ability to rotate and move loads efficiently helps speed up loading times and reduces physical strain on workers.
• Stock Retrieval: In storage facilities, where items are stored in high or hard-to-reach locations, these cranes can be used to retrieve or reposition stock. The flexibility to adjust arm length and lifting height allows for optimal reach, ensuring quick and safe retrieval of stored items, especially in confined spaces.

Maintenance and Repairs

• Servicing Heavy Machinery in Confined Spaces: Wall-mounted jib cranes are invaluable for maintenance and repair tasks, particularly in workshops or garages with limited space. They allow workers to lift and maneuver heavy machinery, equipment, or parts in tight areas where larger cranes cannot operate. This application is ideal for servicing industrial machinery, vehicles, or HVAC units.
• Heavy Equipment Handling: These cranes are well-suited for lifting heavy components like engines, motors, or generators for maintenance or repairs. The precise control and rotating capabilities of wall-mounted jib cranes help position loads accurately without damaging surrounding equipment or structures.

Marine and Dockyards

• Efficient Cargo Handling: In marine environments, wall column-mounted jib cranes are used for handling cargo, especially in dockyards or harbors. They can load and unload shipping containers, supplies, or smaller materials from ships to docks and vice versa. Their compact size allows them to be installed in tight spaces on ships or along docks.
• Anti-Corrosion Options: Given the harsh conditions of marine environments, including saltwater and extreme weather, many wall-mounted jib cranes come with anti-corrosion coatings. These coatings protect the crane from rust and deterioration, extending its lifespan and ensuring reliable performance in corrosive environments.

Wall column-mounted jib cranes offer great flexibility and efficiency across a wide range of applications, from manufacturing and warehousing to maintenance and marine operations. Their ability to handle heavy loads, improve operational productivity, and save valuable floor space makes them an indispensable tool for many industries. Whether you're looking to optimize a production line, improve warehouse workflows, or service large machinery, these cranes provide an effective and cost-efficient solution.

Selecting the Right Wall Column-Mount Jib Crane

Choosing the right wall column-mounted jib crane involves several key factors to ensure that the crane meets the operational requirements of your workspace, load handling needs, and structural considerations. Here's a guide to help you make the right selection:

Workspace Needs

• Rotational Range The rotational range of a jib crane is crucial to ensure that it can cover the required work area. Wall column-mounted jib cranes typically offer up to 270 degrees of rotation, which is ideal for semi-circular workspaces or tasks where full rotation is not required. If you need a full 360-degree rotation, a pillar-mounted jib crane may be a better solution. Consider the specific layout of your workspace to determine the ideal rotational range.
• Lifting Height and Arm Reach Define the lifting height and arm reach based on the tasks you need to perform. For example, if you're lifting materials from high shelves or racks, ensure that the crane arm can extend to the required height. Similarly, the reach of the crane arm should be sufficient to cover the required distance for lifting and moving loads in your workspace. Consider both the horizontal reach and vertical lifting capacity to optimize crane operation.

Load Capacity

• Select Capacity with a Safety Margin It's essential to select a crane with the right load capacity for your specific application. Choose a crane that matches the weight of the materials or equipment you plan to lift. However, it's always a good practice to select a crane with a slightly higher load capacity than your maximum expected load to allow for a safety margin and ensure reliable operation. Overloading a crane can cause wear and tear on components, increasing the risk of failure.
• Consider Operational Reliability In addition to selecting a crane based on the load requirements, ensure that the crane's components (hoist, arm, and rotating mechanisms) are durable enough for frequent use. For heavy-duty applications, electric hoists and robust crane designs will provide the efficiency and longevity needed to handle frequent or continuous operations.

Column Strength

• Concrete Columns Concrete wall columns are often a cost-effective option for jib crane installations. However, they may require reinforcement for heavier loads, particularly if the crane will be handling loads near the upper end of its capacity. When using concrete columns, ensure that they are properly reinforced and capable of handling the weight and stress exerted by the crane during operation.
• Steel Columns Steel columns are highly flexible and offer excellent load-bearing capacity, making them ideal for environments where both strength and flexibility are required. Steel columns are less likely to need reinforcement, but you should consider factors such as buckling and the potential for load distribution when designing the crane setup. Steel columns can also be more easily adapted to different crane configurations, which may be beneficial in applications with frequent layout changes.

Selecting the right wall column-mounted jib crane requires careful consideration of your workspace layout, the loads you plan to lift, and the strength of the columns supporting the crane. By aligning these factors, you can ensure a more efficient, safe, and cost-effective lifting solution for your operations. Always consult with a crane expert to get the most accurate recommendations based on your unique requirements.

Conclusion

Column-mounted jib cranes provide an excellent balance of cost-efficiency, space-saving design, and versatility, making them an ideal choice for a wide range of industrial applications. Whether you're working in manufacturing, warehousing, assembly lines, or maintenance, these cranes can significantly improve workflow efficiency and productivity.

When selecting a column-mounted jib crane, it's essential to carefully assess several factors: the workspace size and layout, the strength and type of the supporting column (concrete or steel), and the load capacity required for your specific tasks. Understanding these elements will help you choose the right crane to maximize its effectiveness and ensure safe, reliable operation.

Additionally, proper installation is critical for ensuring the crane's performance and stability. With the right installation, along with regular maintenance and inspections, you can significantly extend the life of the crane, reducing the risk of costly repairs and downtime.

Overall, column-mounted jib cranes are a valuable investment, offering flexibility, efficiency, and a solid return on investment when selected, installed, and maintained correctly.
